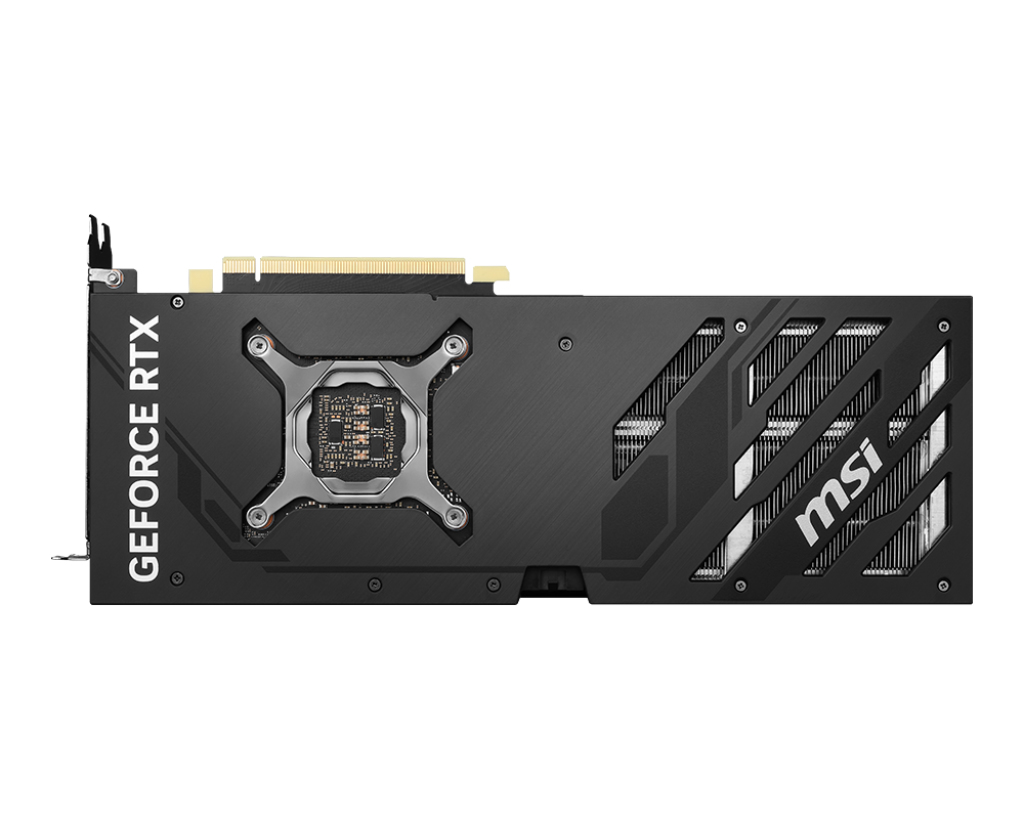

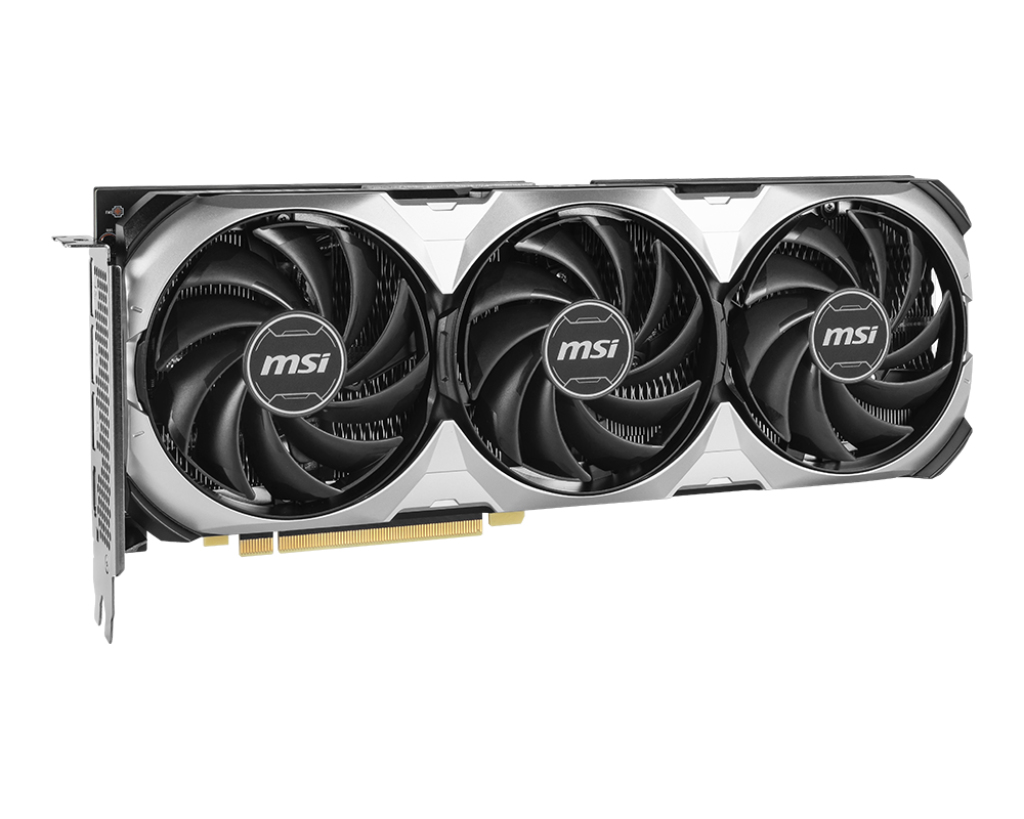

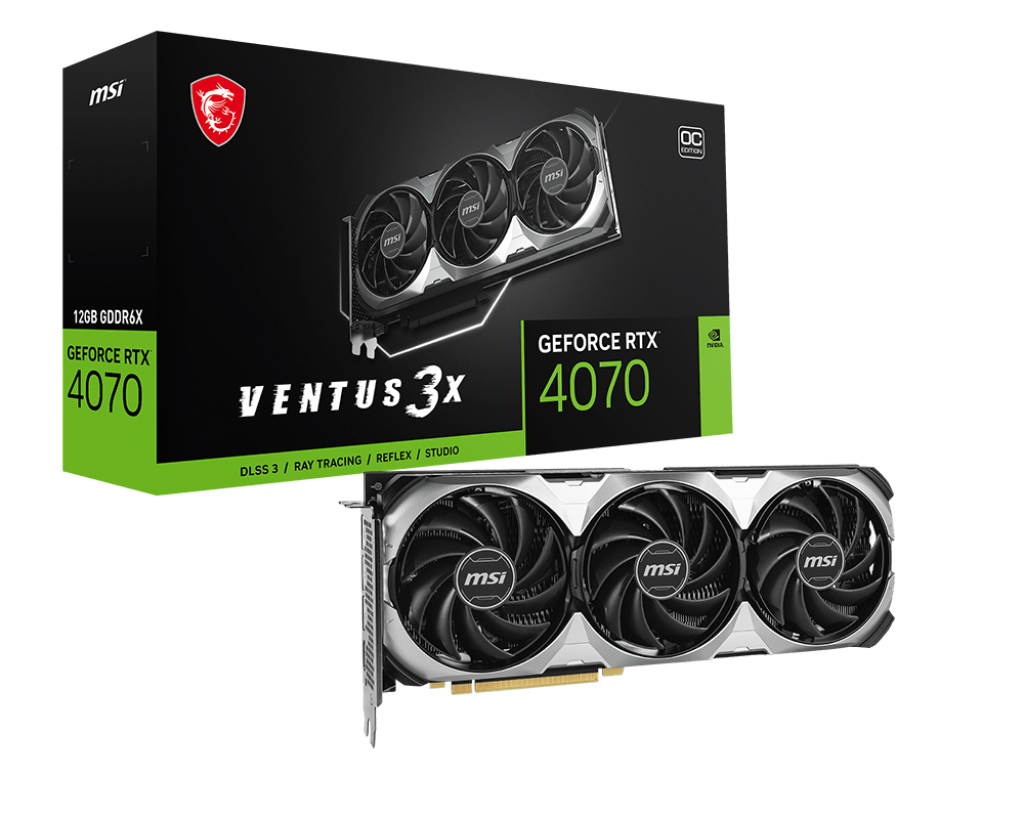

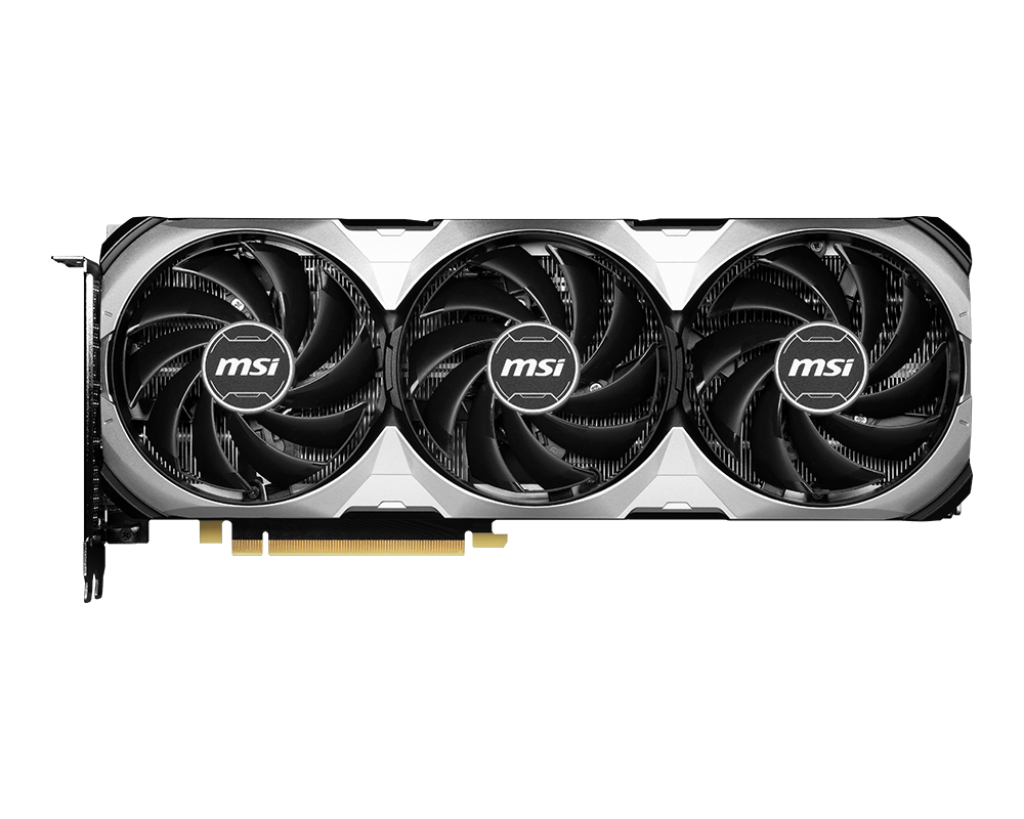

MSI GEFORCE RTX 4070 VENTUS 3X E 12G OC

GEFORCE RTX 4070 VENTUS 3X E 12G OC

Model GEFORCE RTX 4070 VENTUS 3X E 12G OCEAN 824142336090

39 specifications Checked today

TypeFull-Height/Full-Length (FH/FL)
Weight308 g
ColourBlack, Silver
Graphics processor familyNVIDIA
Discrete graphics card memory12 GB
Interface typePCI Express 4.0

See all specifications

Overview

Type: Full-Height/Full-Length (FH/FL)
Weight: 308 g
Colour: Black, Silver
Graphics processor family: NVIDIA
Discrete graphics card memory: 12 GB
Interface type: PCI Express 4.0

Brand: MSI
Category: GPU
Model: GEFORCE RTX 4070 VENTUS 3X E 12G OC
Part number: GEFORCE RTX 4070 VENTUS 3X E 12G OC
EAN / UPC: 824142336090, 4711377132060
Also known as: MSI VENTUS GEFORCE RTX 4070 3X E 12G OC graphics card NVIDIA 12 GB GDDR6X

Specifications

39 specifications in 8 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 4070
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	5888
Processor frequency	2520 MHz
Processor boost clock speed	2505 MHz
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	12 GB
Graphics card memory type	GDDR6X
Memory bus	192 bit
Data transfer rate	21 Gbit/s

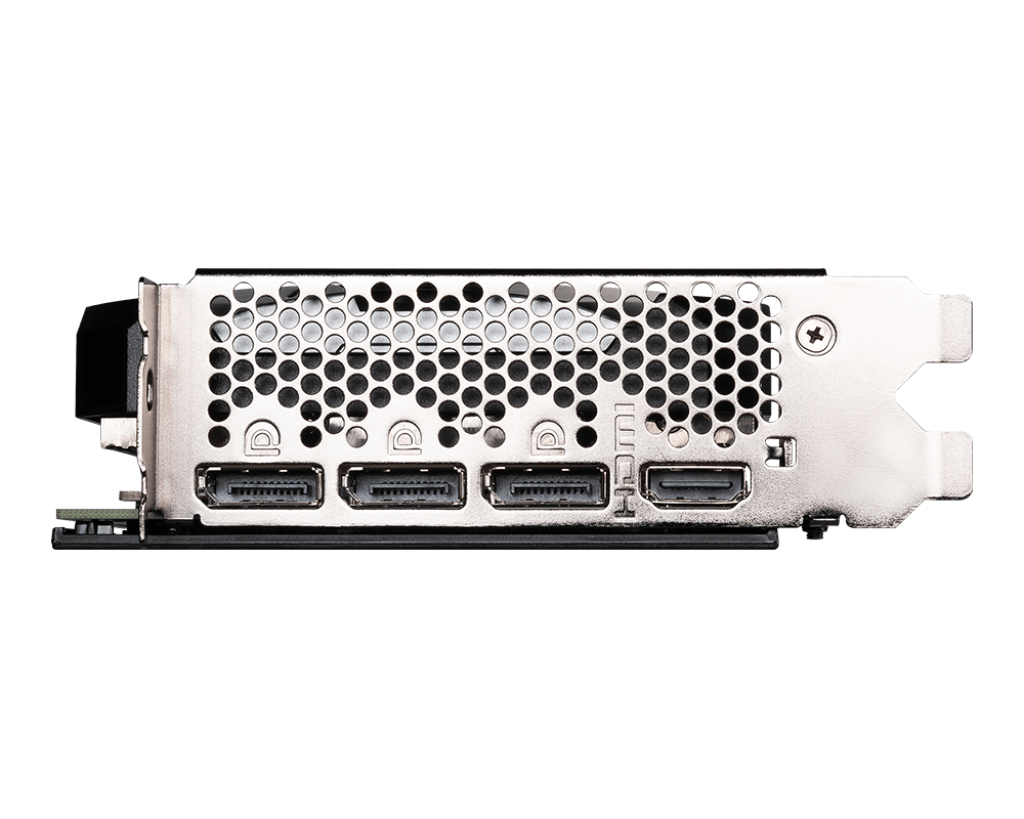

Ports & interfaces

Specification	Value
Interface type	PCI Express 4.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	1.2a
DisplayPort version	1.4a

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
NVIDIA G-SYNC	Yes

Design

Specification	Value
Cooling type	Active
Cooling technology	MSI TORX Fan 4.0
Number of fans	3 fan(s)
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Black, Silver

Power

Specification	Value
Minimum system power supply	650 W
Power consumption (typical)	200 W
Supplementary power connectors	1x 8-pin

Weight & dimensions

Specification	Value
Weight	308 g
Length	834 mm
Depth	43 mm
Height	120 mm

Packaging data

Specification	Value
Package weight	1.16 kg
Package type	Box
