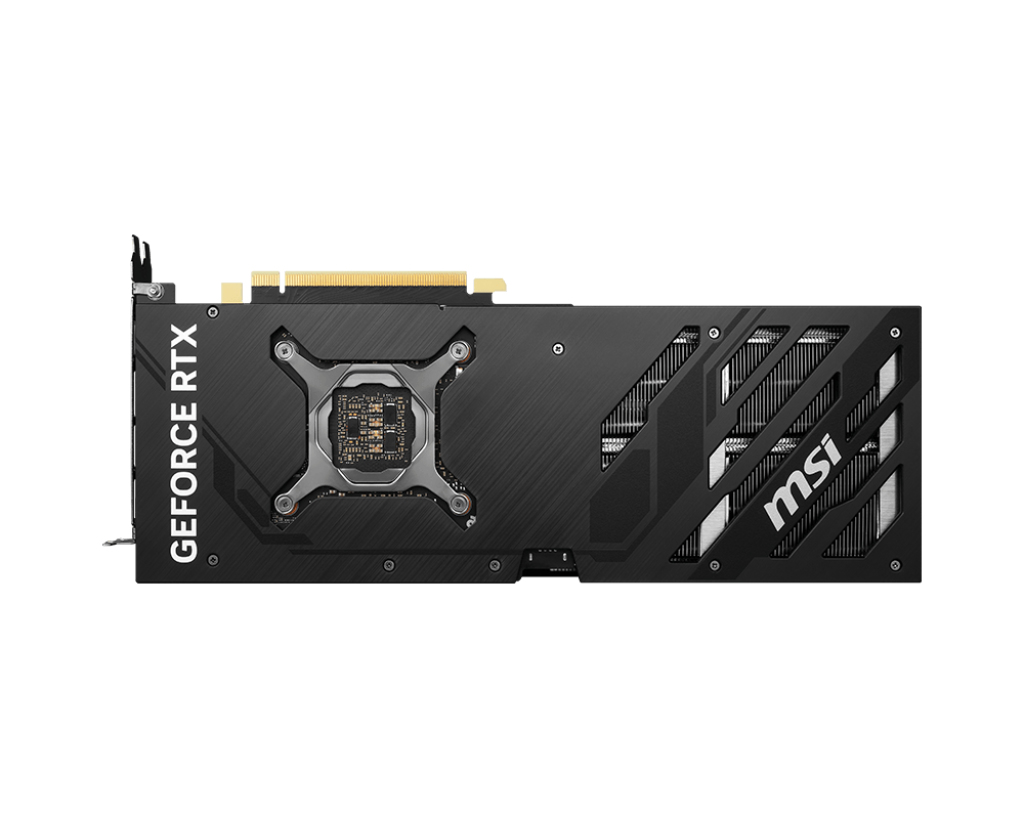

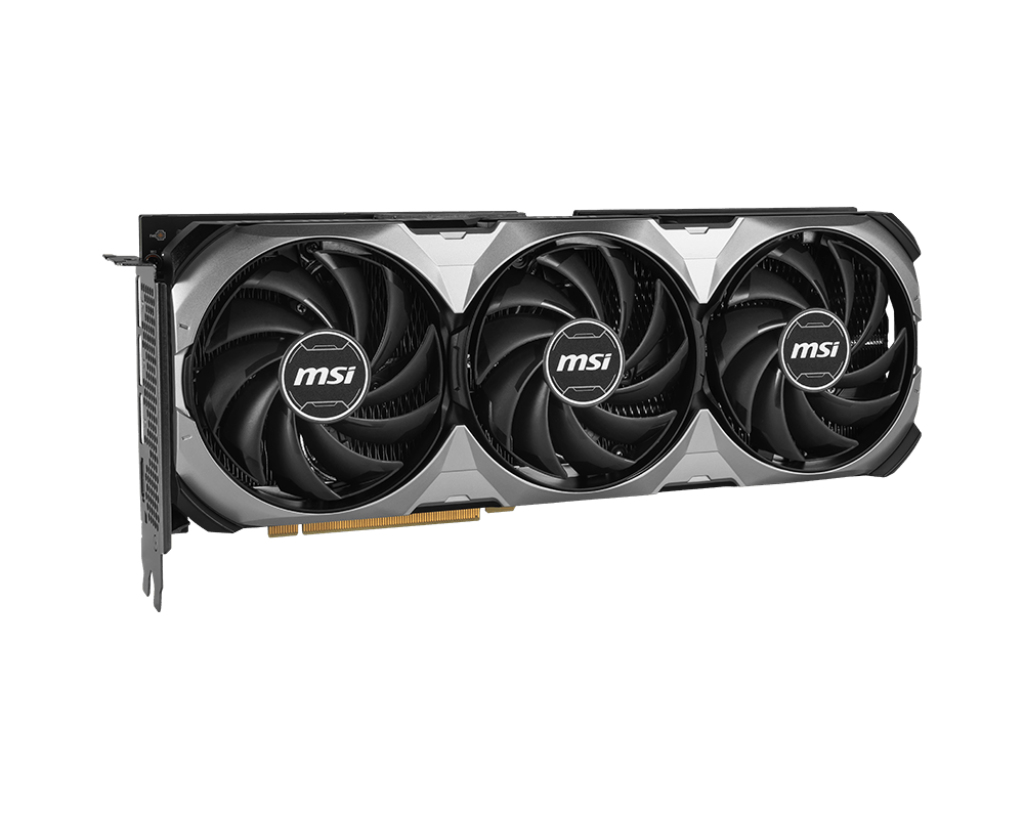

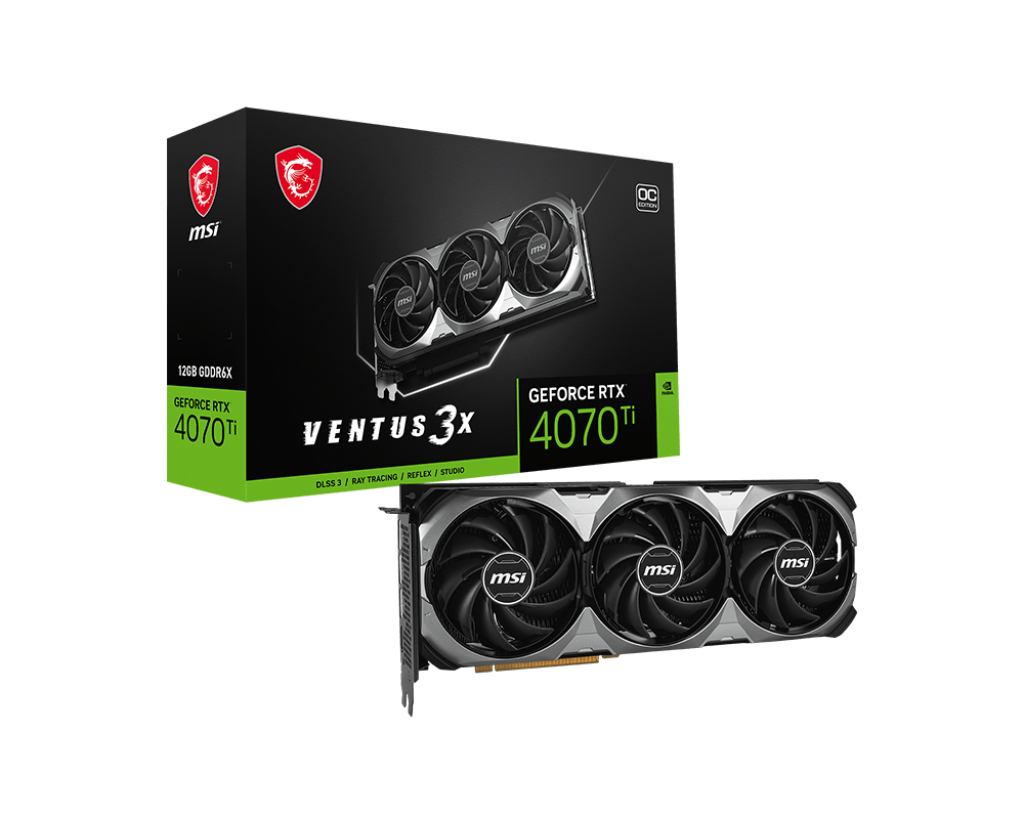

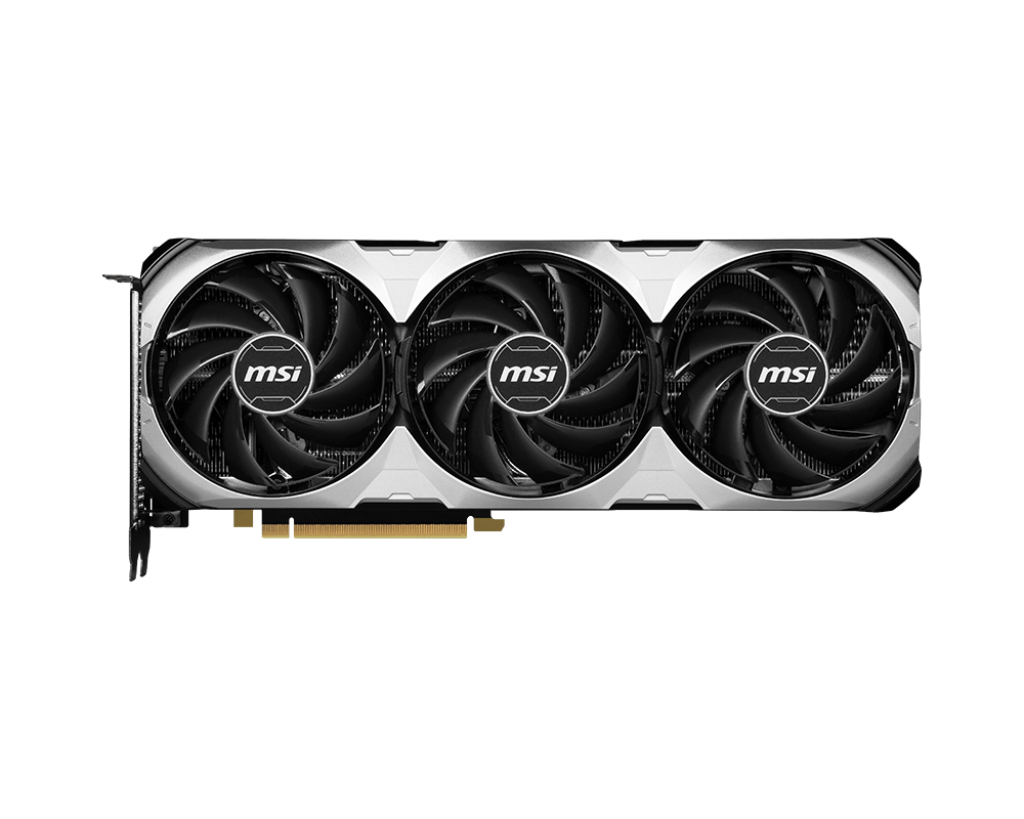

GEFORCE RTX 4070 Ti VENTUS 3X E1 12G OC
Model GEFORCE RTX 4070 Ti VENTUS 3X E1 12G OCEAN 824142336717
37 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- ColourBlack, Grey
- Graphics processor familyNVIDIA
- Discrete graphics card memory12 GB
- Interface typePCI Express 4.0
- TV tuner integratedNo
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- Black, Grey
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 12 GB
- Interface type
- PCI Express 4.0
- TV tuner integrated
- No
- Brand
- MSI
- Category
- GPU
- Model
- GEFORCE RTX 4070 Ti VENTUS 3X E1 12G OC
- Part number
- GEFORCE RTX 4070 Ti VENTUS 3X E1 12G OC
- EAN / UPC
- 824142336717, 4711377134415
- Also known as
- MSI VENTUS GEFORCE RTX 4070 Ti 3X E1 12G OC graphics card NVIDIA 12 GB GDDR6X
Specifications
37 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4070 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 7680 |
| Processor frequency | 2655 MHz |
| Processor boost clock speed | 2640 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 192 bit |
| Memory bandwidth (max) | 21 GB/s |

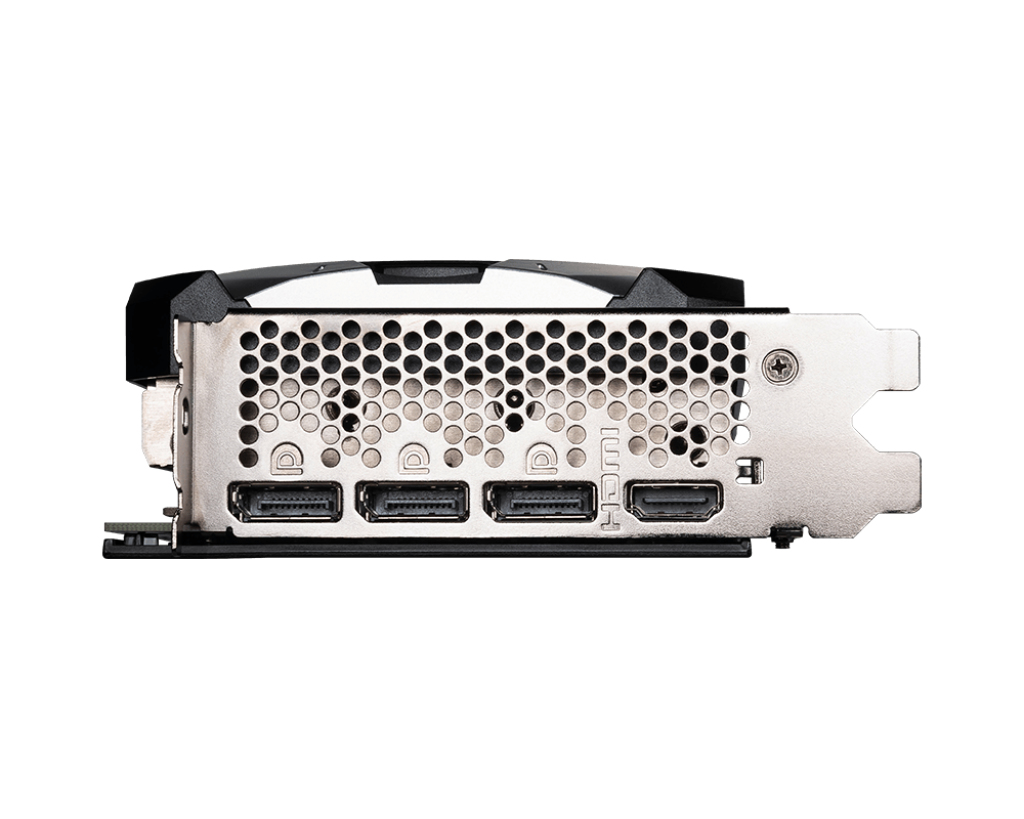

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 4.0 |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Product colour | Black, Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 700 W |
| Power consumption (typical) | 286 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 308 mm |
| Depth | 52 mm |
| Height | 123 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.77 kg |
| Package type | Box |
