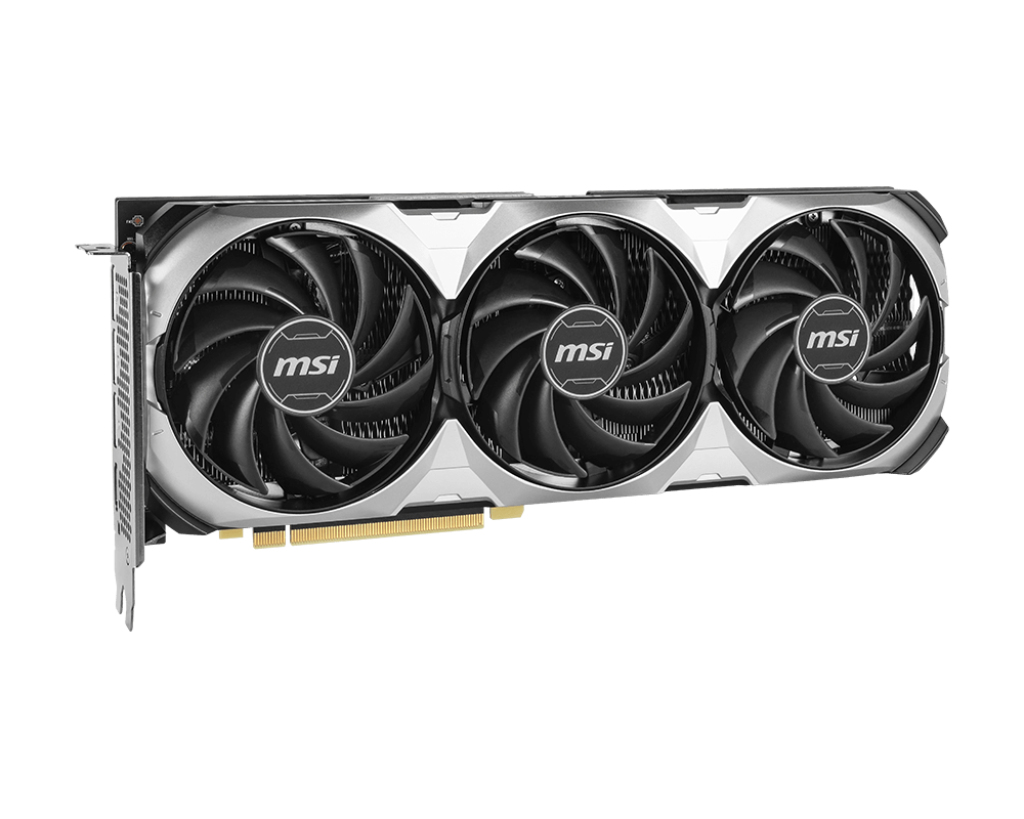

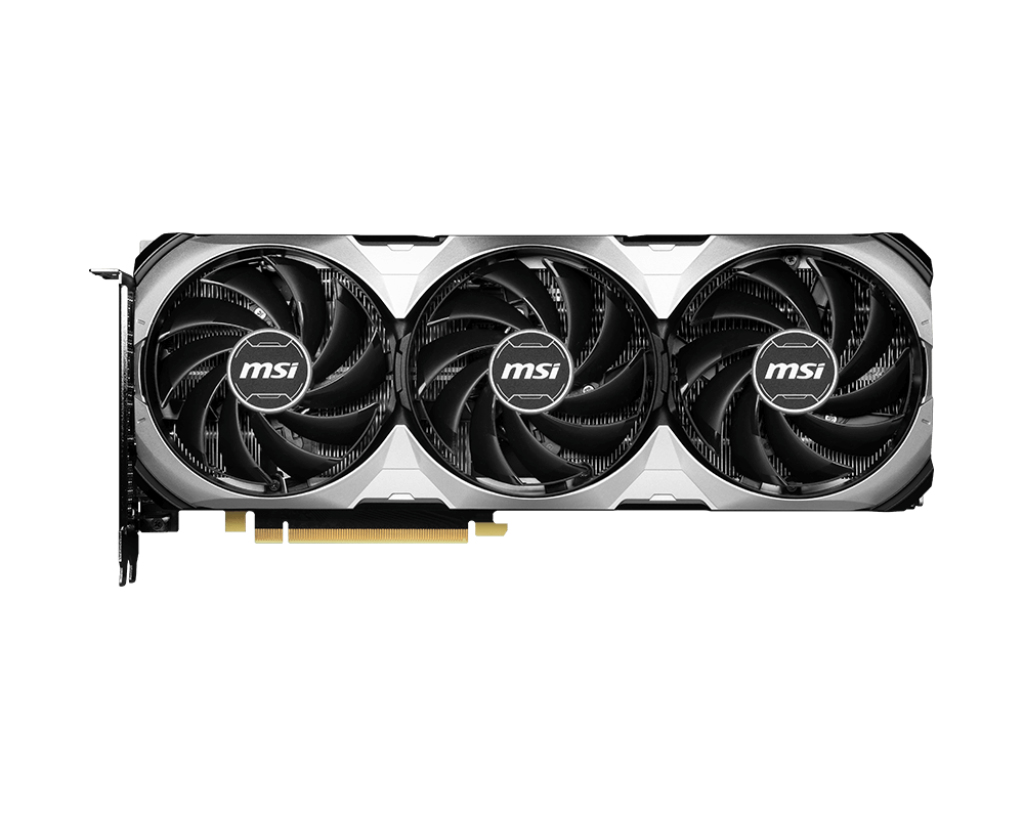

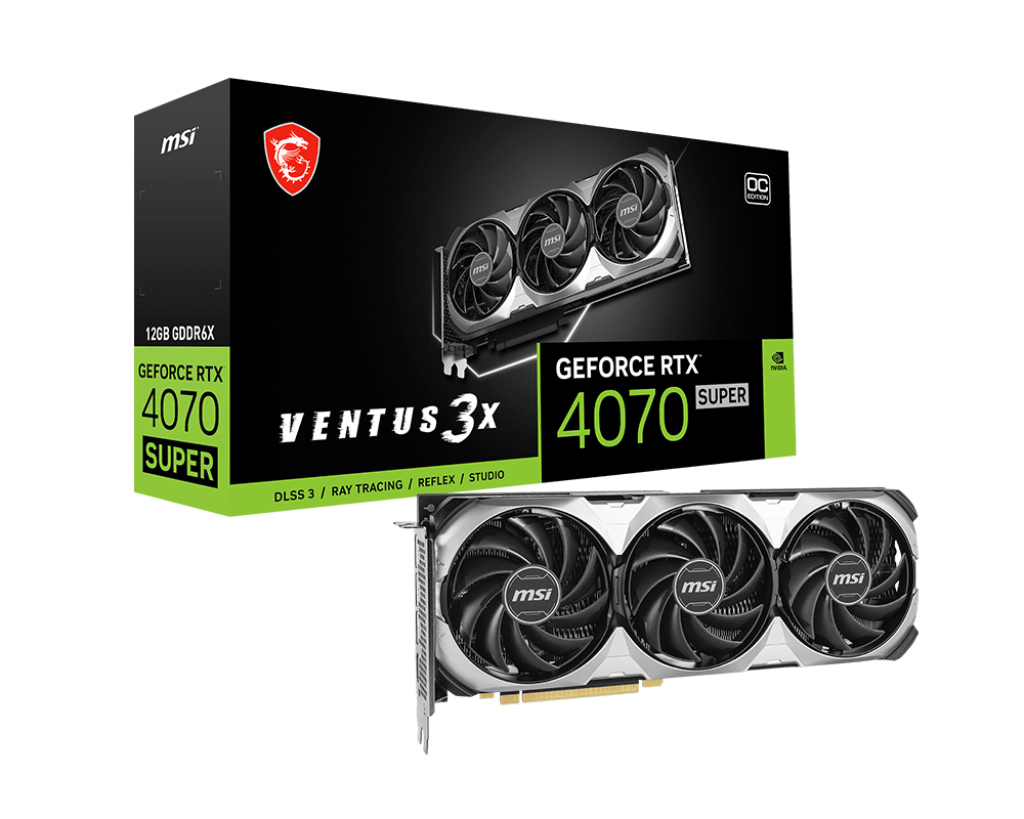

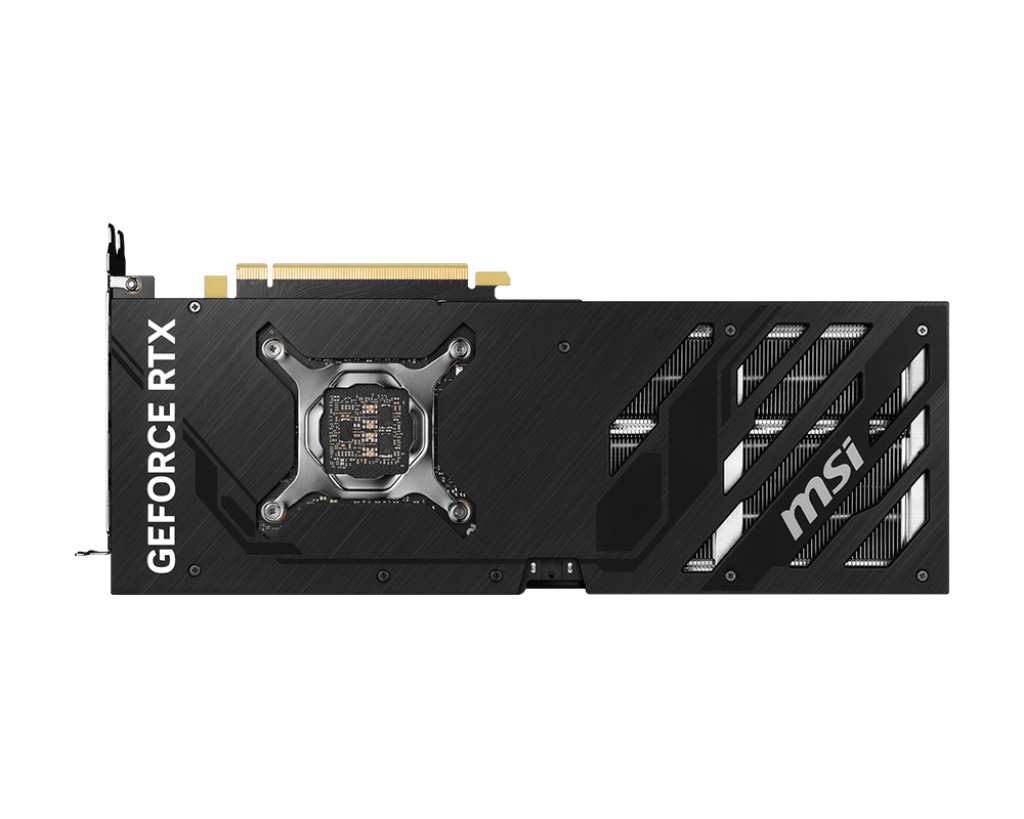

GeForce RTX 4070 SUPER 12G VENTUS 3X OC
Model GeForce RTX 4070 SUPER 12G VENTUS 3X OCPart no. GEFORCE RTX 4070 SUPER 12G VENTUS 3X OCEAN 824142347003
44 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight821 g
- ColourBlack, Silver
- Graphics processor familyNVIDIA
- Discrete graphics card memory12 GB
- Interface typePCI Express 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 821 g
- Colour
- Black, Silver
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 12 GB
- Interface type
- PCI Express 4.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 4070 SUPER 12G VENTUS 3X OC
- Part number
- GEFORCE RTX 4070 SUPER 12G VENTUS 3X OC
- EAN / UPC
- 824142347003, 4711377171267
- Also known as
- MSI VENTUS GeForce RTX 4070 SUPER 12G 3X OC NVIDIA 12 GB GDDR6X
Specifications
44 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4070 SUPER |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 7168 |
| Processor frequency | 2520 MHz |
| Processor boost clock speed | 2505 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 192 bit |
| Memory bandwidth (max) | 21 GB/s |

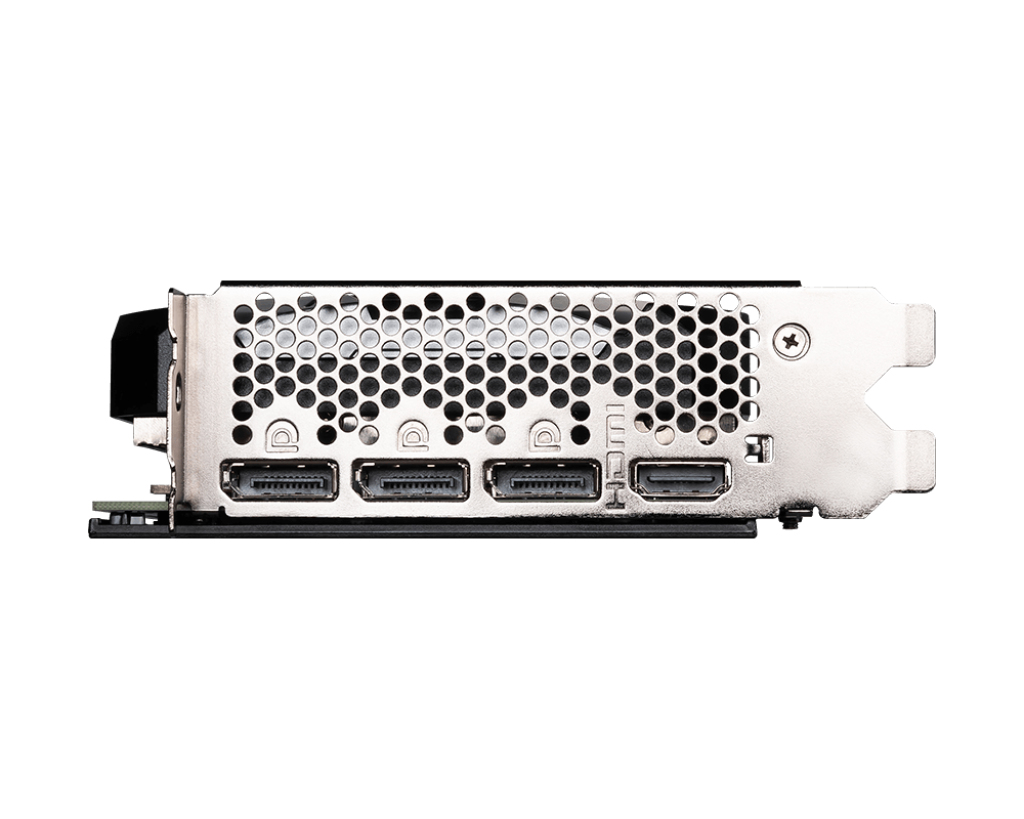

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| AMD FreeSync | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 4.0 |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black, Silver |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 650 W |
| Power consumption (typical) | 220 W |

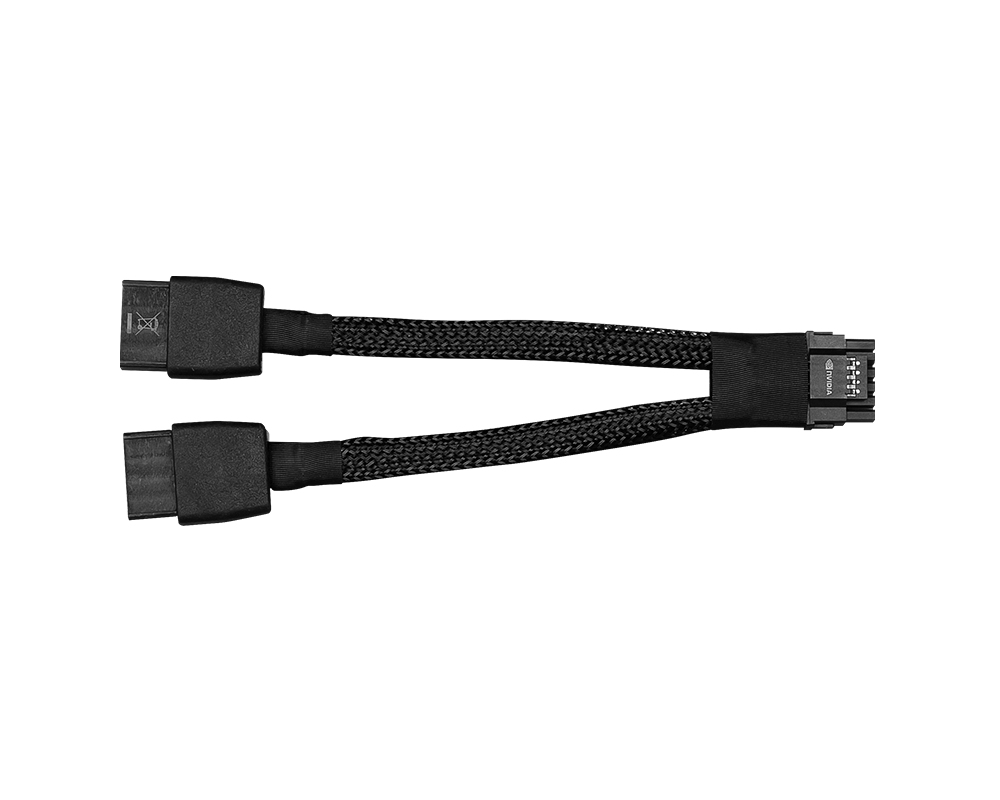

| Supplementary power connectors | 1x 16-pin |
| Power supply location | External |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 821 g |
| Length | 308 mm |
| Depth | 43 mm |
| Height | 120 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.17 kg |
| Package type | Box |
