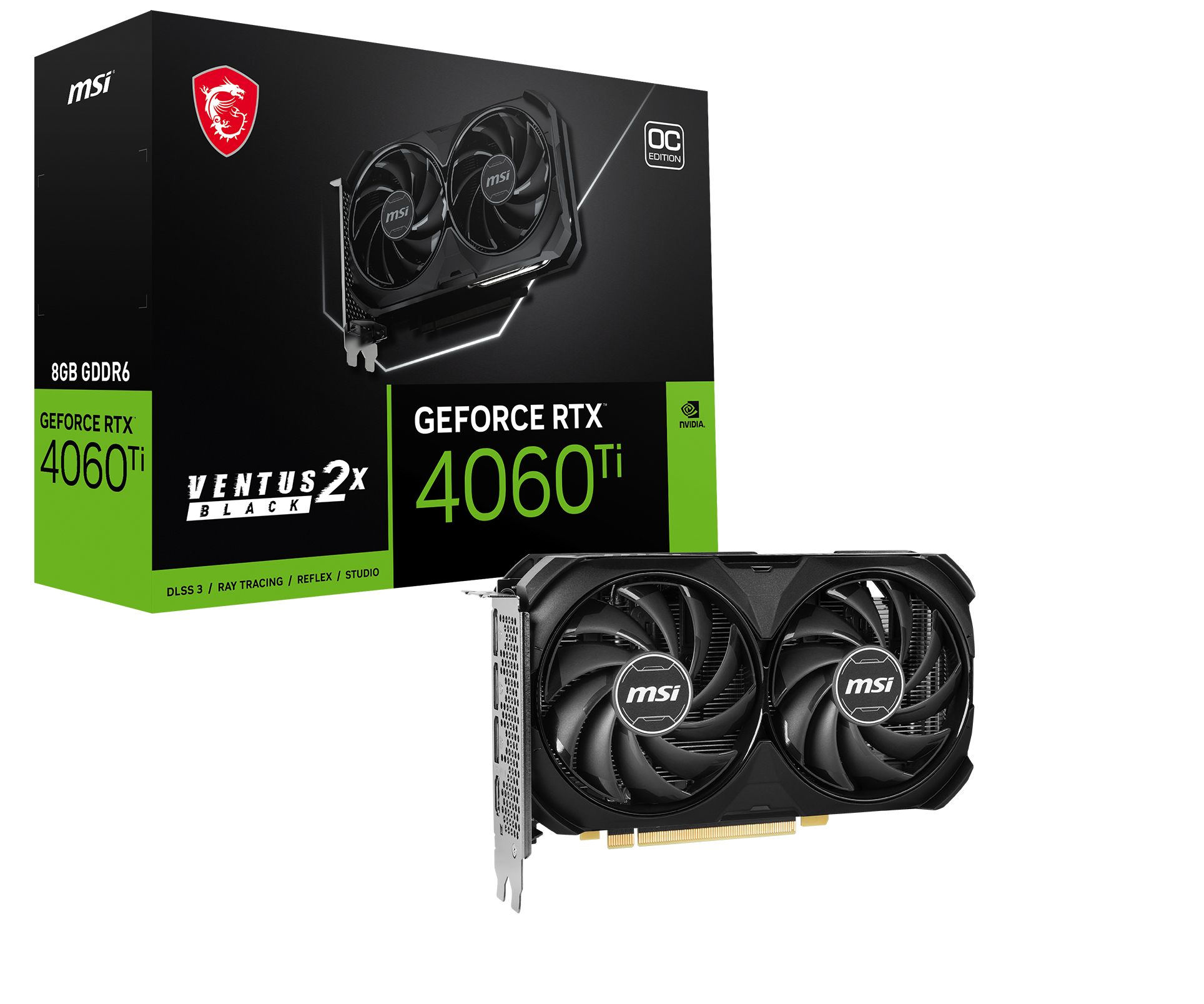

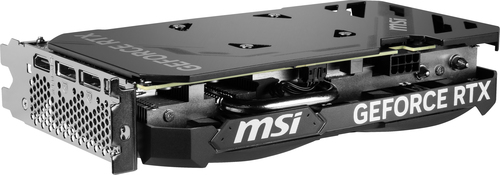

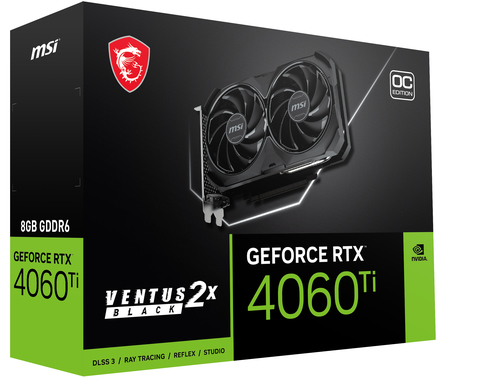

GeForce RTX 4060 Ti VENTUS 2X BLACK 8G OC
Model GeForce RTX 4060 Ti VENTUS 2X BLACK 8G OCPart no. GEFORCE RTX 4060 TI VENTUS 2X BLACK 8G OCEAN 824142325667
43 specifications Checked today
- TypeFull-Height/Half-Length (FH/HL)
- Weight546 g
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express 4.0
Overview
- Type
- Full-Height/Half-Length (FH/HL)
- Weight
- 546 g
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express 4.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 4060 Ti VENTUS 2X BLACK 8G OC
- Part number
- GEFORCE RTX 4060 TI VENTUS 2X BLACK 8G OC
- EAN / UPC
- 824142325667, 4711377102582
- Also known as
- MSI VENTUS GeForce RTX 4060 Ti 2X BLACK 8G OC NVIDIA 8 GB GDDR6
Specifications
43 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 4352 |
| Processor boost clock speed | 2565 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 18 Gbit/s |

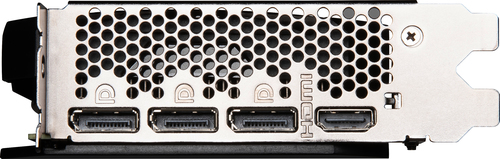

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| AMD FreeSync | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 4.0 |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Illumination | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Power consumption (typical) | 160 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 546 g |
| Length | 199 mm |
| Depth | 42 mm |
| Height | 120 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 783 g |
| Package type | Box |
