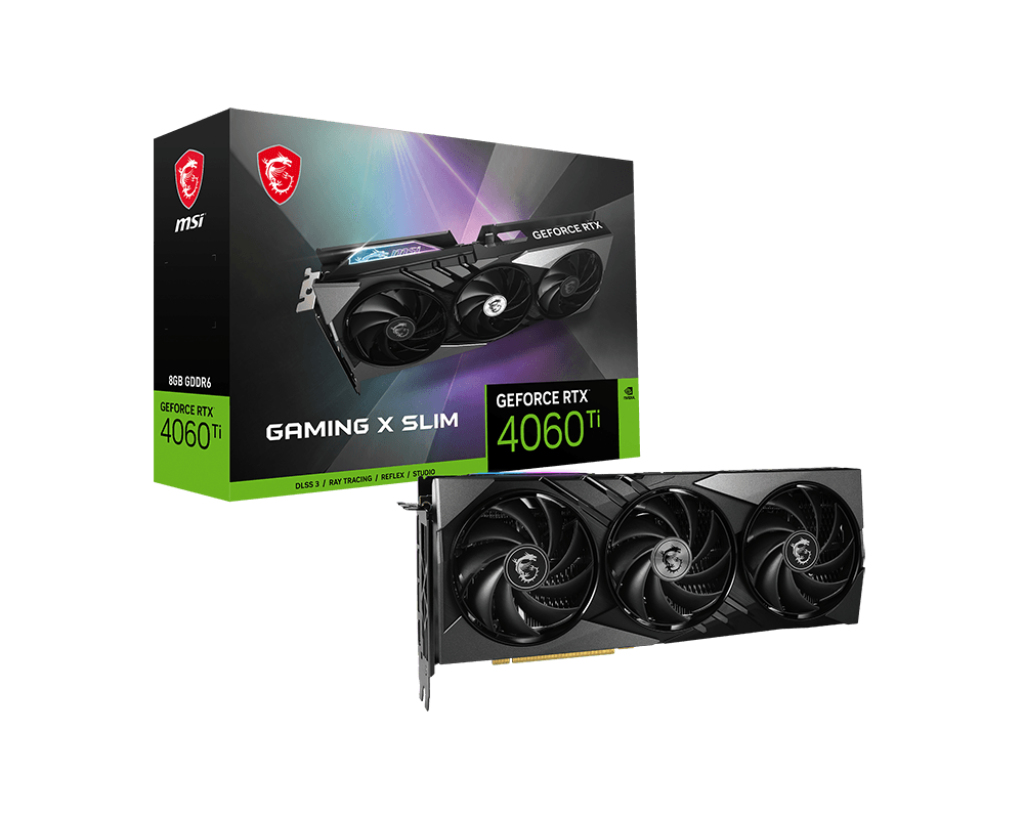

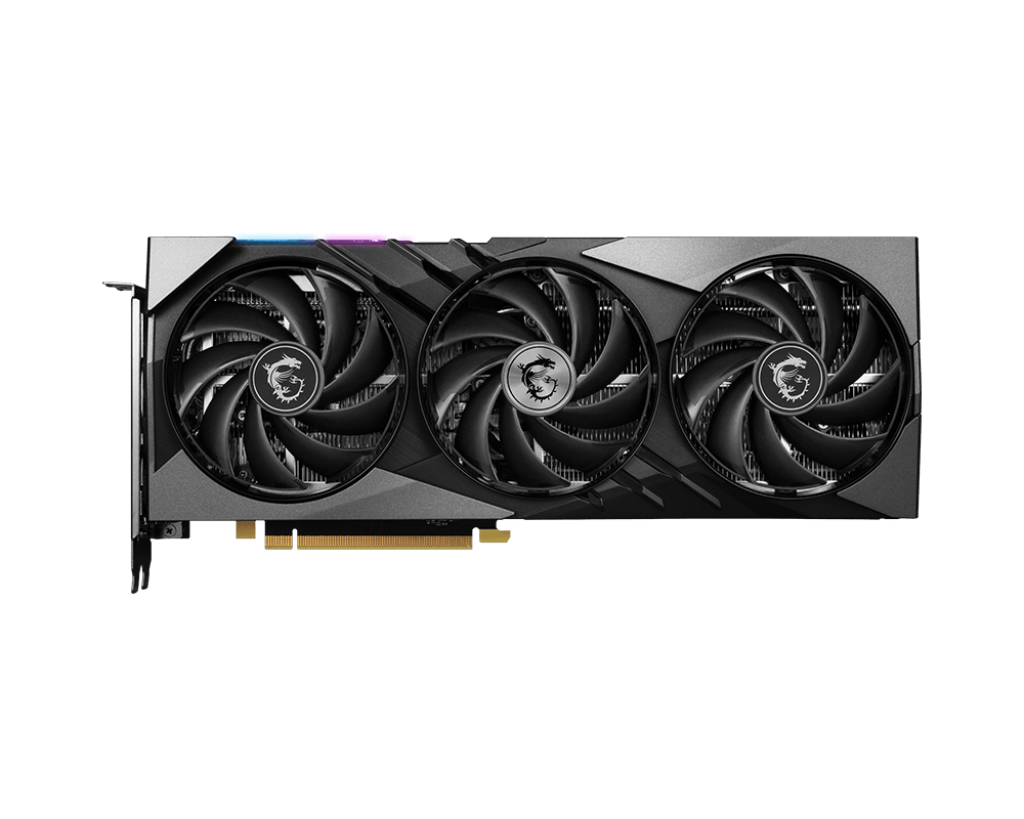

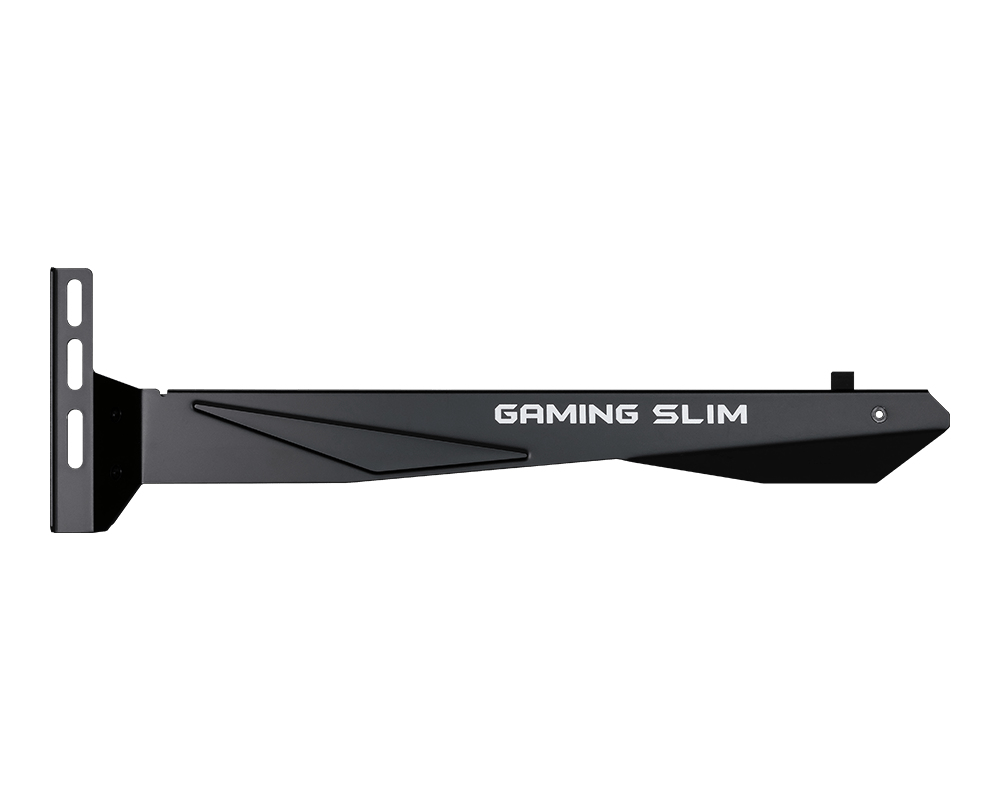

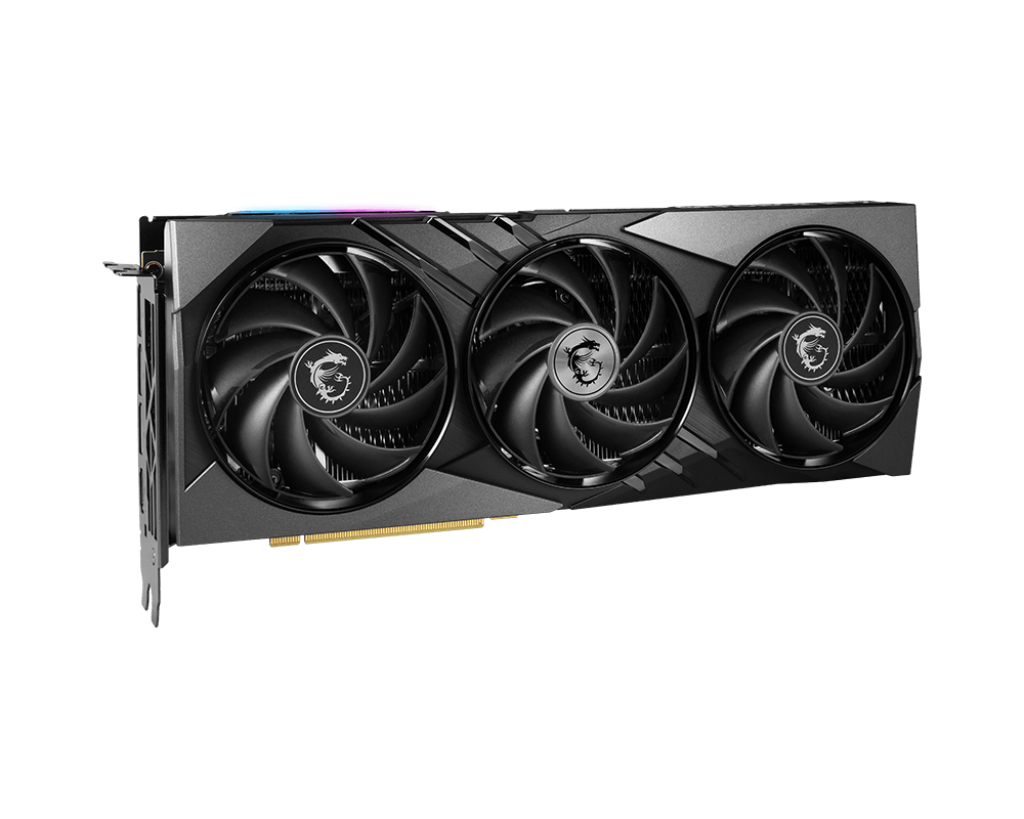

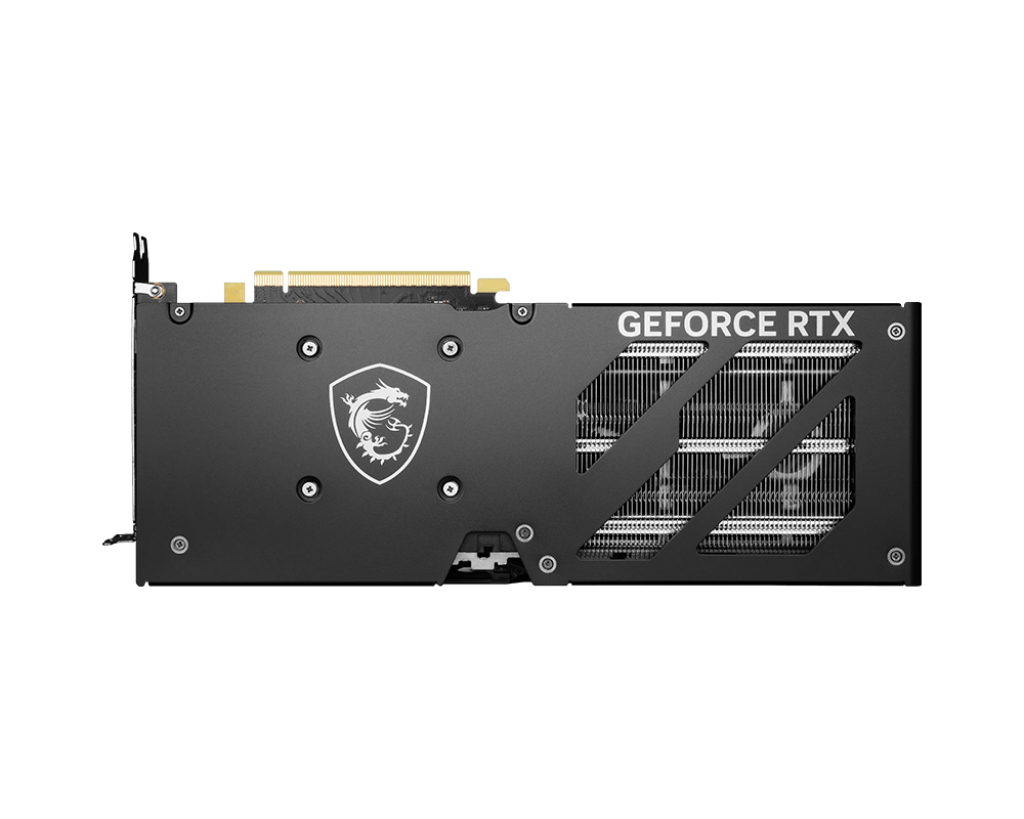

GeForce RTX 4060 Ti GAMING X SLIM 8G
Model GeForce RTX 4060 Ti GAMING X SLIM 8GPart no. GEFORCE RTX 4060 TI GAMING X SLIM 8GEAN 824142336731
40 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight895 g
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 895 g
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express 4.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 4060 Ti GAMING X SLIM 8G
- Part number
- GEFORCE RTX 4060 TI GAMING X SLIM 8G
- EAN / UPC
- 824142336731, 4711377134439
- Also known as
- MSI GAMING GeForce RTX 4060 Ti X SLIM 8G NVIDIA 8 GB GDDR6
Specifications
40 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 4352 |
| Processor frequency | 2685 MHz |
| Processor boost clock speed | 2670 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Memory bandwidth (max) | 18 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |

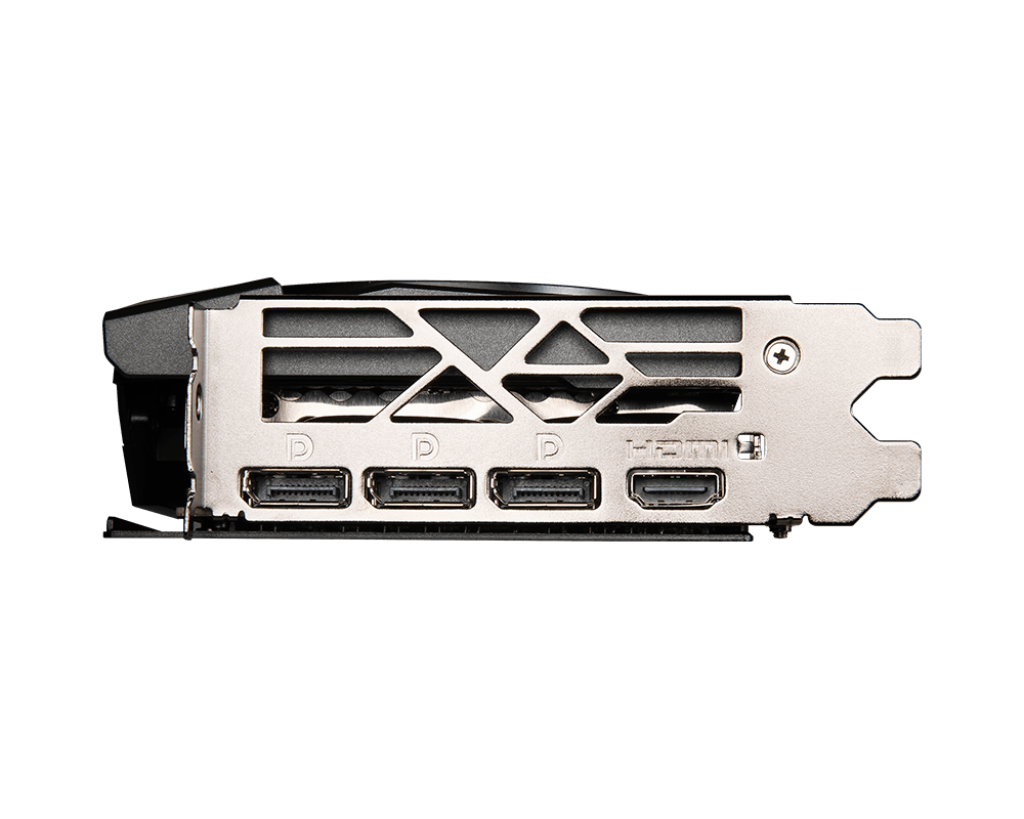

| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX FAN 5.0 |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Power consumption (typical) | 160 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 895 g |
| Length | 307 mm |
| Depth | 46 mm |
| Height | 125 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.6 kg |
| Package type | Box |
