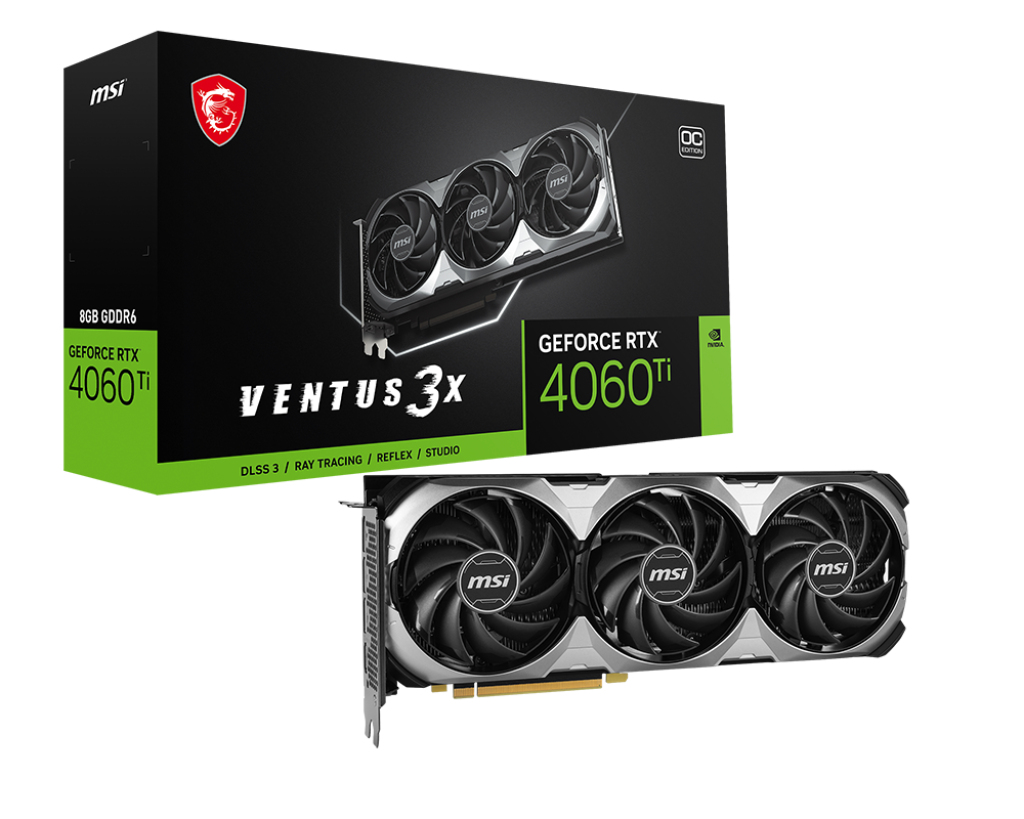

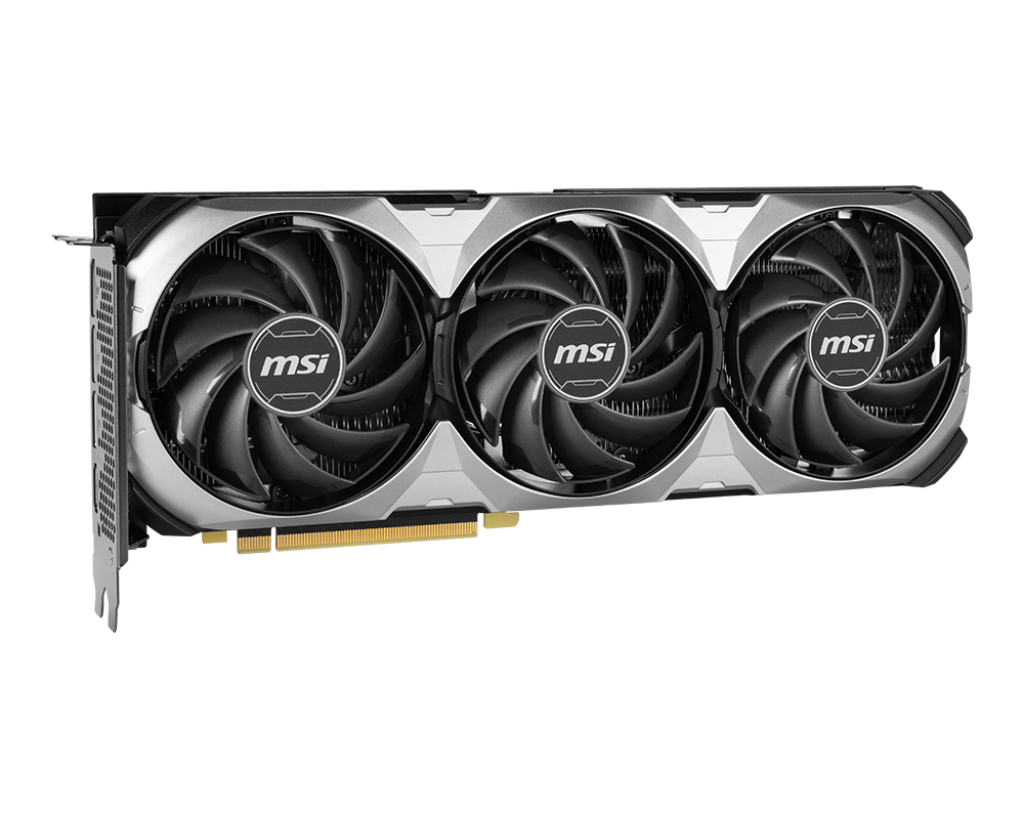

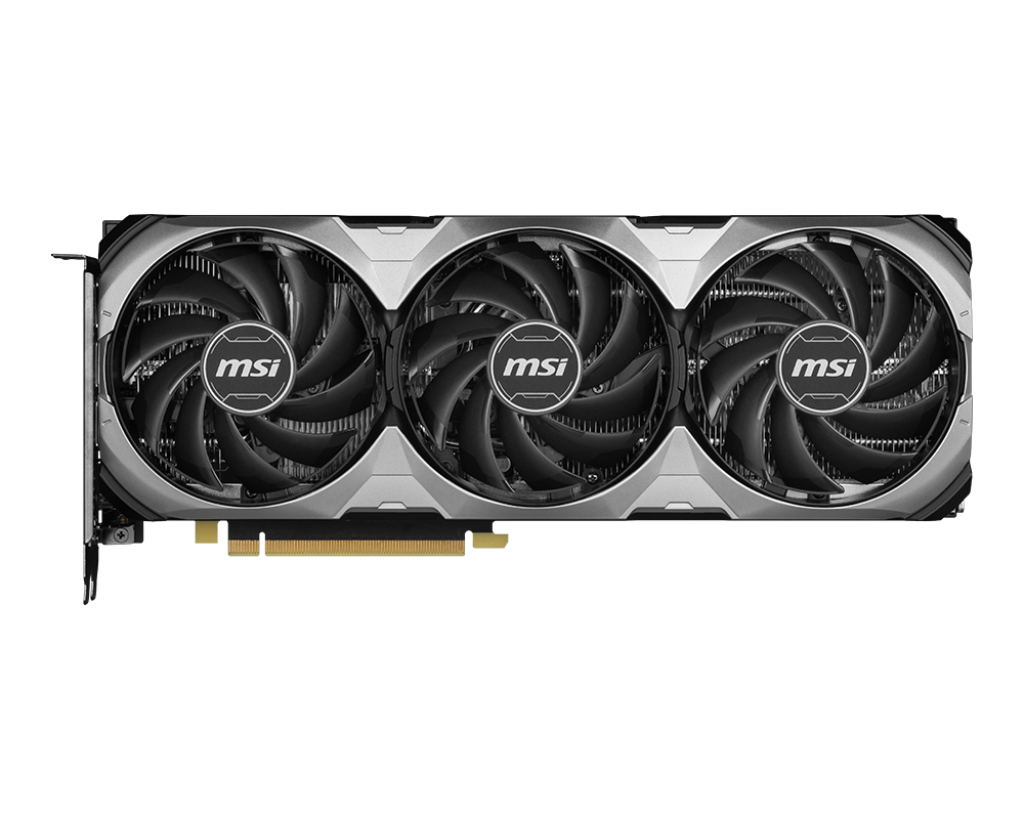

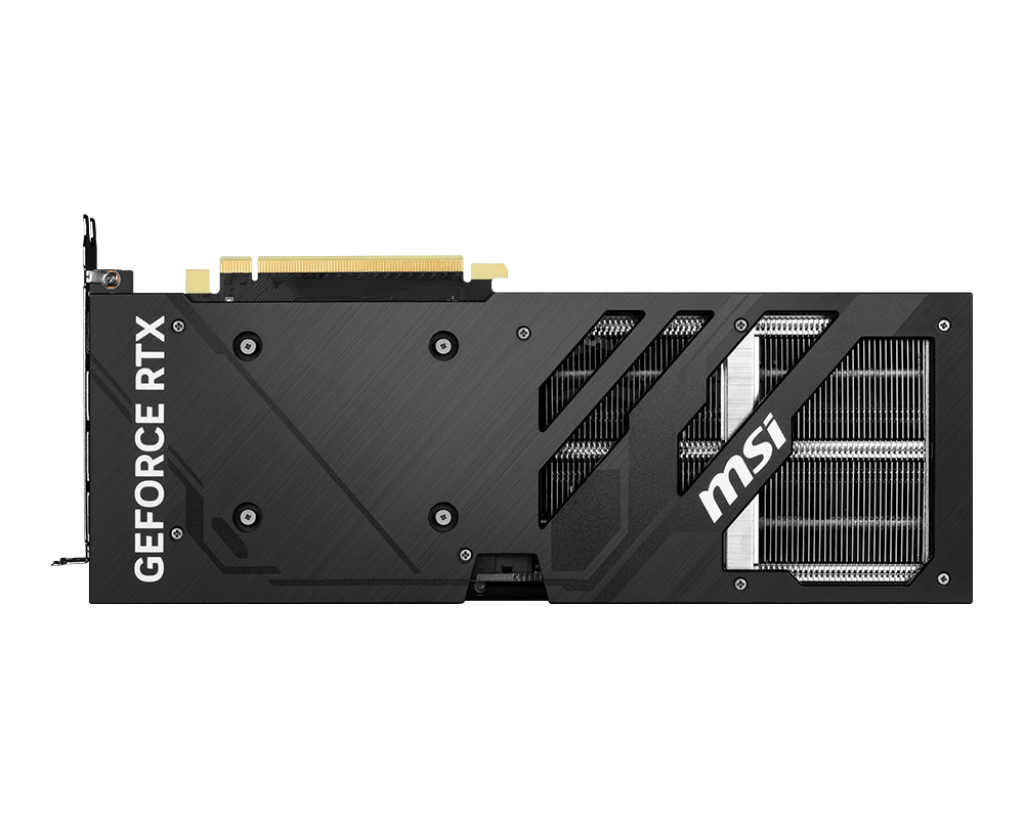

GEFORCE RTX 4060 TI 8G VENTUS 3X E1 OC
Model GEFORCE RTX 4060 TI 8G VENTUS 3X E1 OCEAN 4711377225007
44 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight735 g
- ColourGrey
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 735 g
- Colour
- Grey
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express 4.0
- Brand
- MSI
- Category
- GPU
- Model
- GEFORCE RTX 4060 TI 8G VENTUS 3X E1 OC
- Part number
- GEFORCE RTX 4060 TI 8G VENTUS 3X E1 OC
- EAN / UPC
- 4711377225007
- Also known as
- MSI VENTUS GEFORCE RTX 4060 TI 8G 3X E1 OC graphics card NVIDIA 8 GB GDDR6
Specifications
44 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 4352 |
| Processor boost clock speed | 2565 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 18 Gbit/s |

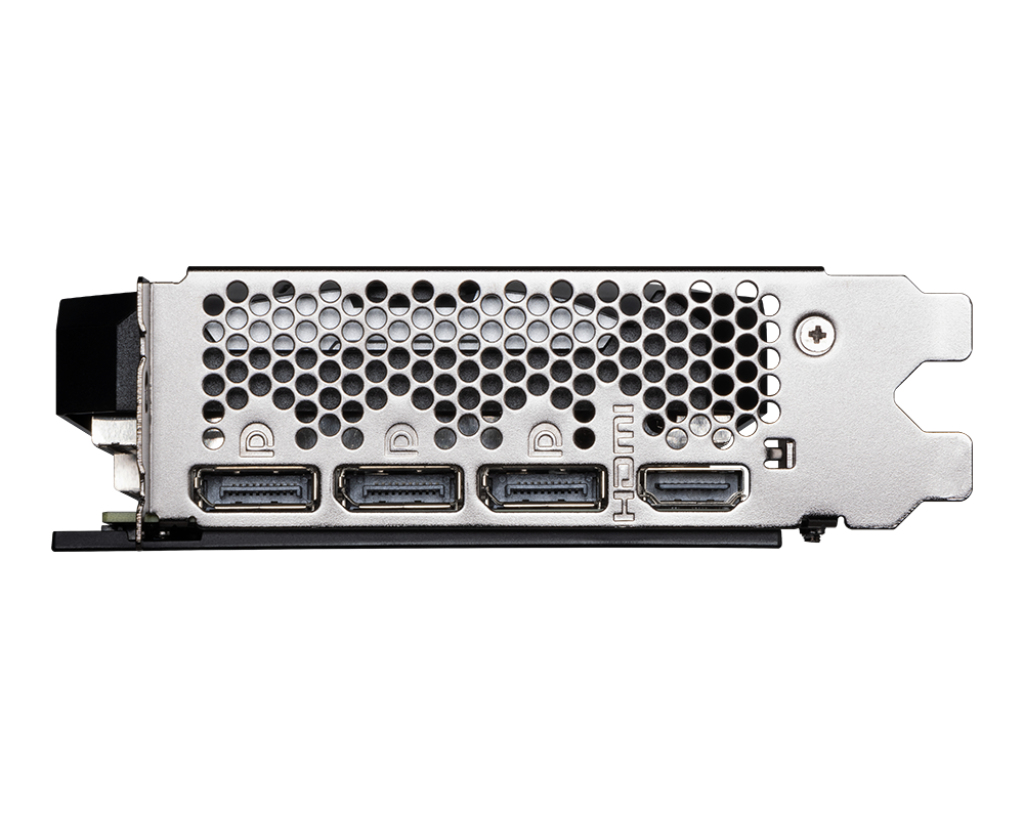

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| AMD FreeSync | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 4.0 |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Power consumption (typical) | 165 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 735 g |
| Length | 308 mm |
| Depth | 43 mm |
| Height | 120 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
