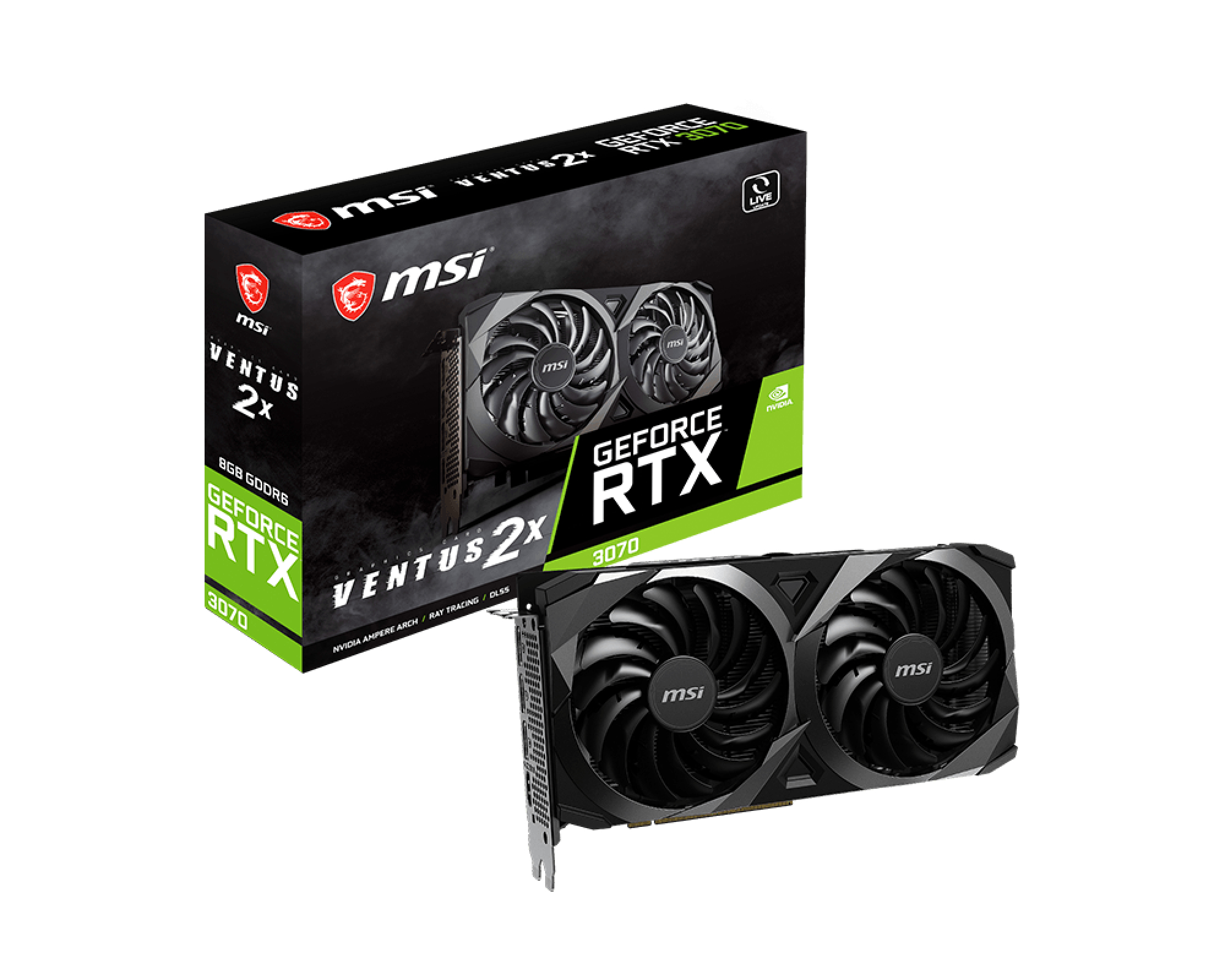

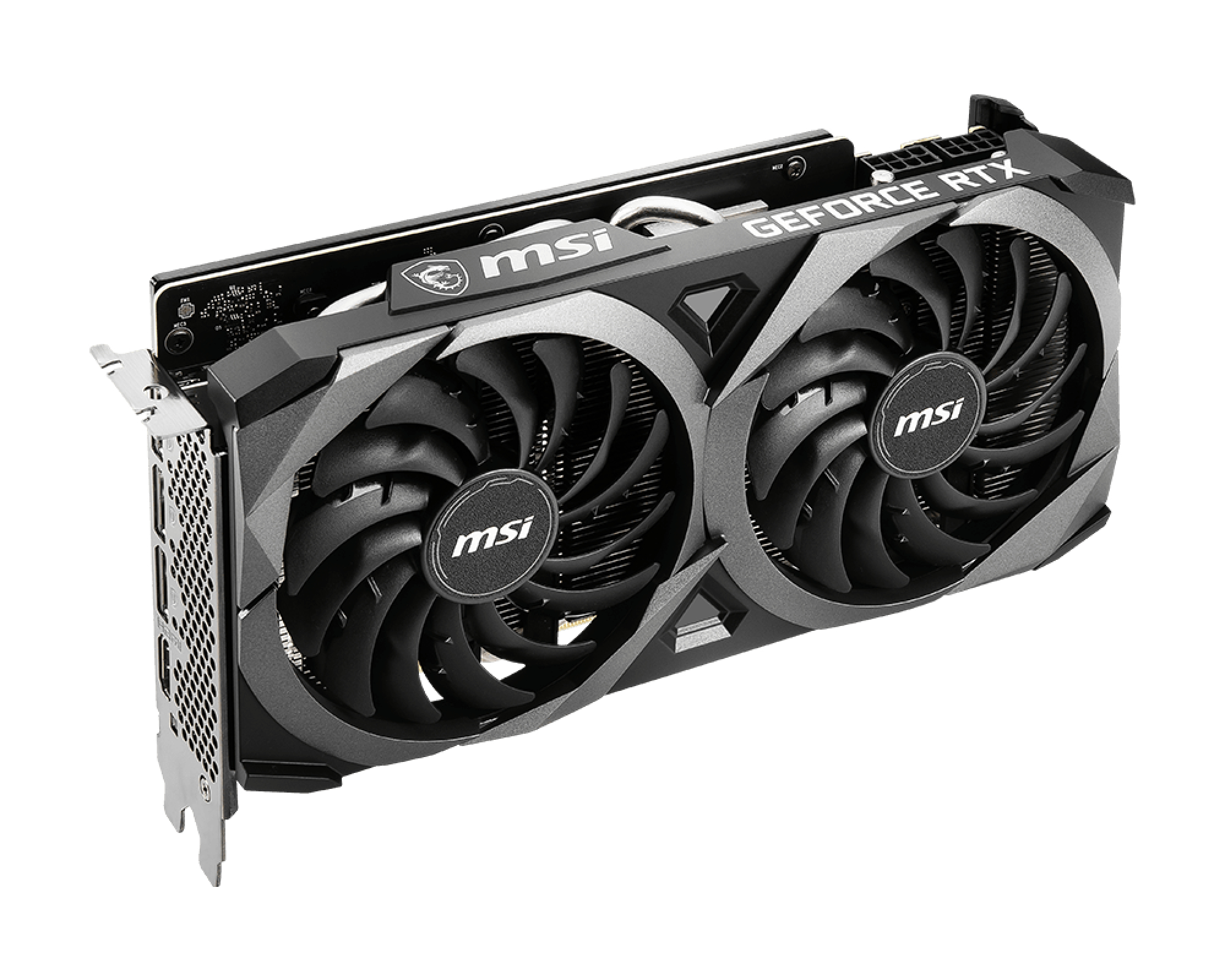

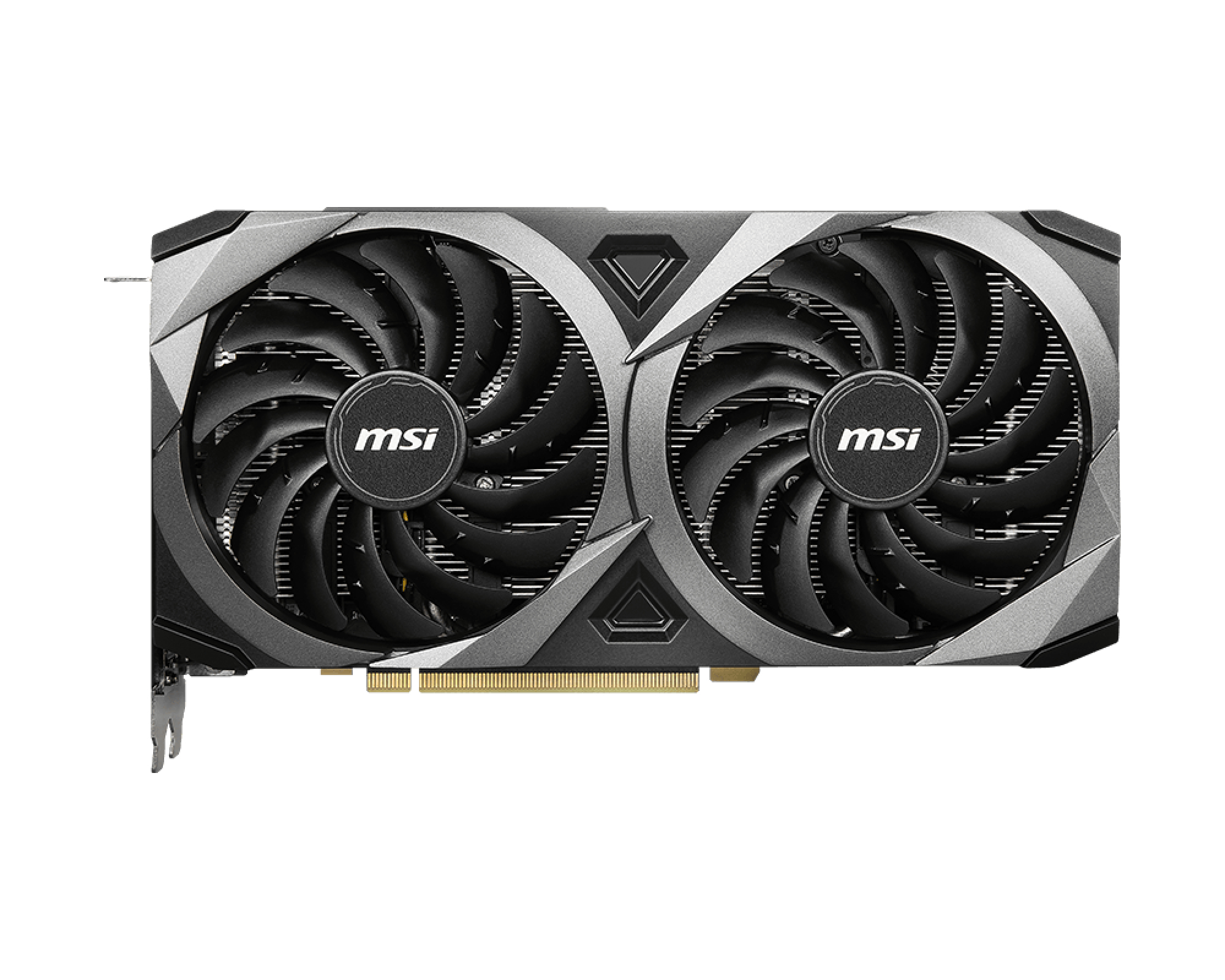

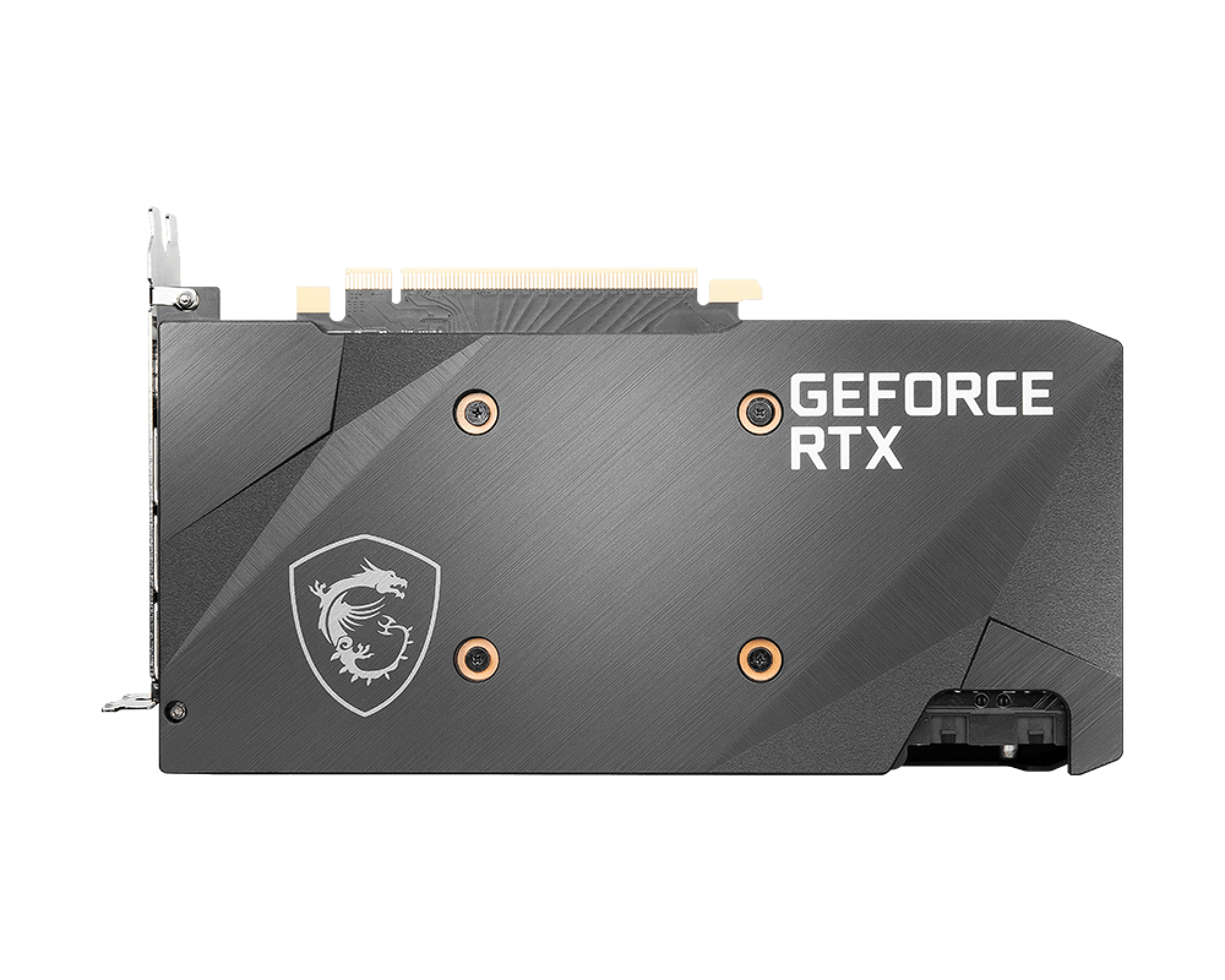

MSI GeForce RTX 3070 VENTUS 2X OC

GeForce RTX 3070 VENTUS 2X OC

Model GeForce RTX 3070 VENTUS 2X OC

41 specifications Checked today

TypeFull-Height/Full-Length (FH/FL)
Weight832 g
ColourBlack, Silver
Graphics processor familyNVIDIA
Discrete graphics card memory8 GB
Interface typePCI Express 4.0

See all specifications

Overview

Type: Full-Height/Full-Length (FH/FL)
Weight: 832 g
Colour: Black, Silver
Graphics processor family: NVIDIA
Discrete graphics card memory: 8 GB
Interface type: PCI Express 4.0

Brand: MSI
Category: GPU
Model: GeForce RTX 3070 VENTUS 2X OC
Also known as: MSI VENTUS GeForce RTX 3070 2X OC NVIDIA 8 GB GDDR6

Specifications

41 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 3070
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	5888
Processor frequency	1755 MHz
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Data transfer rate	14 Gbit/s

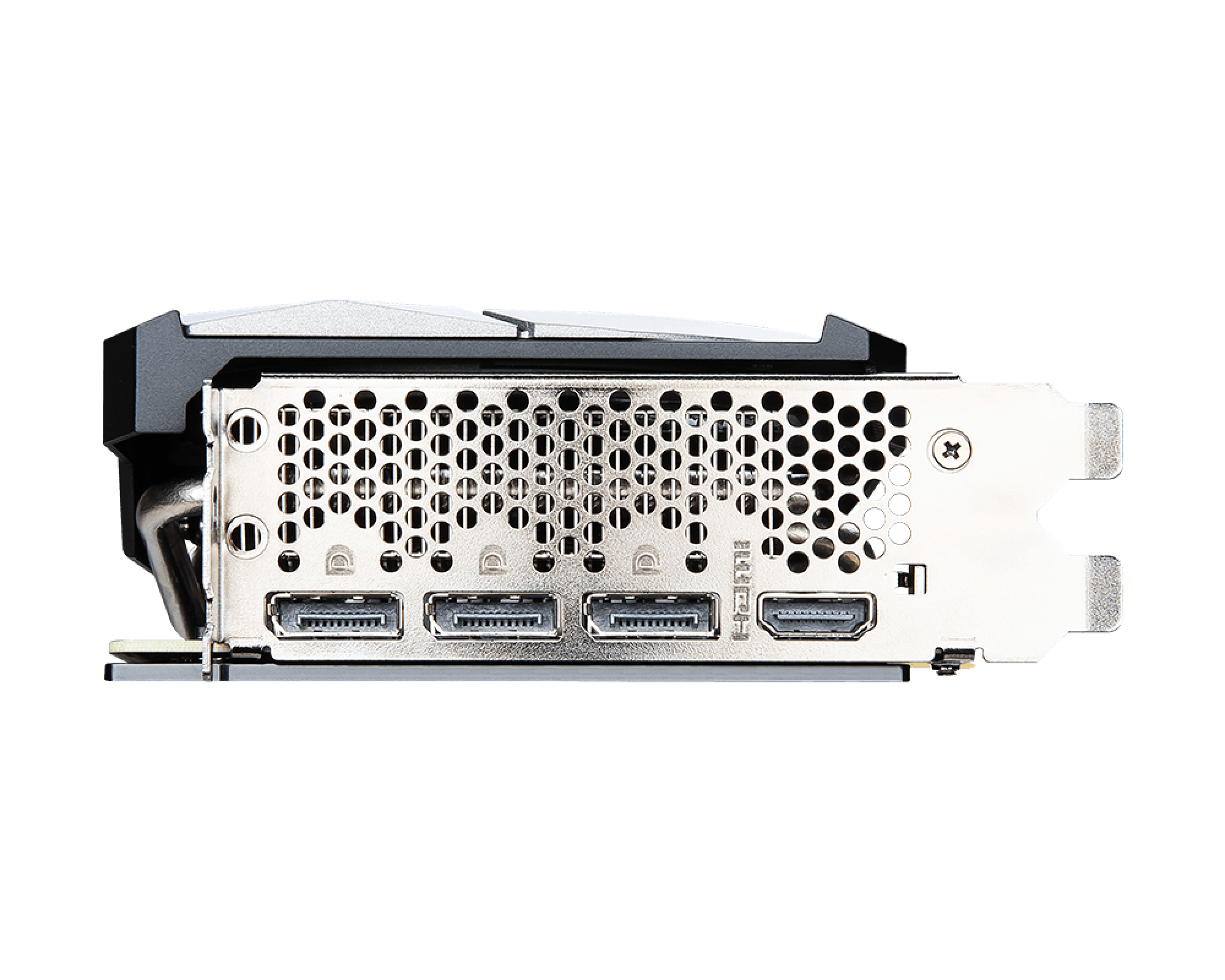

Ports & interfaces

Specification	Value
Interface type	PCI Express 4.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.1
DisplayPort version	1.4a
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
NVIDIA G-SYNC	Yes

Design

Specification	Value
Cooling type	Active
Cooling technology	MSI TORX Fan 3.0
Number of fans	2 fan(s)
Bracket height	Full-Height (FH)
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Black, Silver

Power

Specification	Value
Minimum system power supply	650 W
Power consumption (typical)	220 W
Supplementary power connectors	2x 8-pin

Weight & dimensions

Specification	Value
Weight	832 g
Length	232 mm
Depth	52 mm
Height	124 mm

Packaging data

Specification	Value
Package weight	1.25 kg
Package type	Box

Logistics data

Specification	Value
Harmonized System (HS) code	84733020
