GeForce RTX 3060 Ventus 3X
Model GeForce RTX 3060 Ventus 3XPart no. G3060V3X12CEAN 824142240113
29 specifications Checked today
- Weight993.3 g
- Graphics processor familyNVIDIA
- Discrete graphics card memory12 GB
- Interface typePCI Express 4.0
- DirectX version12.0
- Cooling typeActive
Overview
- Weight
- 993.3 g
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 12 GB
- Interface type
- PCI Express 4.0
- DirectX version
- 12.0
- Cooling type
- Active
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 3060 Ventus 3X
- Part number
- G3060V3X12C
- EAN / UPC
- 824142240113
- Also known as
- MSI VENTUS GeForce RTX 3060 3X NVIDIA 12 GB GDDR6
Specifications
29 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3060 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 3584 |
| Processor boost clock speed | 1807 MHz |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |

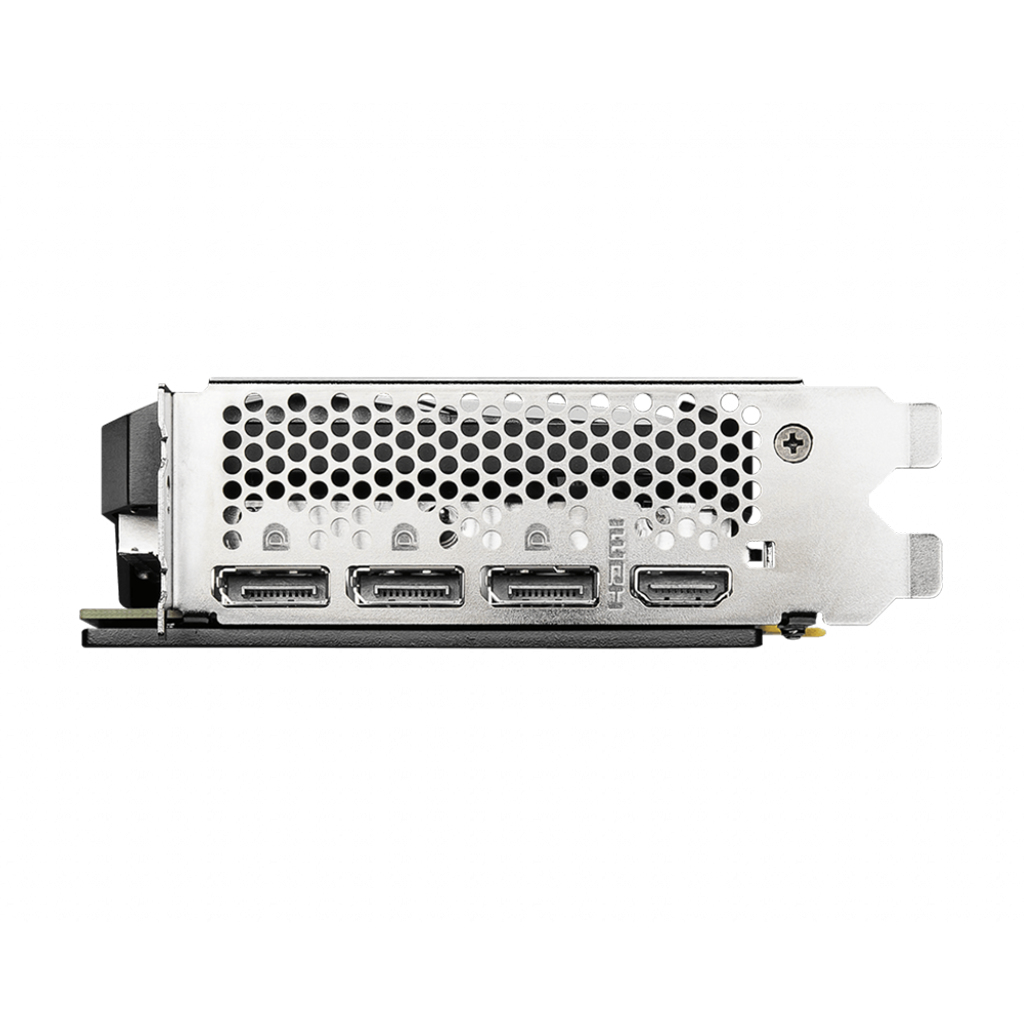

| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 3.0 |
| Number of fans | 3 fan(s) |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Power consumption (typical) | 170 W |
| Supplementary power connectors | 2x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 993.3 g |
| Length | 275 mm |
| Depth | 50.8 mm |
| Height | 130 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.56 kg |
| Package type | Box |
