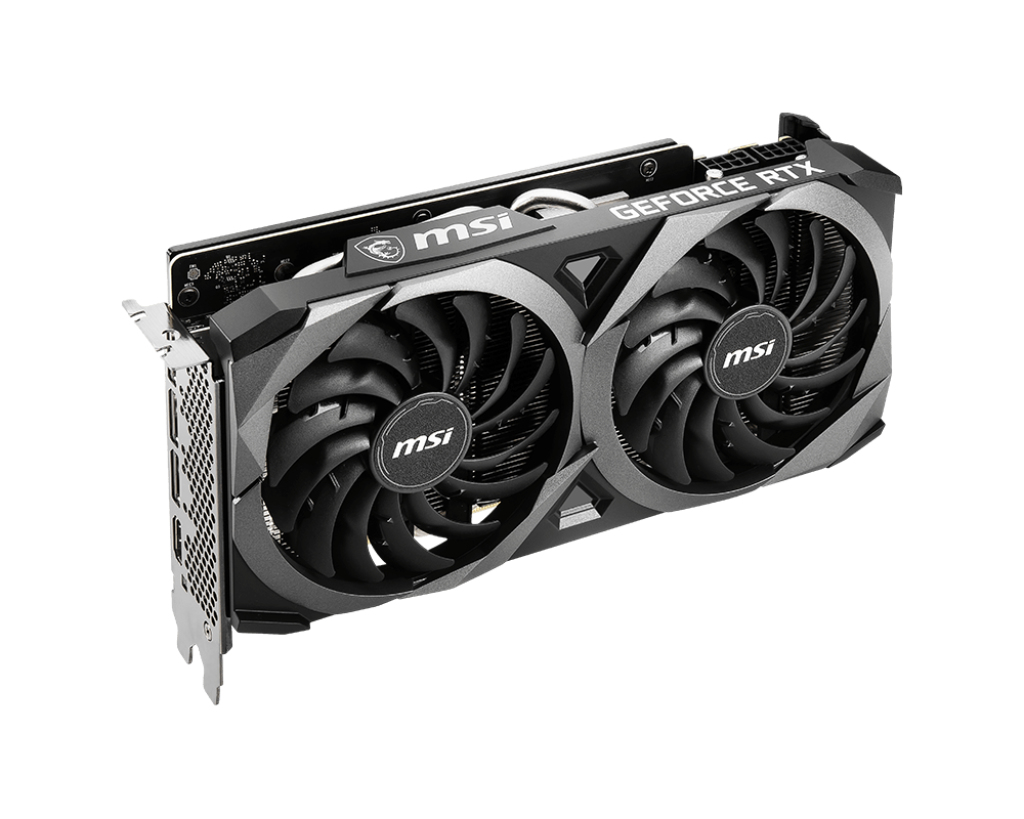

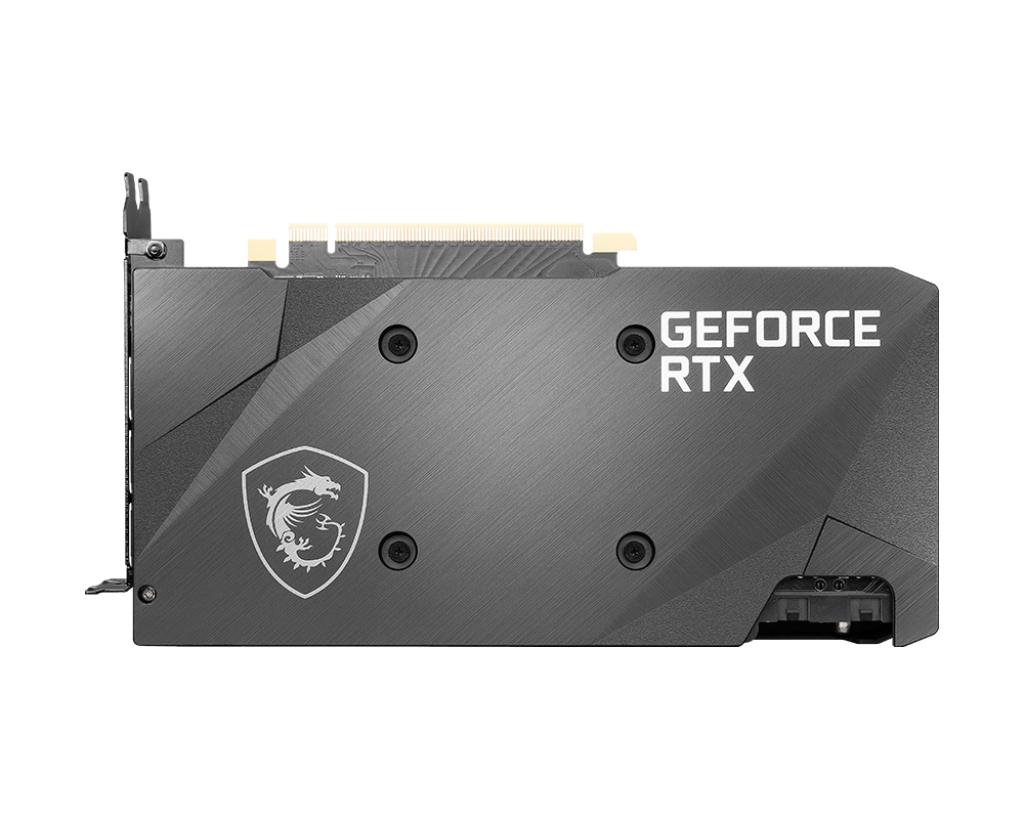

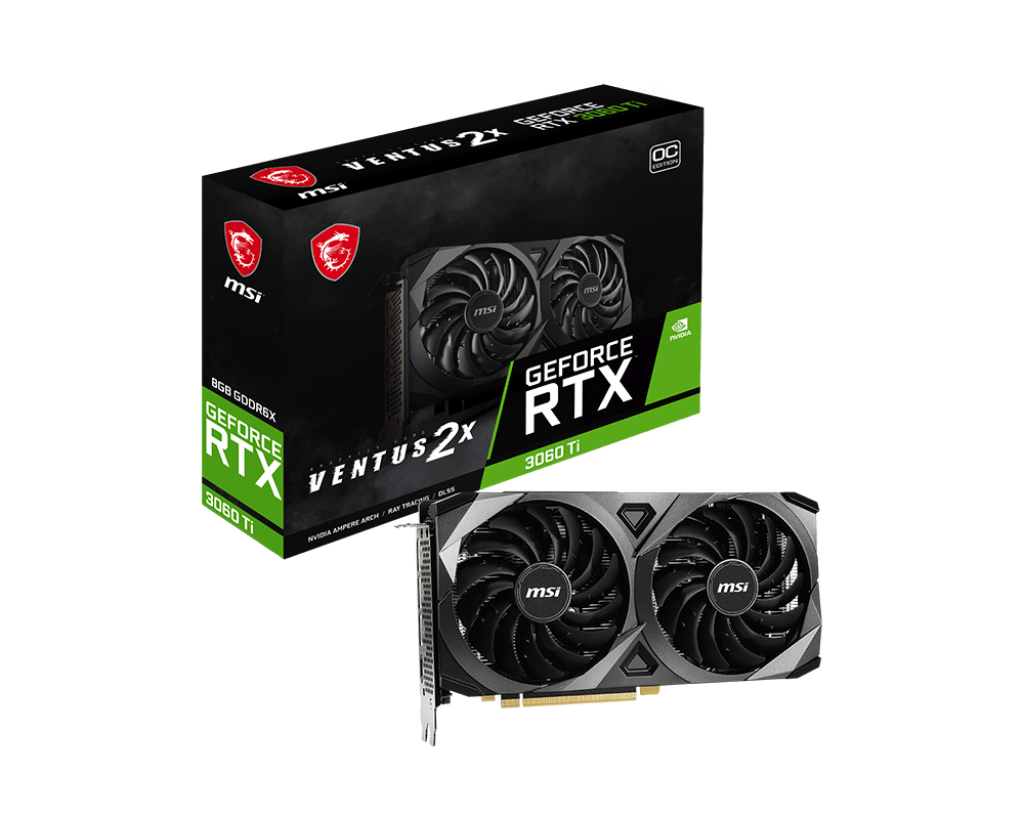

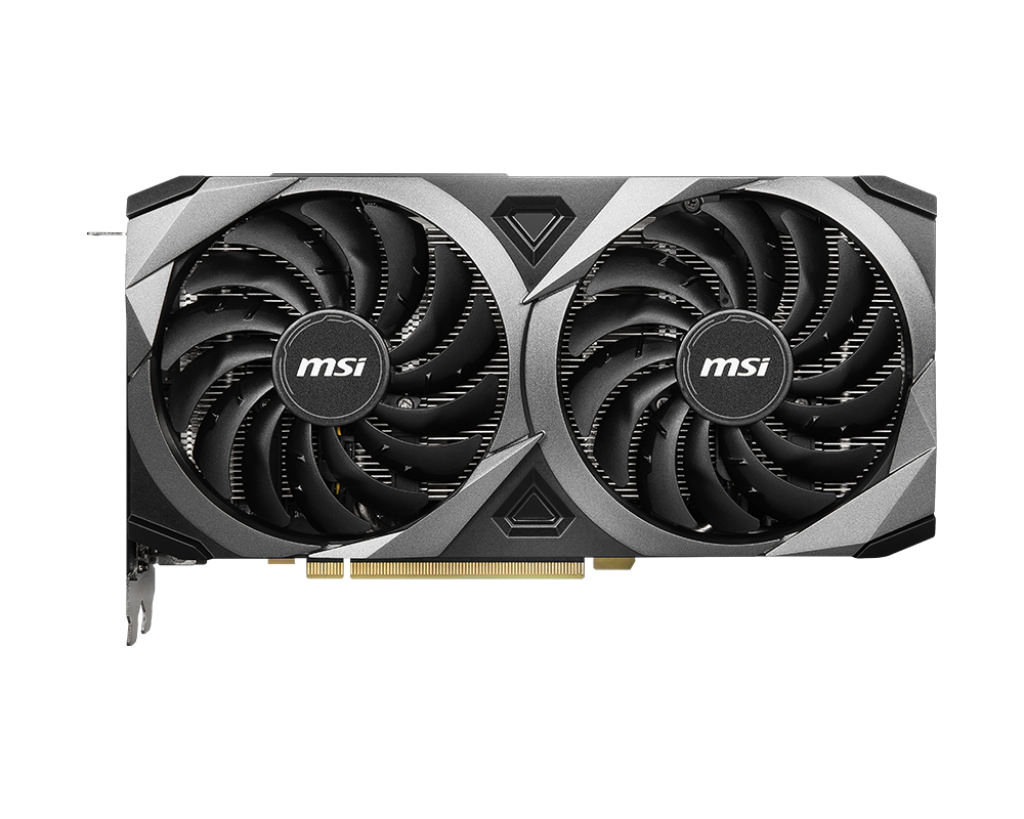

GEFORCE RTX 3060 TI VENTUS 2X 8GD6X OC
Model GEFORCE RTX 3060 TI VENTUS 2X 8GD6X OC
43 specifications Checked today
- Weight856 g
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express 4.0
- TV tuner integratedNo
Overview
- Weight
- 856 g
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express 4.0
- TV tuner integrated
- No
- Brand
- MSI
- Category
- GPU
- Model
- GEFORCE RTX 3060 TI VENTUS 2X 8GD6X OC
- Part number
- GEFORCE RTX 3060 TI VENTUS 2X 8GD6X OC
- Also known as
- MSI VENTUS GEFORCE RTX 3060 TI 2X 8GD6X OC graphics card NVIDIA 8 GB GDDR6X
Specifications
43 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 4864 |
| Processor boost clock speed | 1695 MHz |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 256 bit |
| Data transfer rate | 14 Gbit/s |

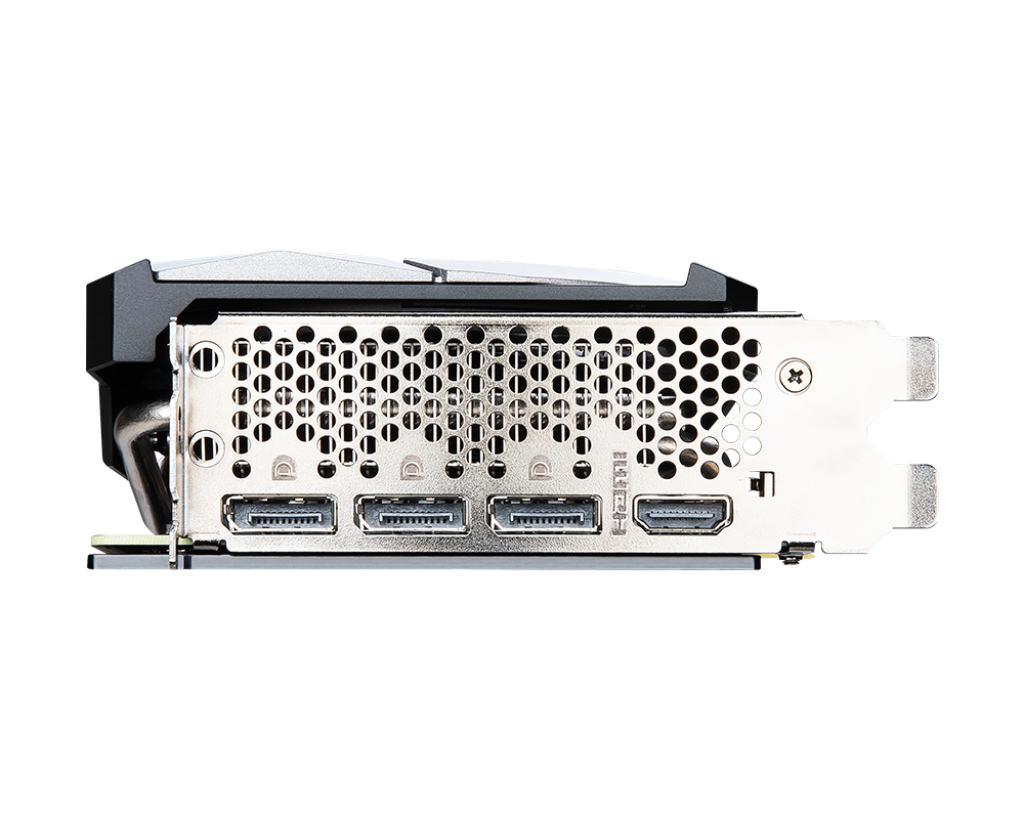

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| NVIDIA Ansel | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 3.0 |
| Number of fans | 2 fan(s) |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 600 W |
| Power consumption (typical) | 225 W |
| Supplementary power connectors | 2x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 856 g |
| Length | 232 mm |
| Depth | 52 mm |
| Height | 124 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.28 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
