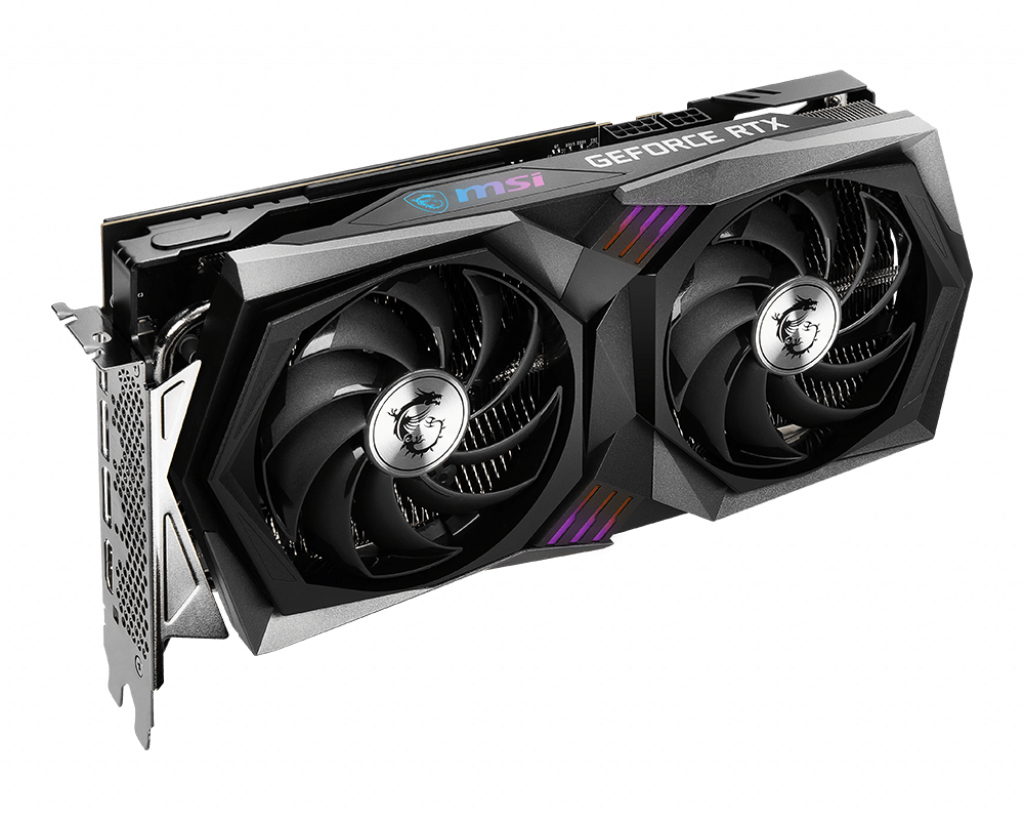

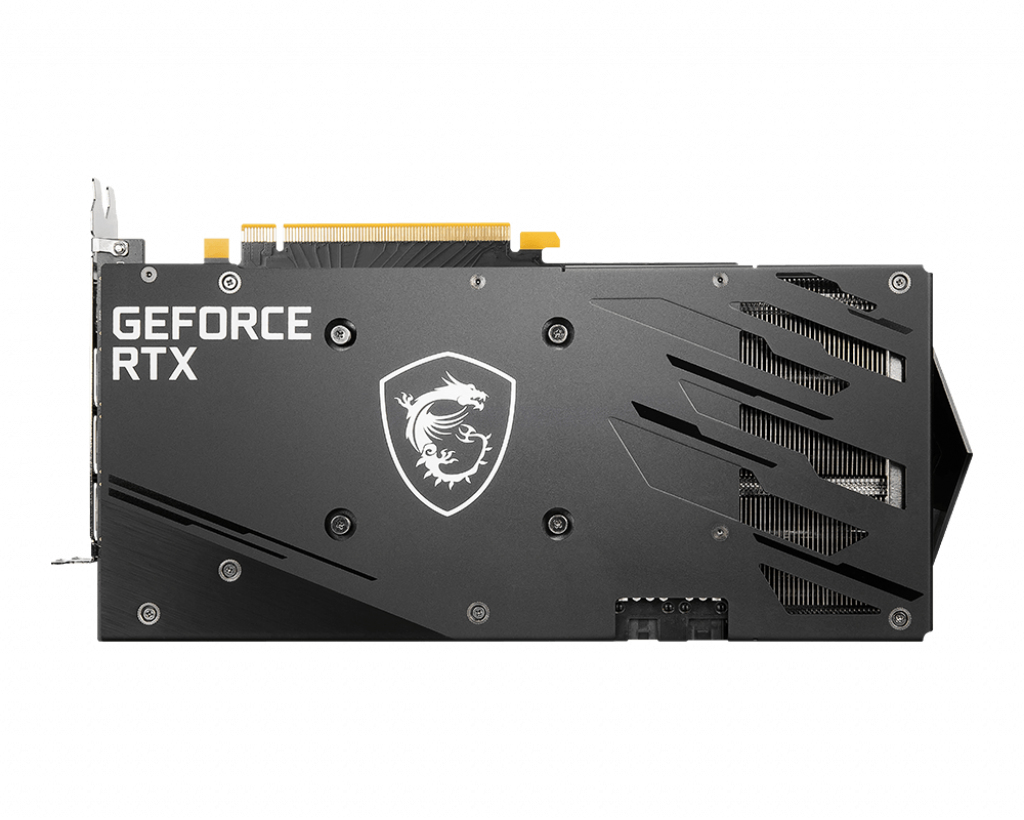

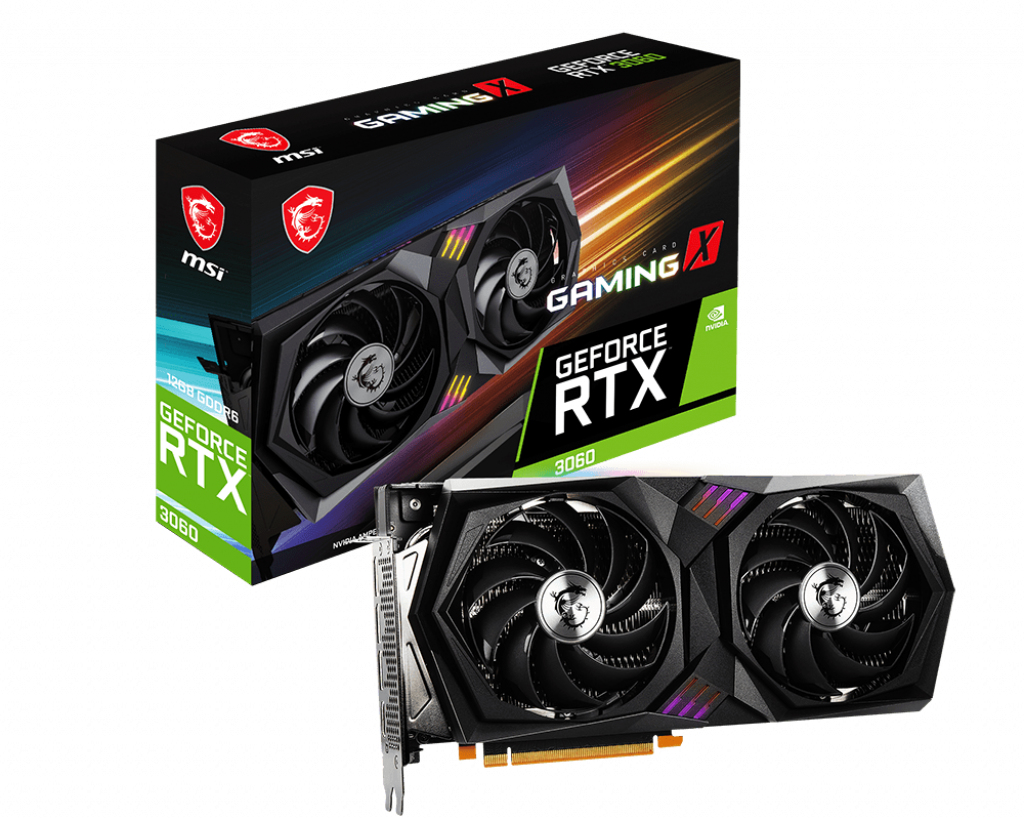

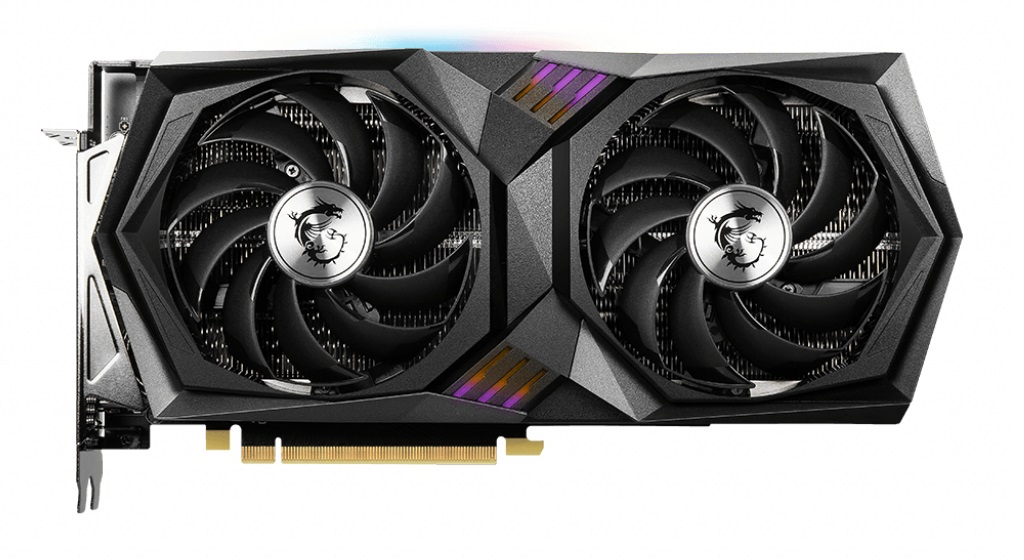

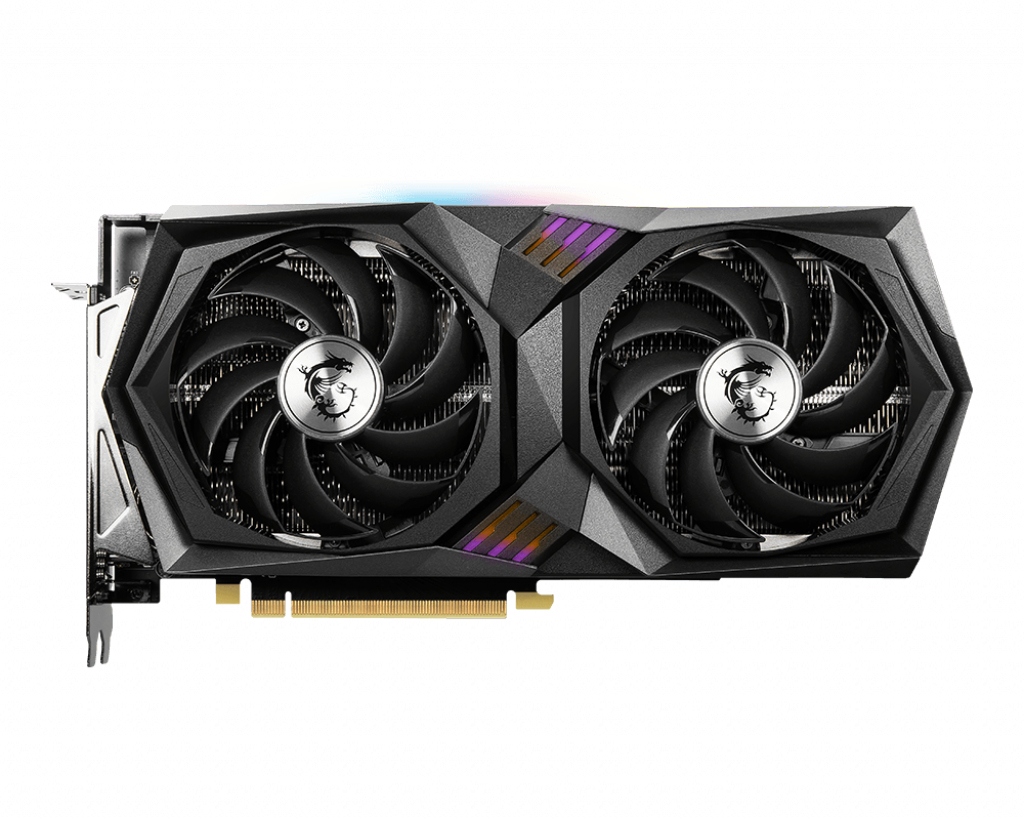

MSI GeForce RTX 3060 GAMING X 12G

GeForce RTX 3060 GAMING X 12G

Model GeForce RTX 3060 GAMING X 12G

44 specifications Checked today

Weight996 g
ColourBlack
Graphics processor familyNVIDIA
Discrete graphics card memory12 GB
Interface typePCI Express 4.0
TV tuner integratedNo

See all specifications

Overview

Weight: 996 g
Colour: Black
Graphics processor family: NVIDIA
Discrete graphics card memory: 12 GB
Interface type: PCI Express 4.0
TV tuner integrated: No

Brand: MSI
Category: GPU
Model: GeForce RTX 3060 GAMING X 12G
Also known as: MSI GAMING GeForce RTX 3060 X 12G NVIDIA 12 GB GDDR6

Specifications

44 specifications in 10 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 3060
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	3584
Processor boost clock speed	1837 MHz
FireStream	No
Maximum displays per videocard	4
Parallel processing technology support	Not supported

Memory

Specification	Value
Discrete graphics card memory	12 GB
Graphics card memory type	GDDR6
Memory bus	192 bit
Data transfer rate	15 Gbit/s

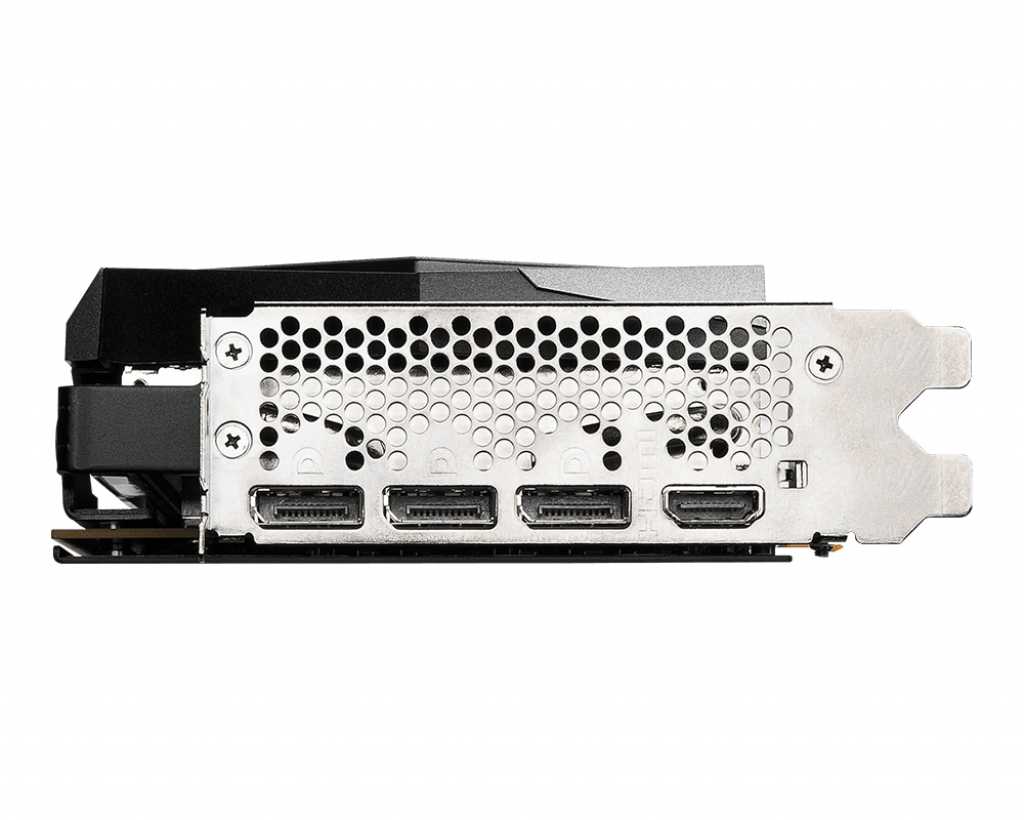

Ports & interfaces

Specification	Value
Interface type	PCI Express 4.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.1
DisplayPort version	1.4a
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
Virtual Reality (VR) ready	Yes
HDCP	Yes
Dual Link DVI	No
NVIDIA G-SYNC	Yes

Design

Specification	Value
Cooling type	Active
Cooling technology	MSI TORX Fan 4.0
Number of fans	2 fan(s)
Illumination	Yes
Illumination colour	Multi
Product colour	Black

Power

Specification	Value
Minimum system power supply	550 W
Power consumption (typical)	170 W
Supplementary power connectors	1x 6-pin, 1x 8-pin

Weight & dimensions

Specification	Value
Weight	996 g
Length	276 mm
Depth	51 mm
Height	131 mm

Packaging data

Specification	Value
Package type	Box

Packaging content

Specification	Value
Manual	Yes

Logistics data

Specification	Value
Harmonized System (HS) code	84733020
