GeForce RTX 2080 SUPER VENTUS XS OC
Model GeForce RTX 2080 SUPER VENTUS XS OCPart no. G2080SVXCEAN 824142193617
31 specifications Checked today
- Weight962 g
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 3.0
- DirectX version12.0
- Cooling typeActive
Overview
- Weight
- 962 g
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 3.0
- DirectX version
- 12.0
- Cooling type
- Active
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 2080 SUPER VENTUS XS OC
- Part numbers
- G2080SVXC, RTX2080S-V-XSOC
- EAN / UPC
- 824142193617
- Also known as
- MSI VENTUS GeForce RTX 2080 SUPER XS OC NVIDIA 8 GB GDDR6
Specifications
31 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 2080 SUPER |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 3072 |
| Processor boost clock speed | 1830 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 15.5 Gbit/s |

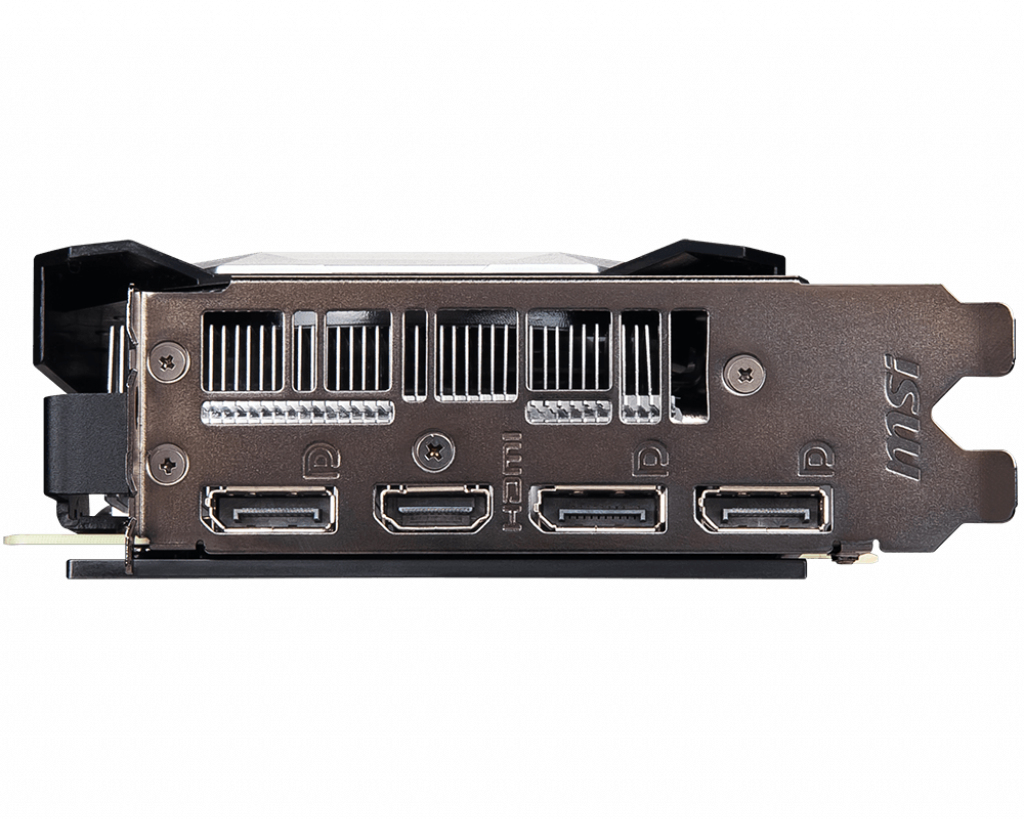

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 650 W |
| Power consumption (typical) | 250 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 962 g |
| Length | 257 mm |
| Depth | 51 mm |
| Height | 127 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.45 kg |
