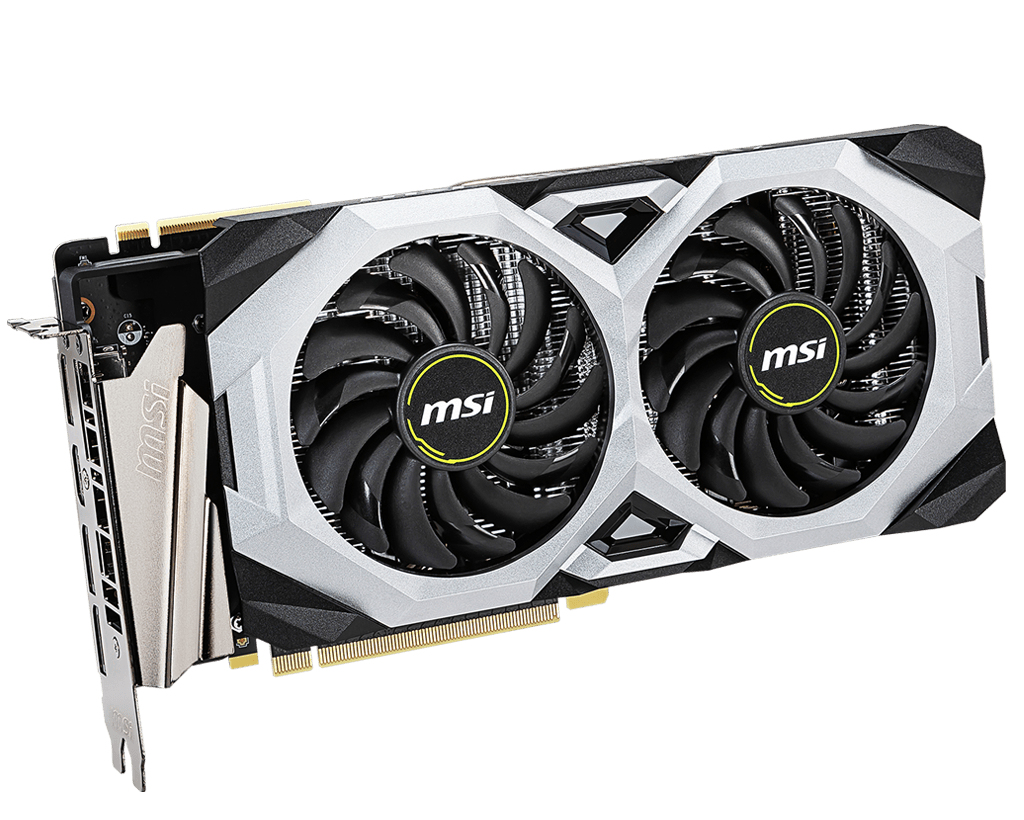

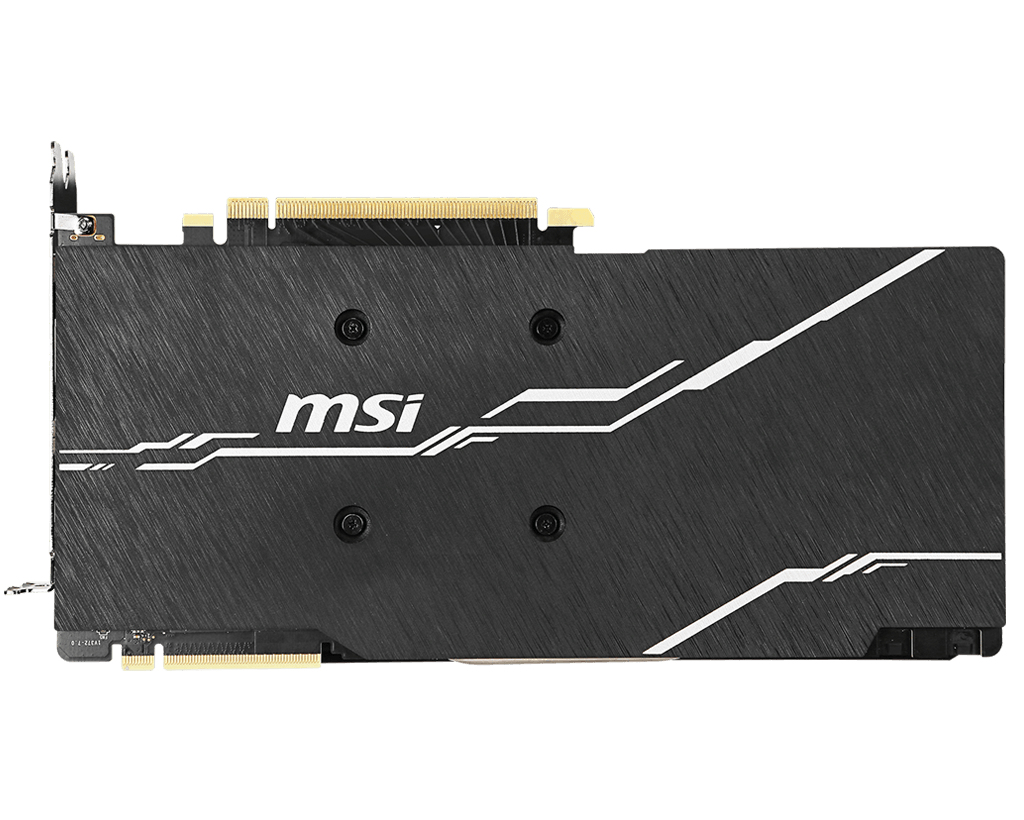

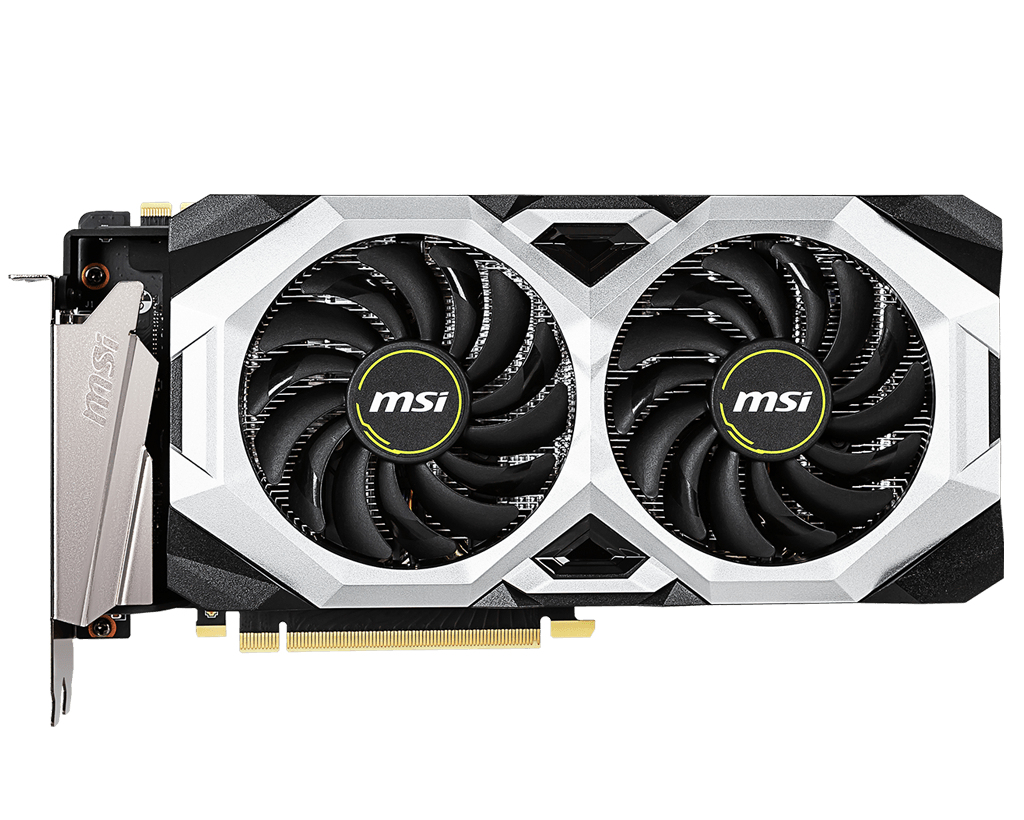

GeForce RTX 2070 SUPER VENTUS GP OC
Model GeForce RTX 2070 SUPER VENTUS GP OCPart no. GEFORCE RTX 2070 SUPER VENTUS GP OCEAN 4719072697464
43 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight829 g
- ColourBlack, White
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 3.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 829 g
- Colour
- Black, White
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 3.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 2070 SUPER VENTUS GP OC
- Part numbers
- GEFORCE RTX 2070 SUPER VENTUS GP OC, RTX2070S-V-GPOC, RTX2070SPRVNTSGPOC, V386-001R
- EAN / UPC
- 4719072697464, 824142205914
- Also known as
- MSI VENTUS GeForce RTX 2070 SUPER GP OC NVIDIA 8 GB GDDR6
Specifications
43 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 2070 SUPER |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 2560 |
| Processor frequency | 1605 MHz |
| Processor boost clock speed | 1785 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | 2-Way NVLink |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 14 Gbit/s |

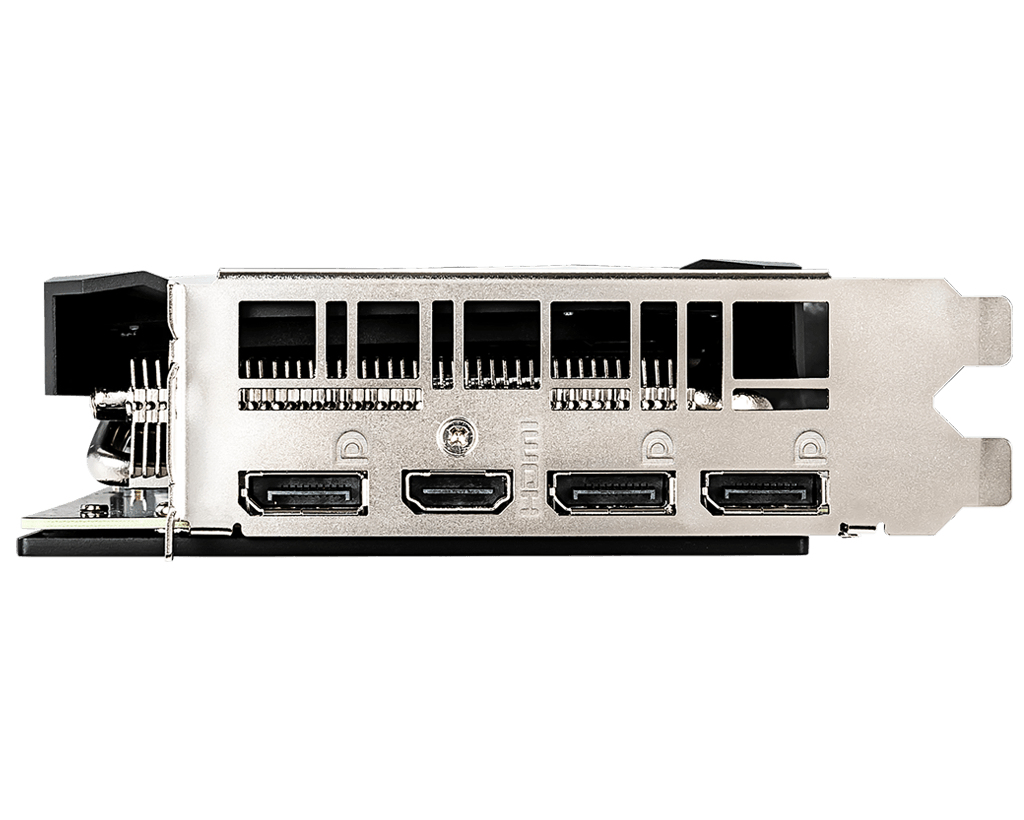

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 3.0 |
| Number of fans | 2 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Black, White |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 650 W |
| Power consumption (typical) | 235 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 829 g |
| Length | 258 mm |
| Depth | 43 mm |
| Height | 127 mm |

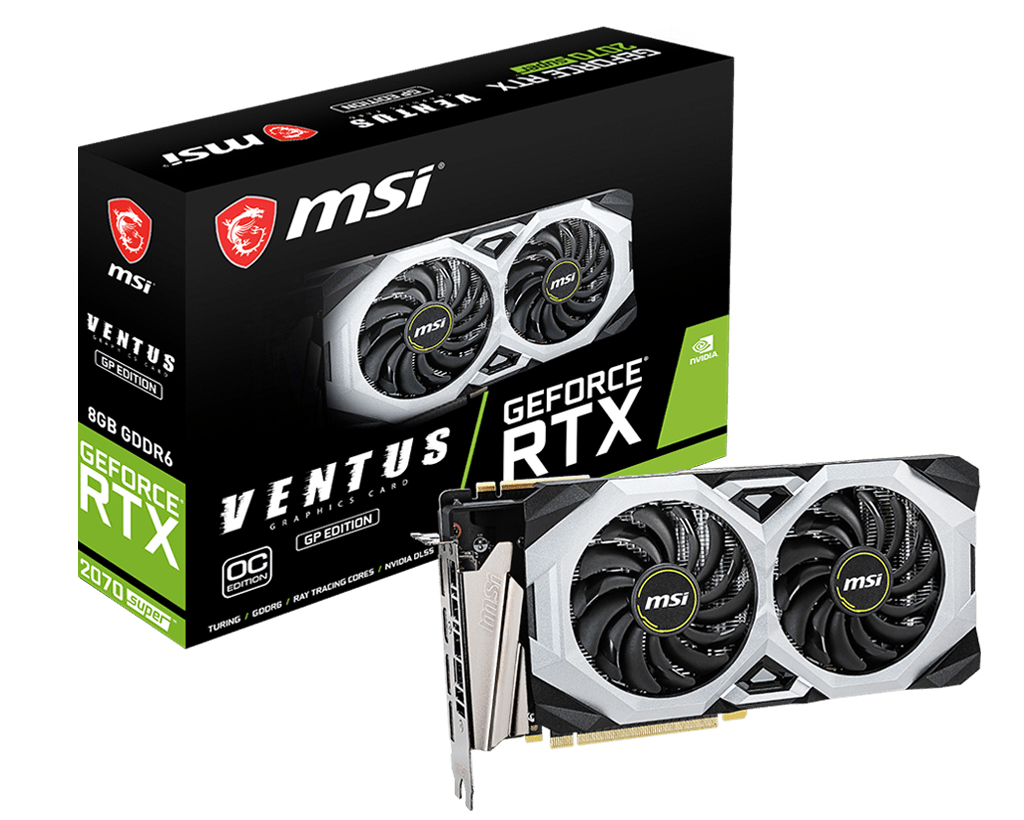

Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.31 kg |
| Package type | Box |
