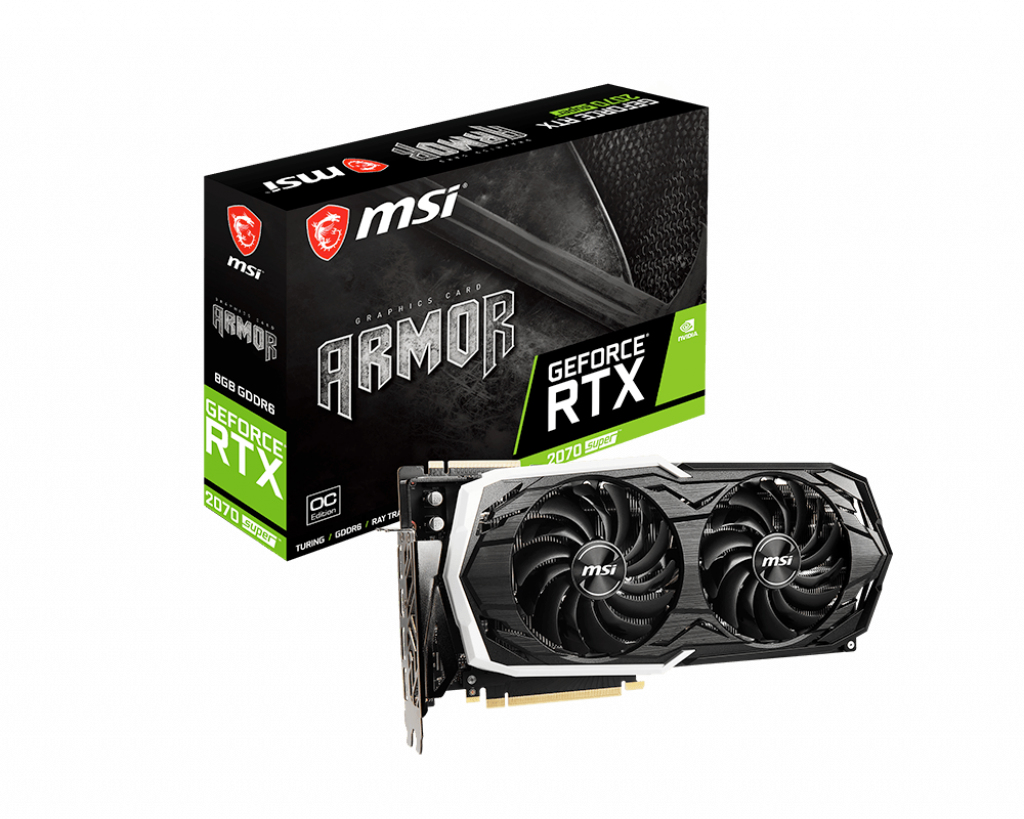

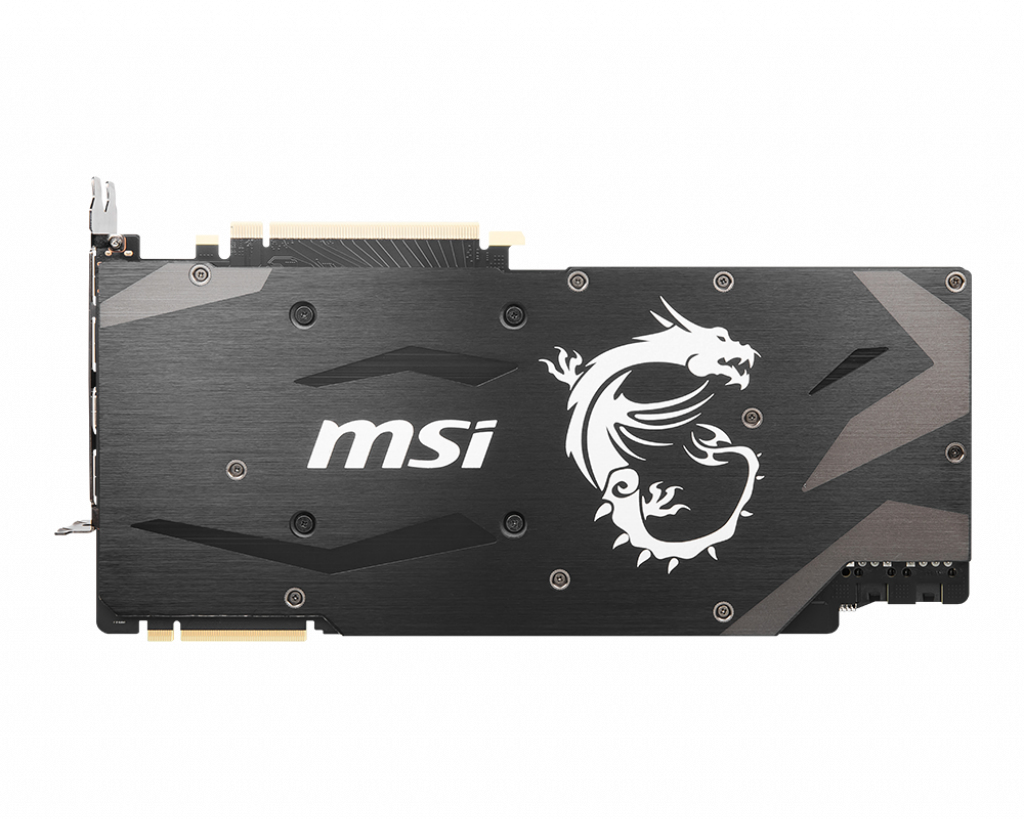

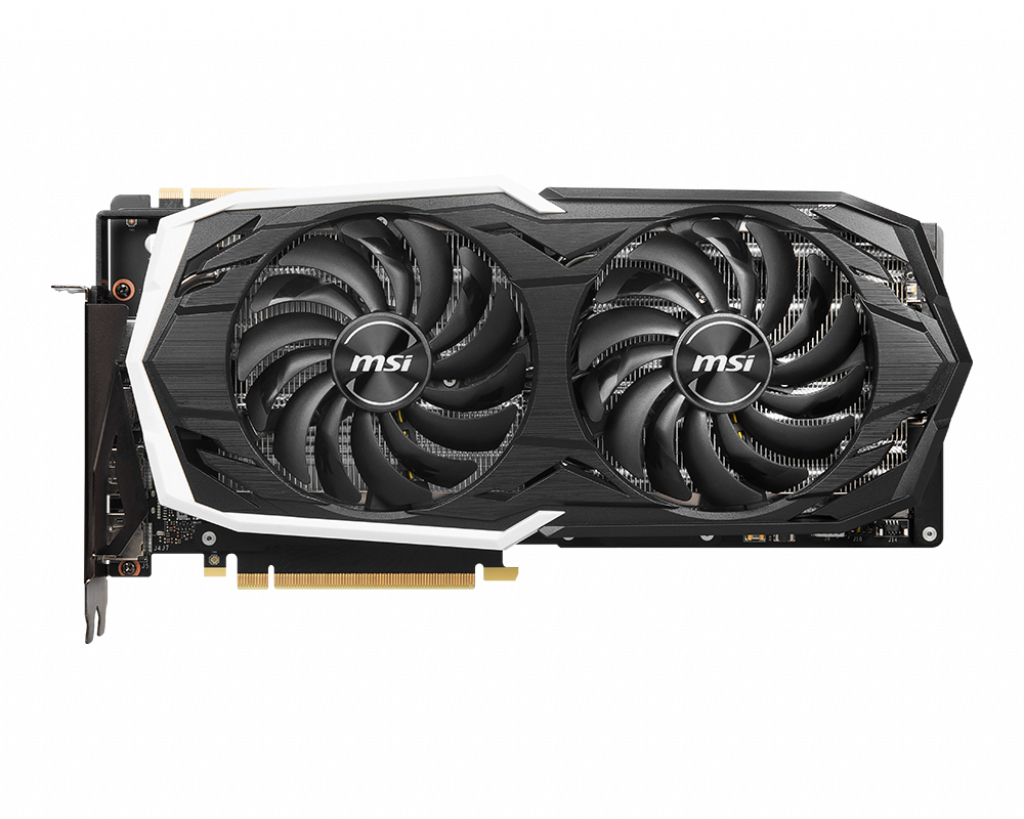

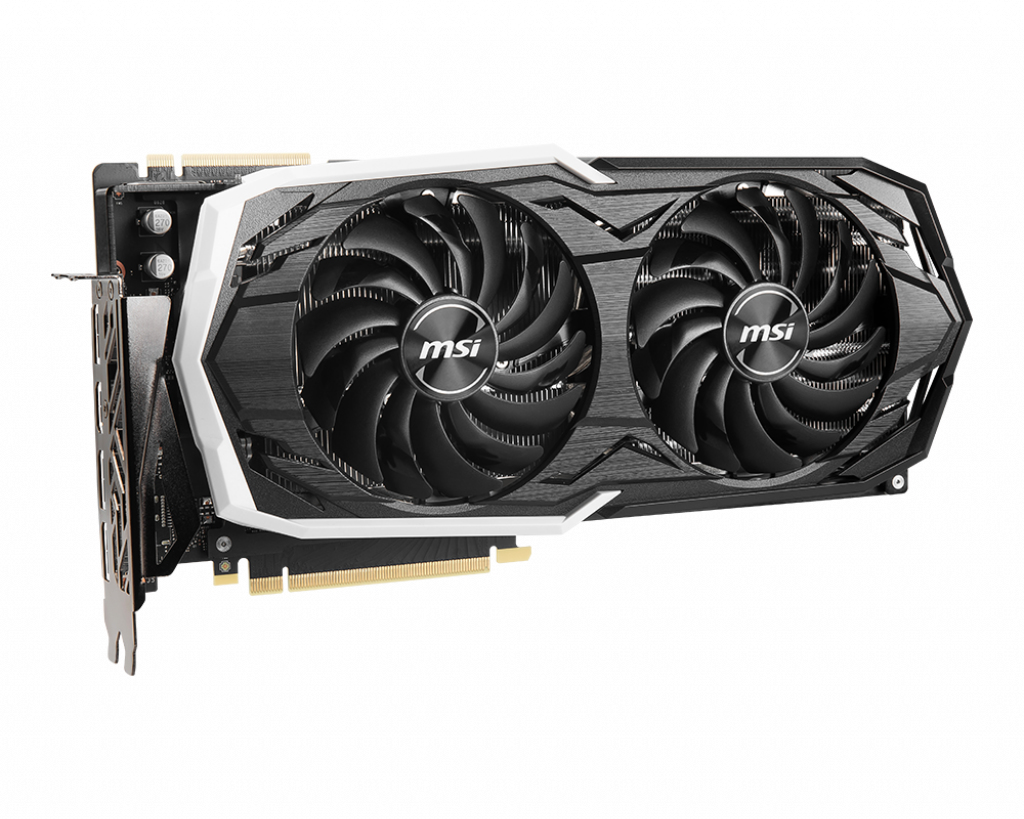

GeForce RTX 2070 SUPER ARMOR OC
Model GeForce RTX 2070 SUPER ARMOR OCPart no. 4719072664138EAN 824142193914
33 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.02 kg
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 3.0
- TV tuner integratedNo
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.02 kg
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 3.0
- TV tuner integrated
- No
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 2070 SUPER ARMOR OC
- Part numbers
- 4719072664138, G270S-AC, GEFORCE RTX 2070 SUPER ARMOR OC
- EAN / UPC
- 824142193914
- Also known as
- MSI ARMOR GeForce RTX 2070 SUPER OC NVIDIA 8 GB GDDR6
Specifications
33 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 2070 SUPER |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 2560 |
| Processor boost clock speed | 1785 MHz |
| Parallel processing technology support | 2-Way NVLink |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 14 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |

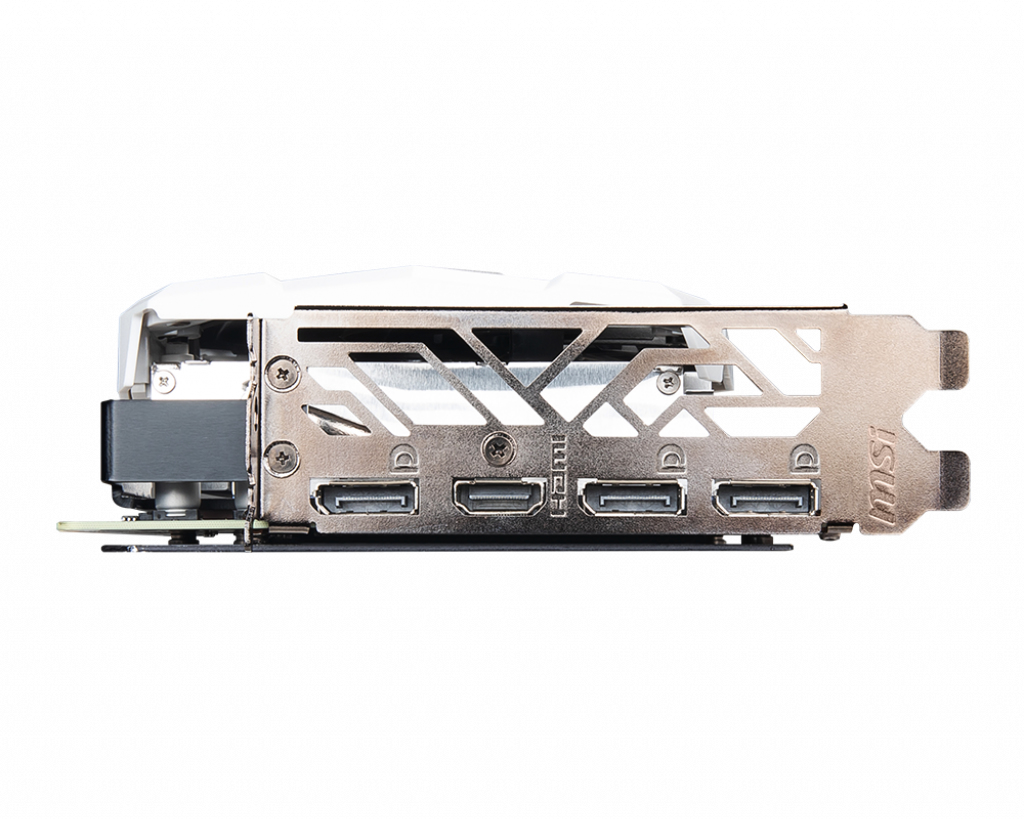

| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 2.0 |
| Number of fans | 2 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 650 W |
| Power consumption (typical) | 215 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.02 kg |
| Length | 297 mm |
| Depth | 51 mm |
| Height | 143 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.54 kg |
