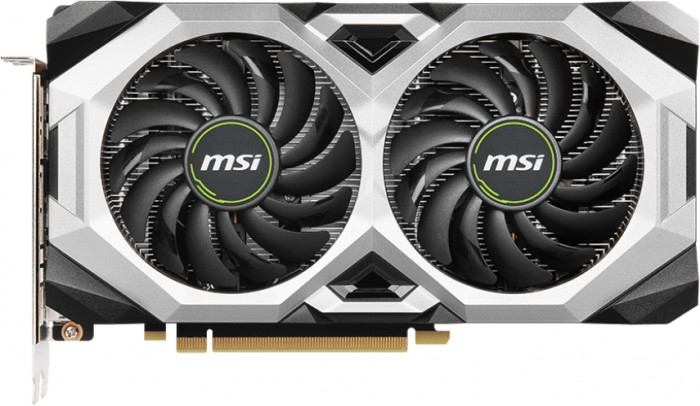

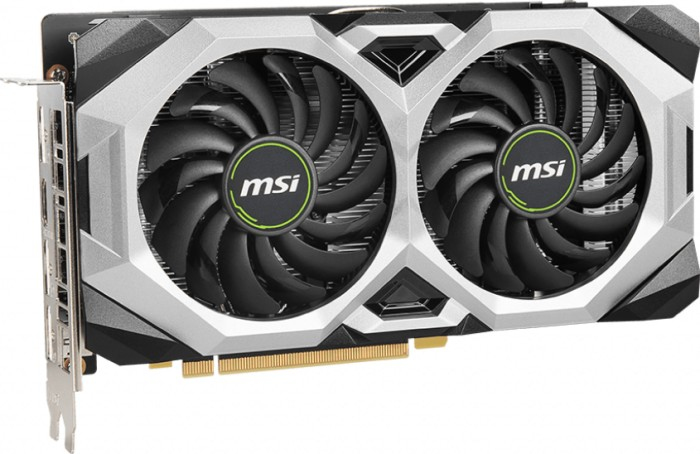

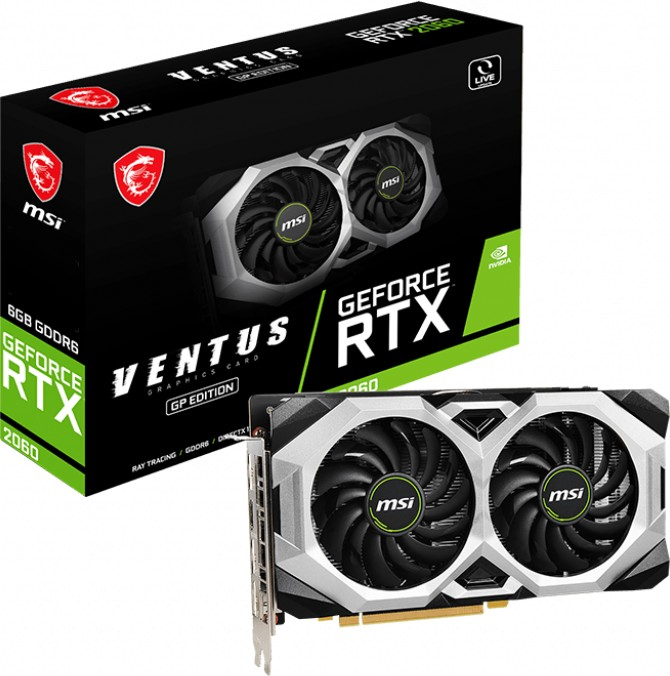

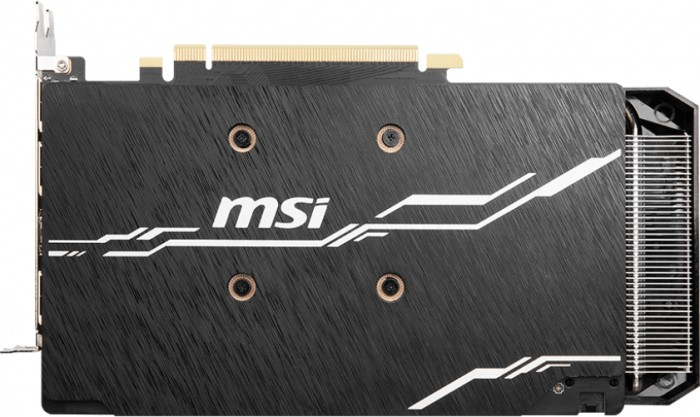

GeForce RTX 2060 VENTUS GP
Model GeForce RTX 2060 VENTUS GPPart no. RTX 2060 VENTUS GPEAN 4719072666125
41 specifications Checked today
- Weight720 g
- Graphics processor familyNVIDIA
- Discrete graphics card memory6 GB
- Interface typePCI Express x16 3.0
- TV tuner integratedNo
- Cooling typeActive
Overview
- Weight
- 720 g
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 6 GB
- Interface type
- PCI Express x16 3.0
- TV tuner integrated
- No
- Cooling type
- Active
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 2060 VENTUS GP
- Part number
- RTX 2060 VENTUS GP
- EAN / UPC
- 4719072666125
- Also known as
- MSI VENTUS GeForce RTX 2060 GP NVIDIA 6 GB GDDR6
Specifications
41 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 2060 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 1920 |
| Processor boost clock speed (OC mode) | 1680 MHz |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 6 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |
| Data transfer rate | 14 Gbit/s |

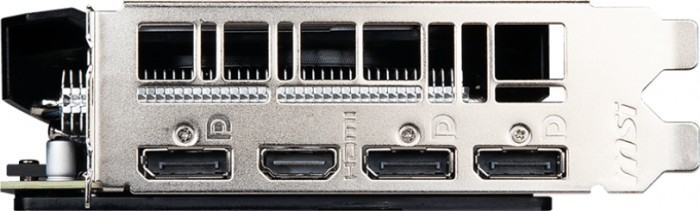

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4a |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 2.0 |
| Number of fans | 2 fan(s) |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 500 W |
| Power consumption (typical) | 160 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 720 g |
| Length | 231 mm |
| Depth | 42 mm |
| Height | 128 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.17 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
