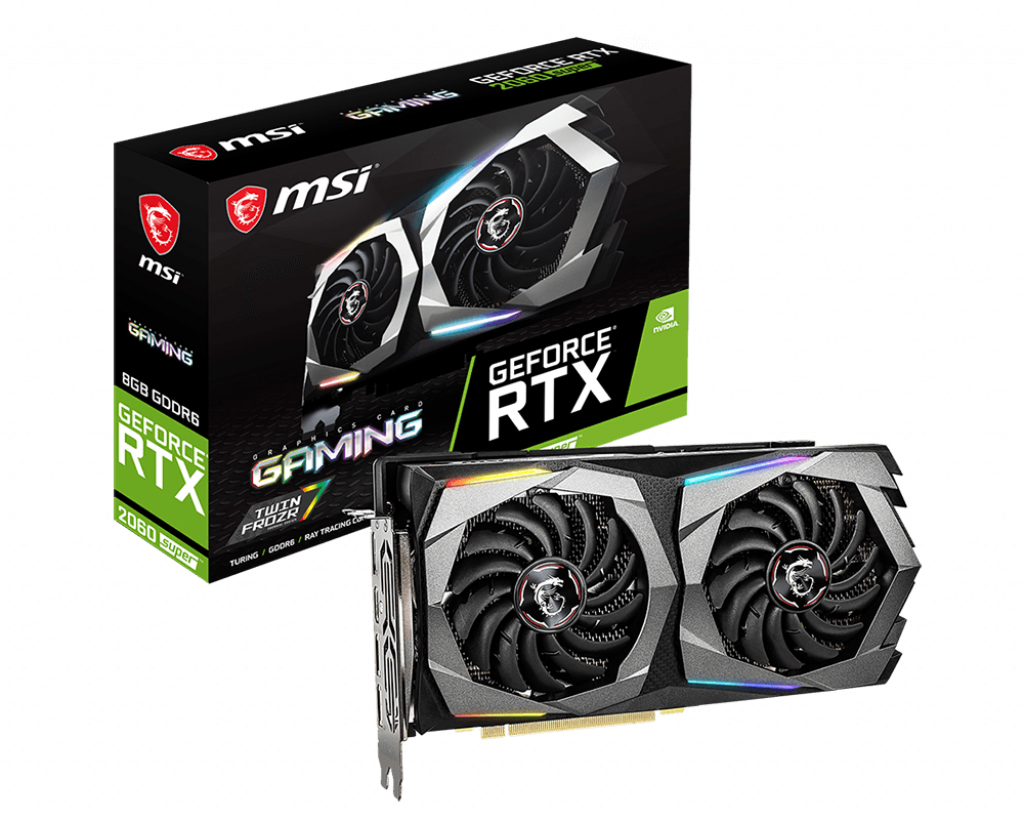

GeForce RTX 2060 SUPER GAMING
Model GeForce RTX 2060 SUPER GAMINGPart no. 00V375-226REAN 4719072658724
41 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight981 g
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 3.0
- PhysXNo
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 981 g
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 3.0
- PhysX
- No
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 2060 SUPER GAMING
- Part number
- 00V375-226R
- EAN / UPC
- 4719072658724
- Also known as
- MSI GAMING GeForce RTX 2060 SUPER NVIDIA 8 GB GDDR6
Specifications
41 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 2060 SUPER |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 2176 |
| Processor boost clock speed | 1650 MHz |
| FireStream | No |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 14 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| Shader model version | No |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA GameWorks VR | Yes |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Illumination colour | Multi |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Power consumption (typical) | 175 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 981 g |
| Length | 248 mm |
| Depth | 52 mm |
| Height | 128 mm |
