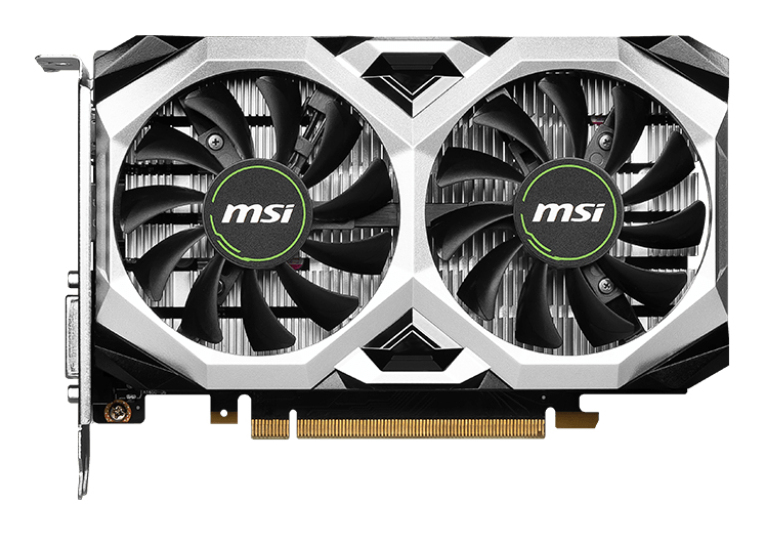

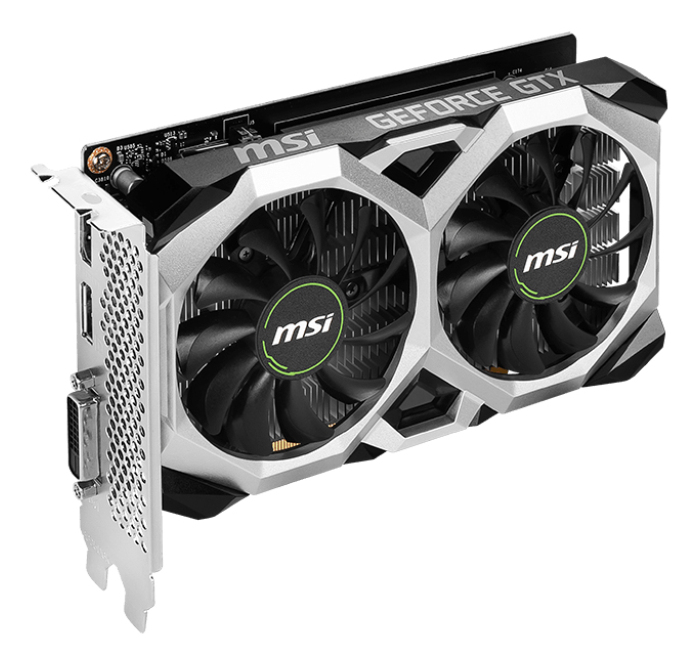

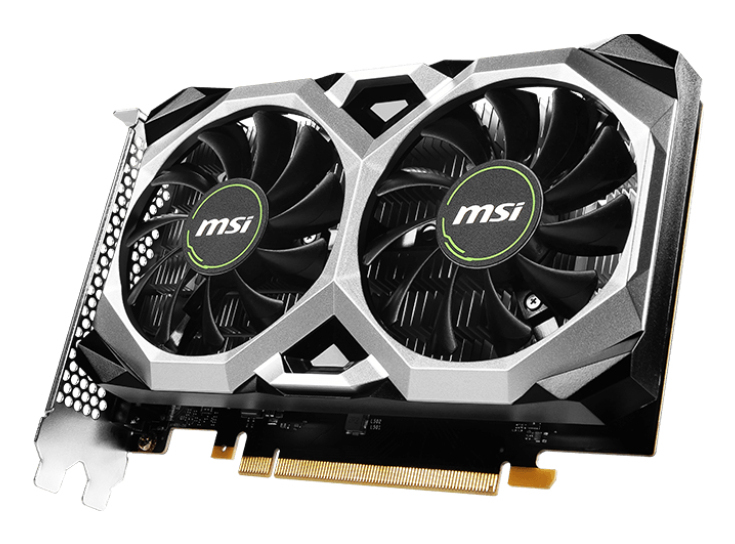

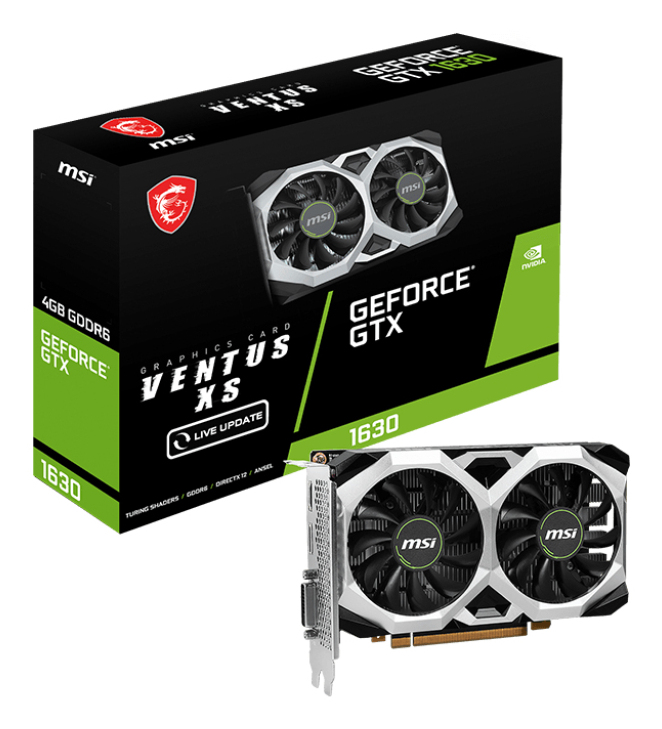

GeForce GTX 1630 VENTUS XS 4G
Model GeForce GTX 1630 VENTUS XS 4GPart no. GEFORCE GTX 1630 VENTUS XS 4GEAN 4711377007146
39 specifications Checked today
- TypeFull-Height/Half-Length (FH/HL)
- Weight446 g
- ColourBlack, White
- Graphics processor familyNVIDIA
- Discrete graphics card memory4 GB
- Interface typePCI Express x16 3.0
Overview
- Type
- Full-Height/Half-Length (FH/HL)
- Weight
- 446 g
- Colour
- Black, White
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 4 GB
- Interface type
- PCI Express x16 3.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce GTX 1630 VENTUS XS 4G
- Part number
- GEFORCE GTX 1630 VENTUS XS 4G
- EAN / UPC
- 4711377007146
- Also known as
- MSI VENTUS GeForce GTX 1630 XS 4G NVIDIA 4 GB GDDR6
Specifications
39 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce GTX 1630 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 512 |
| Processor boost clock speed | 1785 MHz |
| Maximum displays per videocard | 3 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 4 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 64 bit |
| Data transfer rate | 12 Gbit/s |

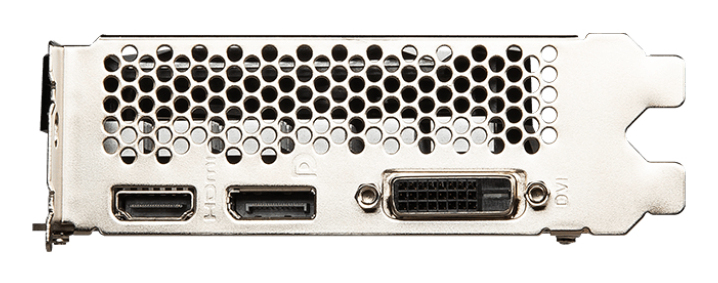

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | Yes |
| NVIDIA G-SYNC | Yes |
| NVIDIA Ansel | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Product colour | Black, White |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 300 W |
| Power consumption (typical) | 75 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 446 g |
| Length | 178 mm |
| Depth | 39 mm |
| Height | 112 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 656 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
