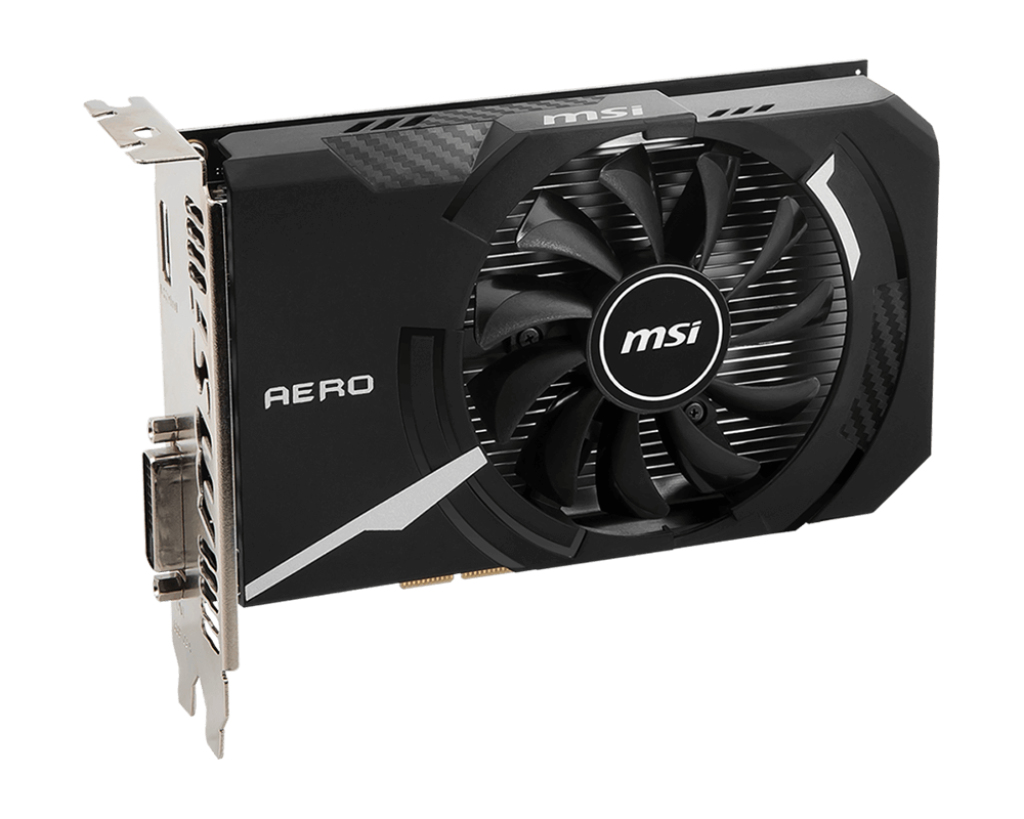

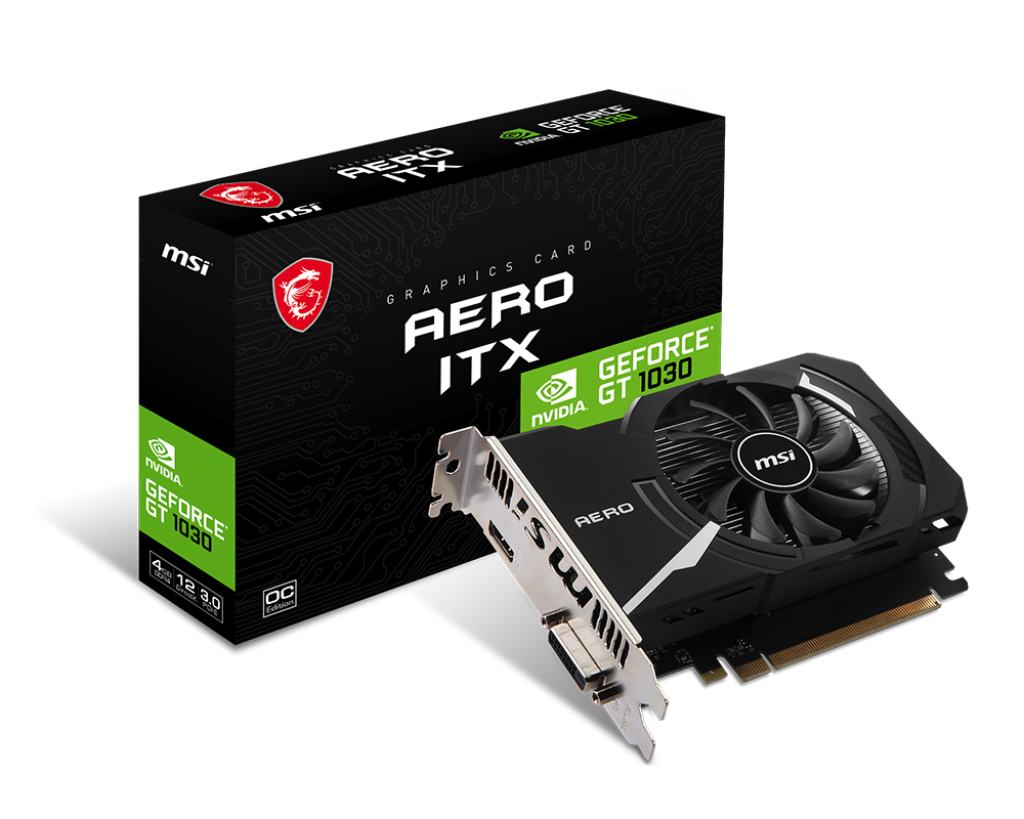

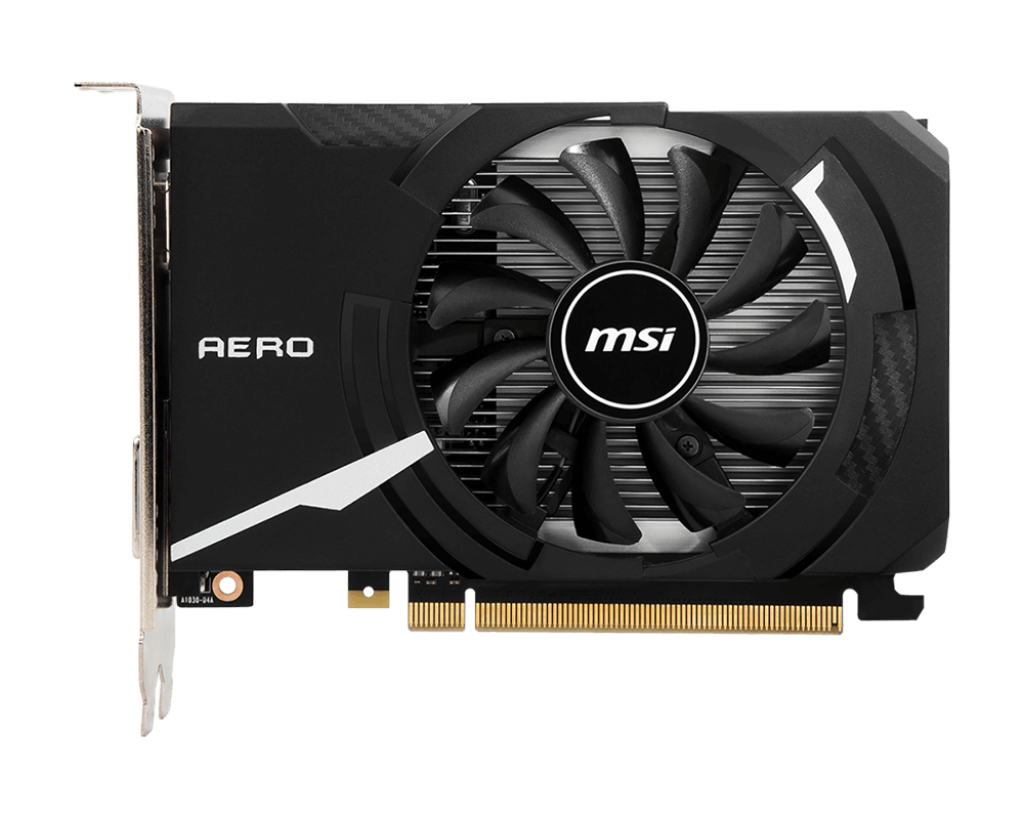

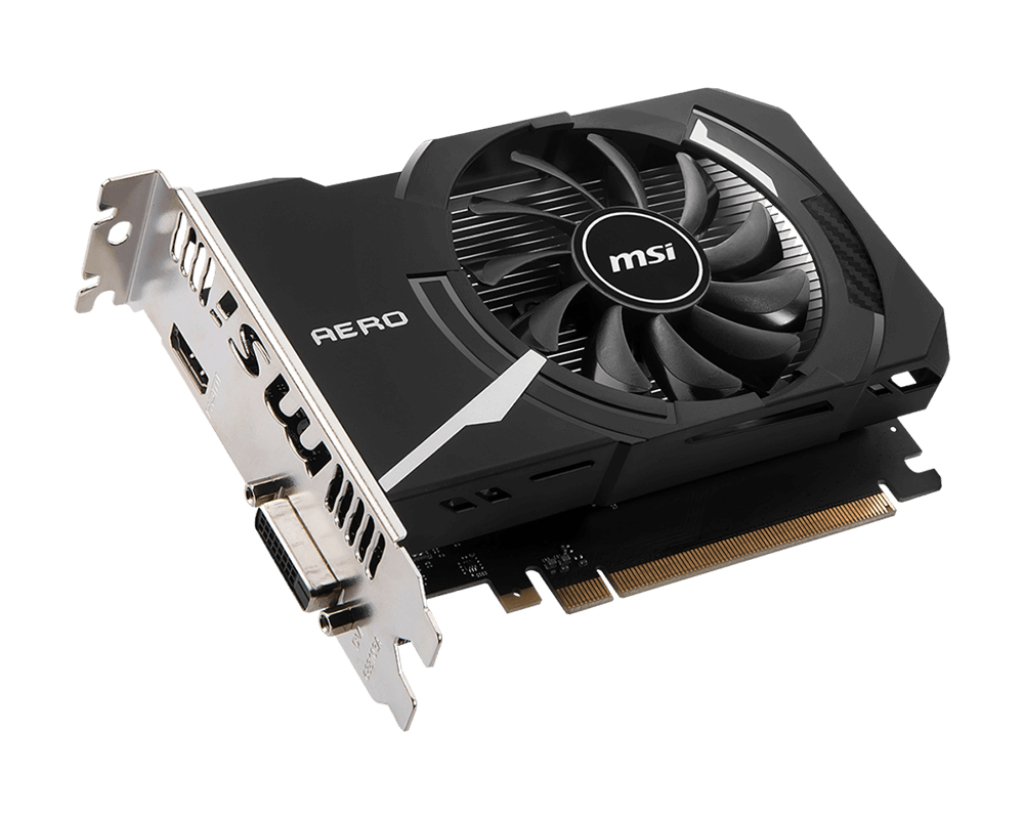

GeForce GT 1030 AERO ITX 4GD4 OC
Model GeForce GT 1030 AERO ITX 4GD4 OCPart no. GEFORCE GT 1030 AERO ITX 4GD4 OC
40 specifications Checked today
- TypeFull-Height/Half-Length (FH/HL)
- Weight281 g
- ColourBlack, Silver
- Graphics processor familyNVIDIA
- Discrete graphics card memory4 GB
- Interface typePCI Express x16 3.0
Overview
- Type
- Full-Height/Half-Length (FH/HL)
- Weight
- 281 g
- Colour
- Black, Silver
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 4 GB
- Interface type
- PCI Express x16 3.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce GT 1030 AERO ITX 4GD4 OC
- Part number
- GEFORCE GT 1030 AERO ITX 4GD4 OC
- Also known as
- MSI AERO ITX GeForce GT 1030 4GD4 OC NVIDIA 4 GB GDDR4
Specifications
40 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce GT 1030 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 384 |
| Processor boost clock speed | 1430 MHz |
| FireStream | No |
| Maximum displays per videocard | 2 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 4 GB |
| Graphics card memory type | GDDR4 |
| Memory bus | 64 bit |
| Memory clock speed | 2100 MHz |

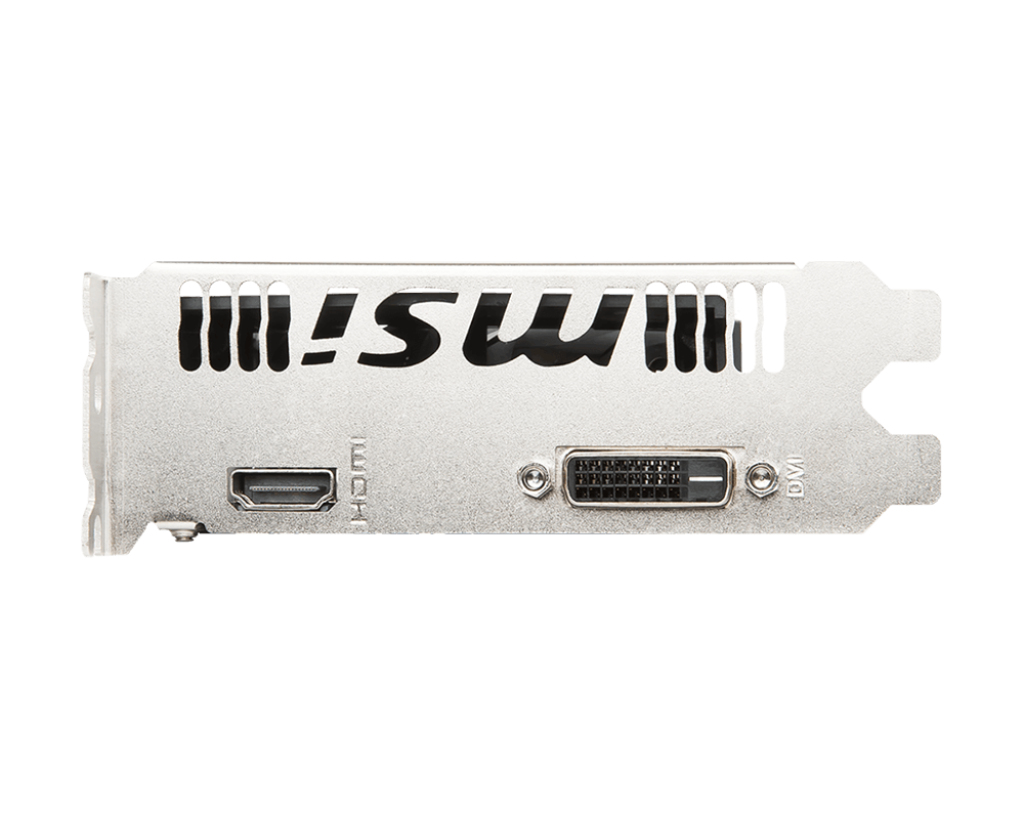

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 0 |
| HDMI version | 2.0b |
Performance
| Specification | Value |
|---|---|
| PhysX | Yes |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2 |
| Product colour | Black, Silver |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 300 W |
| Power consumption (typical) | 20 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 281 g |
| Length | 147 mm |
| Depth | 38 mm |
| Height | 102 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 507 g |
| Package type | Box |
