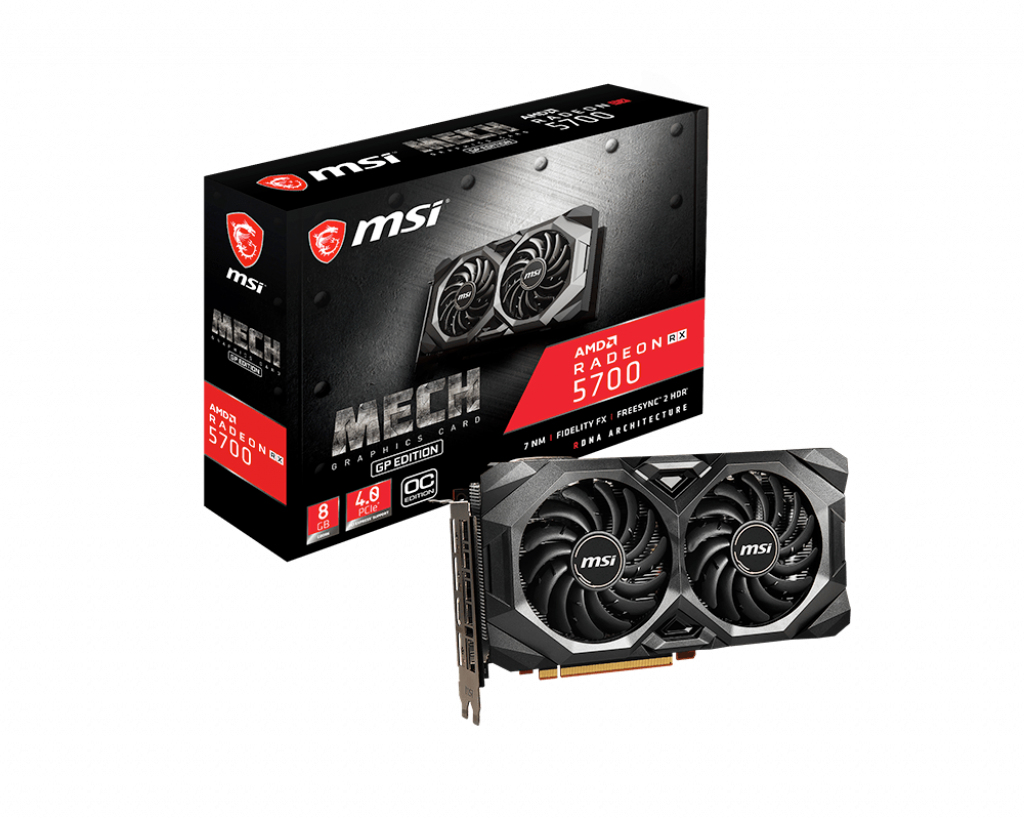

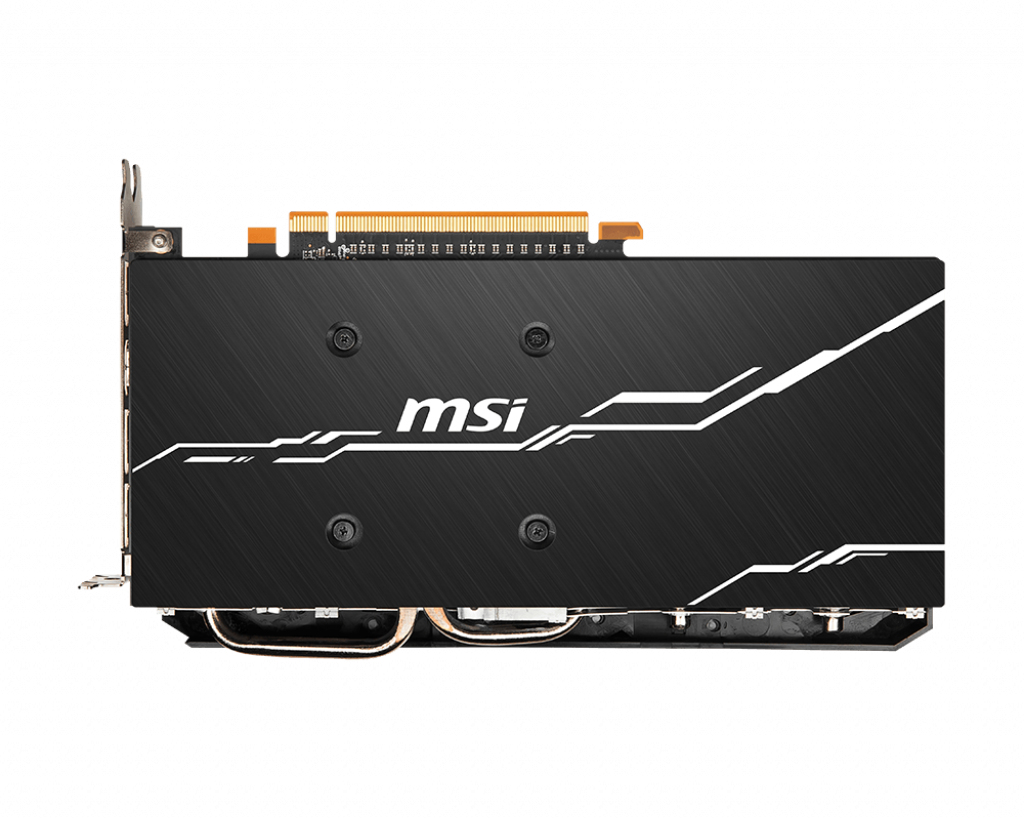

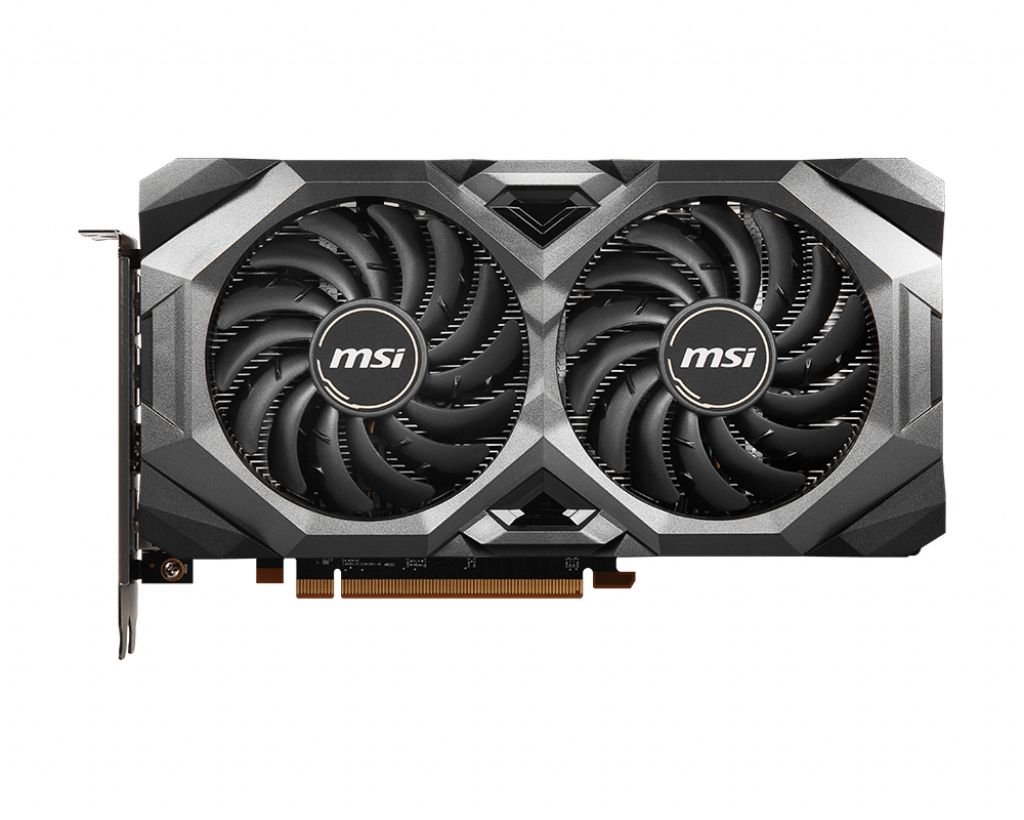

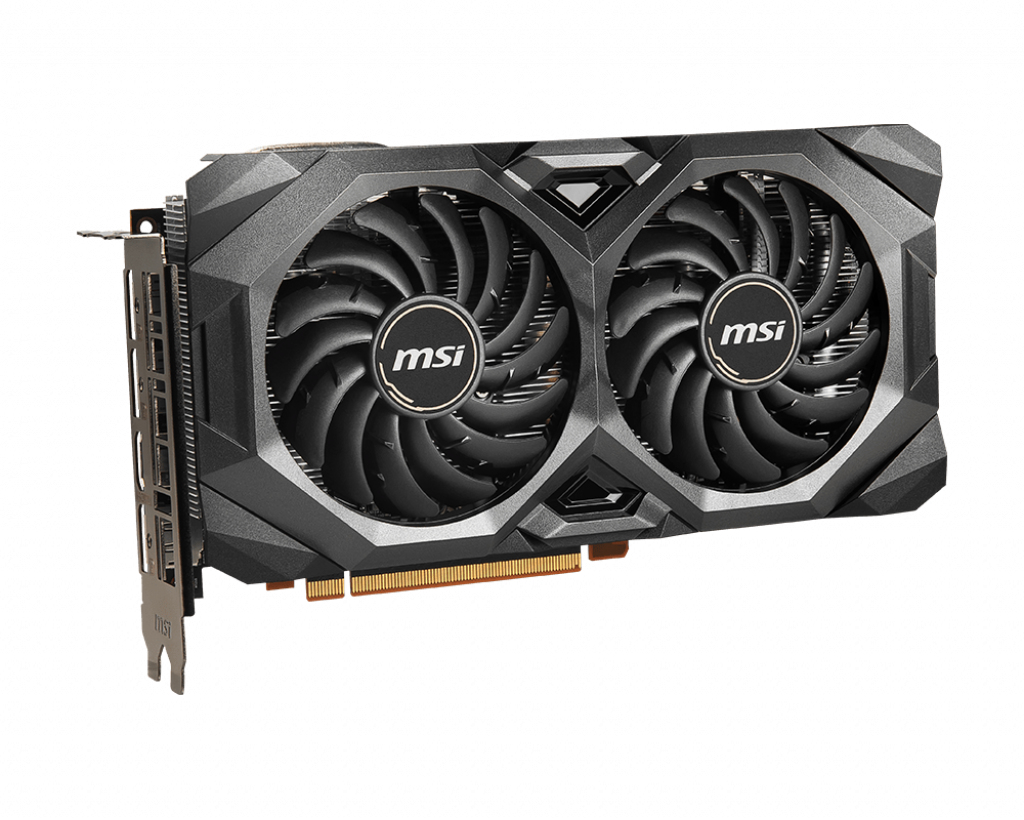

MSI AMD RX 5700 Mech GP OC

AMD RX 5700 Mech GP OC

Model AMD RX 5700 Mech GP OCPart no. RX5700 MECH GP OC

41 specifications Checked today

TypeFull-Height/Half-Length (FH/HL)
Weight799 g
ColourBlack
Graphics processor familyAMD
Discrete graphics card memory8 GB
Interface typePCI Express 4.0

See all specifications

Overview

Type: Full-Height/Half-Length (FH/HL)
Weight: 799 g
Colour: Black
Graphics processor family: AMD
Discrete graphics card memory: 8 GB
Interface type: PCI Express 4.0

Brand: MSI
Category: GPU
Model: AMD RX 5700 Mech GP OC
Part number: RX5700 MECH GP OC
Also known as: MSI MECH AMD RX 5700 GP OC Radeon RX 5700 8 GB GDDR6

Specifications

41 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	AMD
Graphics processor	Radeon RX 5700
Maximum resolution	7680 x 4320 pixels
CUDA	No
Processor frequency	1515 MHz
Processor boost clock speed	1750 MHz
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Data transfer rate	14 Gbit/s

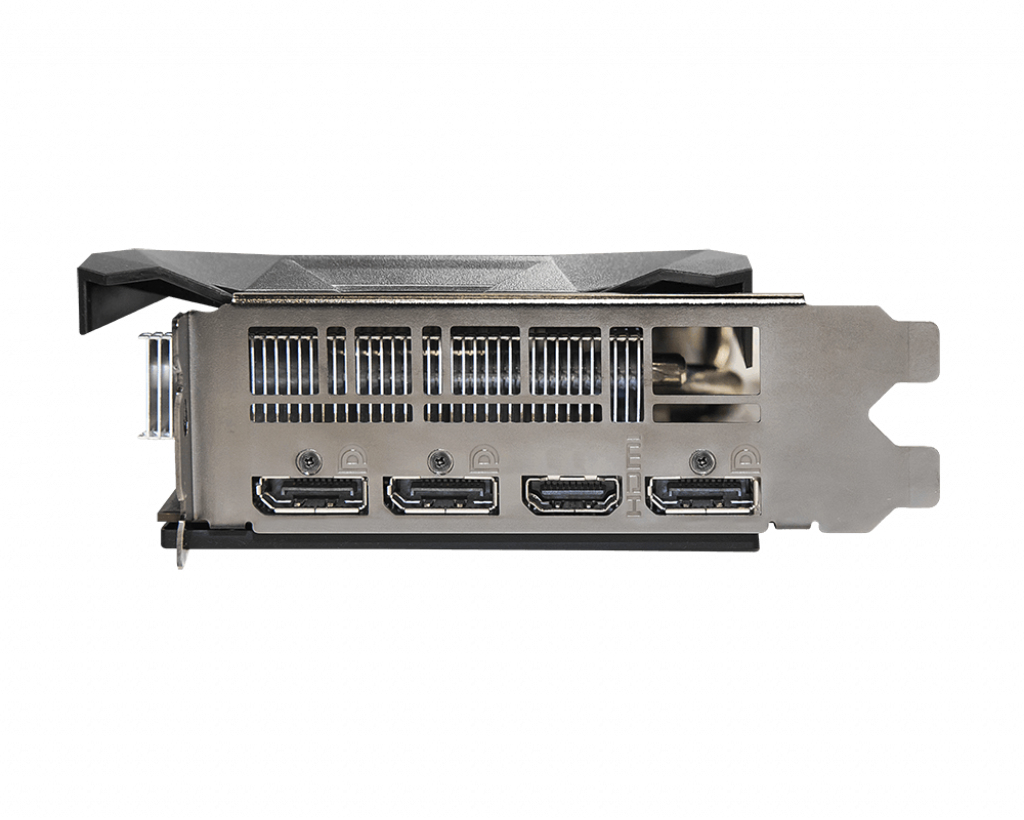

Ports & interfaces

Specification	Value
Interface type	PCI Express 4.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.0b
DisplayPort version	1.4
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
Virtual Reality (VR) ready	Yes
HDCP	Yes
Dual Link DVI	No
AMD FreeSync	Yes

Design

Specification	Value
Cooling type	Active
Number of fans	2 fan(s)
Bracket height	Full-Height (FH)
Form factor	Full-Height/Half-Length (FH/HL)
Product colour	Black

Power

Specification	Value
Minimum system power supply	750 W
Power consumption (typical)	225 W
Supplementary power connectors	1x 6-pin, 1x 8-pin

Weight & dimensions

Specification	Value
Weight	799 g
Length	232 mm
Depth	46 mm
Height	126 mm

Packaging data

Specification	Value
Package weight	1.23 kg
Package type	Box

Packaging content

Specification	Value
Manual	Yes
