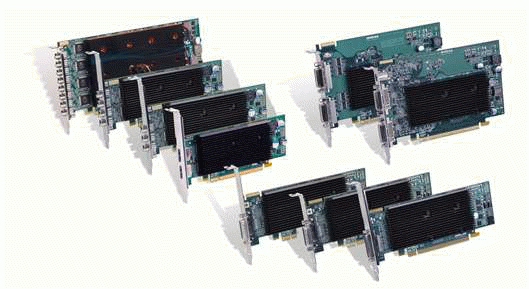

M9148 LP PCIe x16
Model M9148 LP PCIe x16Part no. M9148-E1024LAFEAN 5051964755395
22 specifications Checked today
- TypeHalf-Height/Half-Length (HH/HL)
- Graphics processor familyMatrox
- Discrete graphics card memory1 GB
- Interface typePCI Express x16
- TV tuner integratedNo
- Cooling typePassive
Overview
- Type
- Half-Height/Half-Length (HH/HL)
- Graphics processor family
- Matrox
- Discrete graphics card memory
- 1 GB
- Interface type
- PCI Express x16
- TV tuner integrated
- No
- Cooling type
- Passive
- Brand
- Matrox
- Category
- GPU
- Model
- M9148 LP PCIe x16
- Part number
- M9148-E1024LAF
- EAN / UPC
- 5051964755395, 031113407790, 790750240053, 5054629221198 +1 more
- Also known as
- Matrox M9148 LP PCIe x16 1 GB GDDR2
Specifications
22 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | Matrox |
| Graphics processor | M9148 |
| Maximum resolution | 2560 x 1600 pixels |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 1 GB |
| Graphics card memory type | GDDR2 |
| Memory bus | 128 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 |
| I/O ports | On-board Connectors: 4 x Mini DisplayPort Adapters (included): 4 x Mini DisplayPort to DisplayPort 4 x DisplayPort to DVI |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | No |
| OpenGL version | 2.0 |
Design
| Specification | Value |
|---|---|
| Cooling type | Passive |
| Form factor | Half-Height/Half-Length (HH/HL) |
| Certification | EMC Certifications: Class B ROHS & WEEE compliant |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 168 mm |
| Depth | 19 mm |
| Height | 69 mm |
Other features
| Specification | Value |
|---|---|
| Mac compatibility | No |
| Compatible operating systems | Microsoft Windows 7 (32/64bit)*, Microsoft Windows XP (32/64bit), Microsoft Windows Vista (32/64bit)*, Microsoft Windows Server 2003/2008 (32/64bit), Linux see Website for details |
| Number of processors installed | 1 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
