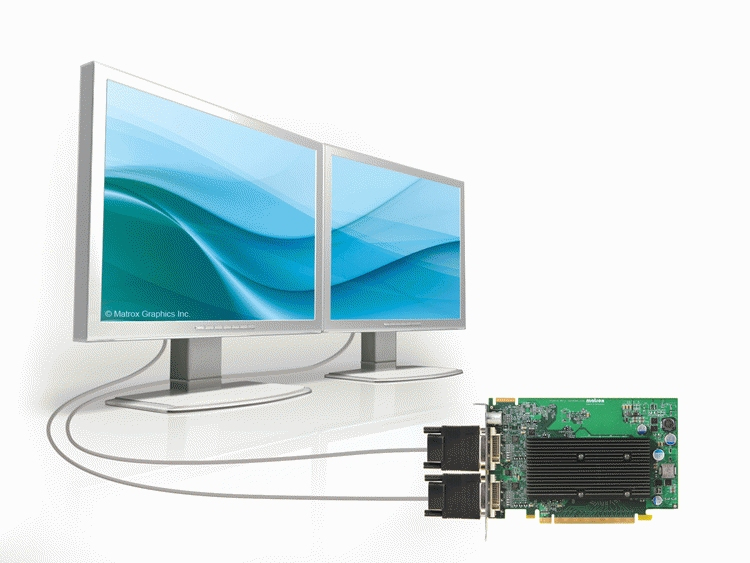

Matrox M9120 PCIe x16
Model M9120 PCIe x16Part no. M9120-E512FEAN 7907502359052
42 specifications Checked yesterday
- TypeFull-Height/Full-Length (FH/FL)
- Graphics processor familyMatrox
- Graphics card memory typeGDDR2
- Interface typePCI Express x16
- PhysXNo
- Cooling typePassive
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Graphics processor family
- Matrox
- Graphics card memory type
- GDDR2
- Interface type
- PCI Express x16
- PhysX
- No
- Cooling type
- Passive
- Brand
- Matrox
- Category
- GPU
- Model
- M9120 PCIe x16
- Part number
- M9120-E512F
- EAN / UPC
- 7907502359052, 778888187419, 790750235905, 5054484144489 +2 more
- Also known as
- Matrox M9120 PCIe x16 GDDR2
Specifications
42 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | Matrox |
| Maximum resolution | 2048 x 1536 pixels |
| CUDA | No |
| Maximum analog resolution | 2 x 2048 pixels |
| Maximum digital resolution | 2 x 1920 pixels |
| Maximum displays per videocard | 2 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Graphics card memory type | GDDR2 |
| Memory bus | 128 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 2 |
| DVI-I ports quantity | 2 |
| DisplayPorts quantity | 0 |
| DVI ports quantity | 2 |
| Dual VGA | Yes |
| VGA (D-Sub) ports quantity | 2 |
| Video in | No |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | No |
| OpenGL version | 2.0 |
| Dual Link DVI | Yes |
| Dual DVO | Yes |
| Full HD | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Passive |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Certification | EMC Certifications: Class B ROHS & WEEE compliant |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Hom |
| Mac operating systems supported | No |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 168 mm |
| Depth | 19 mm |
| Height | 111 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Matrox PowerDesk display driver & desktop management software |
Other features
| Specification | Value |
|---|---|
| Mac compatibility | No |
| HDMI | No |
| Compatible operating systems | Microsoft Windows 7 (32/64bit)*, Microsoft Windows XP (32/64bit)*, Microsoft Windows Vista (32/64bit)*, Microsoft Windows Server 2003/2008 (32/64bit)*, See website for details Linux (www.matrox.com/graphics/en/products/graphics_cards/m_series/linux_distributions.html) |
| Graphics card family | Matrox |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Compare Matrox M9120 PCIe x16

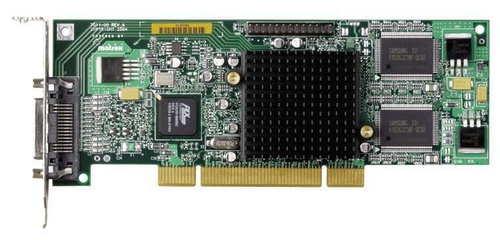

Compare any products- Matrox M9120 PCIe x16 vsMatrox G55MDDAP32DSF graphics card GDDRCompare specs

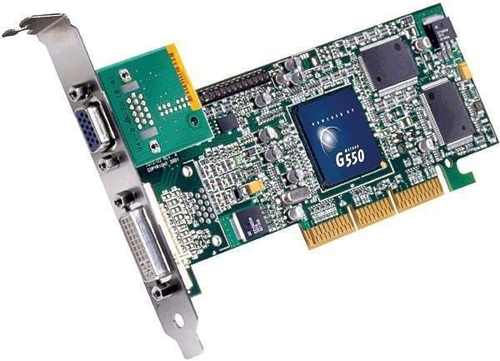

- Matrox M9120 PCIe x16 vsMatrox G55+MDHA32DSF graphics card GDDRCompare specs

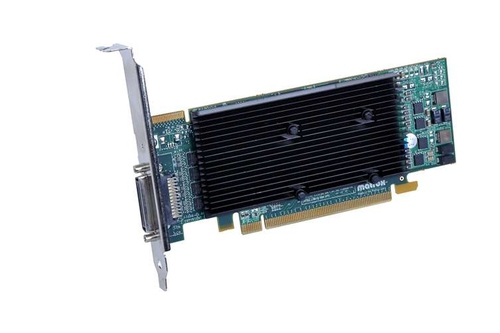

- Matrox M9120 PCIe x16 vsMatrox M9140-E512LAF graphics cardCompare specs

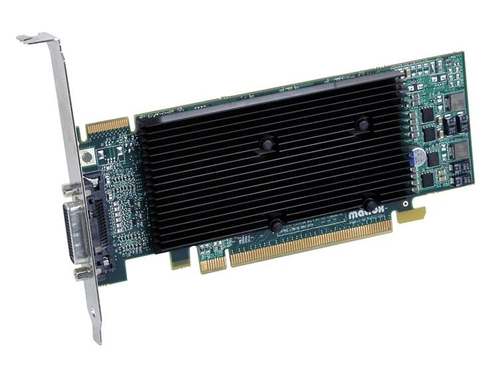

- Matrox M9120 PCIe x16 vsMatrox M9120-E512LPUF graphics cardCompare specs

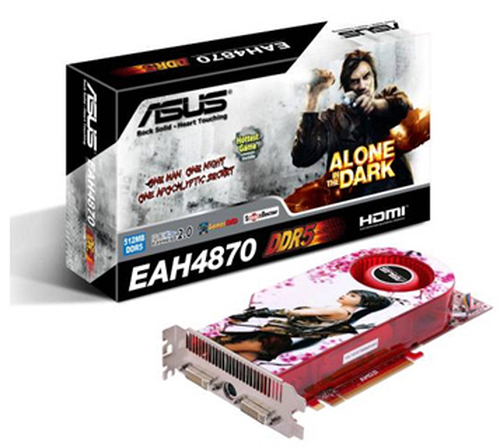

- Matrox M9120 PCIe x16 vsASUS 90-C3CGH0-J0UAY00T graphics card GDDR3Compare specs

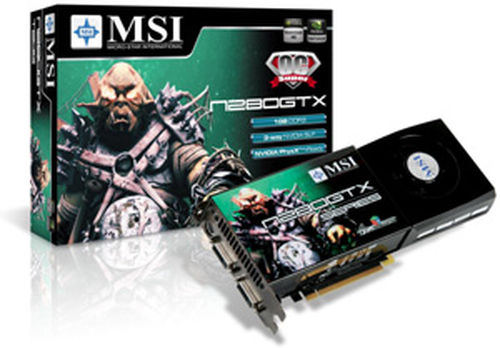

- Matrox M9120 PCIe x16 vsMSI V801-493R graphics card GeForce GTX 280Compare specs

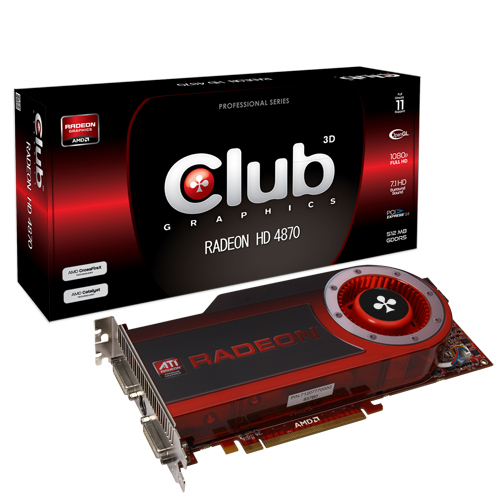

- Matrox M9120 PCIe x16 vsCLUB3D Radeon HD 4870 512MB GDDR5Compare specs
