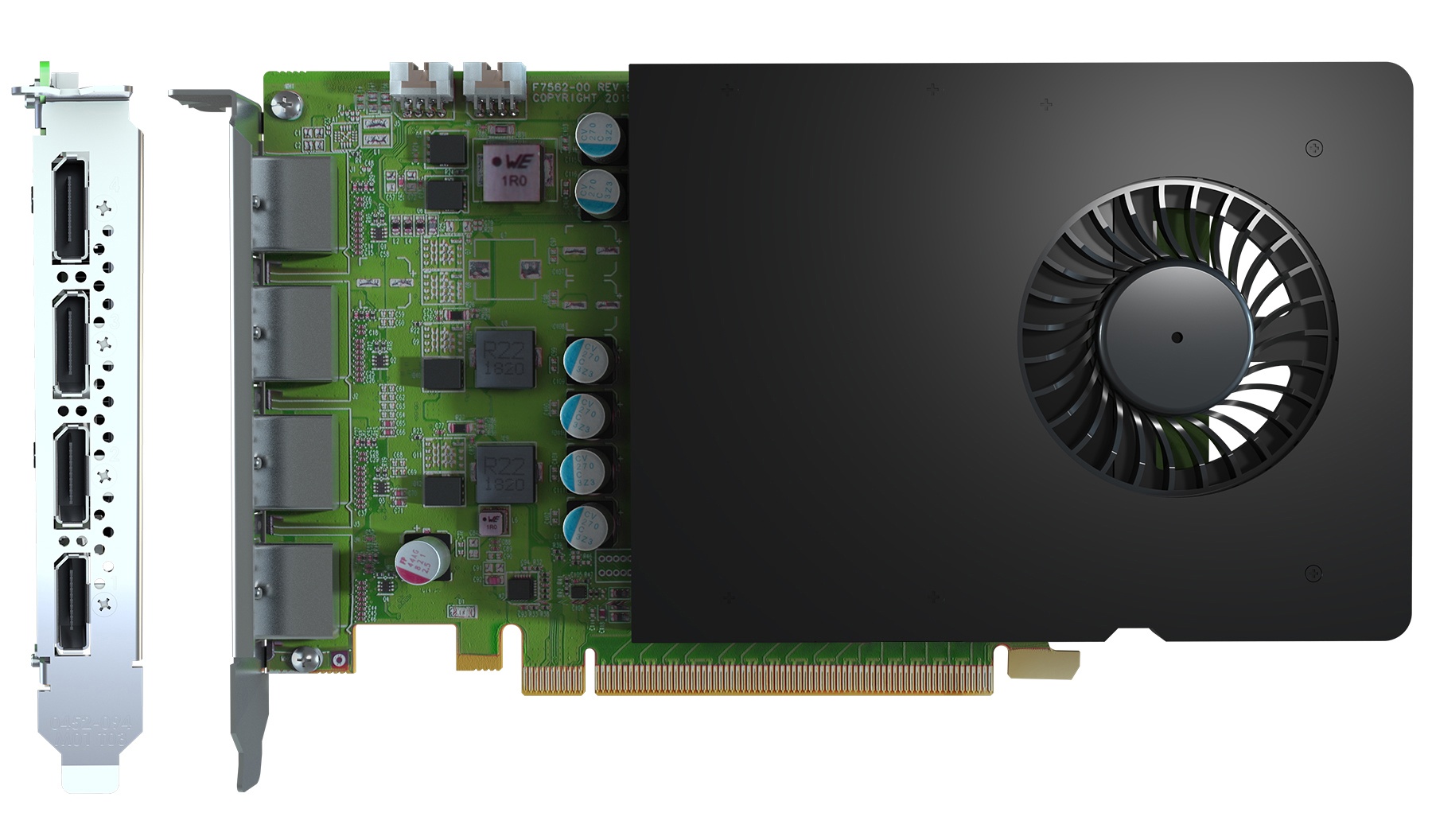

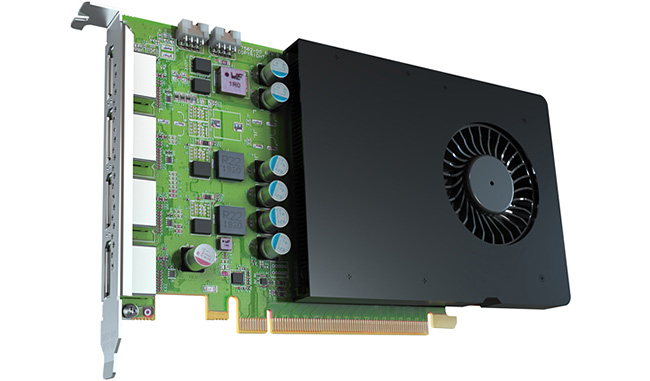

Matrox D-Series D1480 Quad DisplayPort Graphics Card / D1480-E4GB

D-Series D1480 Quad DisplayPort Graphics Card / D1480-E4GB

Model D1480Part no. D1480-E4GBEAN 790750256047

26 specifications Checked today

Graphics processor familyNVIDIA
Discrete graphics card memory4 GB
Interface typePCI Express x16 3.0
TV tuner integratedNo
Cooling typeActive
Power consumption (typical)47 W

See all specifications

Overview

Graphics processor family: NVIDIA
Discrete graphics card memory: 4 GB
Interface type: PCI Express x16 3.0
TV tuner integrated: No
Cooling type: Active
Power consumption (typical): 47 W

Brand: Matrox
Category: GPU
Model: D1480
Part number: D1480-E4GB
EAN / UPC: 790750256047
Also known as: Matrox D-Series D1480 Quad DisplayPort Graphics Card / D1480-E4GB

Specifications

26 specifications in 10 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Maximum resolution	5120 x 3200 pixels

Memory

Specification	Value
Discrete graphics card memory	4 GB
Graphics card memory type	GDDR5

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 3.0
HDMI ports quantity	0
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	4
DisplayPort version	1.4
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.5
OpenCL version	1.2
HDCP	Yes
Dual Link DVI	No

Design

Specification	Value
Cooling type	Active
Certification	Regulatory compliance: FCC (US) Class B, CE (European Union) Class B, RCM (Australia/New Zealand) Class B, KC (Korea) Class B, ICES-3 (Canada) Environmental compliance: EU RoHS, China RoHS, REACH

Power

Specification	Value
Power consumption (typical)	47 W

System requirements

Specification	Value
Windows operating systems supported	Windows 10 Pro x64, Windows 10 x64
Minimum system requirements	Single available PCIe x16 slot, 4 GB of system memory

Weight & dimensions

Specification	Value
Length	202 mm
Height	127 mm

Technical details

Specification	Value
Compliance certificates	RoHS

Logistics data

Specification	Value
Harmonized System (HS) code	84733020
