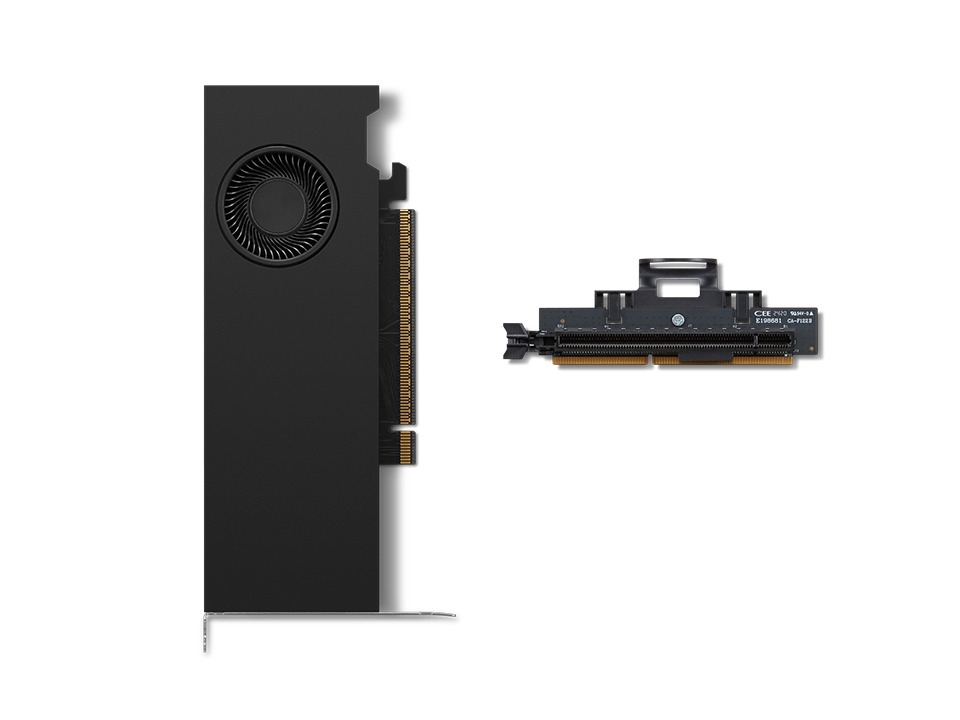

NVIDIA RTX PRO 4000 Blackwell
Model NVIDIA RTX PRO 4000 BlackwellPart no. 4X61W22786EAN 195892146964
38 specifications Checked today
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory24 GB
- Interface typePCI Express x16 5.0
- TV tuner integratedNo
- Cooling typeActive
Overview
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 24 GB
- Interface type
- PCI Express x16 5.0
- TV tuner integrated
- No
- Cooling type
- Active
- Brand
- Lenovo
- Category
- GPU
- Model
- NVIDIA RTX PRO 4000 Blackwell
- Part number
- 4X61W22786
- EAN / UPC
- 195892146964
- Also known as
- Lenovo NVIDIA RTX PRO 4000 Blackwell 24 GB GDDR7
Specifications
38 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 8960 |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 24 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 192 bit |
| Memory bandwidth (max) | 672 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 4 |
| DisplayPort version | 2.1b |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| Shader model version | 6.6 |
| OpenGL version | 4.6 |
| OpenCL version | 3.0 |
| Dual Link DVI | No |
| NPU performance up to | 1178 TOPs |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Bracket height | Full-Height (FH) |
| Number of slots | 1 |
| Product colour | Black |
| Certification | BSMI, FCC, ICES-003, CE, UK DOC, VCCI, KCC(EMC), RCM EMC, CB, Morocco Doc |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 70 W |
| Supplementary power connectors | 1x 16-pin |
| Thermal Design Power (TDP) | 145 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 90 °C |
| Operating relative humidity (H-H) | 5 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 169.6 mm |
| Depth | 104.8 mm |
| Height | 35.9 mm |
