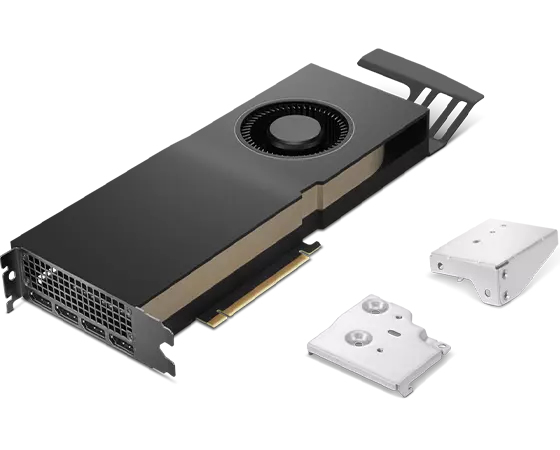

NVIDIA RTX A5500
Model NVIDIA RTX A5500Part no. 4X61K53577EAN 195892072874
40 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.1 kg
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory24 GB
- Interface typePCI Express x16 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.1 kg
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 24 GB
- Interface type
- PCI Express x16 4.0
- Brand
- Lenovo
- Category
- GPU
- Model
- NVIDIA RTX A5500
- Part number
- 4X61K53577
- EAN / UPC
- 195892072874, 4571592190098
- Also known as
- Lenovo NVIDIA RTX A5500 24 GB GDDR6
Specifications
40 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | RTX A5500 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 10240 |
| Lithography | 8 nm |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | NVLink |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 24 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 384 bit |
| Data transfer rate | 768 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4a |
| USB Type-C ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| Virtual Reality (VR) ready | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Illumination | No |
| SFF ready | No |
| Product colour | Black |
| Certification | BSMI, FCC, ICES, CE, VCCI, KCC, RCM, CB, Morocco |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 230 W |
| Supplementary power connectors | 1x 8-pin |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.1 kg |
| Length | 268.6 mm |
| Height | 111.2 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 490 mm |
| Package depth | 220 mm |
| Package height | 92 mm |
Other features
| Specification | Value |
|---|---|
| Chipset | GA102-860 |
