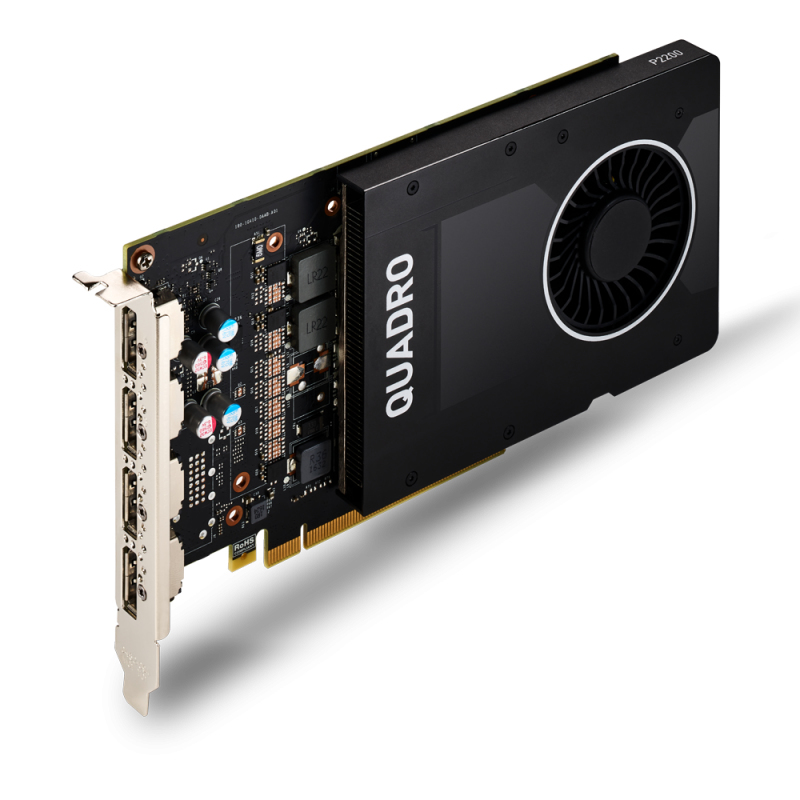

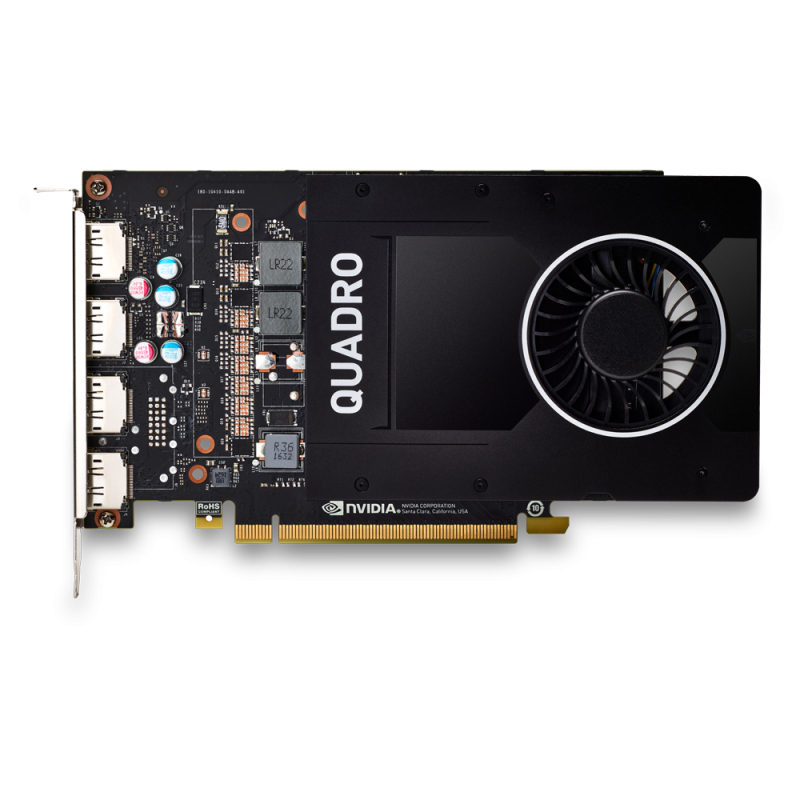

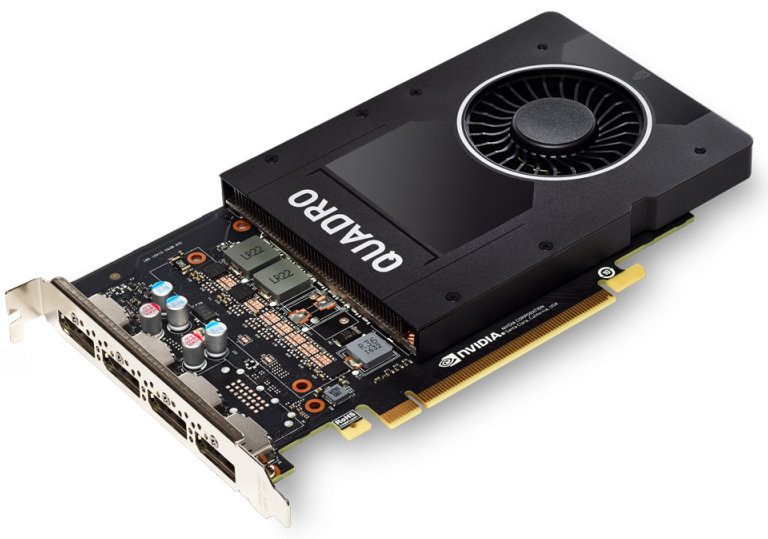

NVIDIA Quadro P2200
Model NVIDIA Quadro P2200Part no. 4X67A14935EAN 889488514984
30 specifications Checked today
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory5 GB
- Interface typePCI Express x16 3.0
- TV tuner integratedNo
- Cooling typeActive
Overview
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 5 GB
- Interface type
- PCI Express x16 3.0
- TV tuner integrated
- No
- Cooling type
- Active
- Brand
- Lenovo
- Category
- GPU
- Model
- NVIDIA Quadro P2200
- Part number
- 4X67A14935
- EAN / UPC
- 889488514984
- Also known as
- Lenovo NVIDIA Quadro P2200 5 GB GDDR5X
Specifications
30 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | Quadro P2200 |
| Maximum resolution | 5120 x 2880 pixels |
| CUDA | Yes |
| CUDA cores | 1280 |
| FireStream | No |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 5 GB |
| Graphics card memory type | GDDR5X |
| Memory bus | 160 bit |
| Memory bandwidth (max) | 200 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |

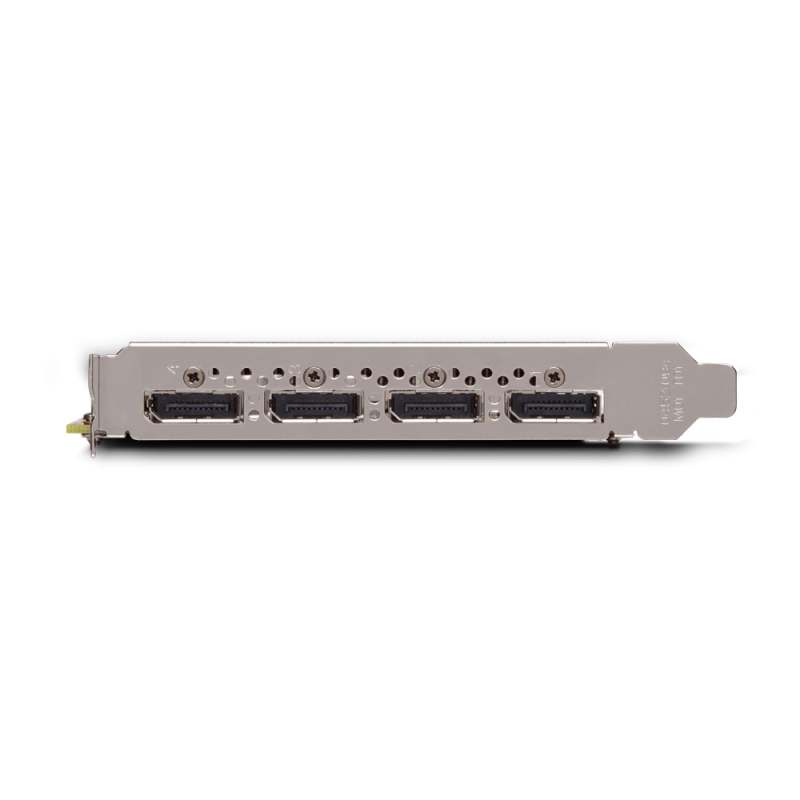

| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| Shader model version | 5.1 |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Number of slots | 1 |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 75 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 200 mm |
| Height | 112 mm |
