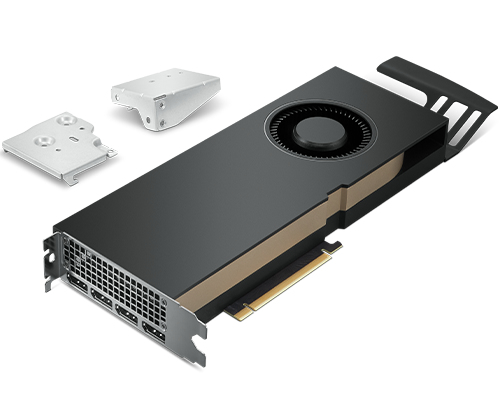

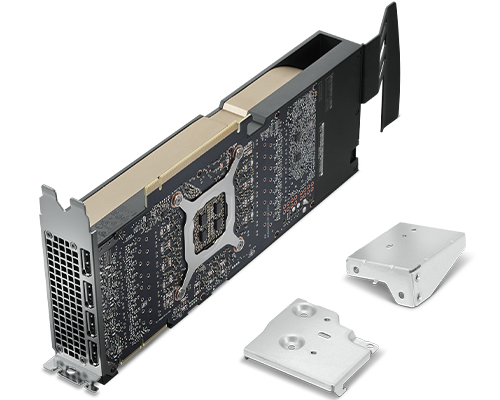

4X61D97085 graphics card NVIDIA RTX A5000
24 GB GDDR6
Model 4X61D97085EAN 195892022633
47 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.05 kg
- ColourBlack, Gold
- Graphics processor familyNVIDIA
- Discrete graphics card memory24 GB
- Interface typePCI Express x16 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.05 kg
- Colour
- Black, Gold
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 24 GB
- Interface type
- PCI Express x16 4.0
- Brand
- Lenovo
- Category
- GPU
- Model
- 4X61D97085
- Part number
- 4X61D97085
- EAN / UPC
- 195892022633, 4580550259098
- Also known as
- Lenovo 4X61D97085 graphics card NVIDIA RTX A5000 24 GB GDDR6
Specifications
47 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | RTX A5000 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 8192 |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | NVLink |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 24 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 384 bit |
| Memory bandwidth (max) | 768 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 4 |
| Ethernet LAN (RJ-45) ports | 0 |
| DisplayPort version | 1.4a |
| USB Type-C ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.07 |
| Shader model version | 5.17 |
| OpenGL version | 4.68 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Bracket height | Low-Profile (LP) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Illumination | No |
| Product colour | Black, Gold |
| Certification | BSMI, FCC, ICES, CE, VCCI, KCC, RCM, CB, Morocco |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 230 W |
| Supplementary power connectors | 1x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.05 kg |
| Length | 277 mm |
| Depth | 51.3 mm |
| Height | 111.3 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 490 mm |
| Package depth | 220 mm |
| Package height | 92 mm |
| Package weight | 1.8 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
