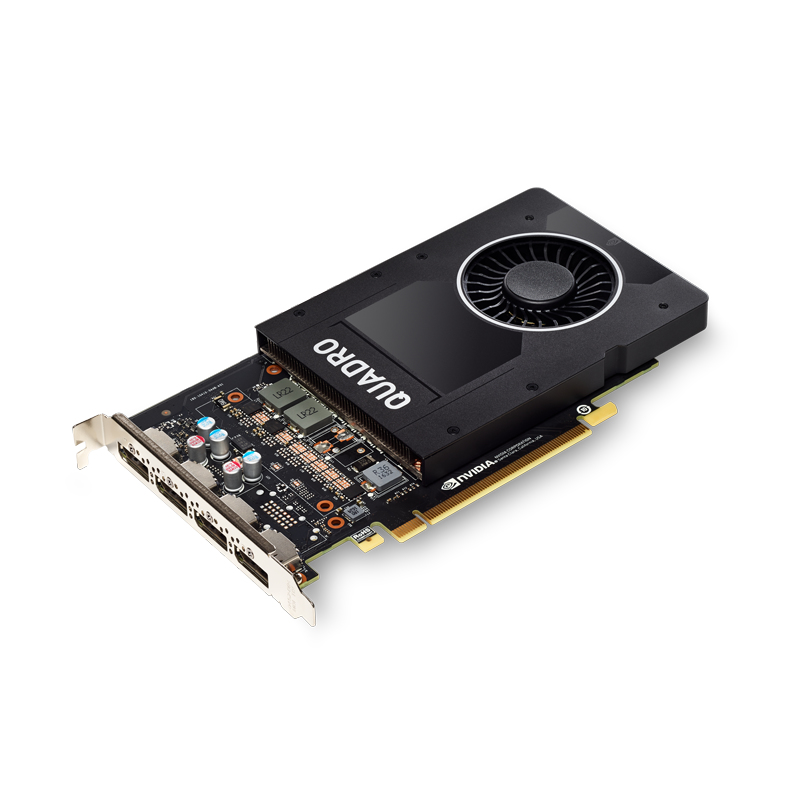

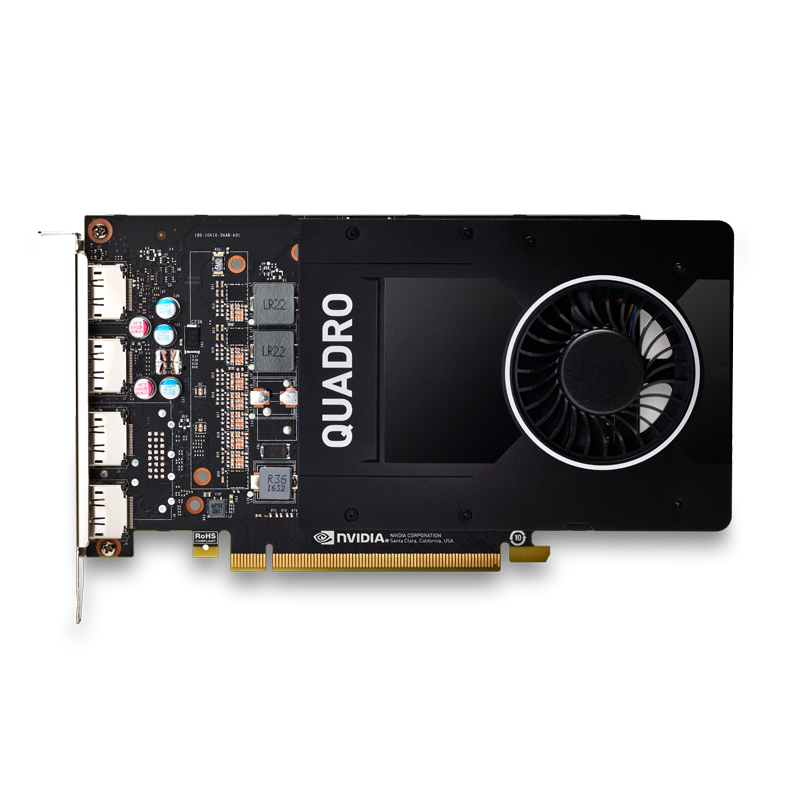

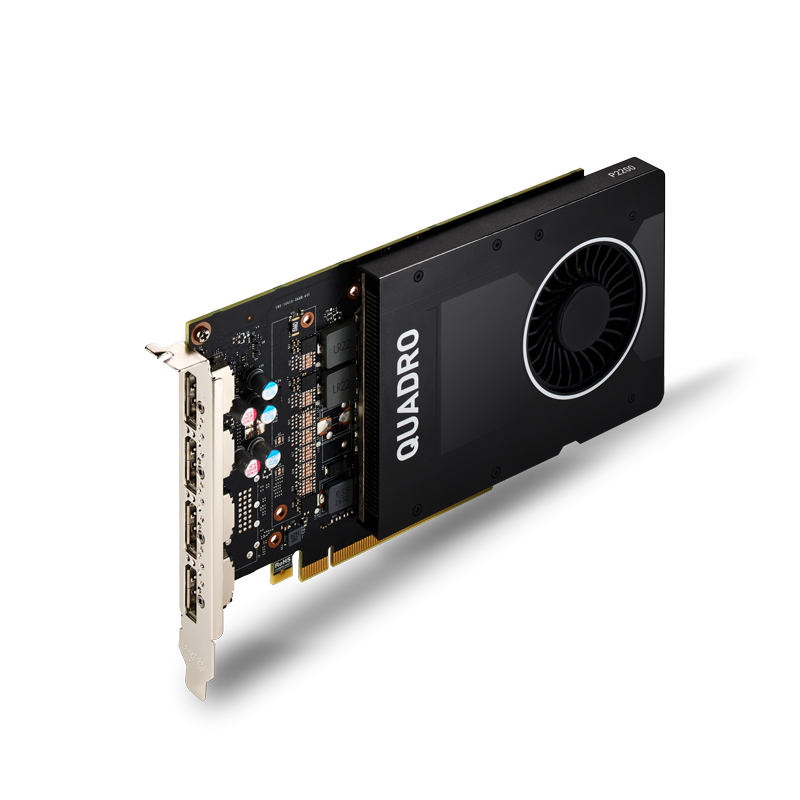

4X60W87106 graphics card NVIDIA Quadro P2200
5 GB GDDR5X
Model 4X60W87106EAN 194552334178
35 specifications Checked today
- Weight260 g
- Graphics processor familyNVIDIA
- Discrete graphics card memory5 GB
- Interface typePCI Express x16 3.0
- TV tuner integratedNo
- Cooling typeActive
Overview
- Weight
- 260 g
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 5 GB
- Interface type
- PCI Express x16 3.0
- TV tuner integrated
- No
- Cooling type
- Active
- Brand
- Lenovo
- Category
- GPU
- Model
- 4X60W87106
- Part number
- 4X60W87106
- EAN / UPC
- 194552334178
- Also known as
- Lenovo 4X60W87106 graphics card NVIDIA Quadro P2200 5 GB GDDR5X
Specifications
35 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | Quadro P2200 |
| Maximum resolution | 5120 x 2880 pixels |
| CUDA | Yes |
| CUDA cores | 1280 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 5 GB |
| Graphics card memory type | GDDR5X |
| Memory bus | 160 bit |
| Memory bandwidth (max) | 200 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |

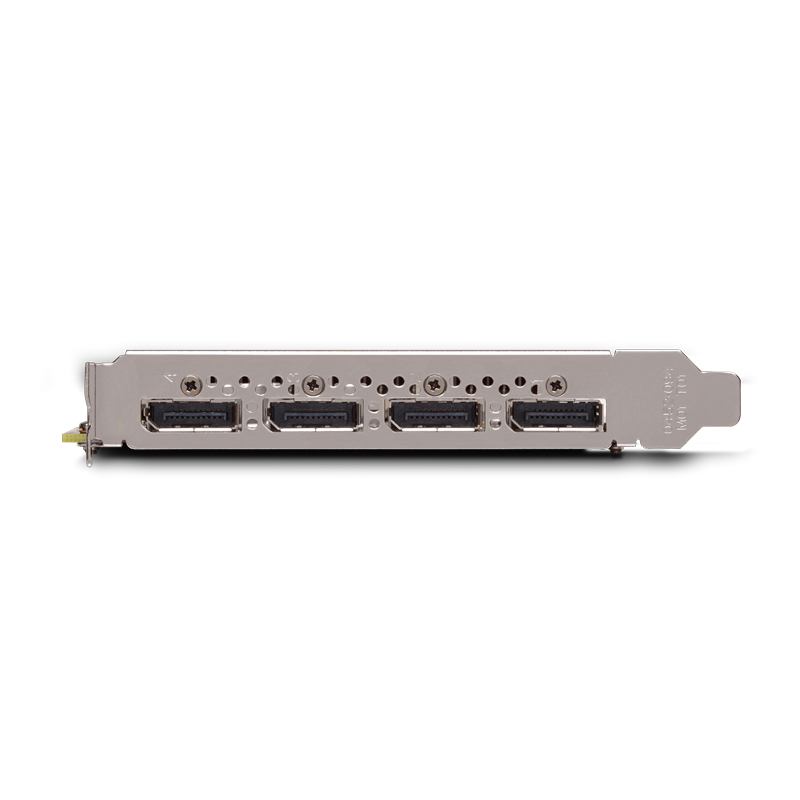

| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| Shader model version | 5.1 |
| OpenGL version | 4.5 |
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Certification | BSMI, CB, CE (CISPR32), FCC, KC, RCM, UL, VCCI, DoS |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 75 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 260 g |
| Length | 200.1 mm |
| Height | 111.2 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 482 mm |
| Package depth | 171 mm |
| Package height | 62 mm |
| Package weight | 500 g |
| Package type | Box |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
