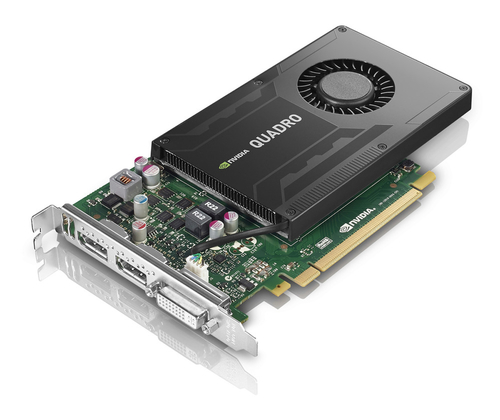

Lenovo 4X60G69029 graphics card NVIDIA Quadro K420
1 GB GDDR3
Model 4X60G69029EAN 888965182265
42 specifications Checked 3 days ago
- Weight120 g
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory1 GB
- Interface typePCI Express 2.0
- PhysXNo
Overview
- Weight
- 120 g
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 1 GB
- Interface type
- PCI Express 2.0
- PhysX
- No
- Brand
- Lenovo
- Category
- GPU
- Model
- 4X60G69029
- Part number
- 4X60G69029
- EAN / UPC
- 888965182265, 4053162531420, 4562466107618
- Also known as
- Lenovo 4X60G69029 graphics card NVIDIA Quadro K420 1 GB GDDR3
Specifications
42 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | Quadro K420 |
| Maximum resolution | 4096 x 2160 pixels |
| CUDA | Yes |
| CUDA cores | 192 |
| Processor frequency | 875 MHz |
| Maximum analog resolution | 2048 x 1536 pixels |
| Maximum digital resolution | 4096 x 2160 pixels |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 1 GB |
| Graphics card memory type | GDDR3 |
| Memory bus | 128 bit |
| Memory clock speed | 891 MHz |
| Memory bandwidth (max) | 29 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 2.0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DVI ports quantity | 1 |
| DisplayPort version | 1.2 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 11 |
| Shader model version | 5.0 |
| OpenGL version | 4.4 |
| HDCP | Yes |
| Dual Link DVI | Yes |
| NVIDIA GameWorks VR | No |
| NVIDIA G-SYNC | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Product colour | Black |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 75 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 120 g |
| Length | 160 mm |
| Height | 68.9 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 177 mm |
| Package depth | 144 mm |
| Package height | 53 mm |
| Package weight | 180 g |
What people say
Reviews & ratings
Lenovo 4X60G69029 graphics card NVIDIA Quadro K420
No reviews yet
Be the first to tell others how Lenovo 4X60G69029 graphics card NVIDIA Quadro K420 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Lenovo 4X60G69029 graphics card NVIDIA Quadro K420

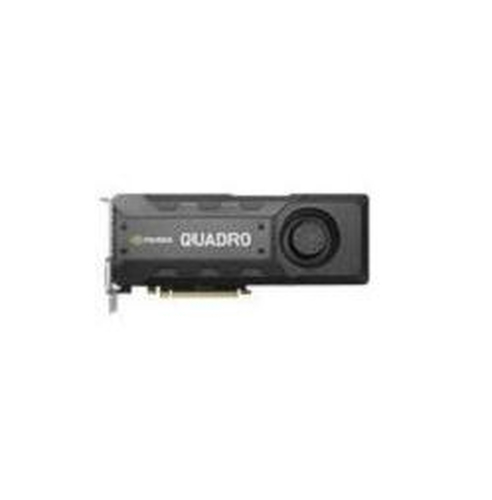

All gpu comparisons- Lenovo 4X60G69029 graphics card NVIDIA Quadro K420 vsLenovo 4X60G69025 graphics card NVIDIA Quadro K5200Compare specs
- Lenovo 4X60G69029 graphics card NVIDIA Quadro K420 vsLenovo Nvidia Quadro NVS 315 1GB DDR3Compare specs
- Lenovo 4X60G69029 graphics card NVIDIA Quadro K420 vsLenovo 4X60G69027 graphics card NVIDIA Quadro K2200Compare specs
- Lenovo 4X60G69029 graphics card NVIDIA Quadro K420 vsLenovo 4X60G69026 graphics card NVIDIA Quadro K4200Compare specs

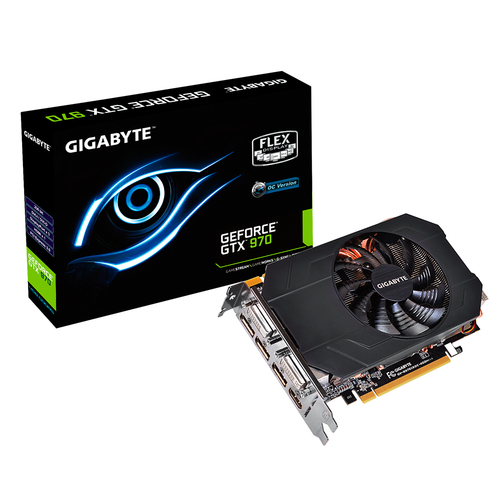

- Lenovo 4X60G69029 graphics card NVIDIA Quadro K420 vsGIGABYTE GV-N970IXOC-4GD NVIDIA GeForce GTX 970Compare specs
