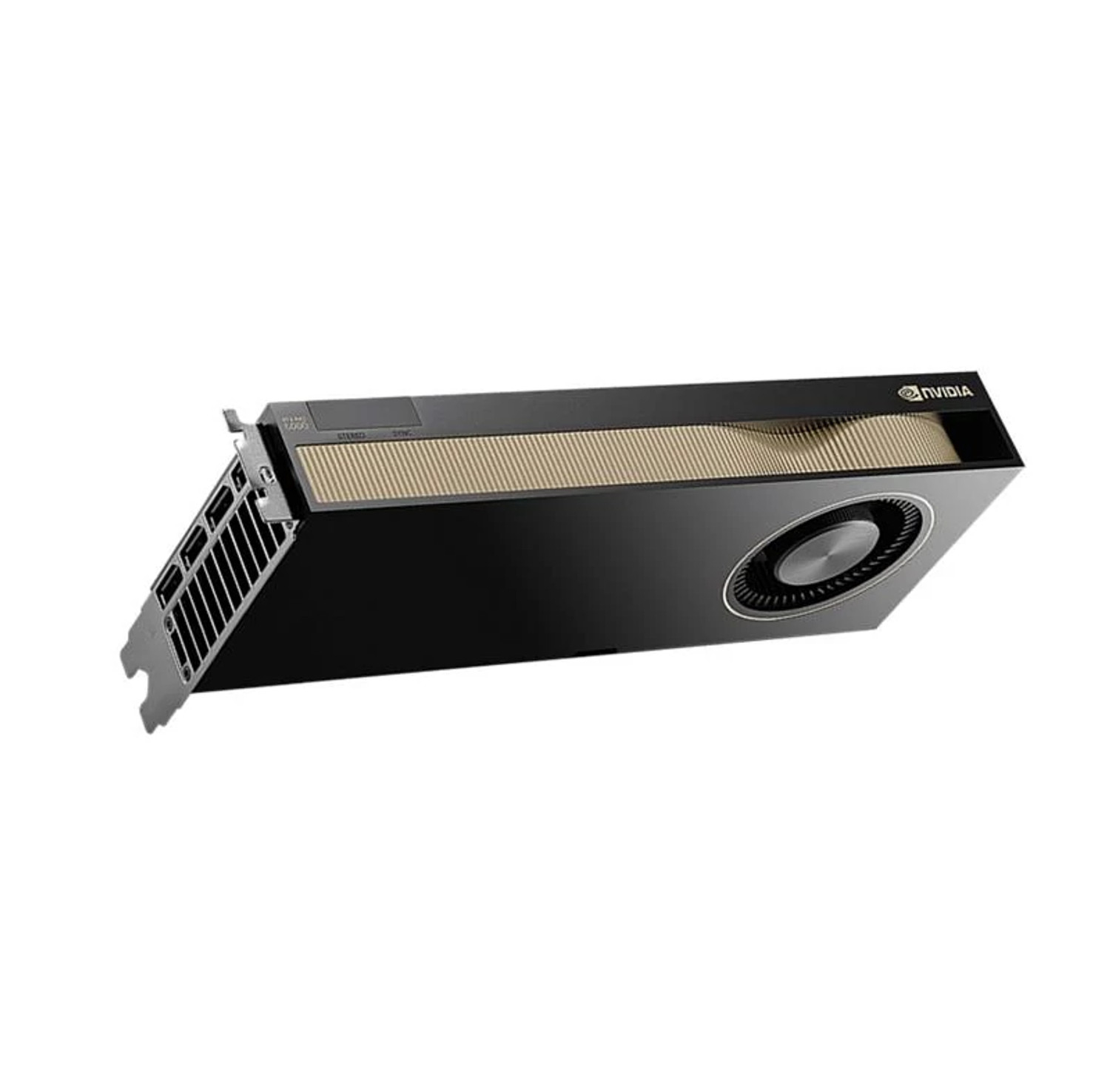

NVIDIA RTX PH x6xxx 4DP Graphics
Model NVIDIA RTX PH x6xxx 4DP GraphicsPart no. B11E9AAEAN 198828194244
42 specifications Checked today
- Weight1.24 kg
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory96 GB
- Interface typePCI Express x16 5.0
- Peak Single Precision Matrix (FP32) performance110 TFLOPS
Overview
- Weight
- 1.24 kg
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 96 GB
- Interface type
- PCI Express x16 5.0
- Peak Single Precision Matrix (FP32) performance
- 110 TFLOPS
- Brand
- HP
- Category
- GPU
- Model
- NVIDIA RTX PH x6xxx 4DP Graphics
- Part number
- B11E9AA
- EAN / UPC
- 198828194244
- Also known as
- HP NVIDIA RTX PH x6xxx 4DP Graphics
Specifications
42 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | RTX PRO 6000 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 24064 |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 96 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 512 bit |
| Memory bandwidth (max) | 1792 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 4 |
| DisplayPort version | 2.1b |
| USB Type-C ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| Peak Single Precision Matrix (FP32) performance | 110 TFLOPS |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| Shader model version | 6.6 |
| OpenGL version | 4.63 |
| Dual Link DVI | No |
| NPU performance up to | 3511 TOPs |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of slots | 2 |
| Illumination | No |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.24 kg |
| Length | 266.7 mm |
| Depth | 98 mm |
| Height | 38.5 mm |
| Width | 267 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 245 mm |
| Package depth | 488 mm |
| Package height | 230 mm |
| Package weight | 2.16 kg |
Technical details
| Specification | Value |
|---|---|
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
Other features
| Specification | Value |
|---|---|
| UNSPSC-code | 43201401 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Vietnam |
