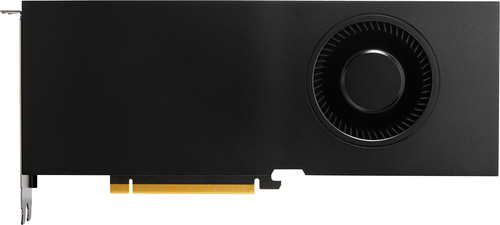

NVIDIA RTX A4500 20 GB 4DP Graphics
Model NVIDIA RTX A4500 20 GB 4DP GraphicsPart no. 5S458AAEAN 196337606012
37 specifications Checked today
- Weight1.07 kg
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory20 GB
- Interface typePCI Express 4.0
- DirectX version12.07
Overview
- Weight
- 1.07 kg
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 20 GB
- Interface type
- PCI Express 4.0
- DirectX version
- 12.07
- Brand
- HP
- Category
- GPU
- Model
- NVIDIA RTX A4500 20 GB 4DP Graphics
- Part numbers
- 5S458AA, 5S458AT
- EAN / UPC
- 196337606012, 196337606029
- Also known as
- HP NVIDIA RTX A4500 20 GB 4DP Graphics
Specifications
37 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | RTX A4500 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 7168 |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 20 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 320 bit |
| Memory bandwidth (max) | 640 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| DisplayPorts quantity | 4 |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.07 |
| Shader model version | 5.17 |
| OpenGL version | 4.68 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| NVIDIA 3D Vision | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of slots | 2 |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 200 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.07 kg |
| Length | 266.7 mm |
| Depth | 38.1 mm |
| Height | 112 mm |
| Width | 266.7 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 215 mm |
| Package depth | 425 mm |
| Package height | 80 mm |
| Package weight | 1.4 kg |
Technical details
| Specification | Value |
|---|---|
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
Other features
| Specification | Value |
|---|---|
| UNSPSC-code | 43201401 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China, Taiwan |
| Harmonized System (HS) code | 84733020 |
