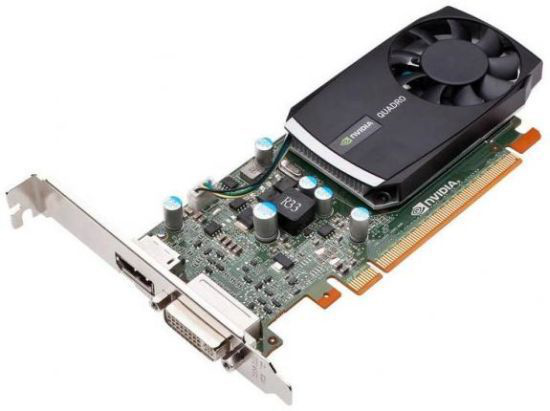

HP LD534AV graphics card NVIDIA Quadro 400
0.5 GB GDDR3
Model LD534AV
30 specifications Checked 4 days ago
- Graphics processor familyNVIDIA
- Discrete graphics card memory0.5 GB
- HDMI ports quantity0
- PhysXNo
- Cooling typeActive
- Power consumption (typical)32 W
Overview
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 0.5 GB
- HDMI ports quantity
- 0
- PhysX
- No
- Cooling type
- Active
- Power consumption (typical)
- 32 W
- Brand
- HP
- Category
- GPU
- Model
- LD534AV
- Part number
- LD534AV
- Also known as
- HP LD534AV graphics card NVIDIA Quadro 400 0.5 GB GDDR3
Specifications
30 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | Quadro 400 |
| Maximum resolution | 2560 x 1600 pixels |
| CUDA | Yes |
| CUDA cores | 48 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 0.5 GB |
| Graphics card memory type | GDDR3 |
| Memory bus | 64 bit |
| Memory bandwidth (max) | 12.3 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 10.1 |
| Shader model version | 4.0 |
| OpenGL version | 3.3 |
| NVIDIA 3D Vision | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Certification | EnergyStar |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 32 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 141.7 mm |
| Height | 69.3 mm |
Other features
| Specification | Value |
|---|---|
| Mac compatibility | No |
| HDMI | No |
| Compatible operating systems | Windows 7 |
