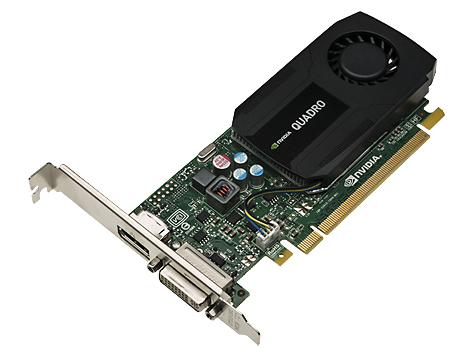

HP J3G86AA graphics card NVIDIA Quadro K420
1 GB GDDR3
Model J3G86AAEAN 888793631171
34 specifications Checked 3 days ago
- Graphics processor familyNVIDIA
- Discrete graphics card memory1 GB
- Interface typePCI Express 2.0
- PhysXNo
- Cooling typeActive
- Power consumption (typical)41 W
Overview
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 1 GB
- Interface type
- PCI Express 2.0
- PhysX
- No
- Cooling type
- Active
- Power consumption (typical)
- 41 W
- Brand
- HP
- Category
- GPU
- Model
- J3G86AA
- Part number
- J3G86AA
- EAN / UPC
- 888793631171, 4053162592735, 5054533765863, 8887936311712
- Also known as
- HP J3G86AA graphics card NVIDIA Quadro K420 1 GB GDDR3
Specifications
34 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | Quadro K420 |
| Maximum resolution | 3840 x 2160 pixels |
| CUDA | Yes |
| CUDA cores | 192 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 1 GB |
| Graphics card memory type | GDDR3 |
| Memory bus | 128 bit |
| Memory clock speed | 891 MHz |
| Memory bandwidth (max) | 29 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 2.0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Mini HDMI ports quantity | 0 |
| Micro HDMI ports quantity | 0 |
| DVI ports quantity | 1 |
| DisplayPort version | 1.2 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 11 |
| Shader model version | 5.0 |
| OpenGL version | 4.4 |
| Dual Link DVI | Yes |
| NVIDIA 3D Vision | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of slots | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 41 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Other features
| Specification | Value |
|---|---|
| Compatible products | HP Z230 CMT/SFF, Z440, Z640, Z840 |
| Graphics card interface | 1 slot s nízkym profilom |
