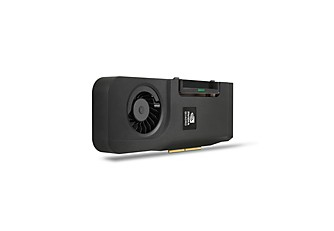

HP E5Z77AA graphics card NVIDIA Quadro K4100M
4 GB GDDR5
Model E5Z77AAEAN 887758695463
32 specifications Checked 3 days ago
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory4 GB
- Interface typePCI Express x16
- PhysXNo
- Cooling typeActive
Overview
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 4 GB
- Interface type
- PCI Express x16
- PhysX
- No
- Cooling type
- Active
- Brand
- HP
- Category
- GPU
- Model
- E5Z77AA
- Part number
- E5Z77AA
- EAN / UPC
- 887758695463, 8877586954636
- Also known as
- HP E5Z77AA graphics card NVIDIA Quadro K4100M 4 GB GDDR5
Specifications
32 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | Quadro K4100M |
| Maximum resolution | 3840 x 2160 pixels |
| CUDA | Yes |
| CUDA cores | 1152 |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 4 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 256 bit |
| Memory clock speed | 3200 MHz |
| Memory bandwidth (max) | 102.4 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 11.1 |
| Shader model version | 5.0 |
| OpenGL version | 4.3 |
| NVIDIA 3D Vision | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Product colour | Black |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 81.3 mm |
| Height | 104.1 mm |
Other features
| Specification | Value |
|---|---|
| Graphics card interface | MXM v3.1 Typ B (82 mm x 105 mm) |
