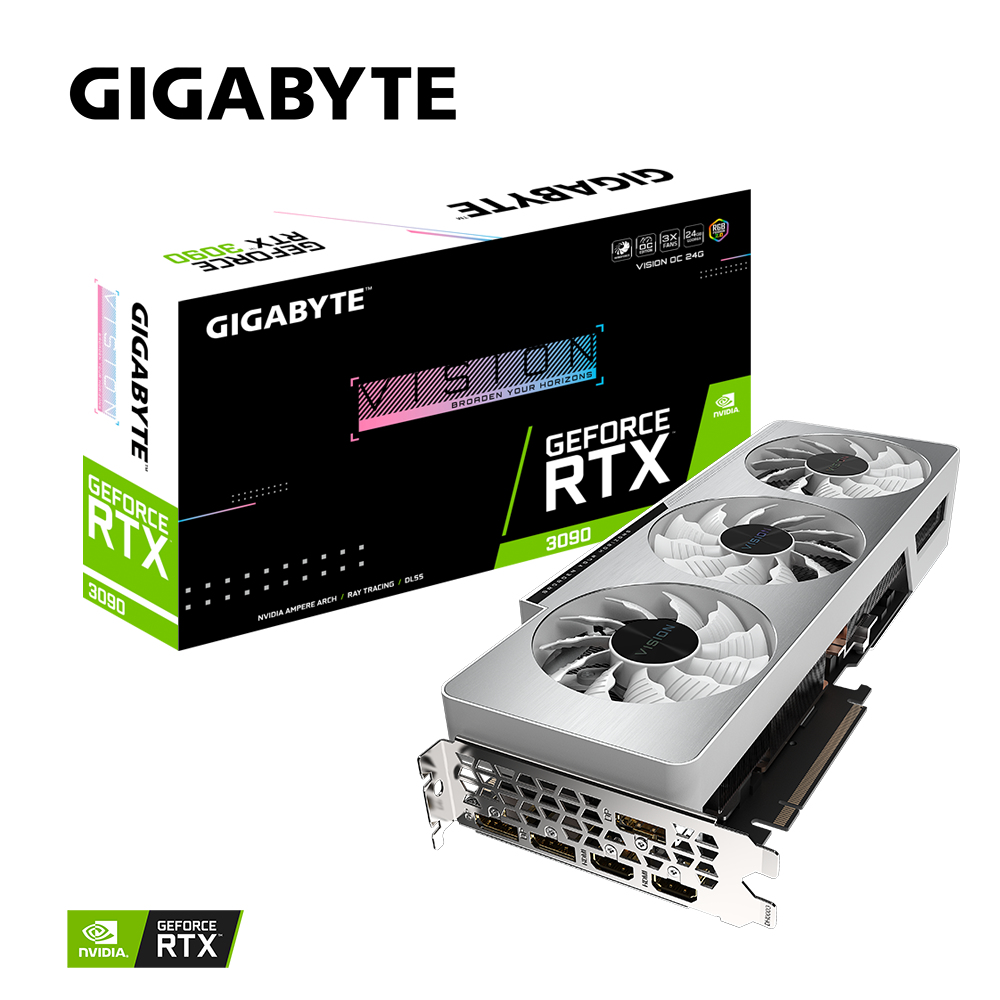

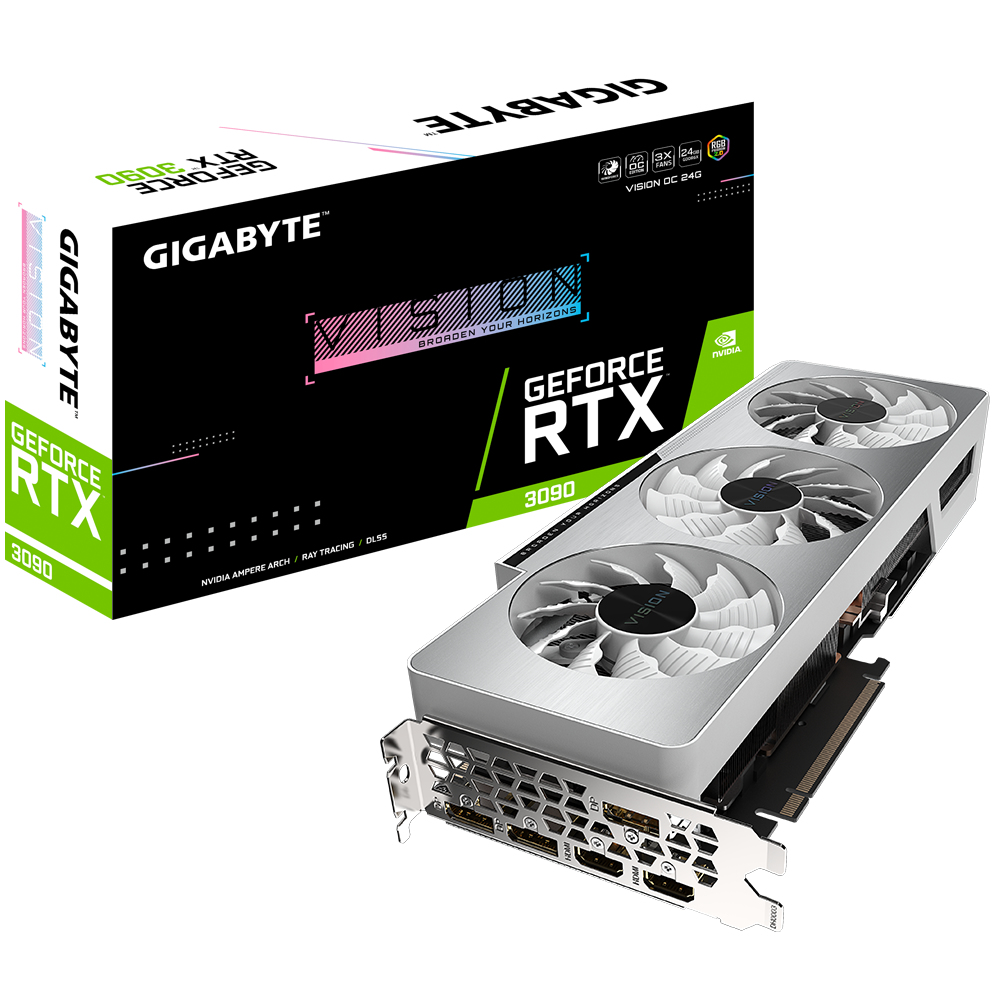

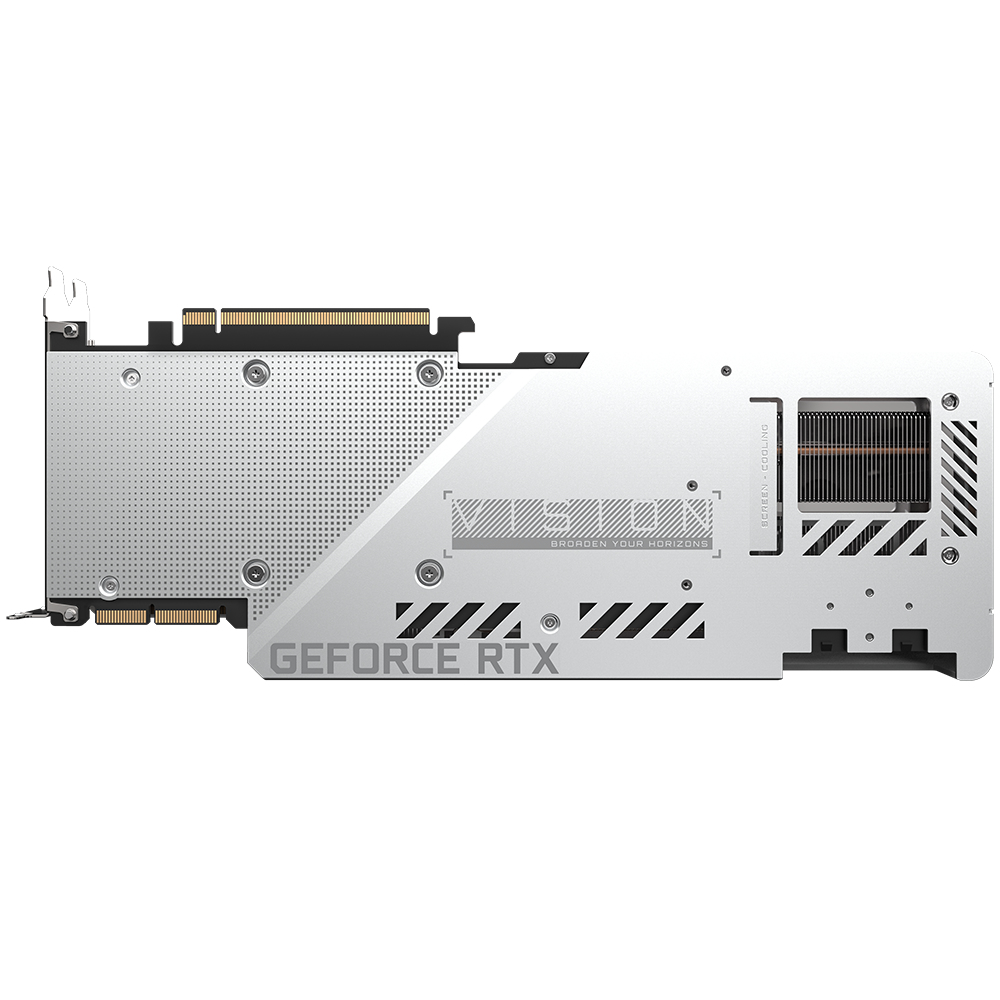

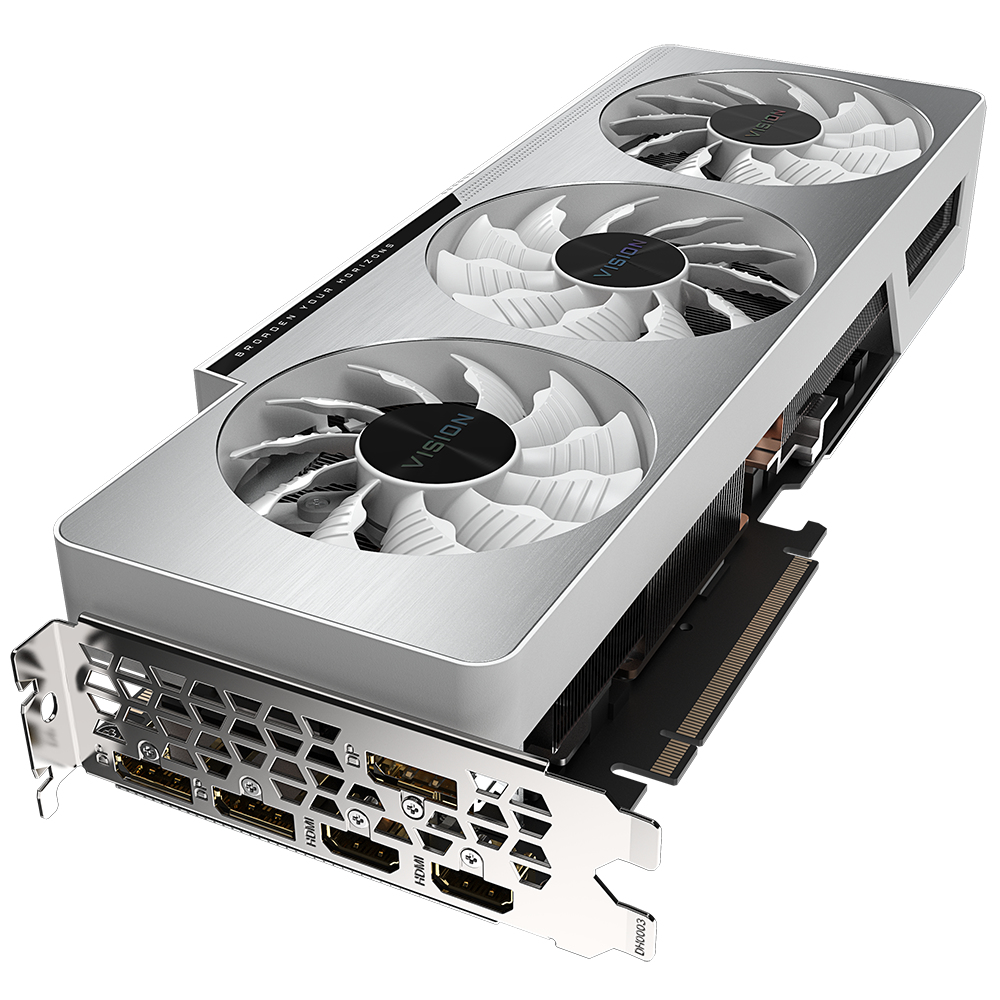

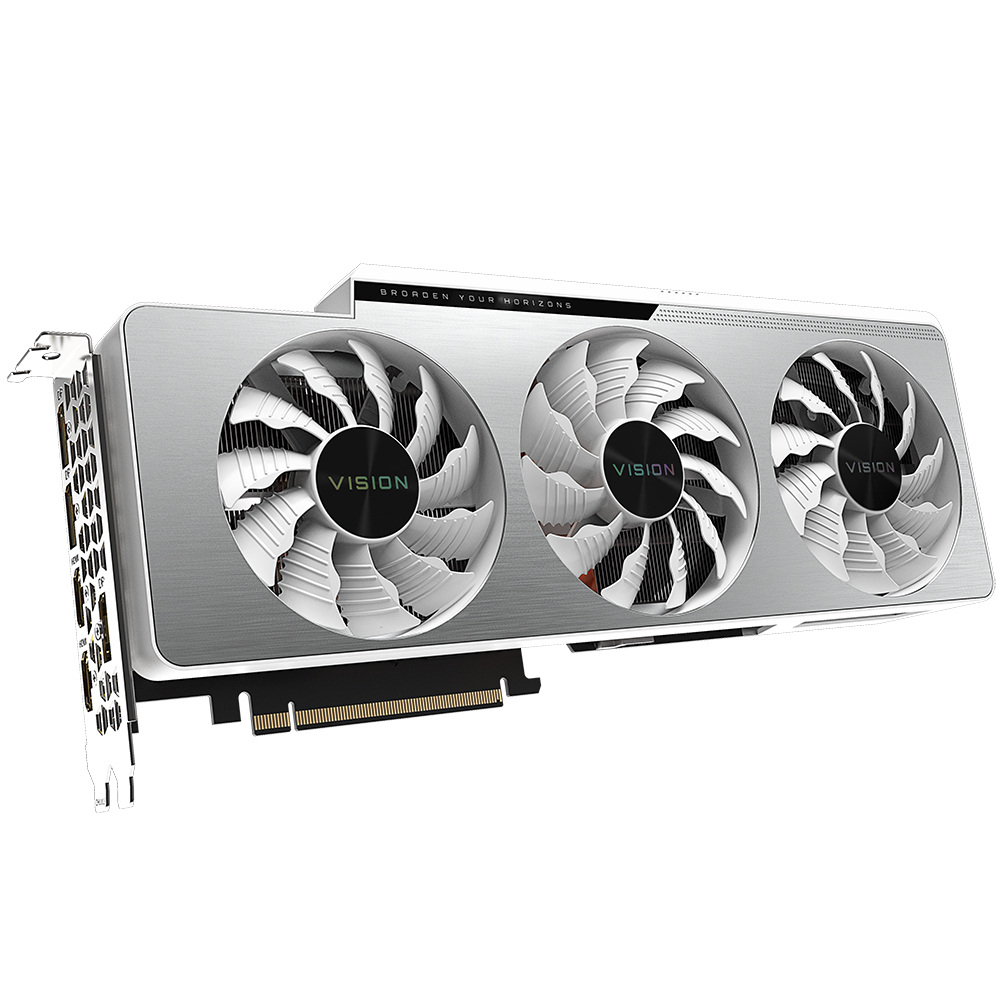

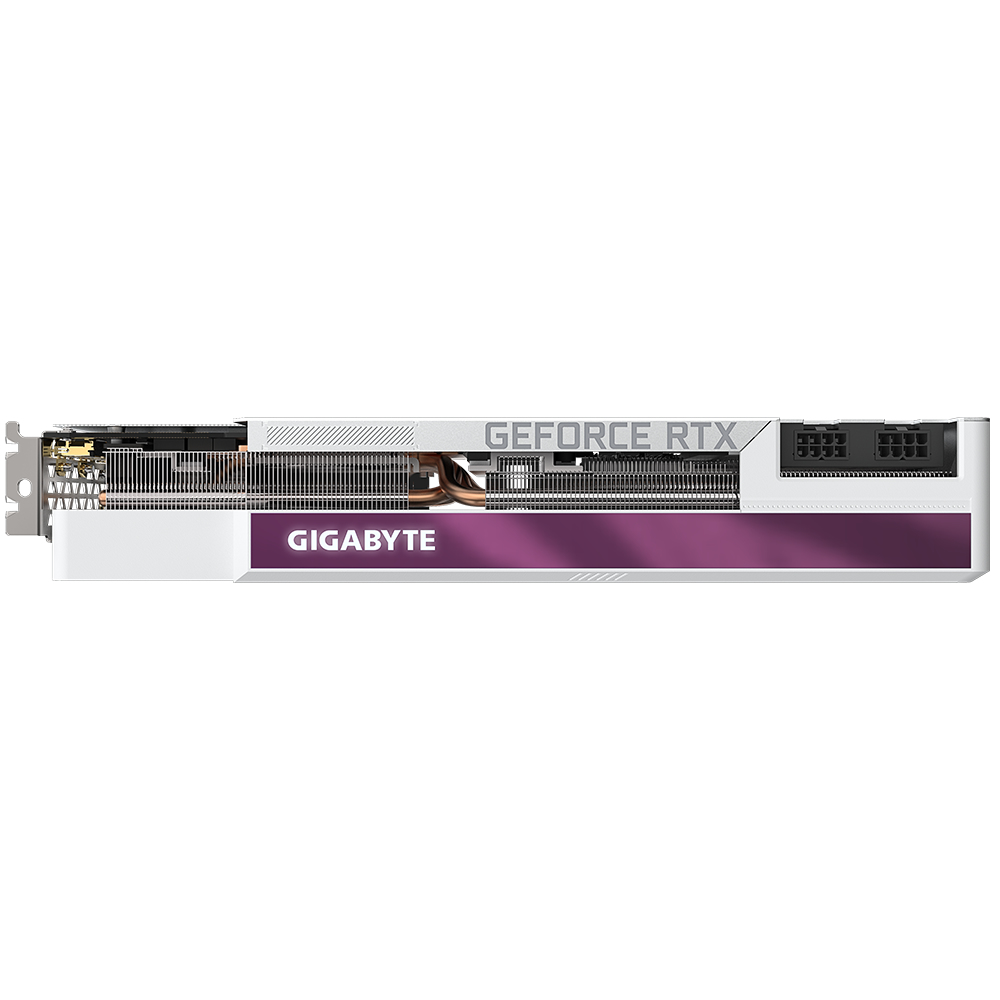

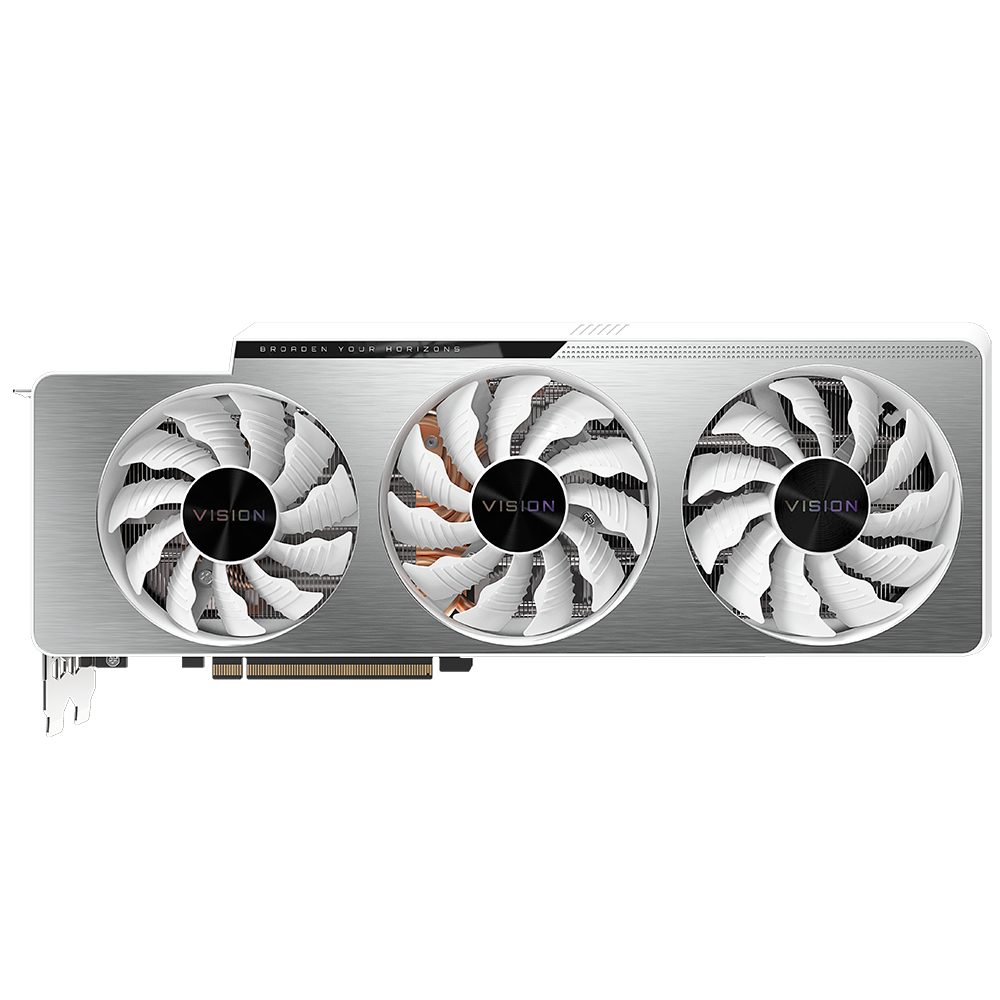

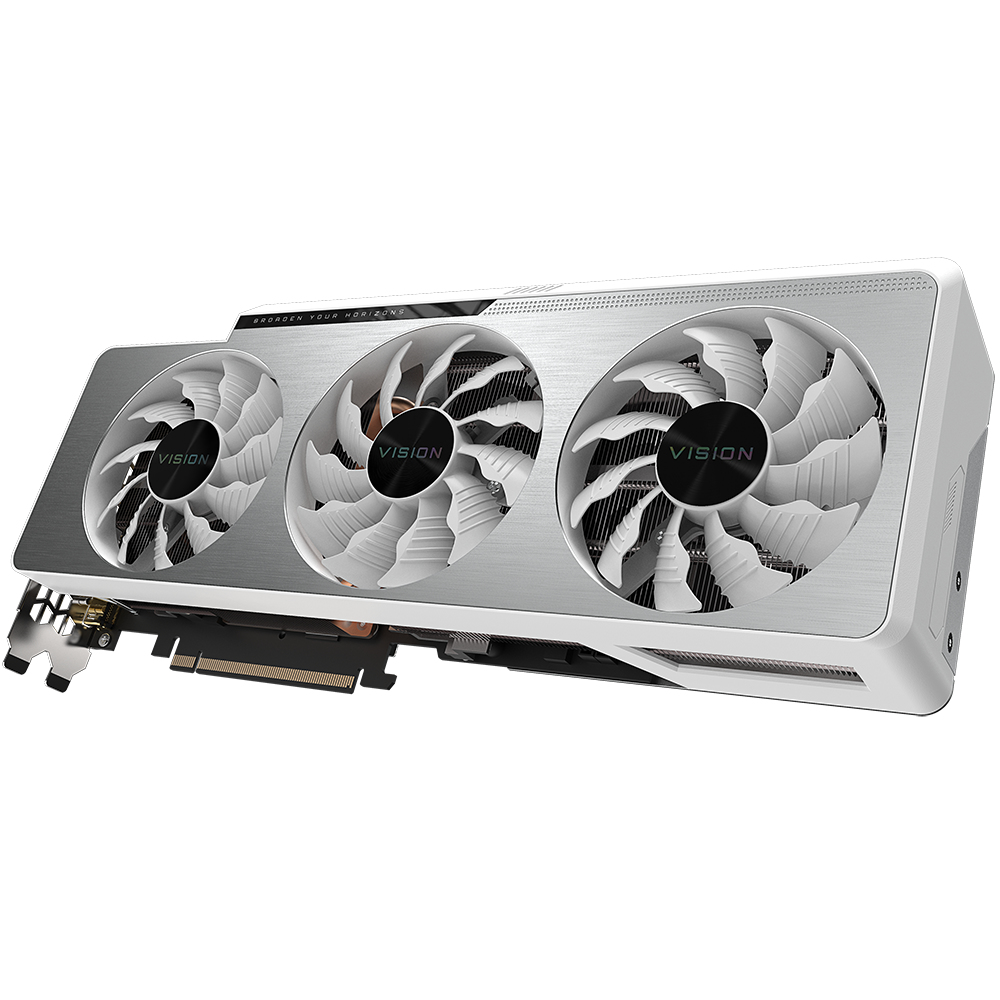

GIGABYTE RTX 3090 Vision OC 24G

RTX 3090 Vision OC 24G

Model RTX 3090 Vision OC 24GPart no. GVN3090VO-00-G

38 specifications Checked today

TypeFull-Height/Full-Length (FH/FL)
ColourWhite
Graphics processor familyNVIDIA
Discrete graphics card memory24 GB
Interface typePCI Express x16 4.0
PhysXYes

See all specifications

Overview

Type: Full-Height/Full-Length (FH/FL)
Colour: White
Graphics processor family: NVIDIA
Discrete graphics card memory: 24 GB
Interface type: PCI Express x16 4.0
PhysX: Yes

Brand: GIGABYTE
Category: GPU
Model: RTX 3090 Vision OC 24G
Part number: GVN3090VO-00-G
Also known as: GIGABYTE RTX 3090 Vision OC 24G NVIDIA GeForce RTX 3090 24 GB GDDR6X

Specifications

38 specifications in 8 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 3090
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	10496
Processor frequency	1695 MHz
Processor boost clock speed	1755 MHz
Maximum displays per videocard	4
Parallel processing technology support	2-Way NVLink

Memory

Specification	Value
Discrete graphics card memory	24 GB
Graphics card memory type	GDDR6X
Memory bus	384 bit
Memory clock speed	19500 MHz
Memory bandwidth (max)	936 GB/s

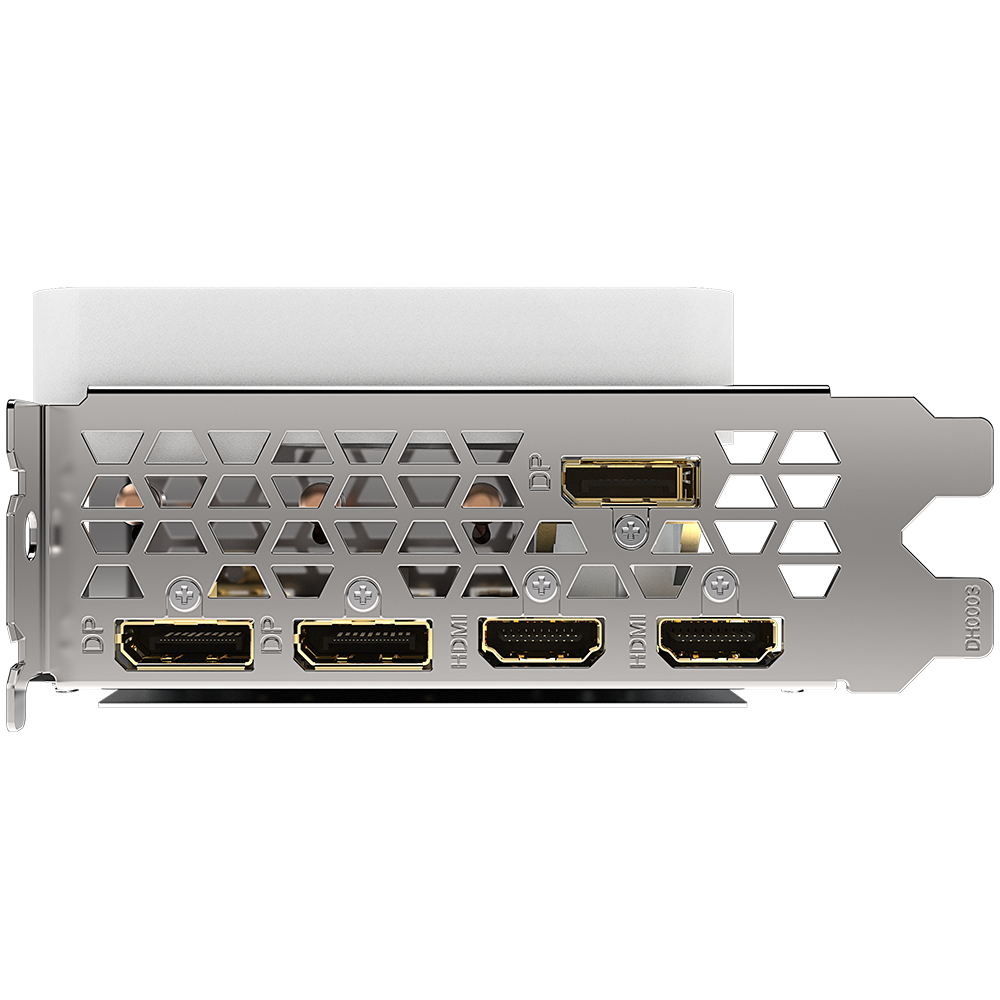

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 4.0
HDMI ports quantity	2
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.1
DisplayPort version	1.4a
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
PhysX	Yes
TV tuner integrated	No
DirectX version	12.1
OpenGL version	4.6
HDCP	No
Dual Link DVI	No

Design

Specification	Value
Cooling type	Active
Cooling technology	GIGABYTE WINDFORCE 3X
Number of fans	3 fan(s)
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	White

Power

Specification	Value
Minimum system power supply	750 W
Supplementary power connectors	2x 6-pin

Weight & dimensions

Specification	Value
Depth	55 mm
Height	126 mm

Packaging content

Specification	Value
Quick installation guide	Yes
