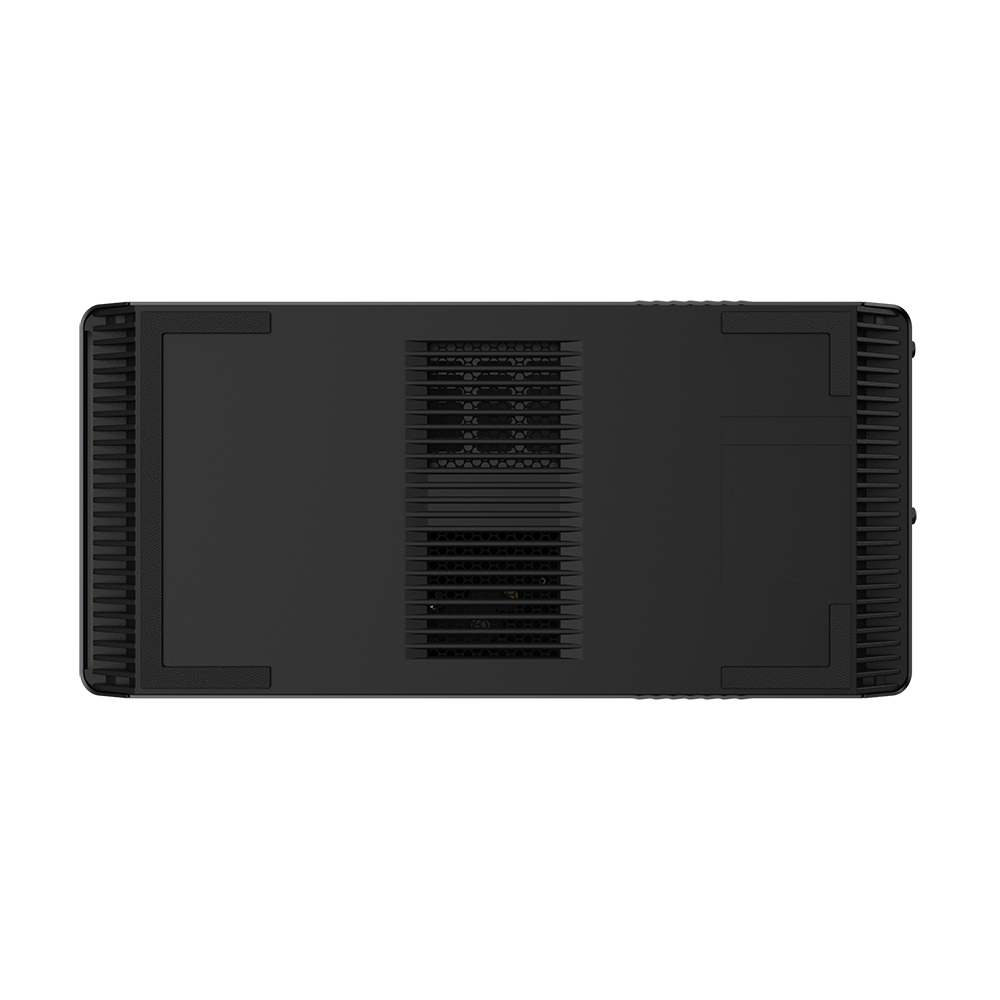

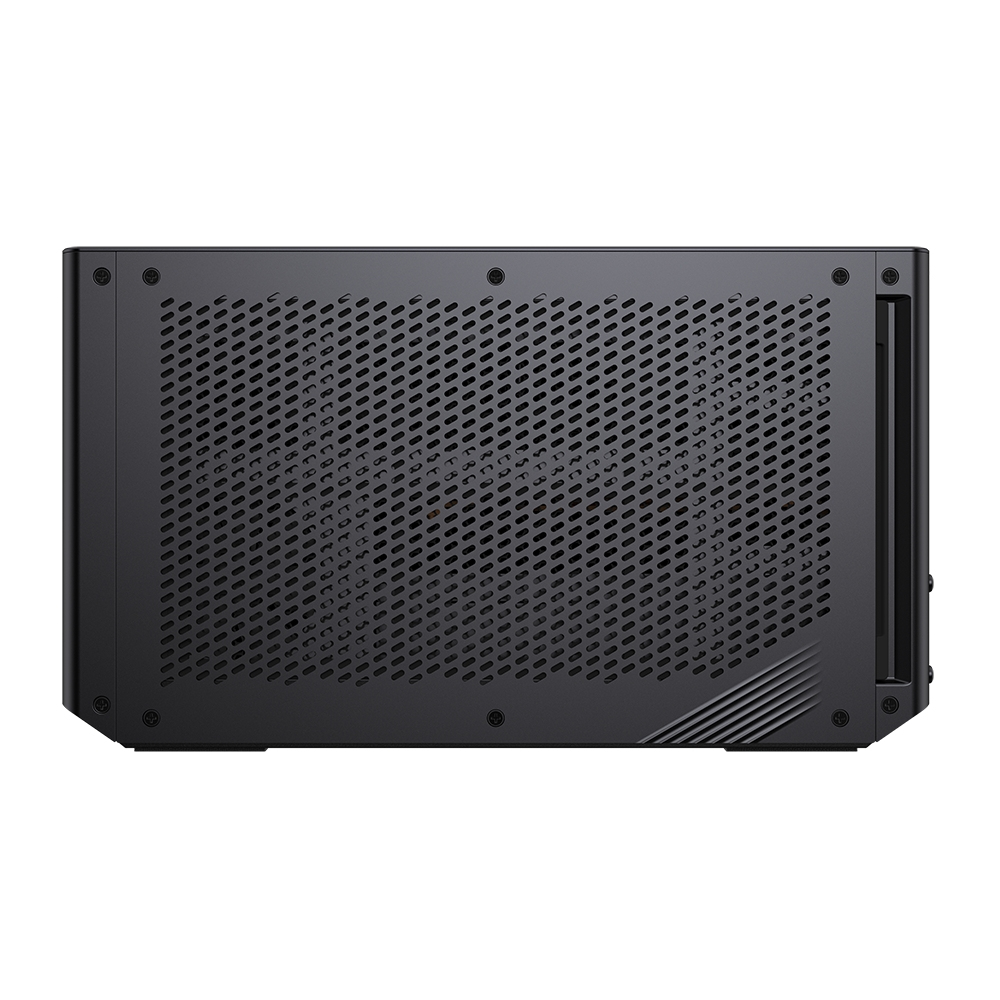

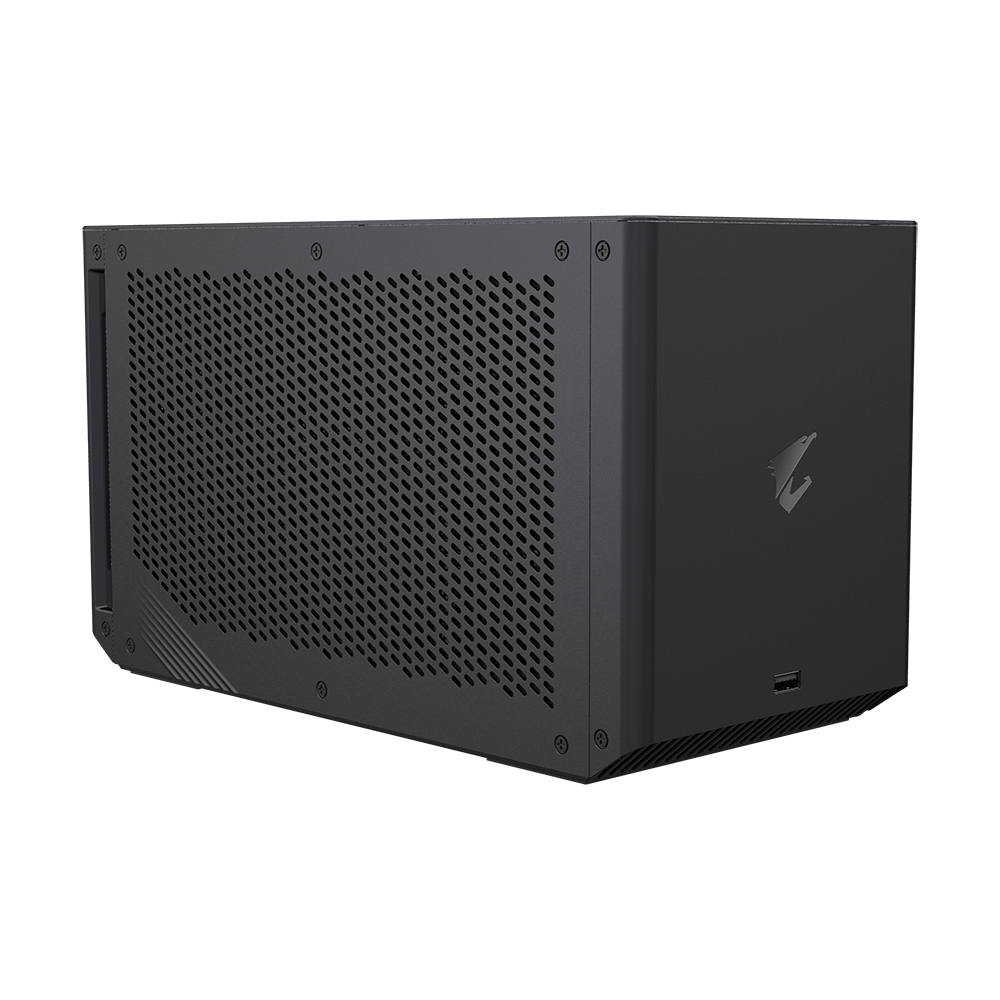

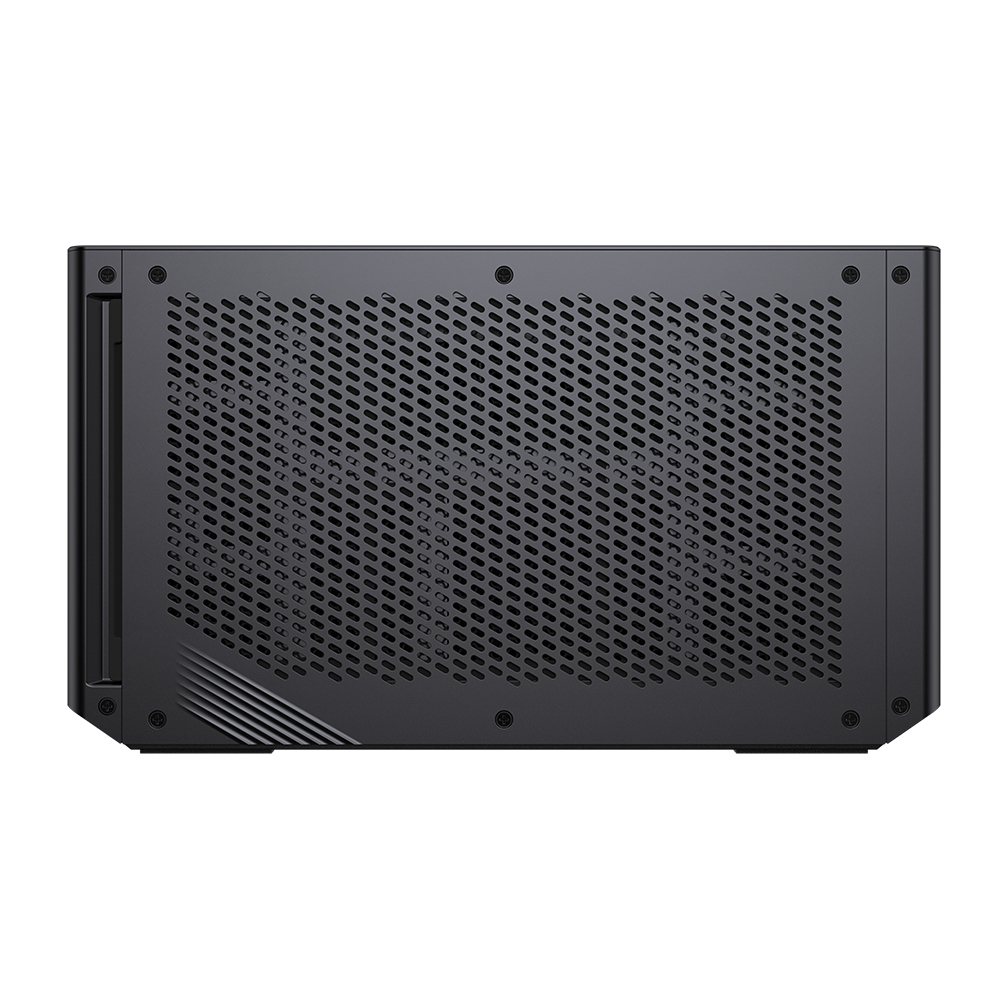

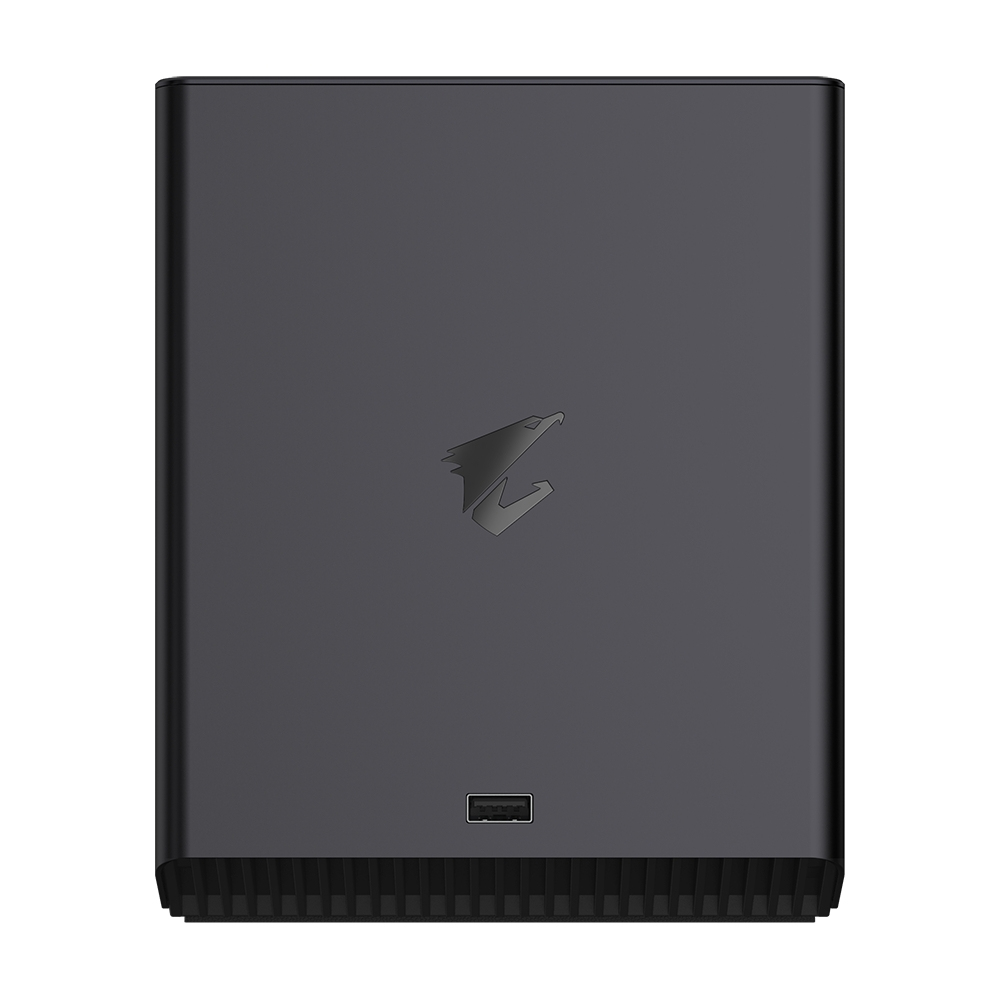

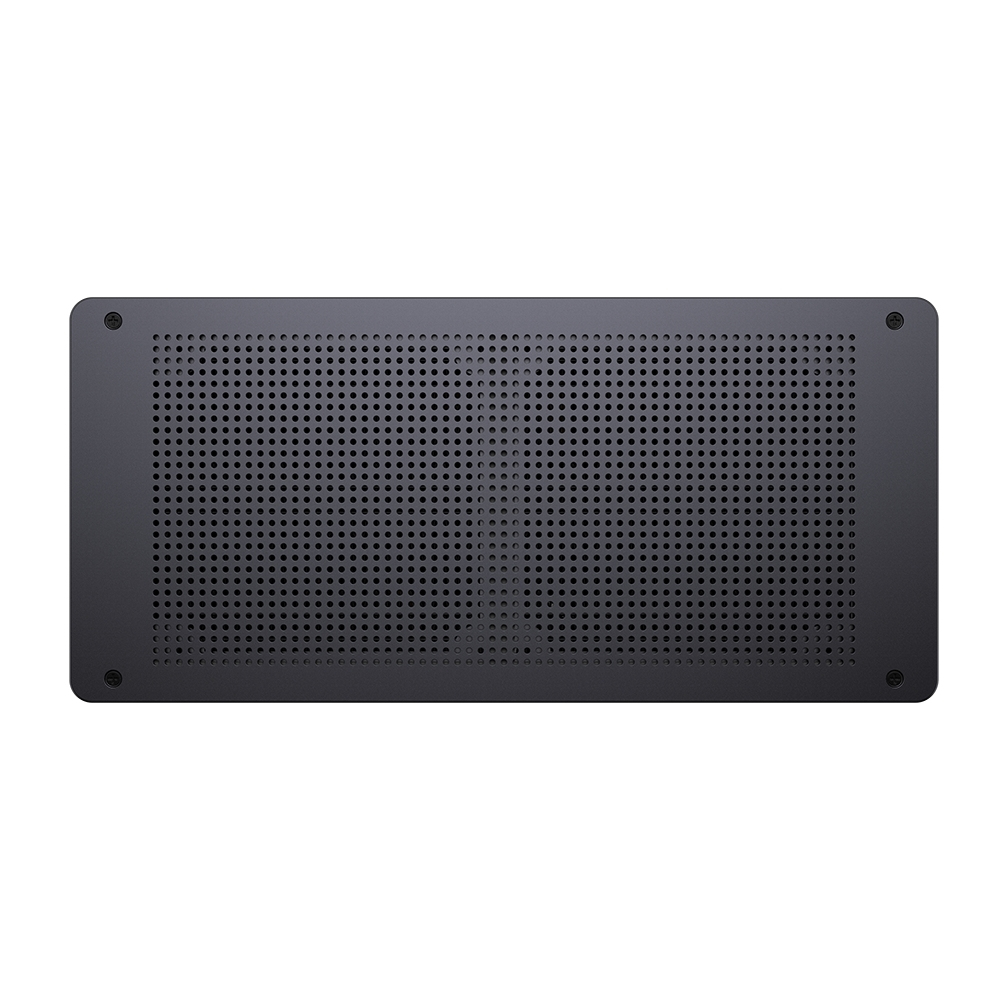

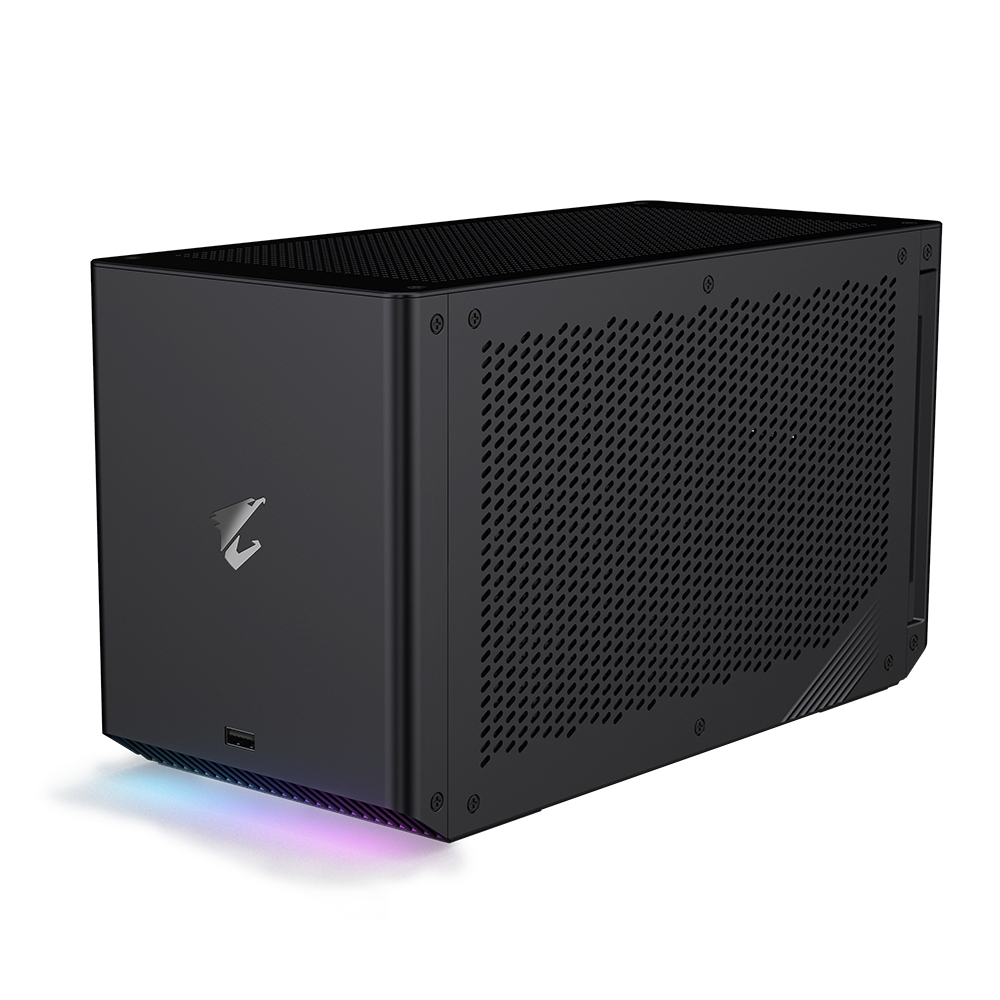

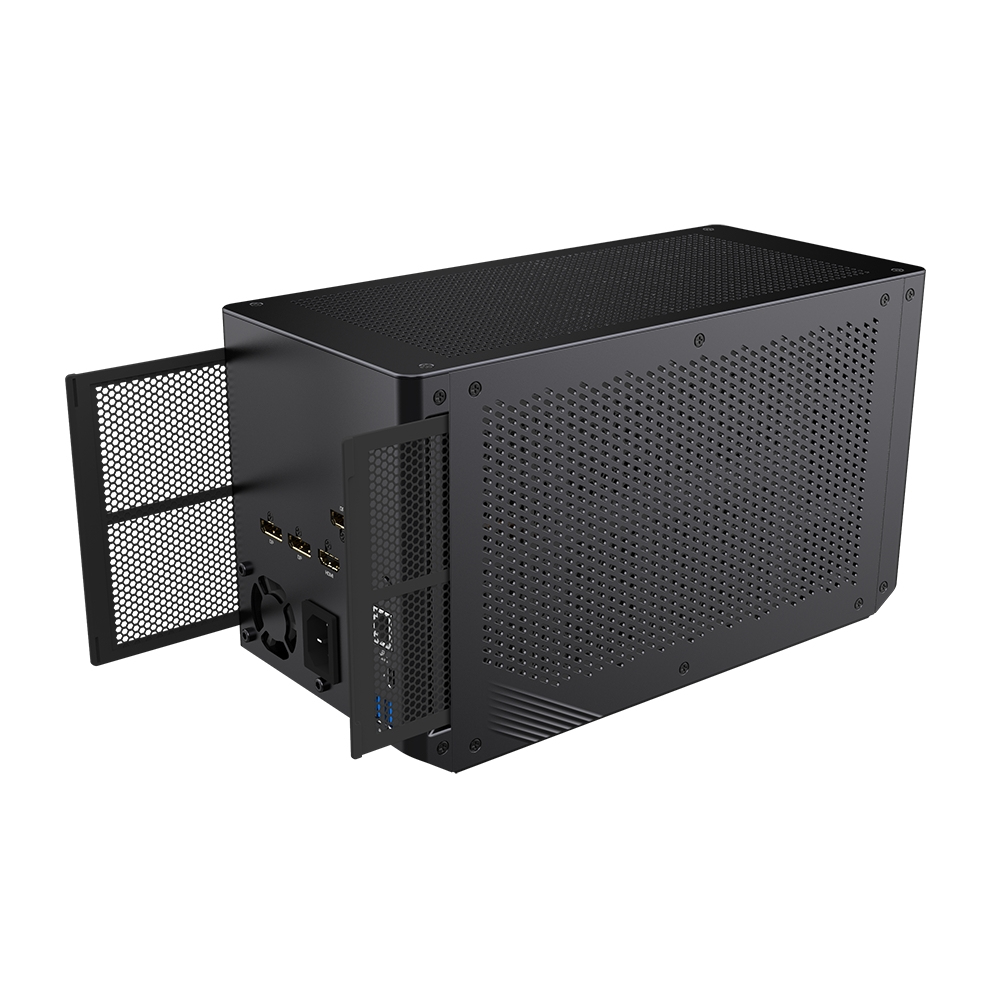

RTX 3080 GAMING BOX
Model RTX 3080 GAMING BOXPart no. GV-N3080IXEB-10GDEAN 4719331308230
50 specifications Checked today
- Weight3.83 kg
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory10 GB
- Interface typePCI Express 4.0
- TV tuner integratedNo
Overview
- Weight
- 3.83 kg
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 10 GB
- Interface type
- PCI Express 4.0
- TV tuner integrated
- No
- Brand
- GIGABYTE
- Category
- GPU
- Model
- RTX 3080 GAMING BOX
- Part number
- GV-N3080IXEB-10GD
- EAN / UPC
- 4719331308230
- Also known as
- GIGABYTE GAMING RTX 3080 BOX NVIDIA GeForce RTX 3080 10 GB GDDR6X
Specifications
50 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3080 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 8704 |
| Processor frequency | 1710 MHz |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 10 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 320 bit |
| Memory clock speed | 19000 MHz |
| Memory bandwidth (max) | 760 GB/s |

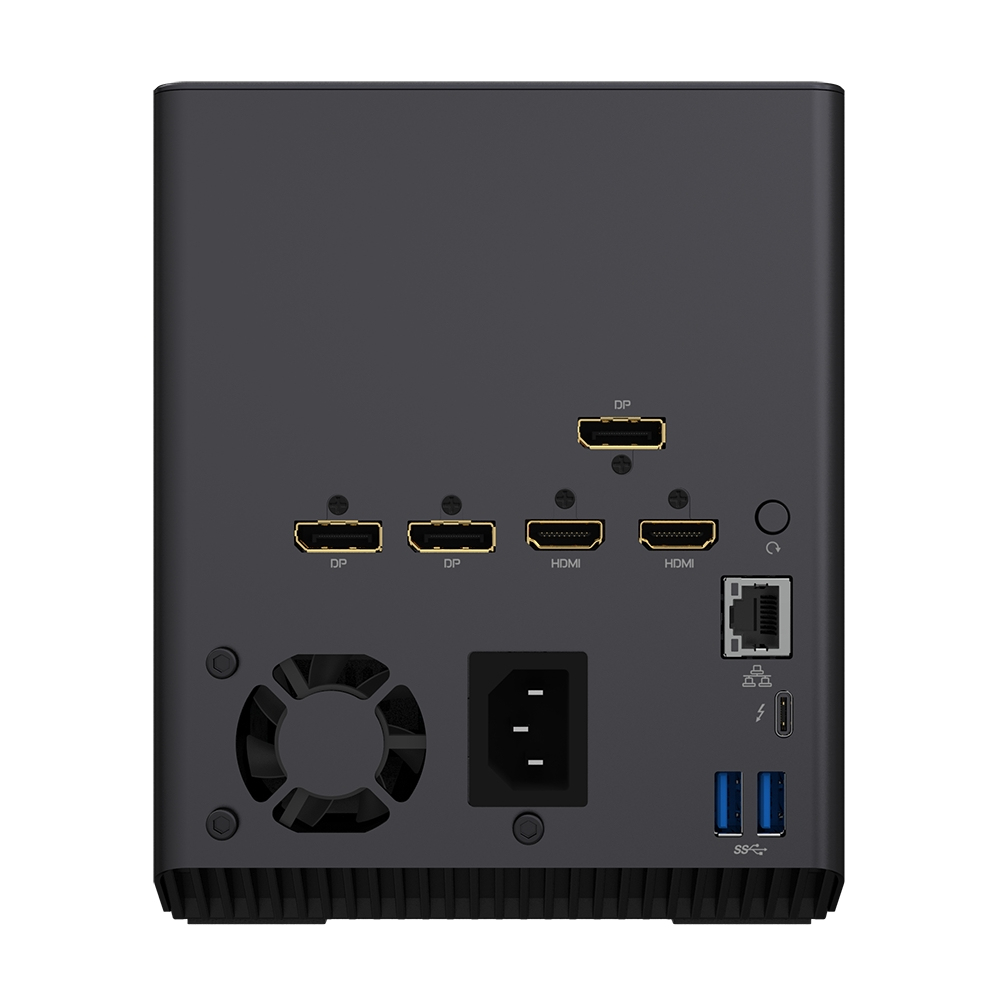

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | liquid |
| Cooling technology | Gigabyte WATERFORCE |
| Number of fans | 2 fan(s) |
| Fan diameter | 12 cm |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Input voltage | 100-240 V |
| Supplementary power connectors | 2x 8-pin |
| Power supply input frequency | 50-60 Hz |
| Power supply input current | 6 A |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.83 kg |
| Length | 300 mm |
| Depth | 140 mm |
| Height | 173 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| Quick installation guide | Yes |
| Carrying case | Yes |
| Cables included | Thunderbolt |
