GIGABYTE RTX 3060 Windforce OC 12G

RTX 3060 Windforce OC 12G

Model RTX 3060 Windforce OC 12G

37 specifications Checked today

ColourBlack
Graphics processor familyNVIDIA
Discrete graphics card memory12 GB
Interface typePCI Express x16 4.0
TV tuner integratedNo
Cooling typeActive

See all specifications

Overview

Colour: Black
Graphics processor family: NVIDIA
Discrete graphics card memory: 12 GB
Interface type: PCI Express x16 4.0
TV tuner integrated: No
Cooling type: Active

Brand: GIGABYTE
Category: GPU
Model: RTX 3060 Windforce OC 12G
Also known as: GIGABYTE RTX 3060 Windforce OC 12G NVIDIA GeForce RTX 3060 12 GB GDDR6

Specifications

37 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 3060
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	3584
Processor frequency	1792 MHz
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	12 GB
Graphics card memory type	GDDR6
Memory bus	192 bit
Memory clock speed	15000 MHz
Number of pipelines	3
Memory bandwidth (max)	360 GB/s

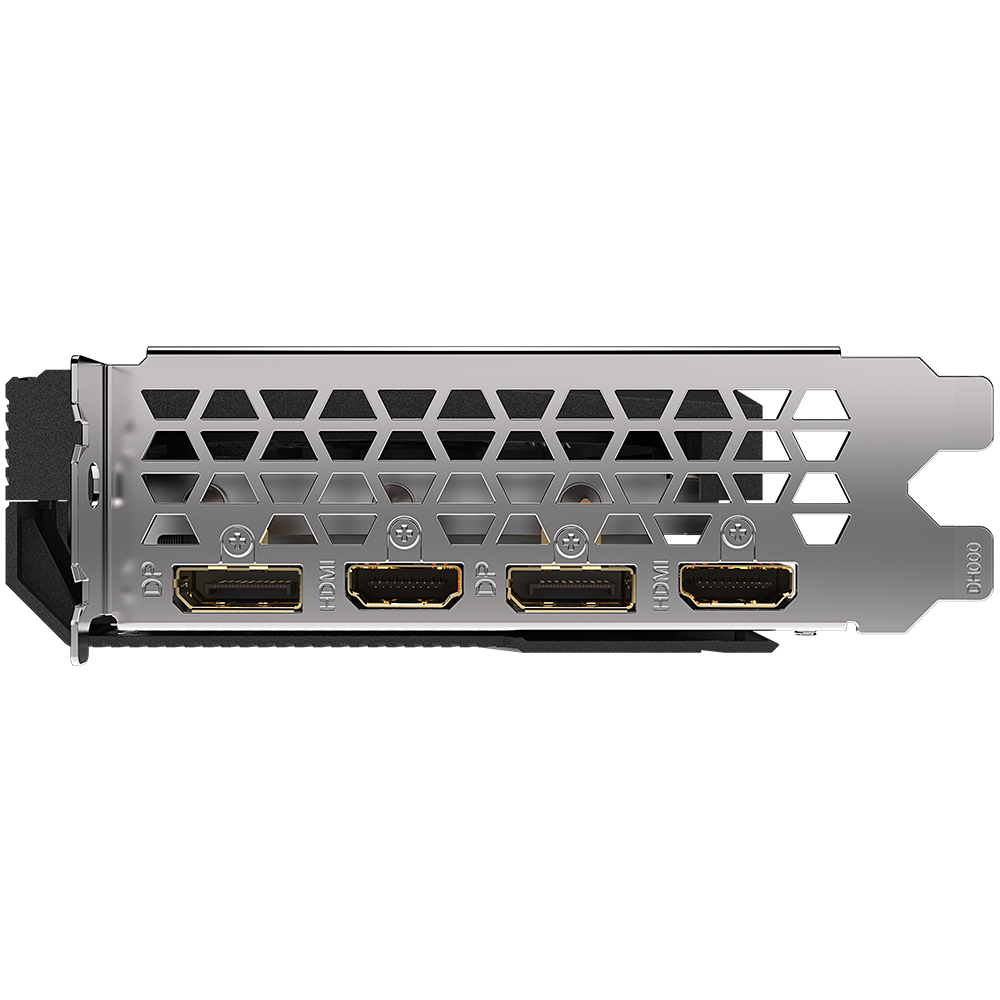

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 4.0
HDMI ports quantity	2
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	2
HDMI version	2.1
DisplayPort version	1.4a
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	No
NVIDIA G-SYNC	Yes

Design

Specification	Value
Cooling type	Active
Cooling technology	GIGABYTE WINDFORCE 2X
Number of fans	2 fan(s)
Product colour	Black

Power

Specification	Value
Minimum system power supply	550 W

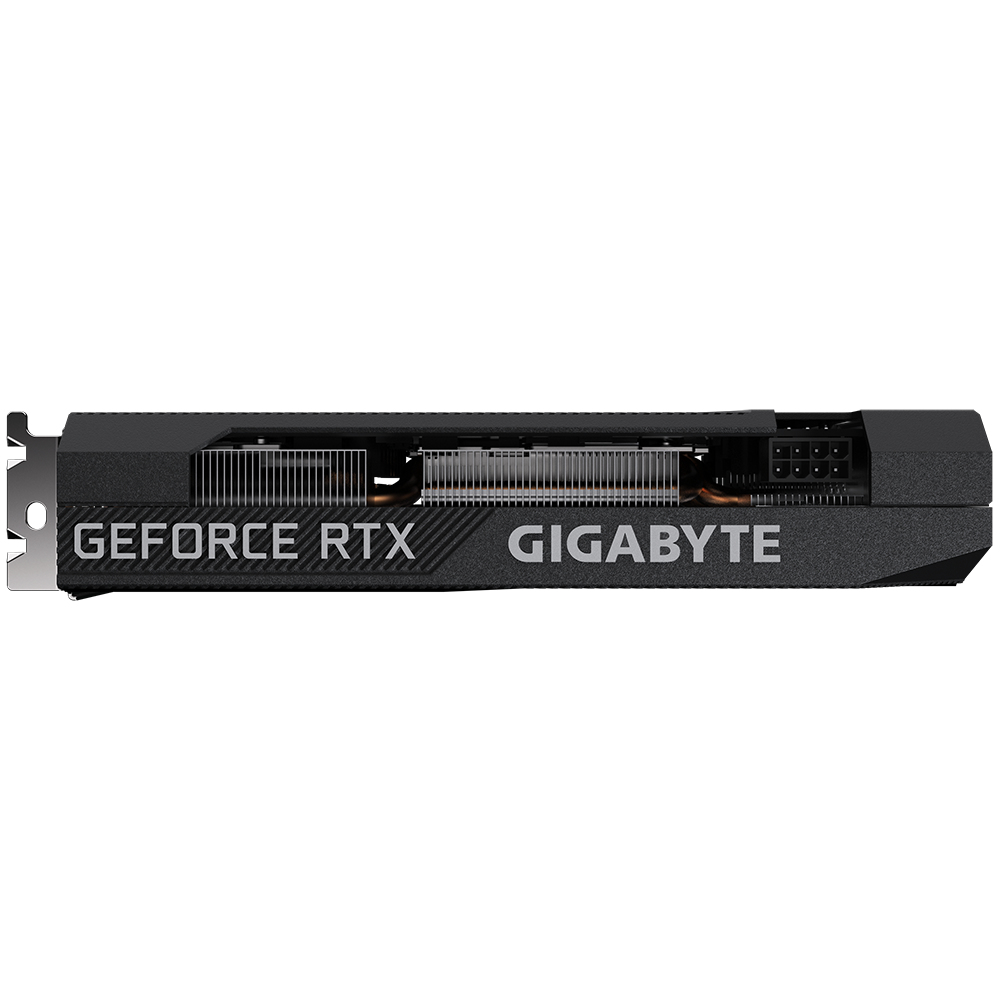

Supplementary power connectors	1x 8-pin

Weight & dimensions

Specification	Value
Length	198 mm
Depth	39 mm
Height	121 mm

Packaging data

Specification	Value
Package type	Box

Packaging content

Specification	Value
Manual	Yes
