Radeon RX 9060 XT GAMING OC ICE 16G
Model Radeon RX 9060 XT GAMING OC ICE 16GPart no. GV-R906XGAMINGOCICE-16GDEAN 4719331357047
52 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight840 g
- ColourSilver
- Graphics processor familyAMD
- Discrete graphics card memory16 GB
- Interface typePCI Express 5.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 840 g
- Colour
- Silver
- Graphics processor family
- AMD
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express 5.0
- Brand
- GIGABYTE
- Category
- GPU
- Model
- Radeon RX 9060 XT GAMING OC ICE 16G
- Part number
- GV-R906XGAMINGOCICE-16GD
- EAN / UPC
- 4719331357047
- Also known as
- GIGABYTE GAMING Radeon RX 9060 XT OC ICE 16G Graphics Card
Specifications
52 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9060 XT |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor boost clock speed | 3320 MHz |
| Processor boost clock speed (Gaming mode) | 2780 MHz |
| Maximum displays per videocard | 3 |
| Parallel processing technology support | Not supported |
| Stream processors | 2048 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Memory clock speed | 20000 MHz |
| Data transfer rate | 20 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 5.0 |

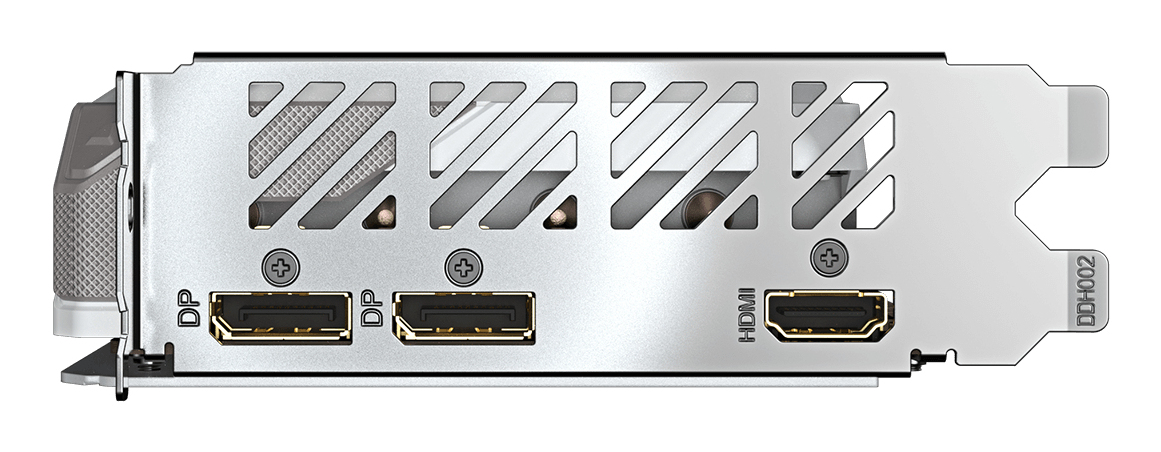

| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1a |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| Overclocked (OC) edition | Yes |
| Warranty period | 3 year(s) |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Silver |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 840 g |
| Length | 281 mm |
| Depth | 40 mm |
| Height | 118 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 182.5 mm |
| Package depth | 354 mm |
| Package height | 75 mm |
| Package weight | 1.29 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
