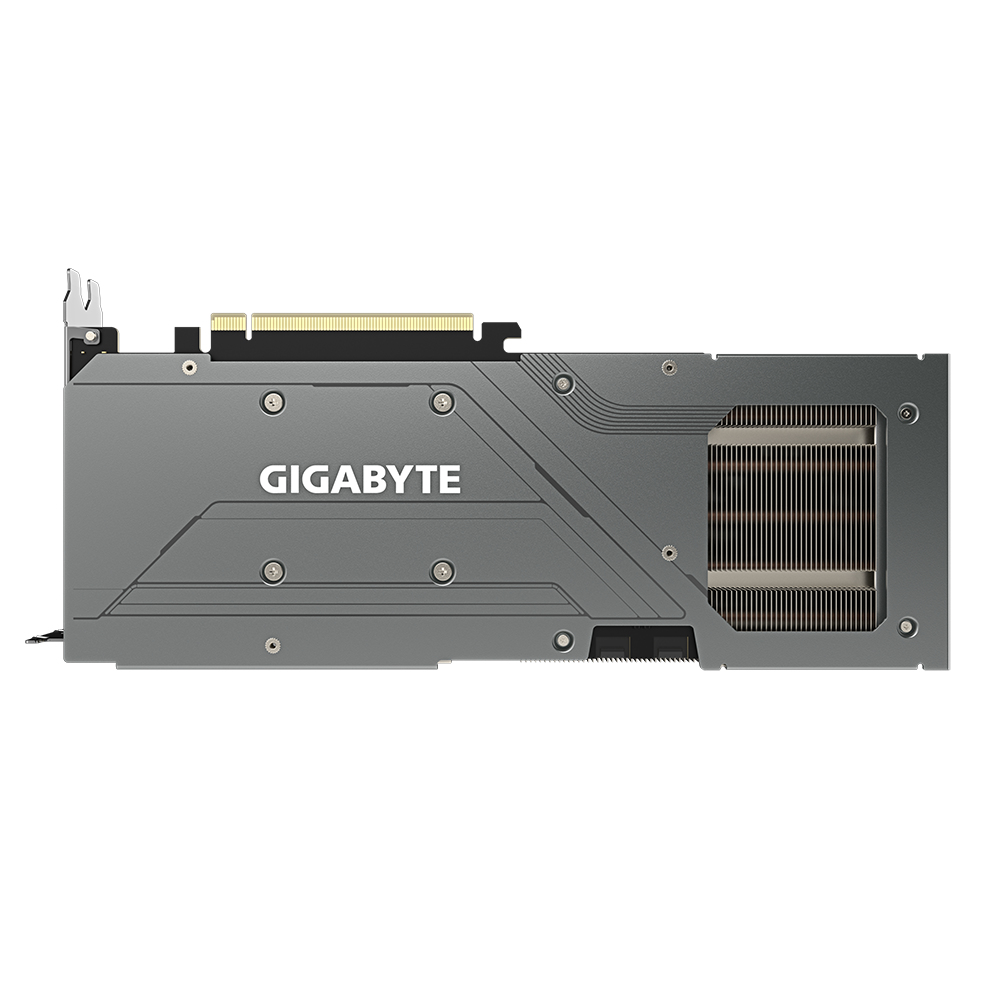

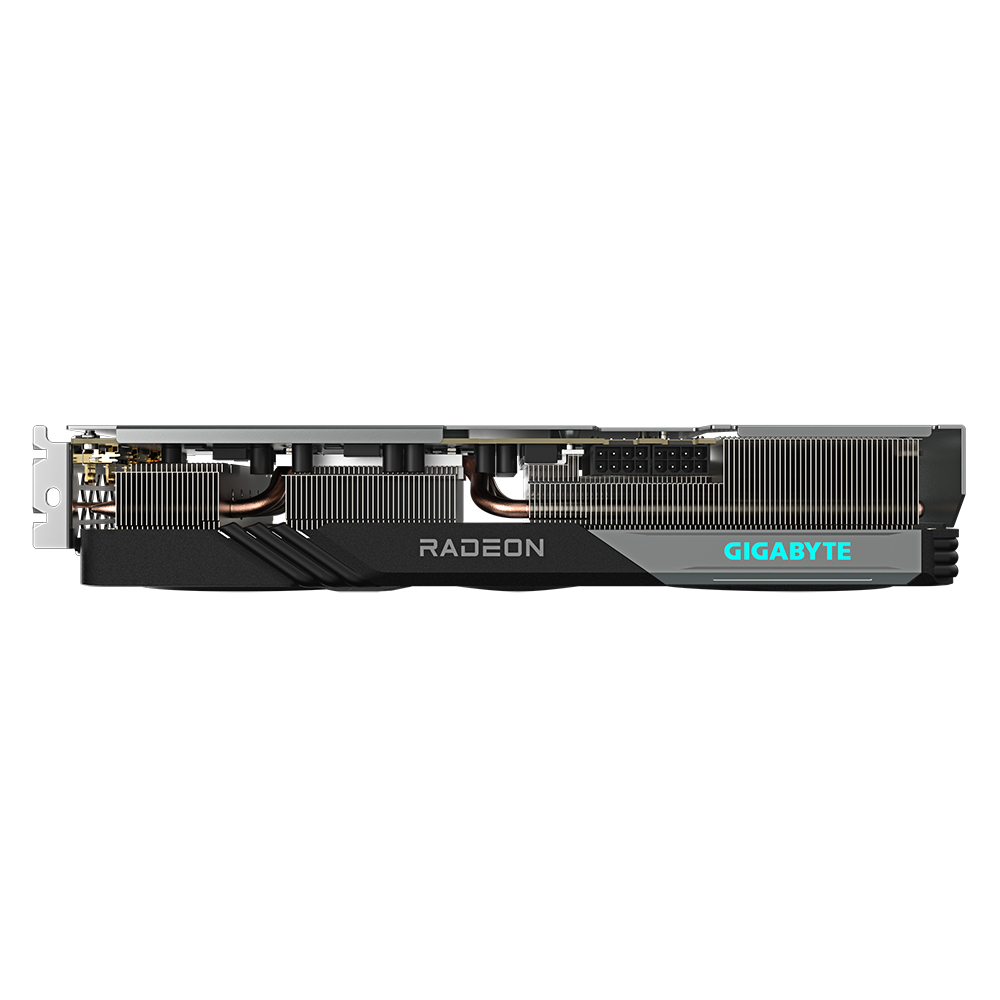

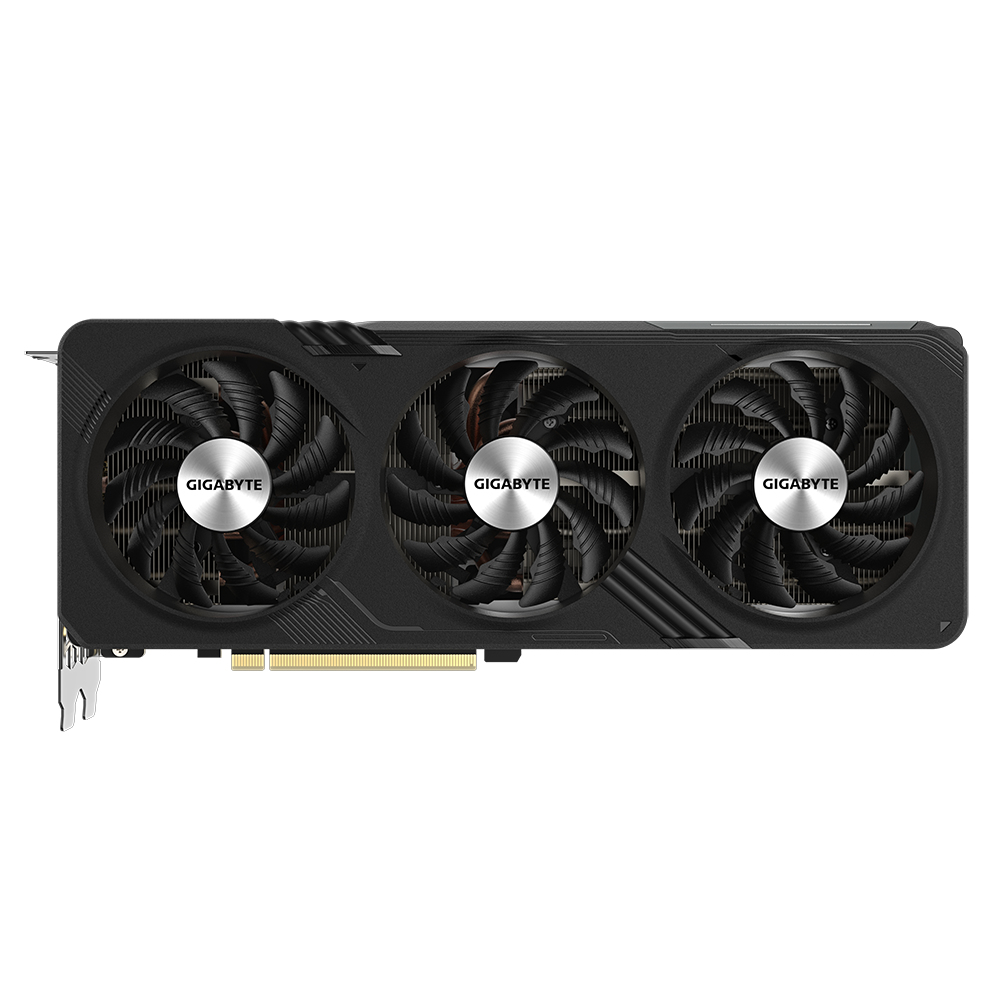

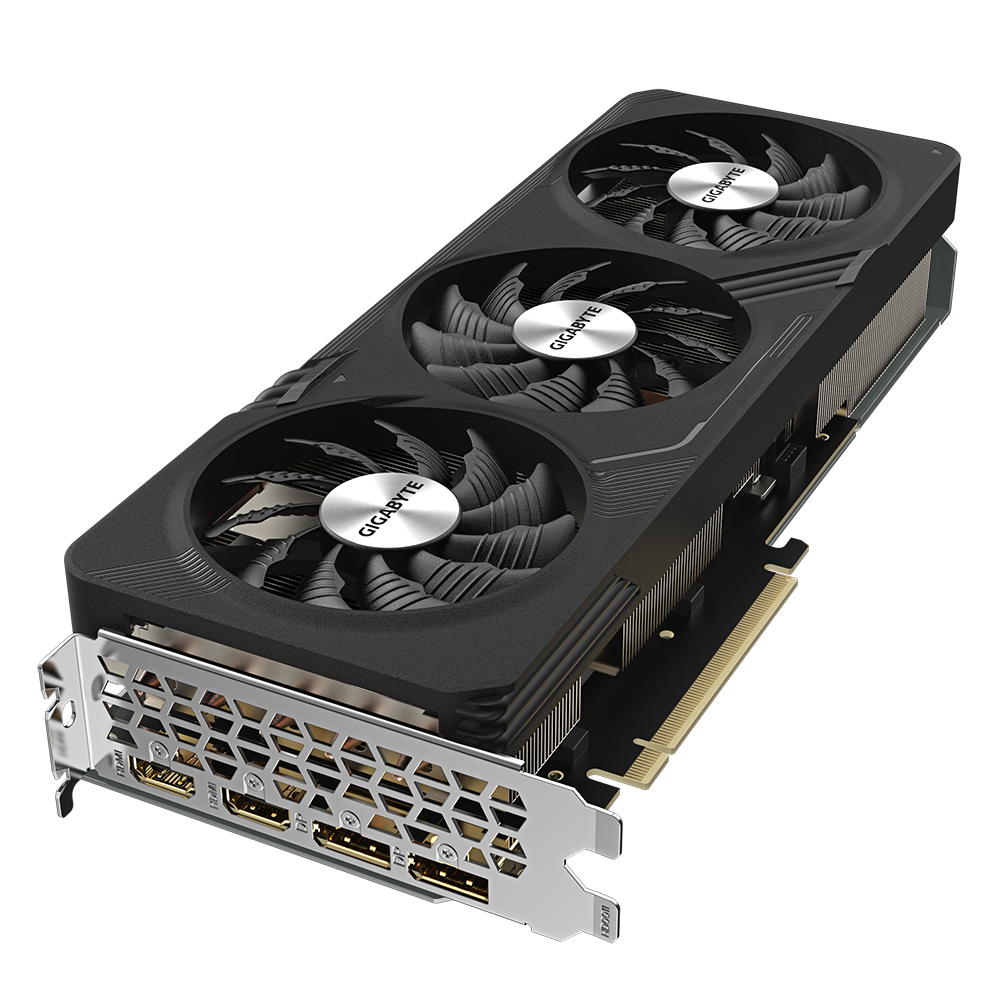

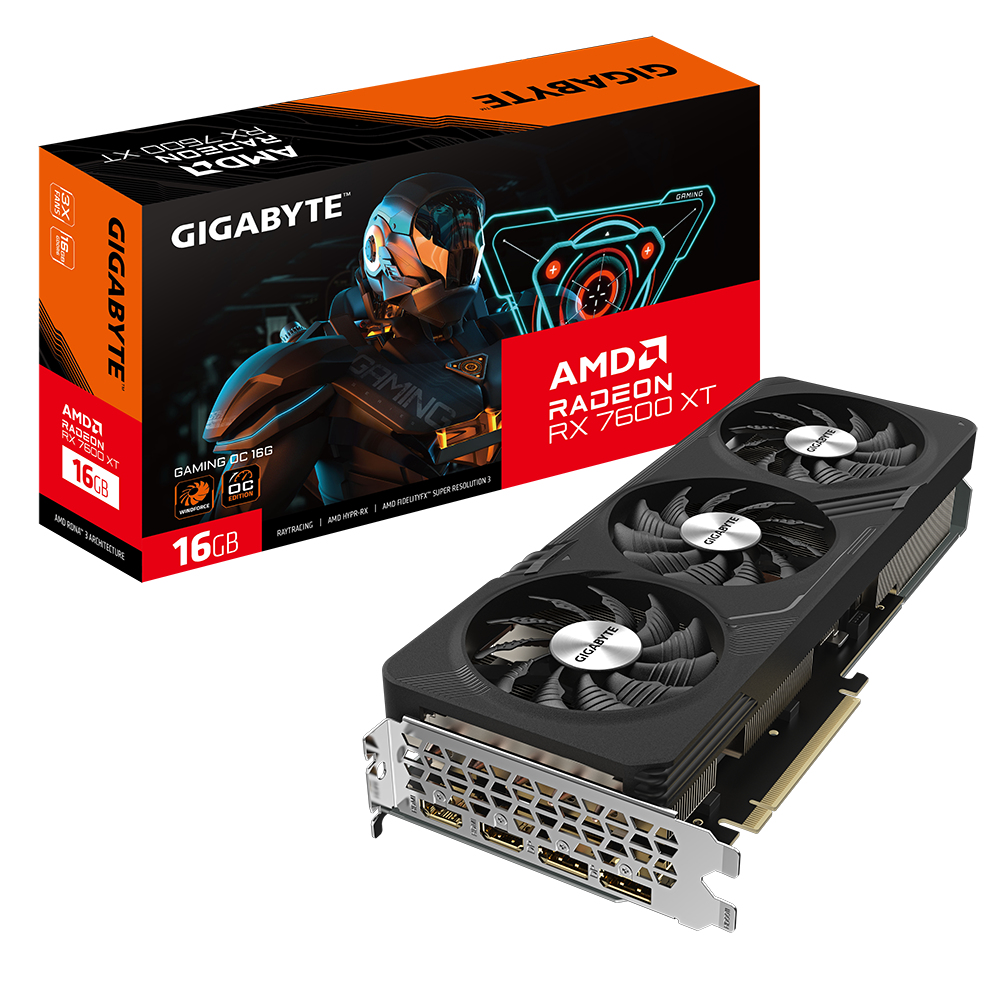

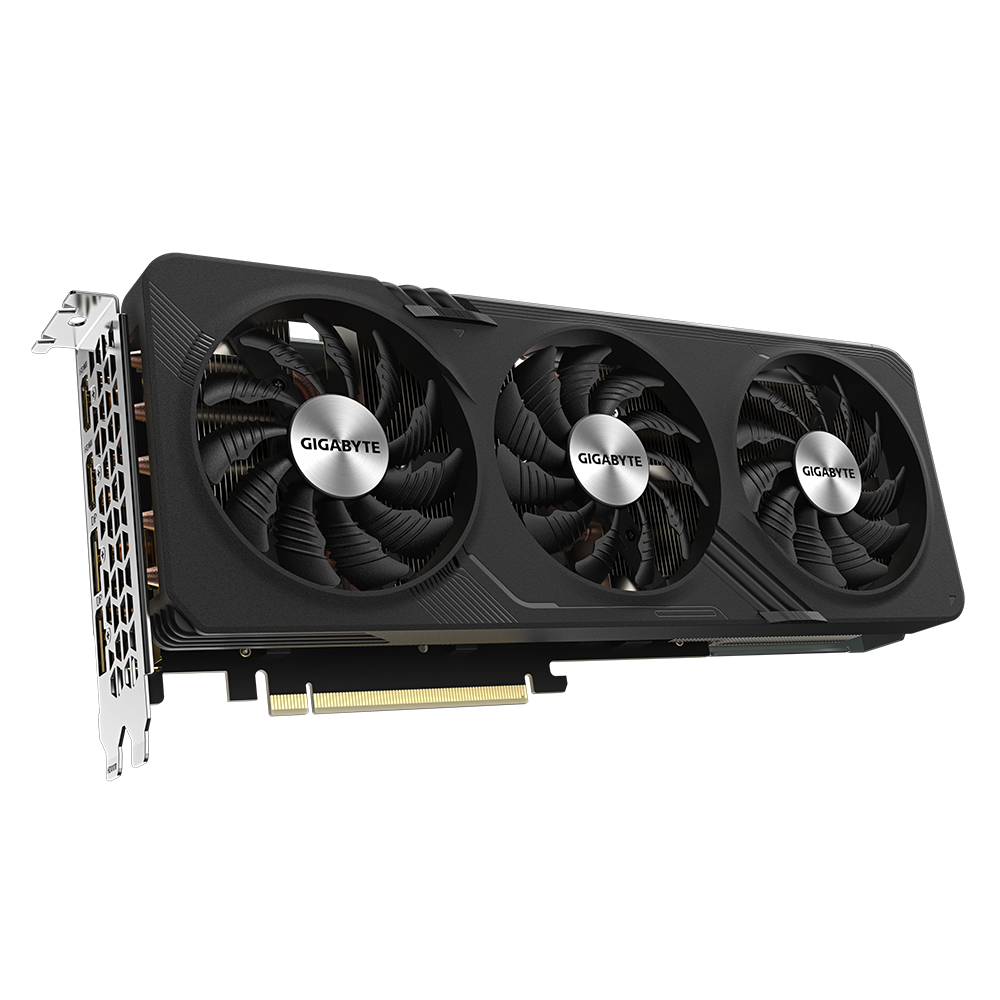

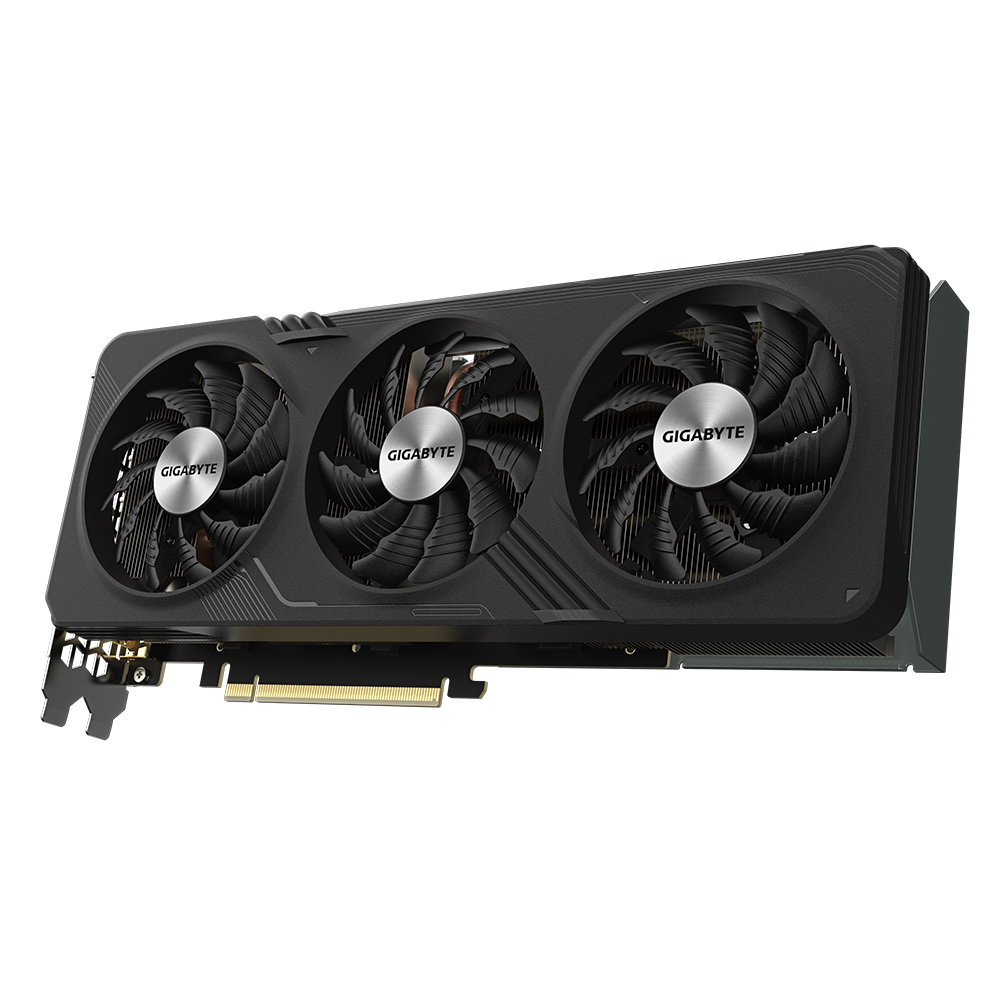

Radeon RX 7600 XT GAMING OC 16G
Model Radeon RX 7600 XT GAMING OC 16GPart no. GV-R76XTGAMING OC-16GDEAN 889523041833
45 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- ColourBlack
- Graphics processor familyAMD
- Discrete graphics card memory16 GB
- Interface typePCI Express 4.0
- TV tuner integratedNo
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- Black
- Graphics processor family
- AMD
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express 4.0
- TV tuner integrated
- No
- Brand
- GIGABYTE
- Category
- GPU
- Model
- Radeon RX 7600 XT GAMING OC 16G
- Part number
- GV-R76XTGAMING OC-16GD
- EAN / UPC
- 889523041833, 4719331354251
- Also known as
- GIGABYTE GAMING Radeon RX 7600 XT OC 16G AMD 16 GB GDDR6
Specifications
45 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 7600 XT |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor boost clock speed | 2810 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
| Stream processors | 2048 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Number of pipelines | 5 |
| Data transfer rate | 18 Gbit/s |

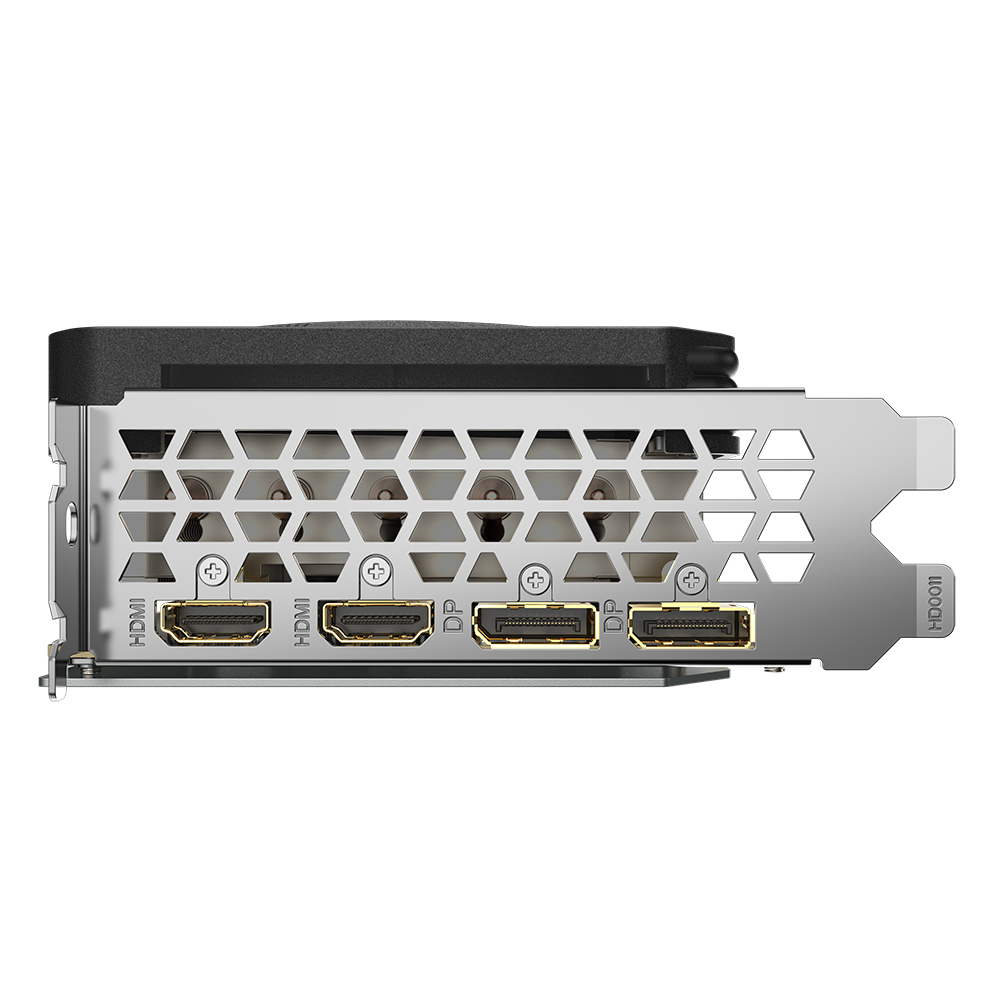

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1a |
| DisplayPort version | 2.1 |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| AMD FreeSync | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Fan diameter | 8 cm |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 600 W |
| Supplementary power connectors | 2x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 281.4 mm |
| Depth | 52.6 mm |
| Height | 116.6 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
