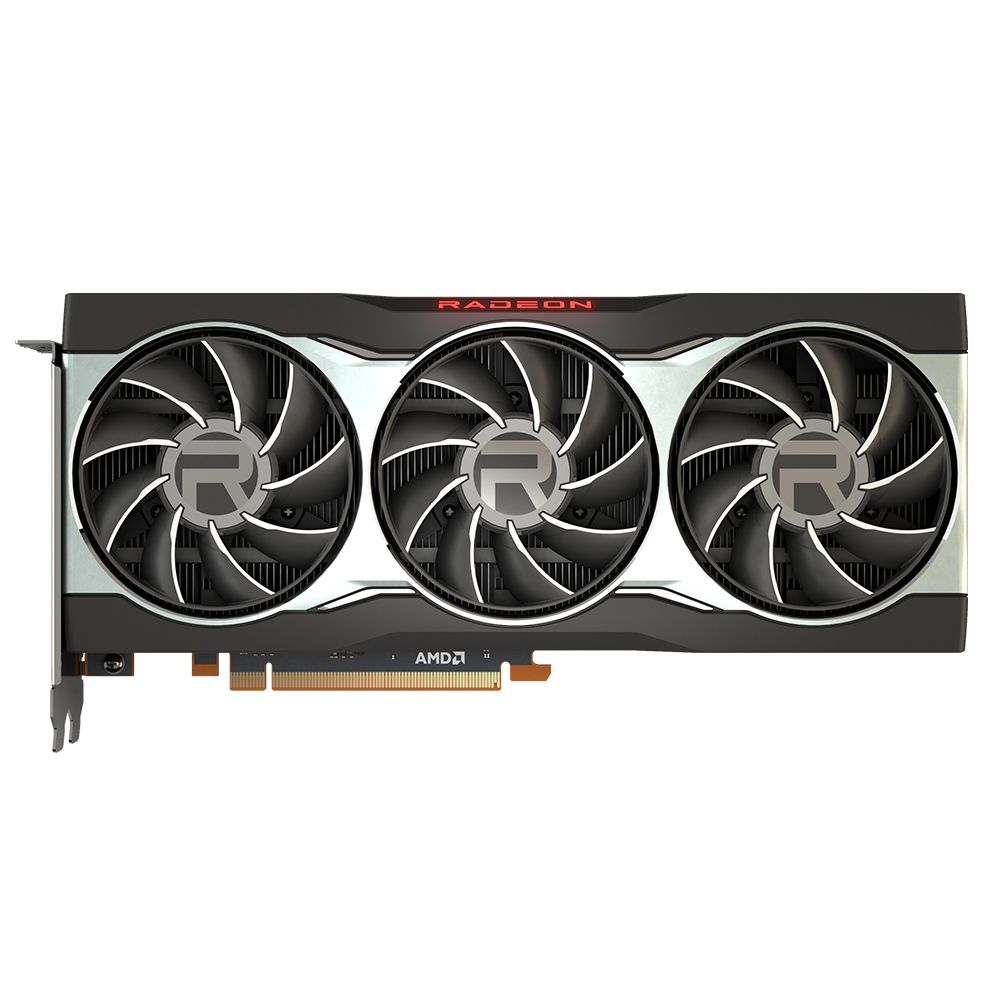

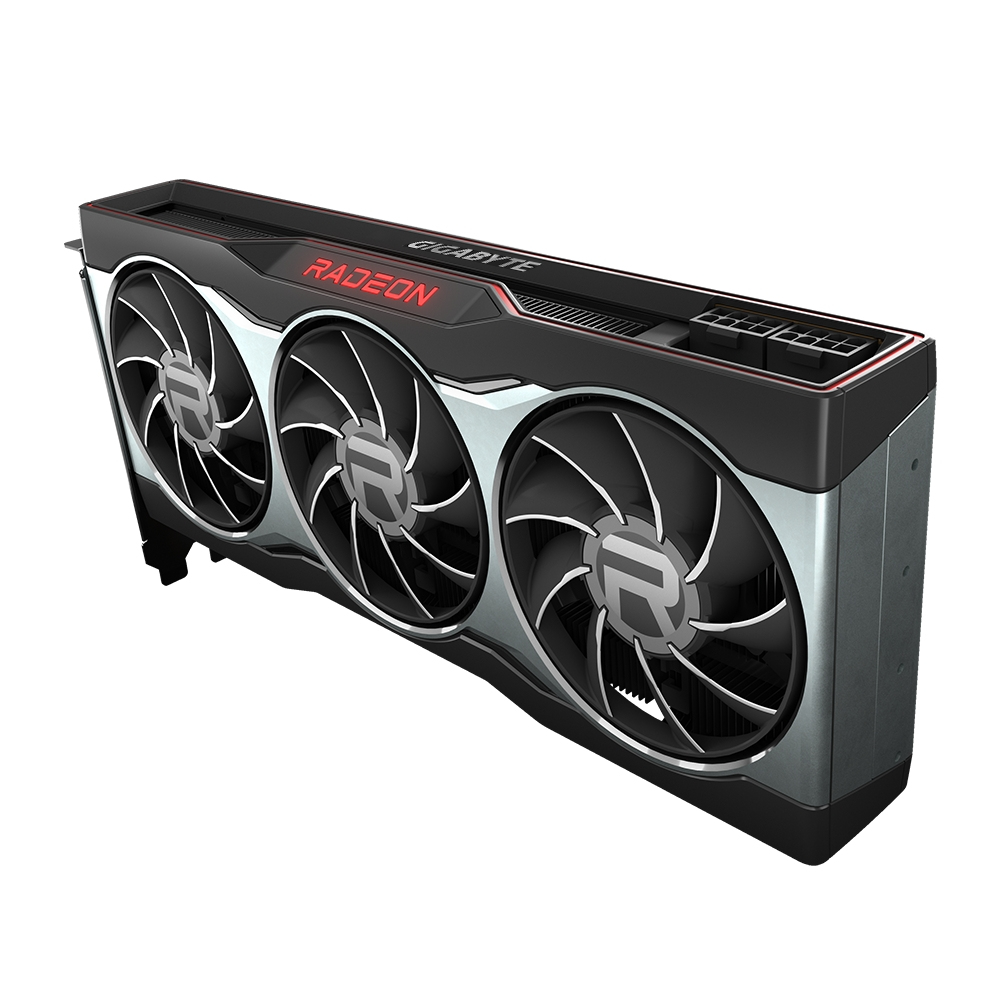

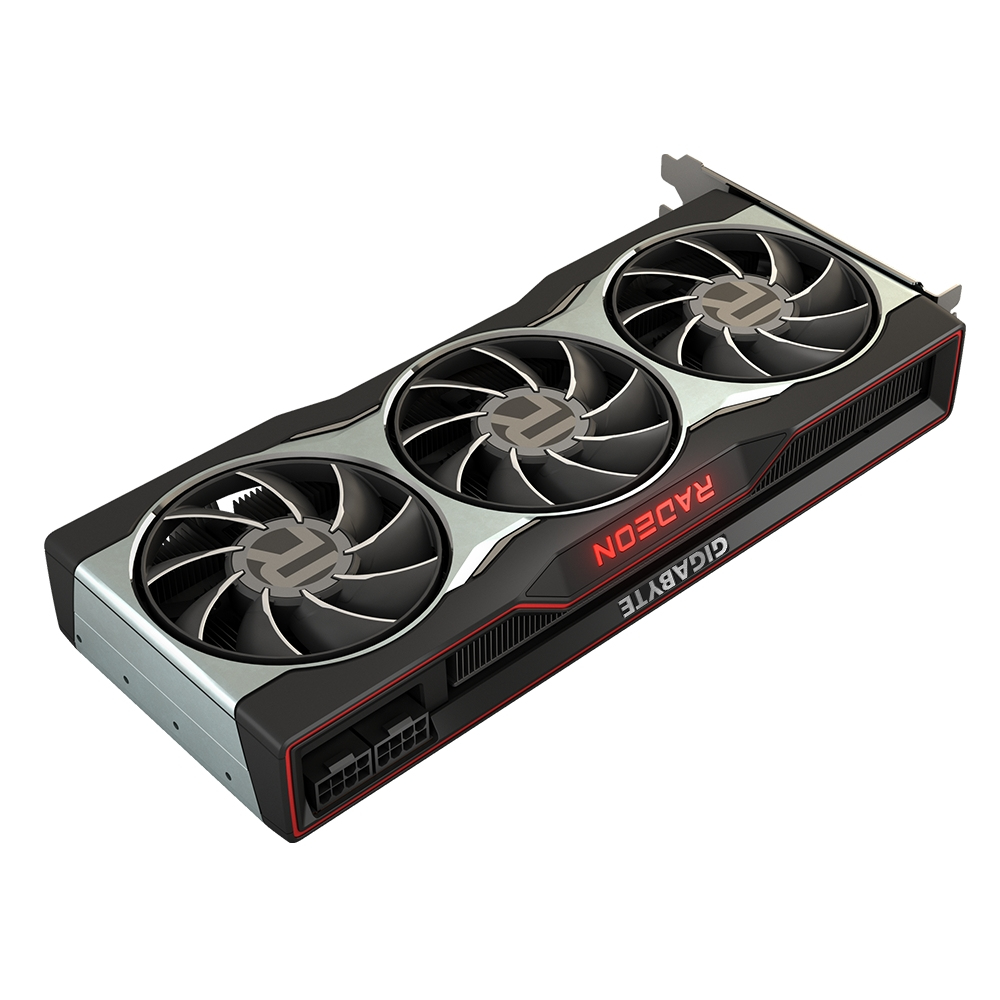

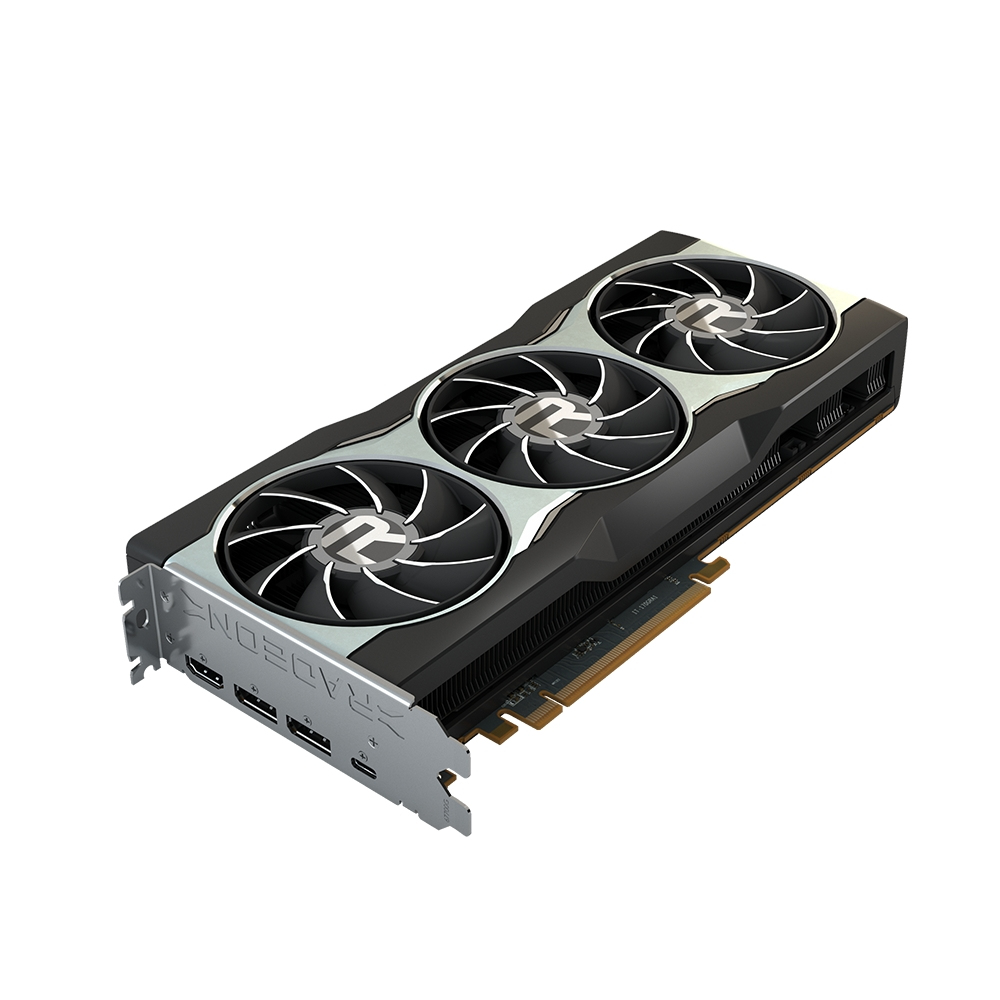

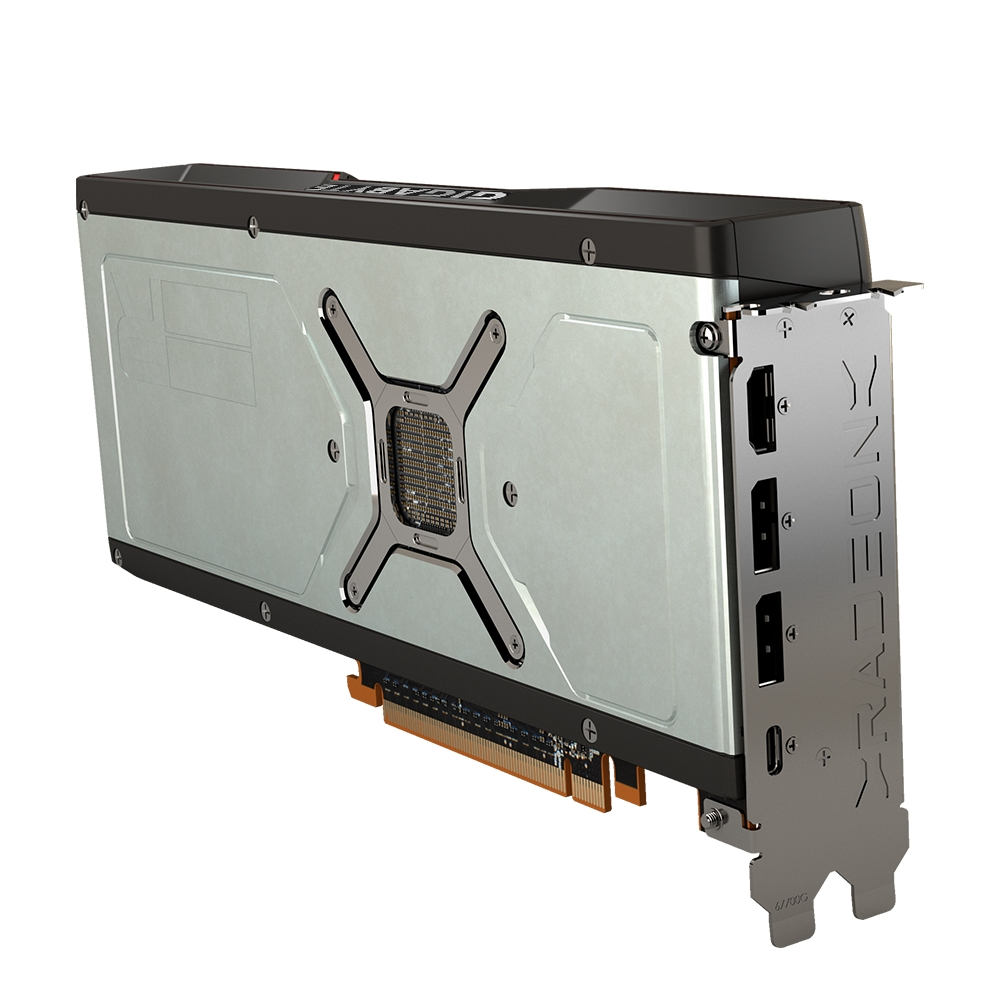

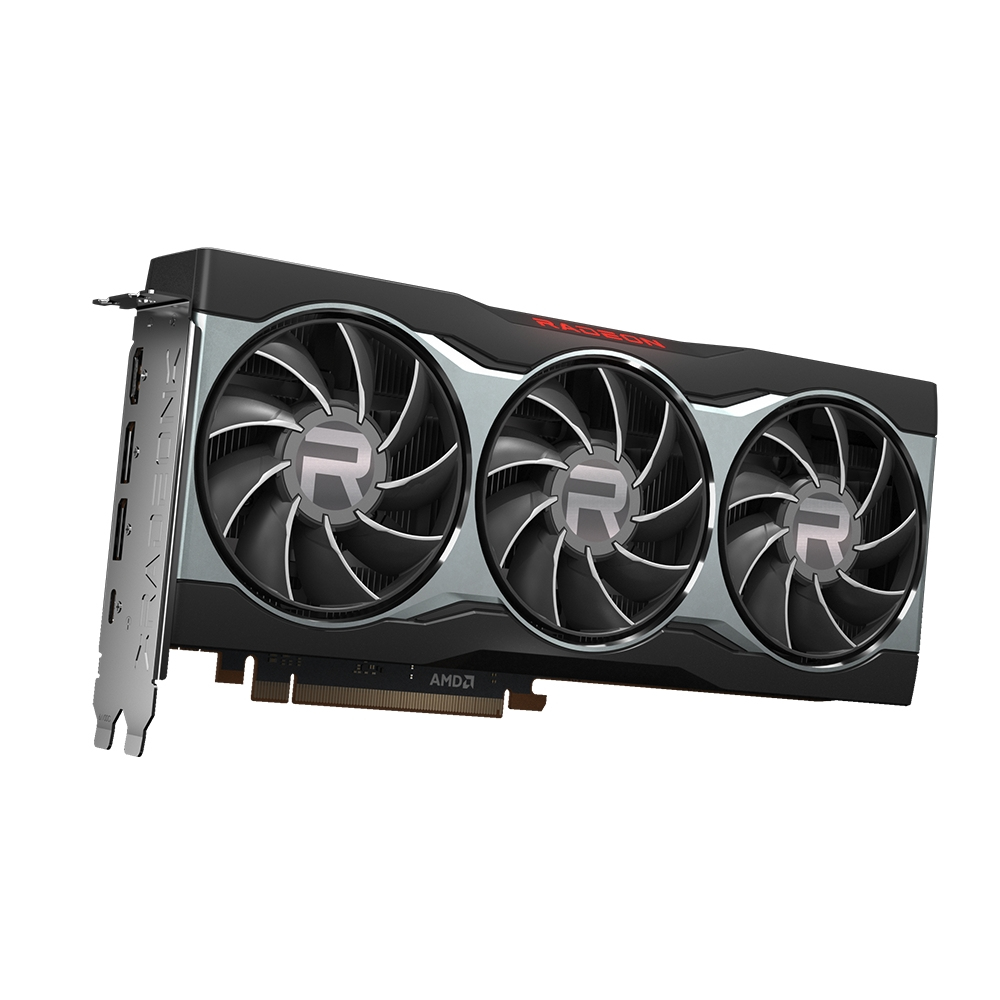

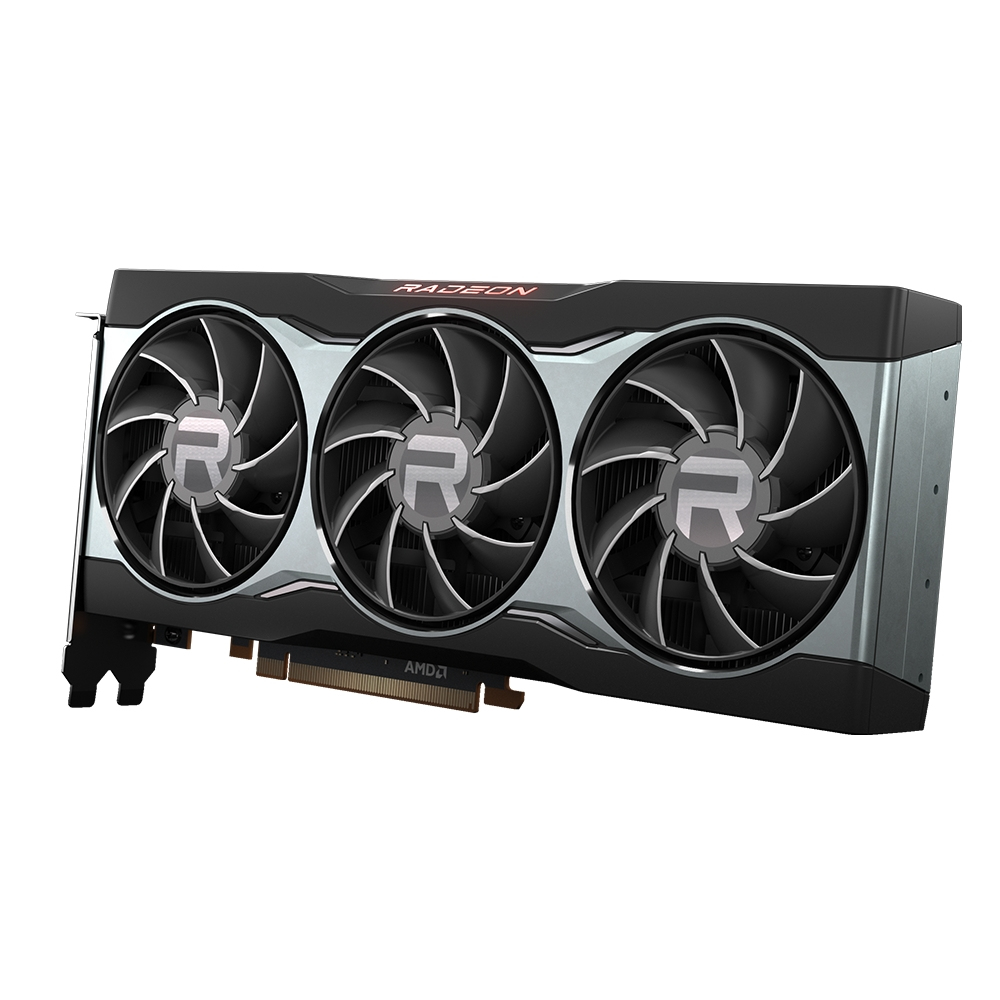

GIGABYTE Radeon RX 6800 16G

Radeon RX 6800 16G

Model Radeon RX 6800 16GPart no. GV-R68-16GC-BEAN 4719331307912

39 specifications Checked today

ColourBlack, Grey
Graphics processor familyAMD
Discrete graphics card memory16 GB
Interface typePCI Express x16 4.0
PhysXNo
Cooling typeActive

See all specifications

Overview

Colour: Black, Grey
Graphics processor family: AMD
Discrete graphics card memory: 16 GB
Interface type: PCI Express x16 4.0
PhysX: No
Cooling type: Active

Brand: GIGABYTE
Category: GPU
Model: Radeon RX 6800 16G
Part number: GV-R68-16GC-B
EAN / UPC: 4719331307912
Also known as: GIGABYTE Radeon RX 6800 16G AMD 16 GB GDDR6

Specifications

39 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	AMD
Graphics processor	Radeon RX 6800
Maximum resolution	7680 x 4320 pixels
CUDA	No
Processor boost clock speed	2105 MHz
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Memory clock speed	16000 MHz
Memory bandwidth (max)	512 GB/s

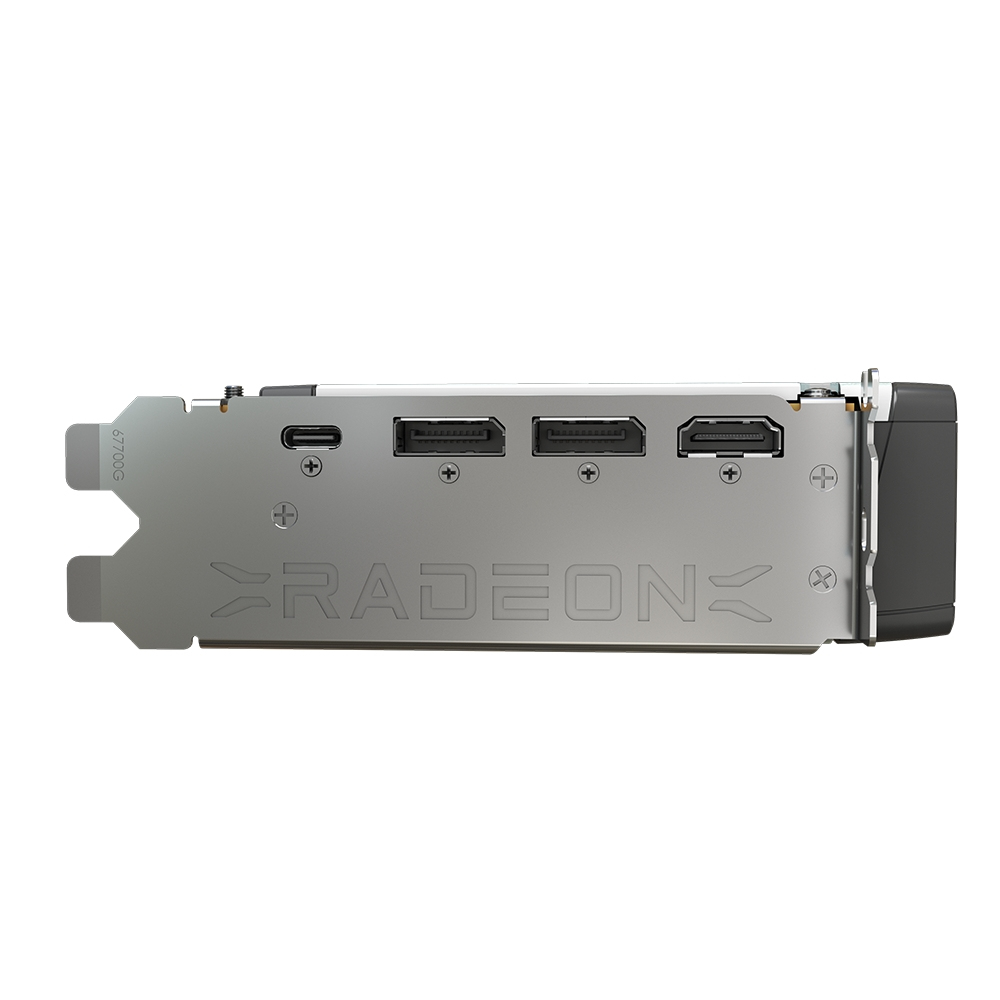

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 4.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	2
HDMI version	2.1
DisplayPort version	1.4a
USB Type-C ports quantity	1
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
PhysX	No
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
Virtual Reality (VR) ready	Yes
Dual Link DVI	No
AMD FreeSync	Yes

Design

Specification	Value
Cooling type	Active
Number of fans	3 fan(s)
Number of slots	2
Product colour	Black, Grey

Power

Specification	Value
Minimum system power supply	650 W
Power consumption (typical)	250 W
Supplementary power connectors	2x 8-pin

Weight & dimensions

Specification	Value
Length	267 mm
Depth	40 mm
Height	120 mm

Packaging data

Specification	Value

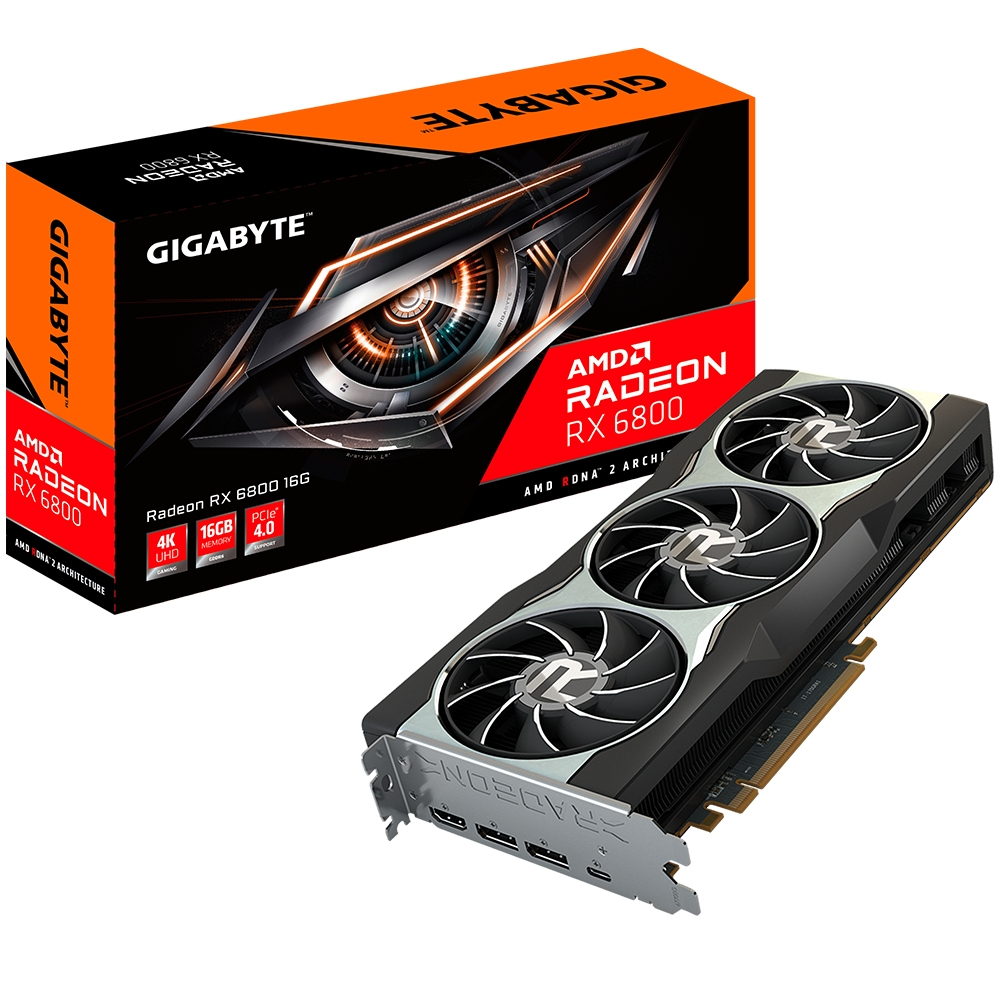

Package type	Box

Packaging content

Specification	Value
User guide	Yes
