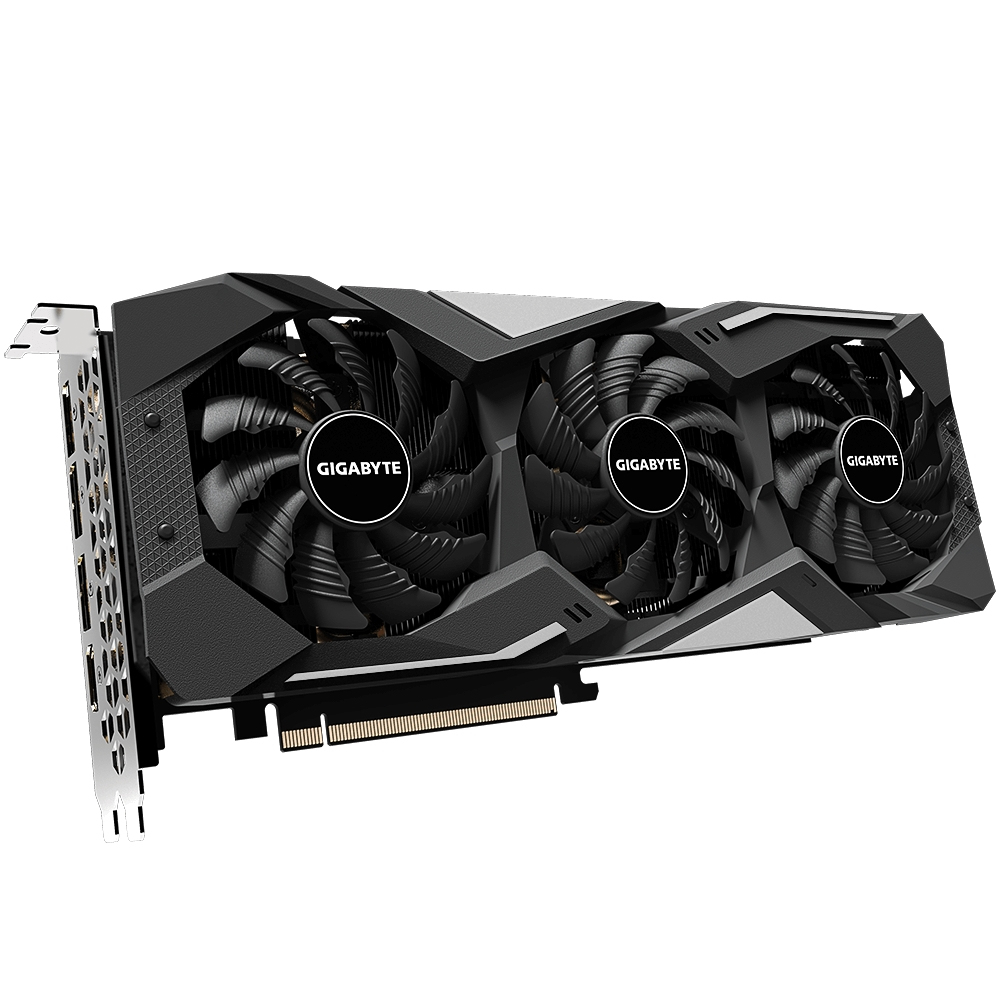

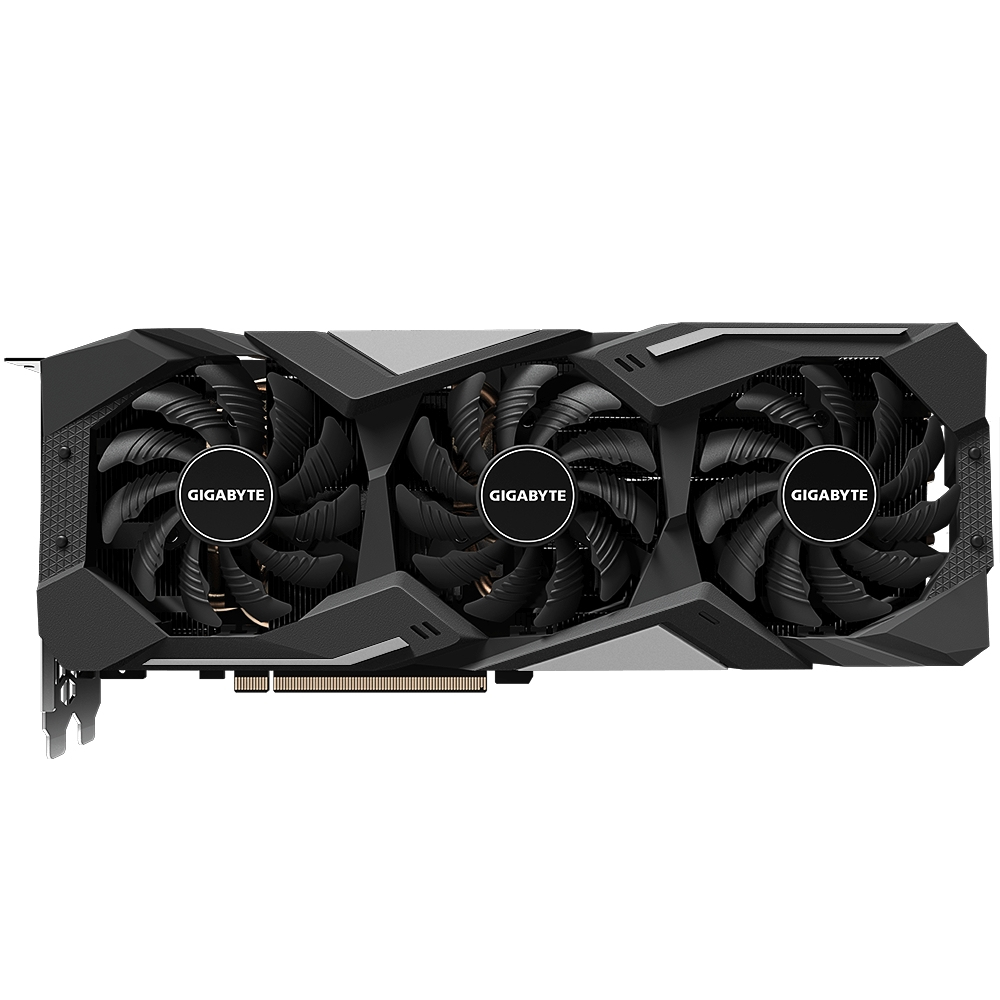

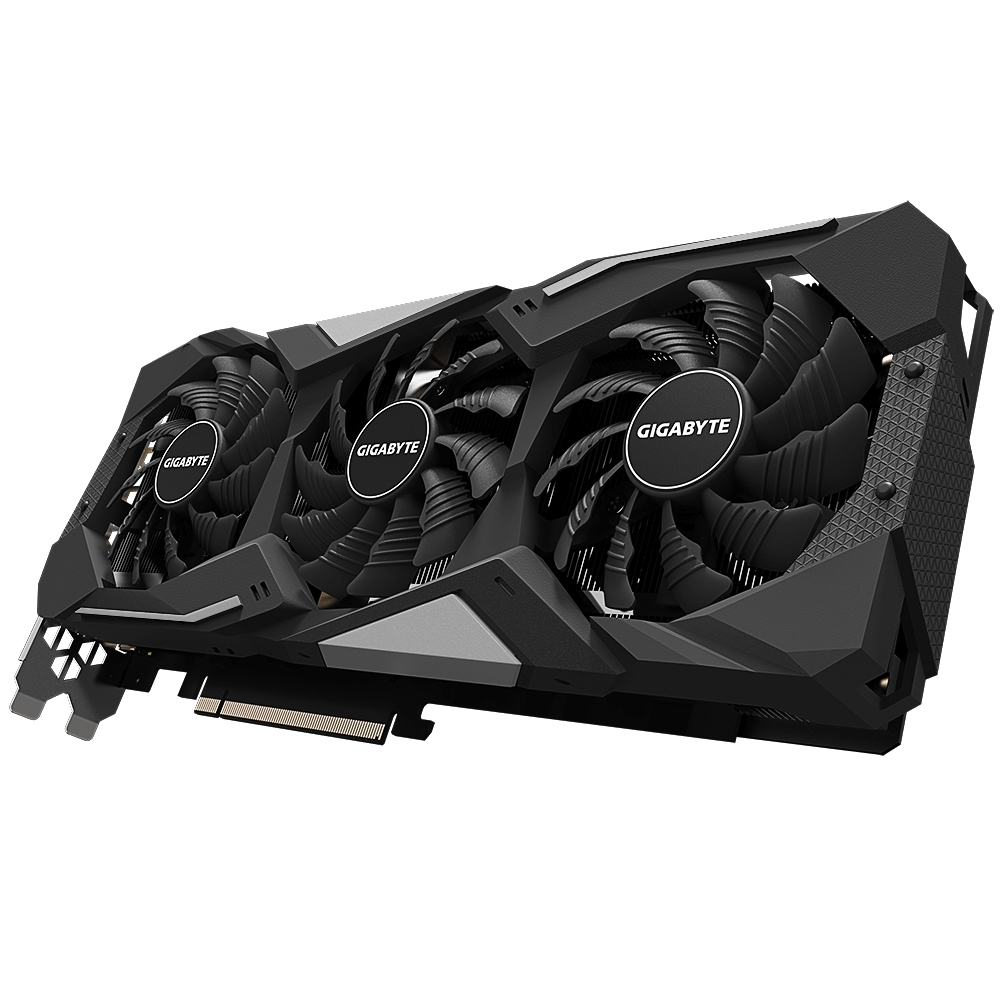

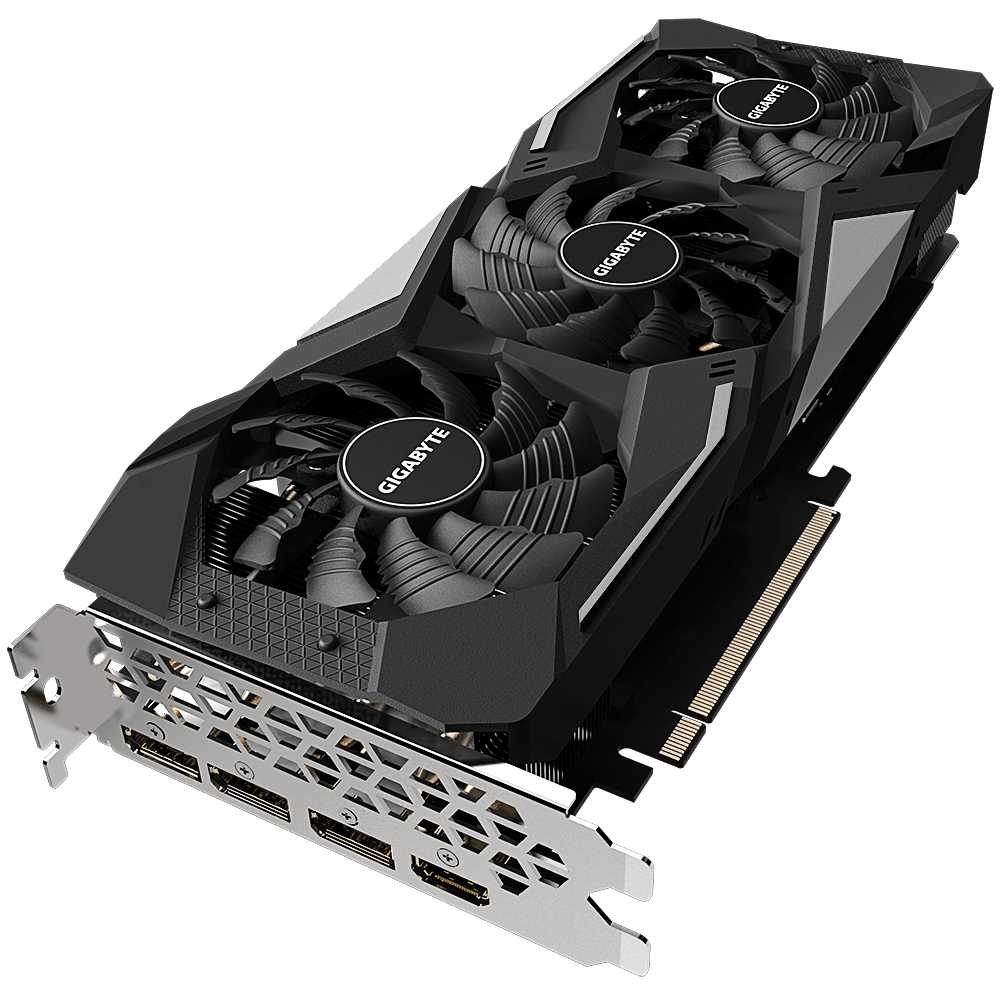

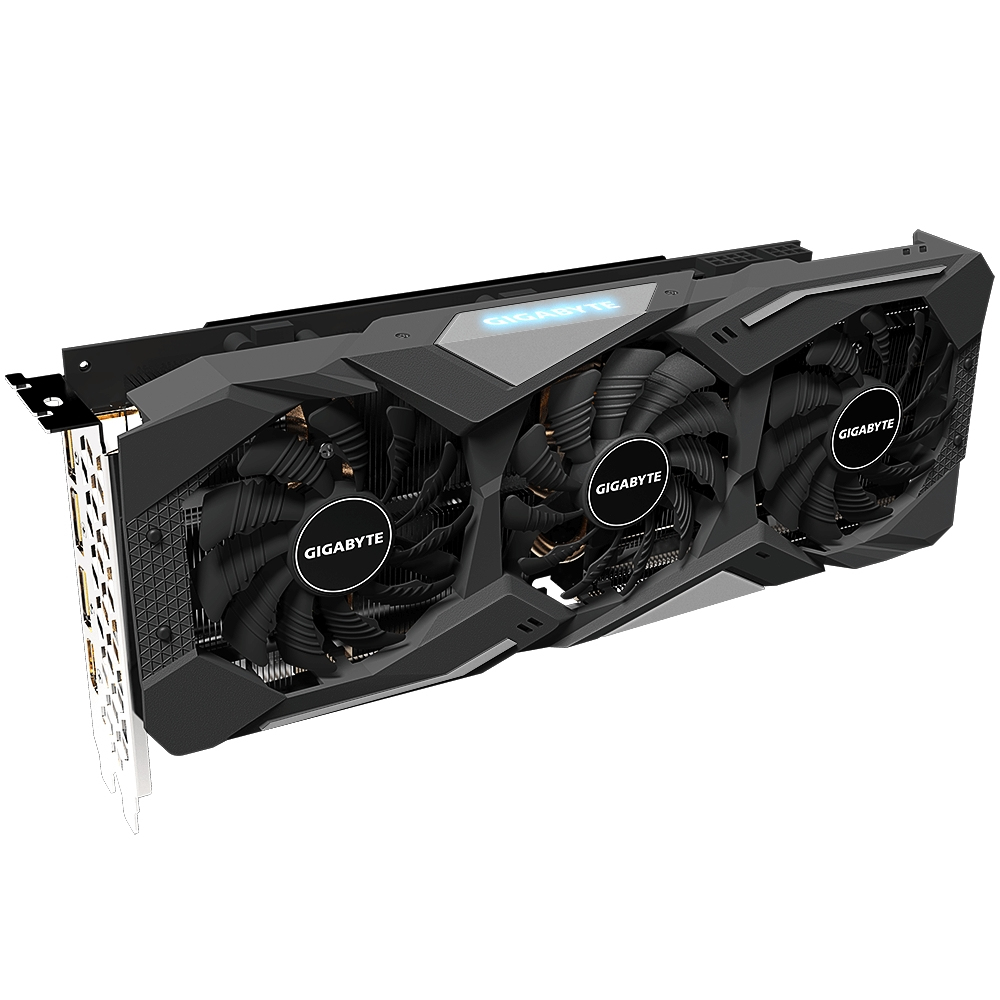

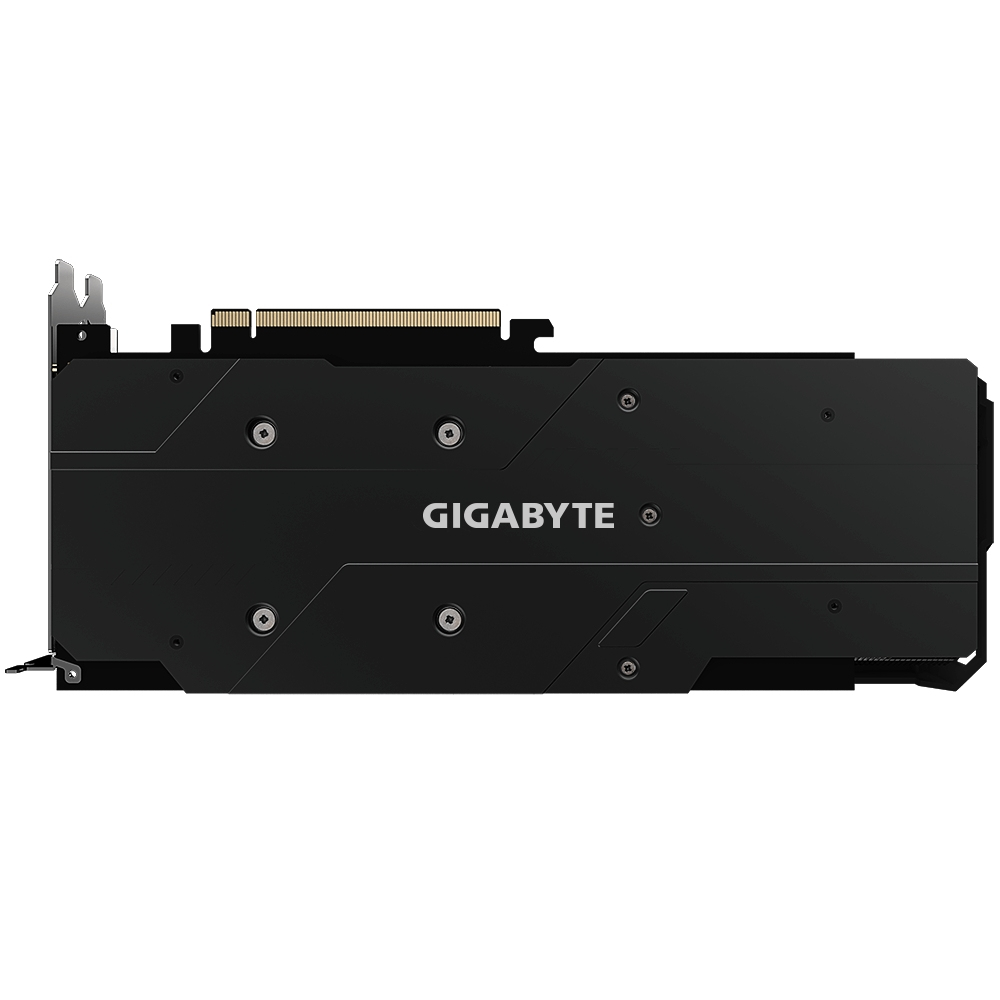

GIGABYTE Radeon RX 5700 XT GAMING 8G

Radeon RX 5700 XT GAMING 8G

Model Radeon RX 5700 XT GAMING 8GPart no. GV-R57XTGAMING-8GDEAN 4719331306625

41 specifications Checked today

ColourBlack
Graphics processor familyAMD
Discrete graphics card memory8 GB
Interface typePCI Express x16 4.0
PhysXNo
Cooling typeActive

See all specifications

Overview

Colour: Black
Graphics processor family: AMD
Discrete graphics card memory: 8 GB
Interface type: PCI Express x16 4.0
PhysX: No
Cooling type: Active

Brand: GIGABYTE
Category: GPU
Model: Radeon RX 5700 XT GAMING 8G
Part number: GV-R57XTGAMING-8GD
EAN / UPC: 4719331306625
Also known as: GIGABYTE GAMING Radeon RX 5700 XT 8G AMD 8 GB GDDR6

Specifications

41 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	AMD
Graphics processor	Radeon RX 5700 XT
Maximum resolution	7680 x 4320 pixels
CUDA	No
Processor frequency	1605 MHz
Processor boost clock speed	1905 MHz
Maximum displays per videocard	4
Stream processors	2560

Memory

Specification	Value
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Memory clock speed	14000 MHz
Memory bandwidth (max)	448 GB/s

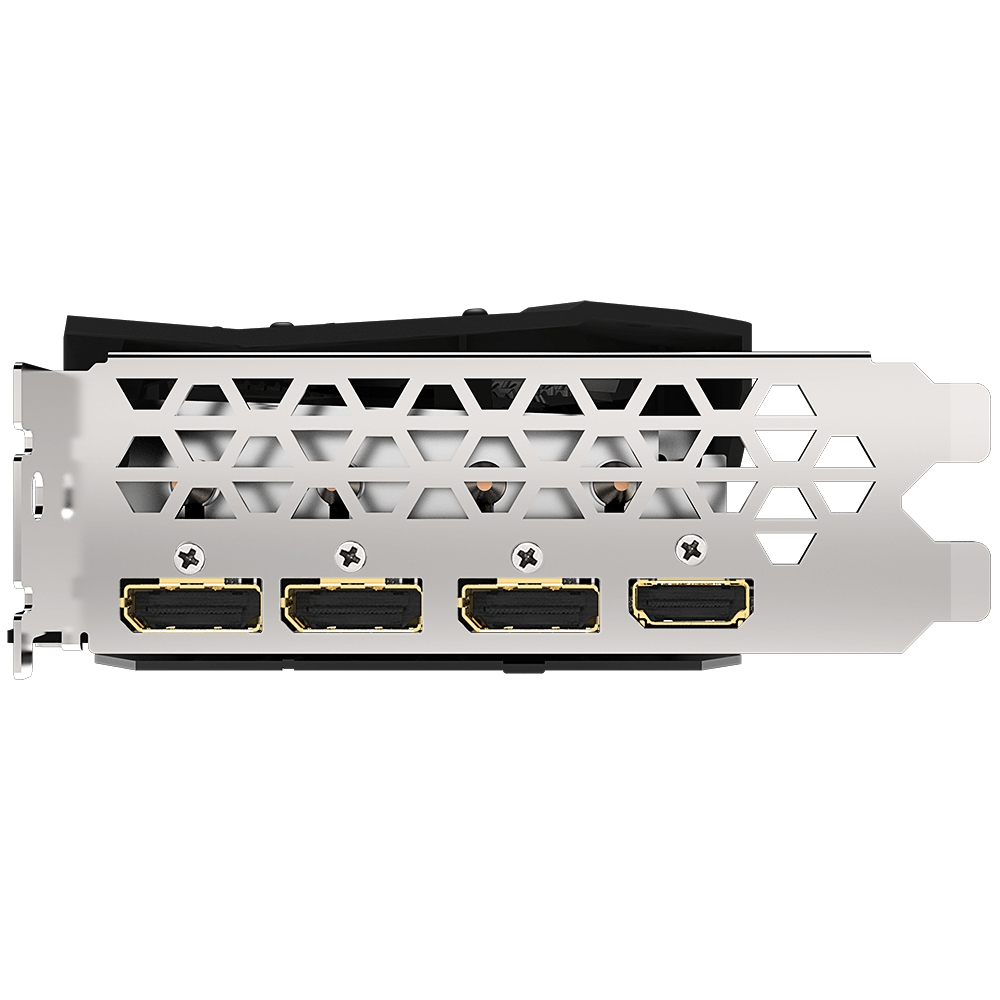

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 4.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.0b
DisplayPort version	1.4
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
PhysX	No
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
Dual Link DVI	No
AMD FreeSync	Yes

Design

Specification	Value
Cooling type	Active
Cooling technology	GIGABYTE WINDFORCE 3X
Number of fans	3 fan(s)
Fan diameter	8 cm

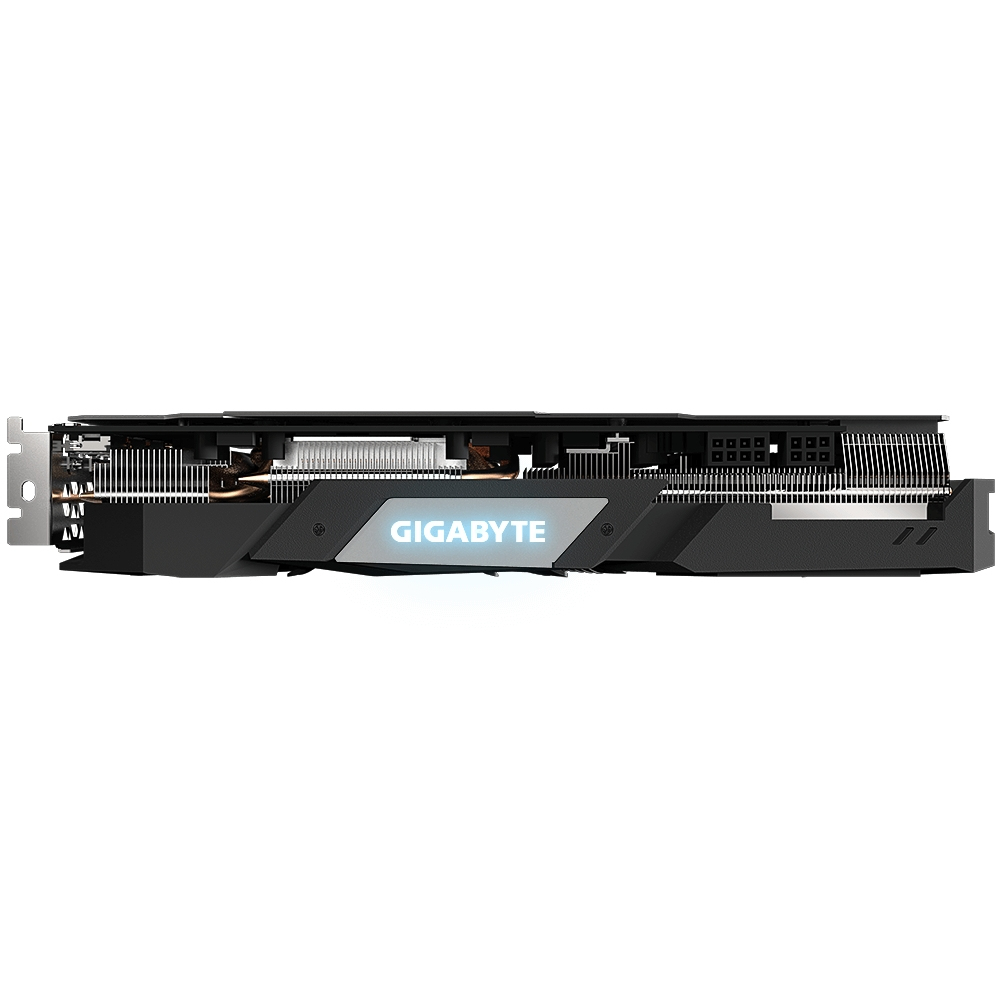

Illumination	Yes
Illumination colour	Multi
Product colour	Black

Power

Specification	Value
Minimum system power supply	600 W
Supplementary power connectors	1x 6-pin, 1x 8-pin

Weight & dimensions

Specification	Value
Length	279.9 mm
Depth	49.5 mm
Height	114.3 mm

Packaging data

Specification	Value

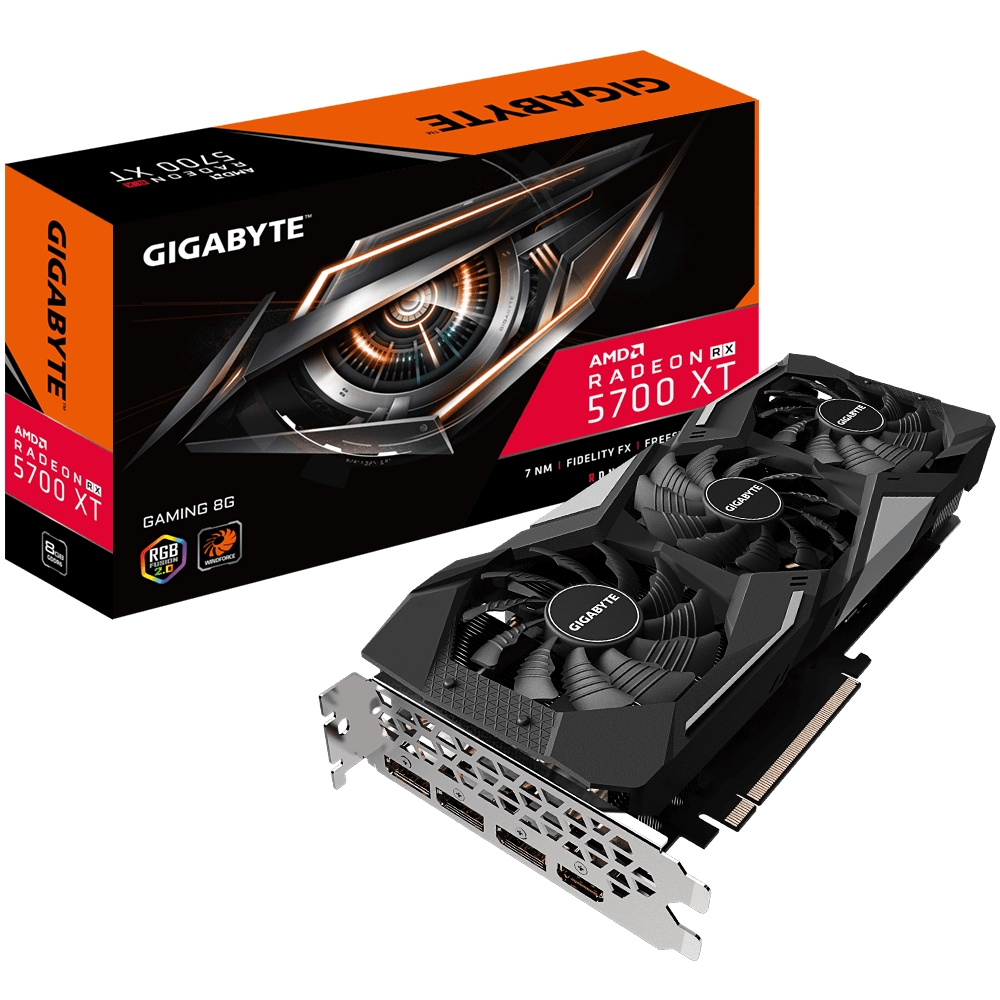

Package type	Box

Packaging content

Specification	Value
User guide	Yes
