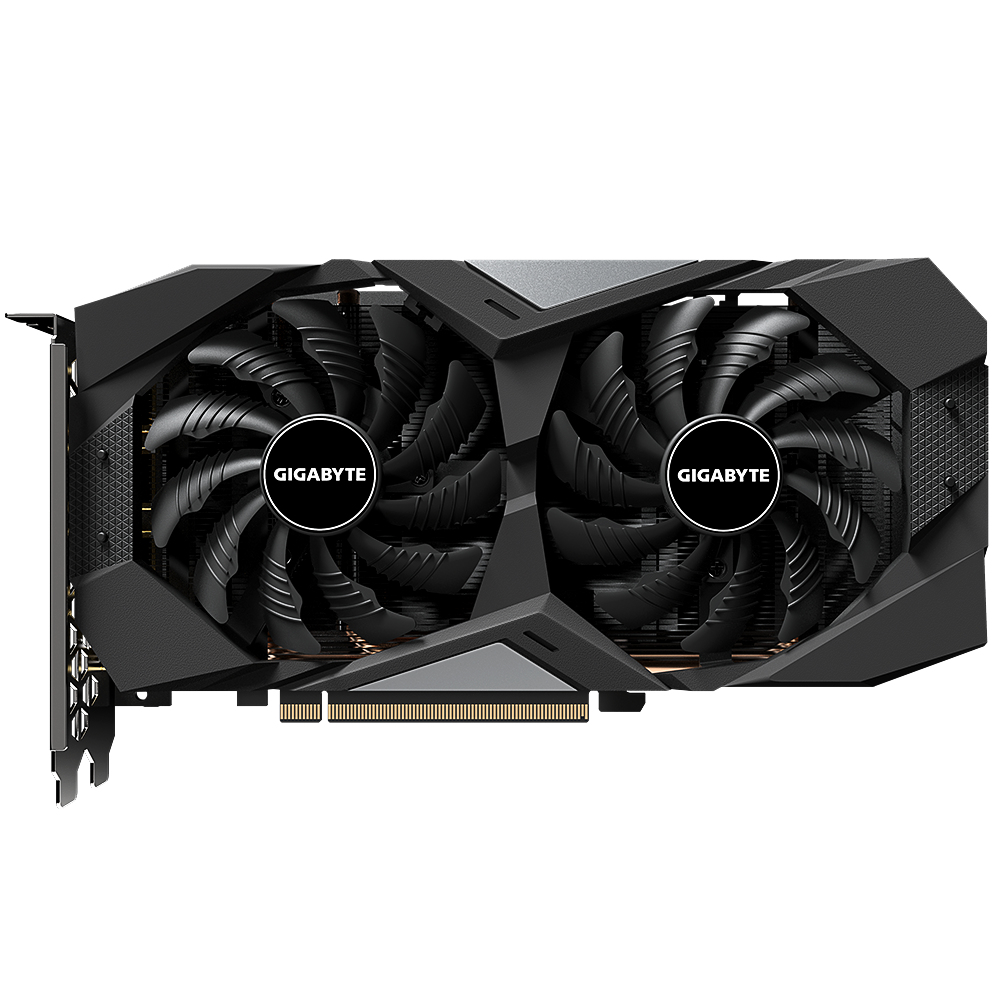

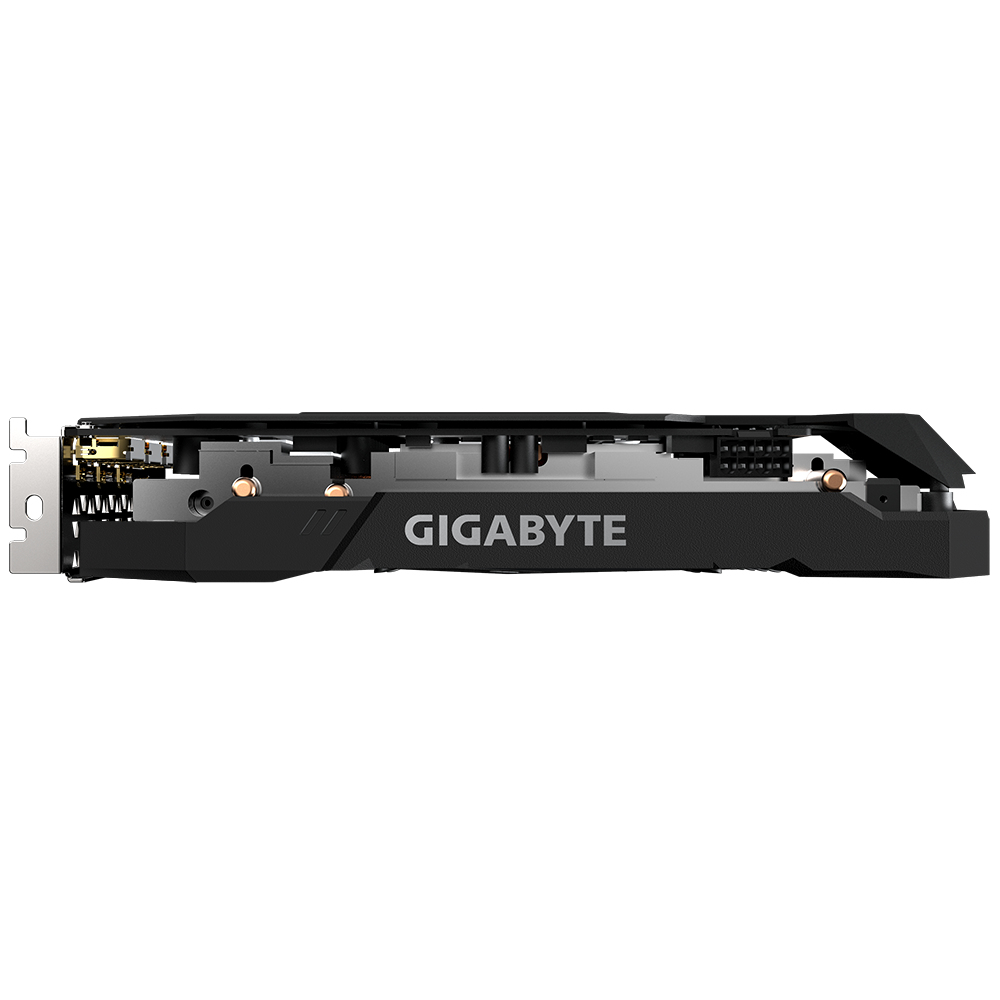

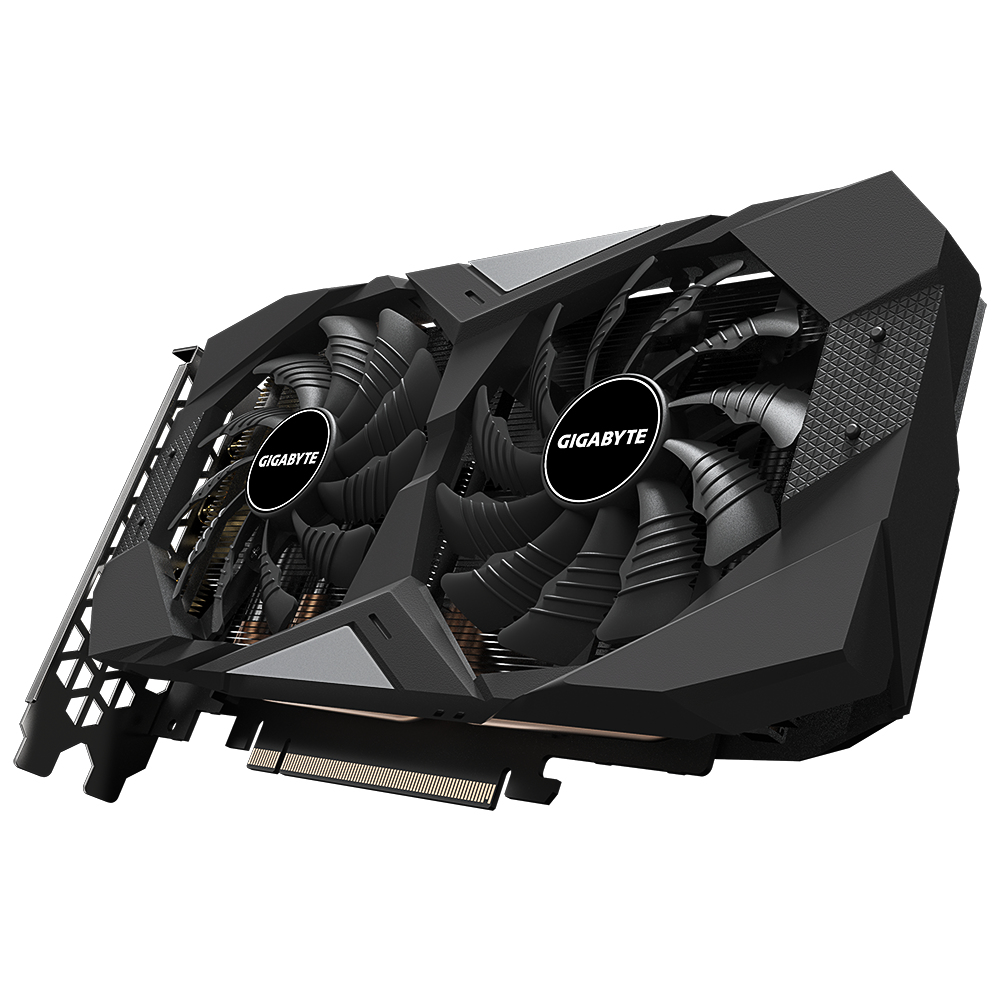

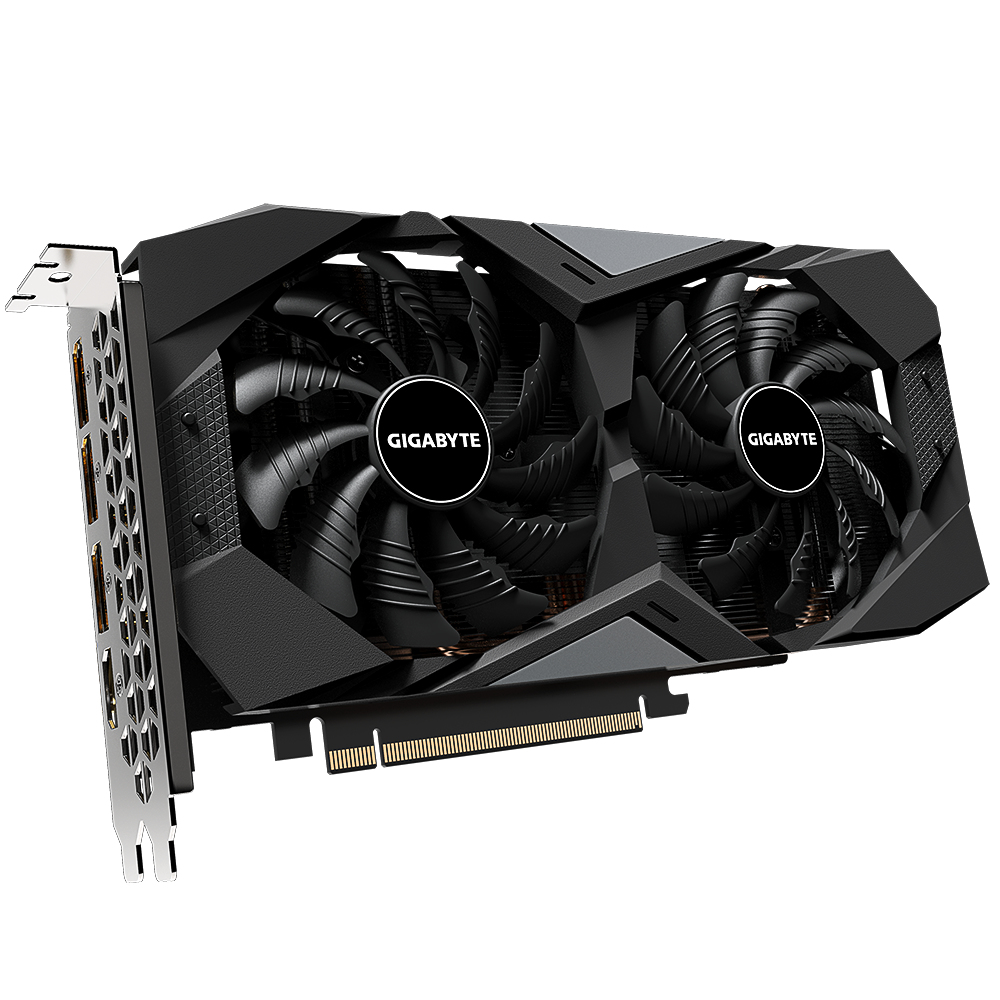

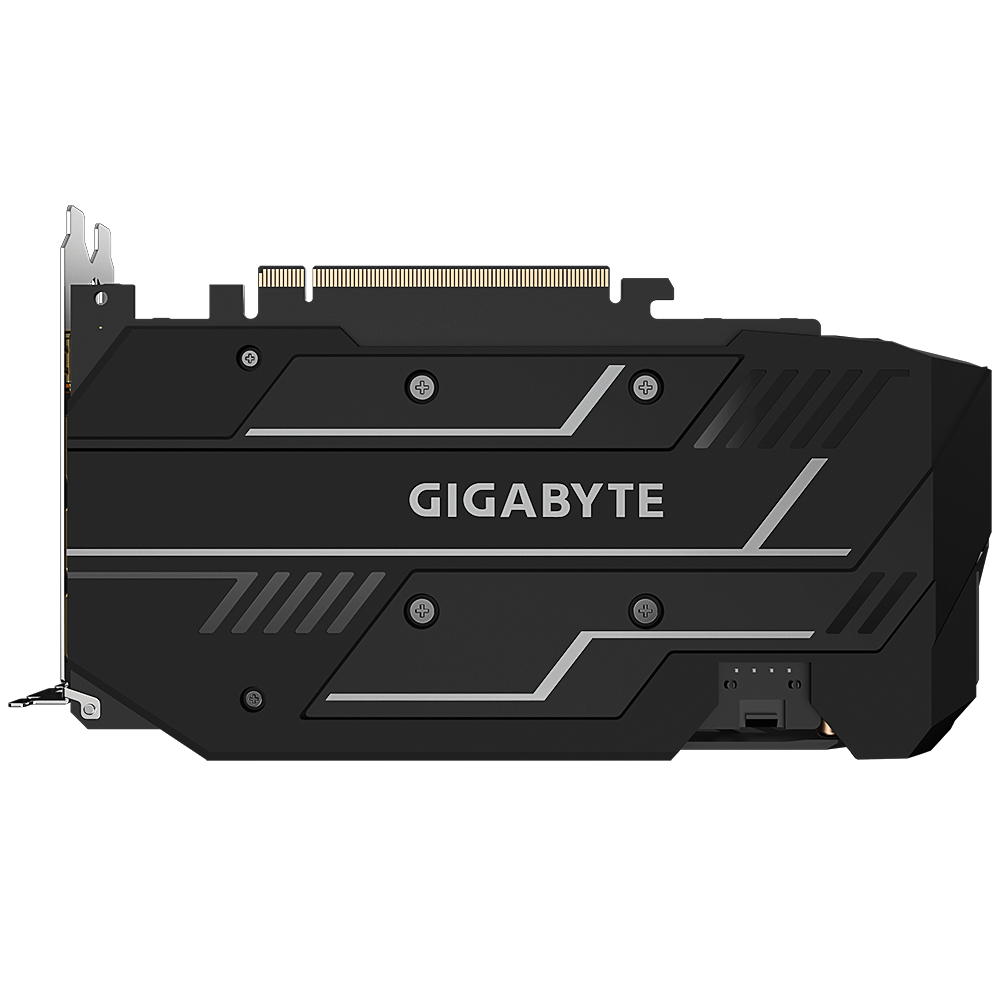

Radeon RX 5500 XT OC 8G (rev. 2.0)
Model Radeon RX 5500 XT OC 8G (rev. 2.0)Part no. GV-R55XTOC-8GD 2.0
33 specifications Checked today
- ColourBlack
- Graphics processor familyAMD
- Discrete graphics card memory8 GB
- Interface typePCI Express 4.0
- PhysXNo
- Cooling typeActive
Overview
- Colour
- Black
- Graphics processor family
- AMD
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express 4.0
- PhysX
- No
- Cooling type
- Active
- Brand
- GIGABYTE
- Category
- GPU
- Model
- Radeon RX 5500 XT OC 8G (rev. 2.0)
- Part number
- GV-R55XTOC-8GD 2.0
- Also known as
- GIGABYTE Radeon RX 5500 XT OC 8G (rev. 2.0) AMD 8 GB GDDR6
Specifications
33 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 5500 XT |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor frequency | 1733 MHz |
| Processor boost clock speed | 1845 MHz |
| Stream processors | 1408 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Memory clock speed | 14000 MHz |
| Data transfer rate | 224 Gbit/s |

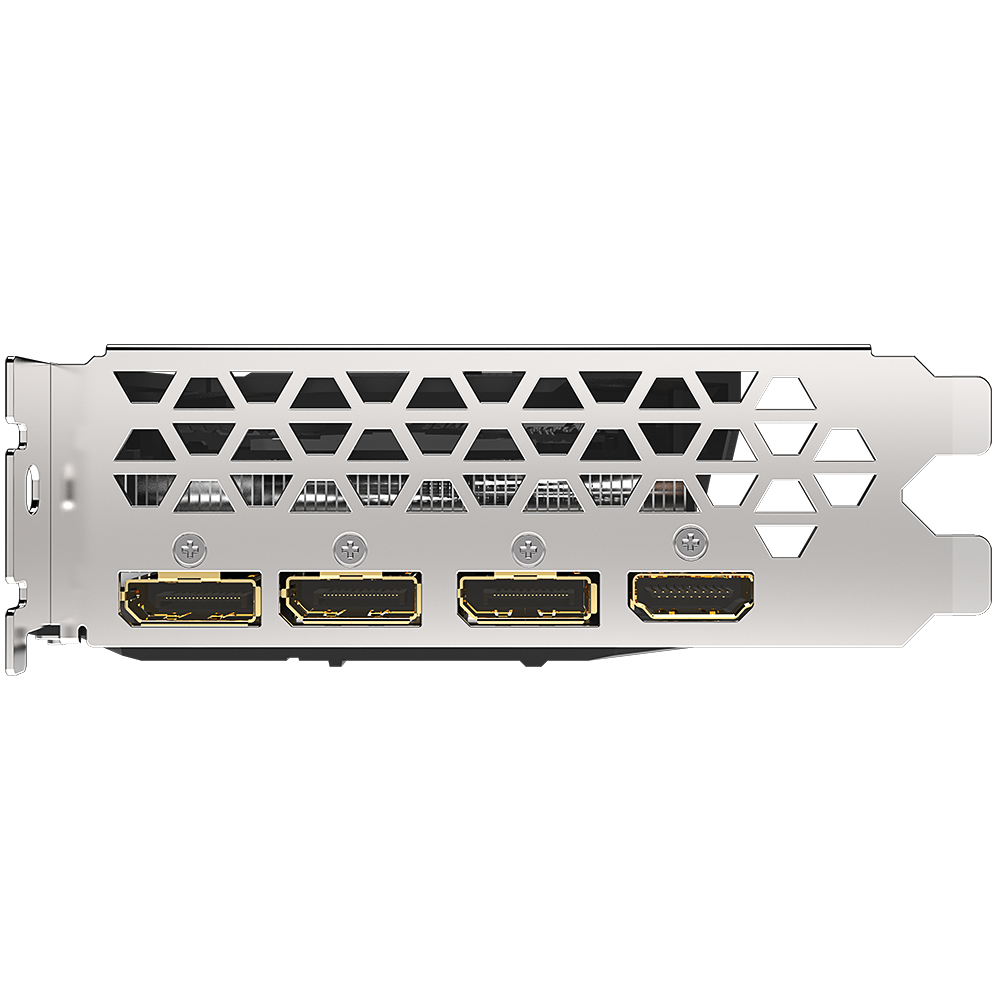

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| AMD FreeSync | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 2X |
| Number of fans | 2 fan(s) |
| Fan diameter | 9 cm |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 40 mm |
| Height | 119 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
