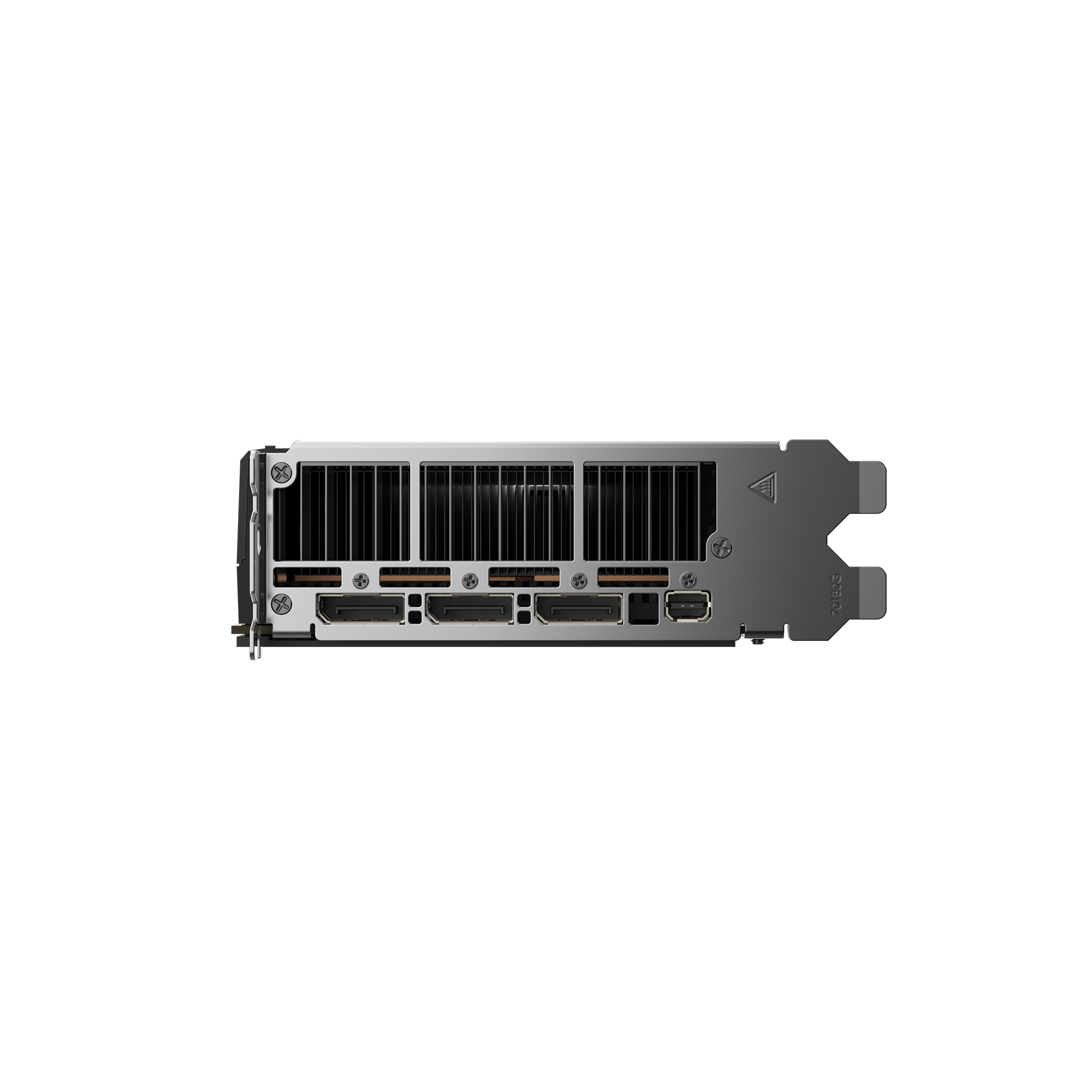

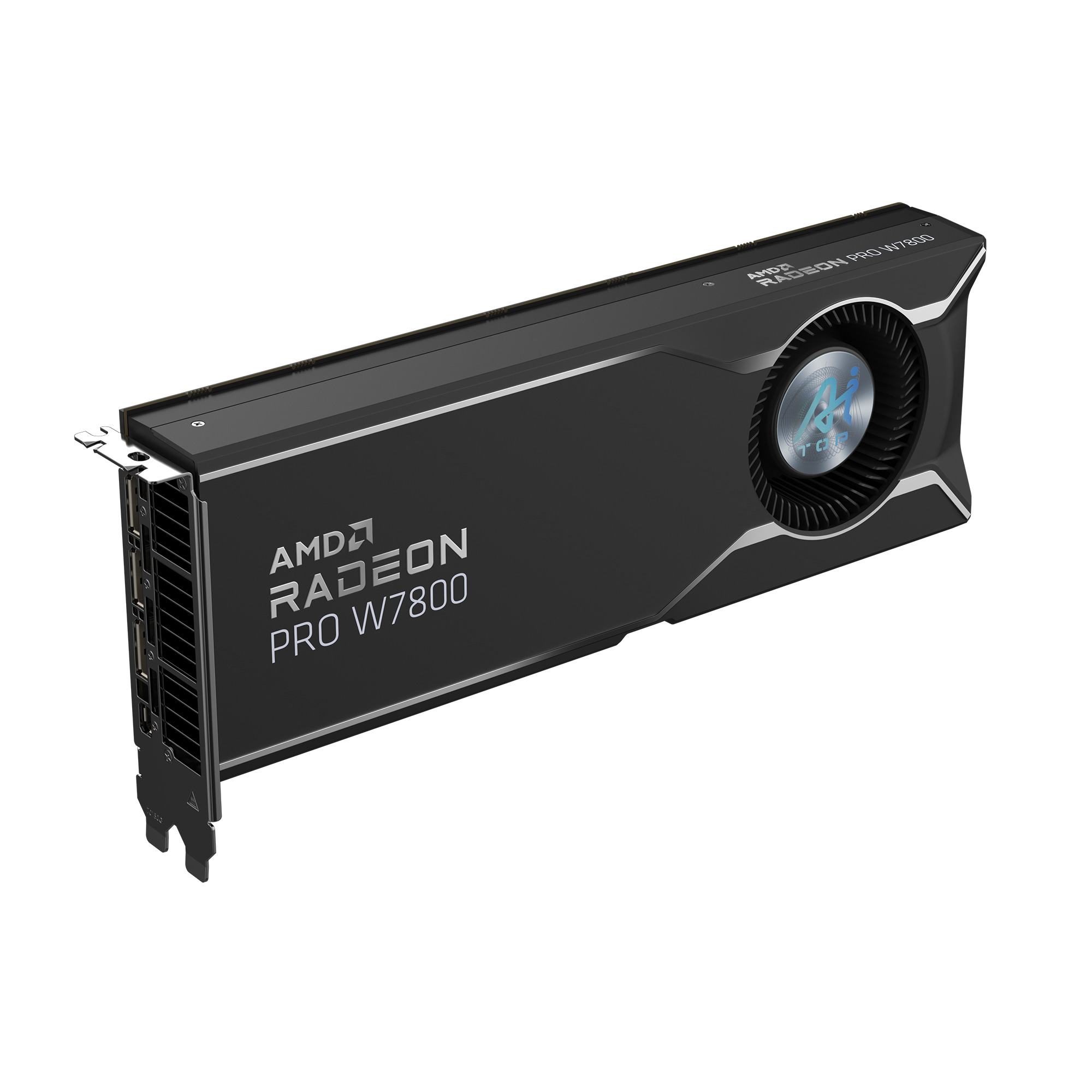

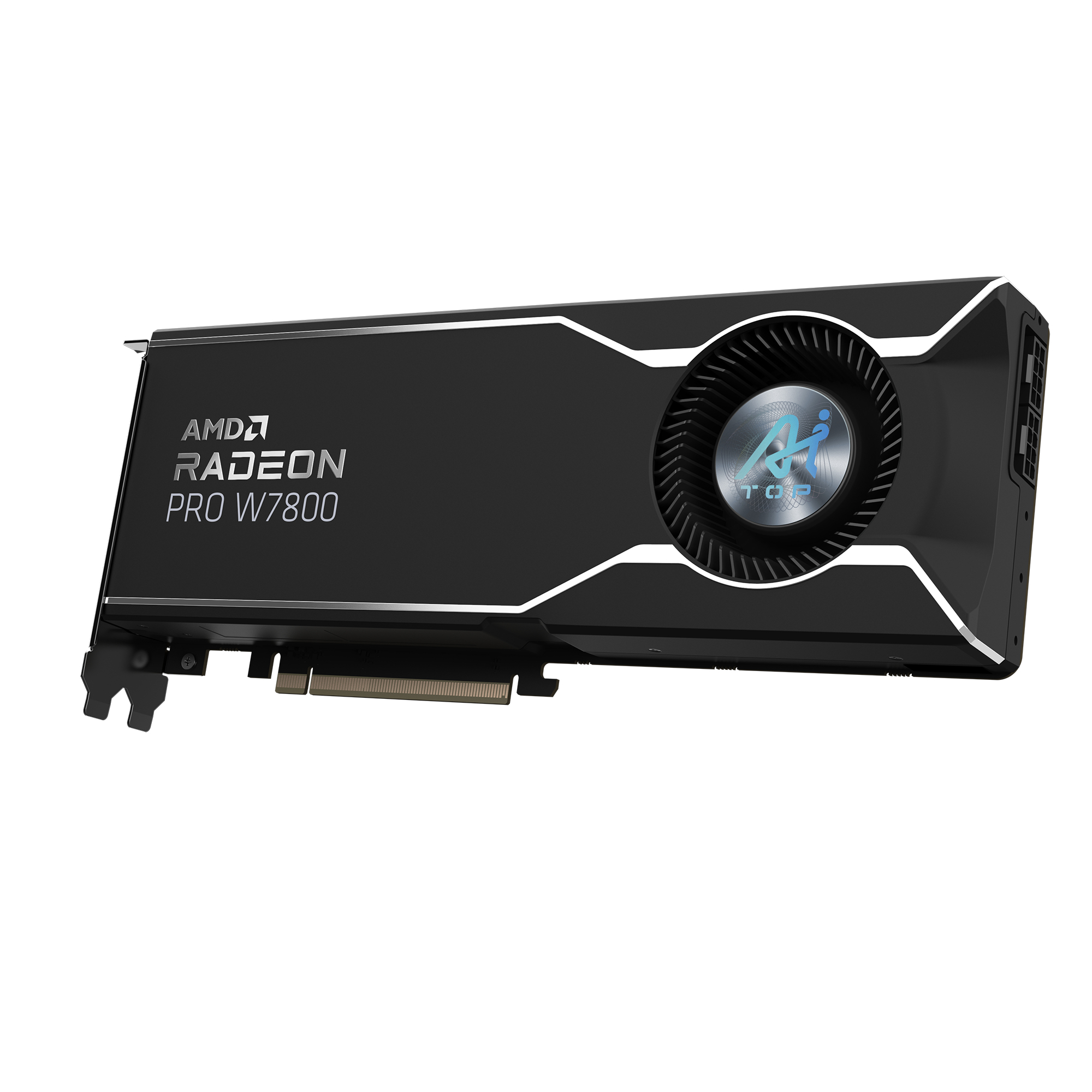

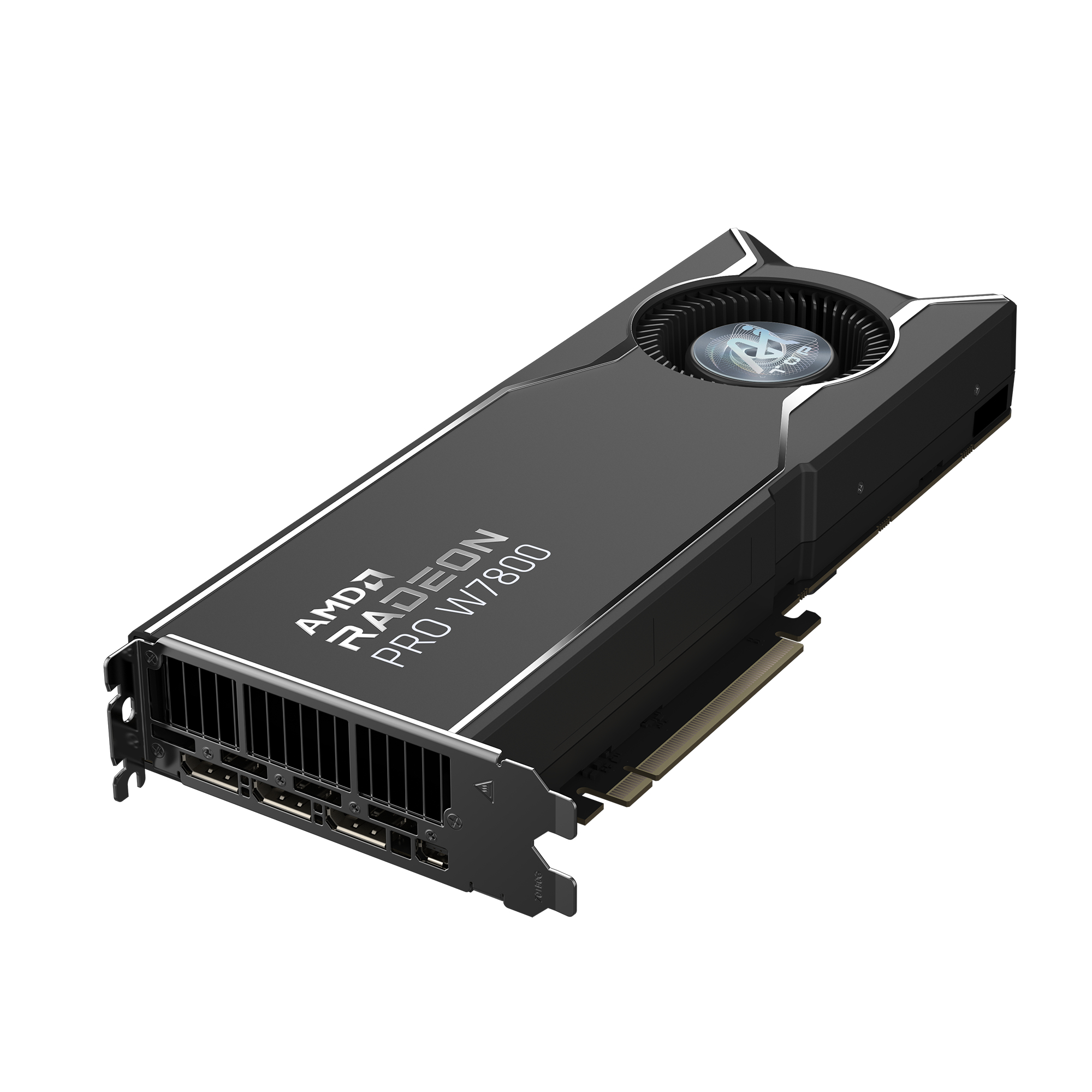

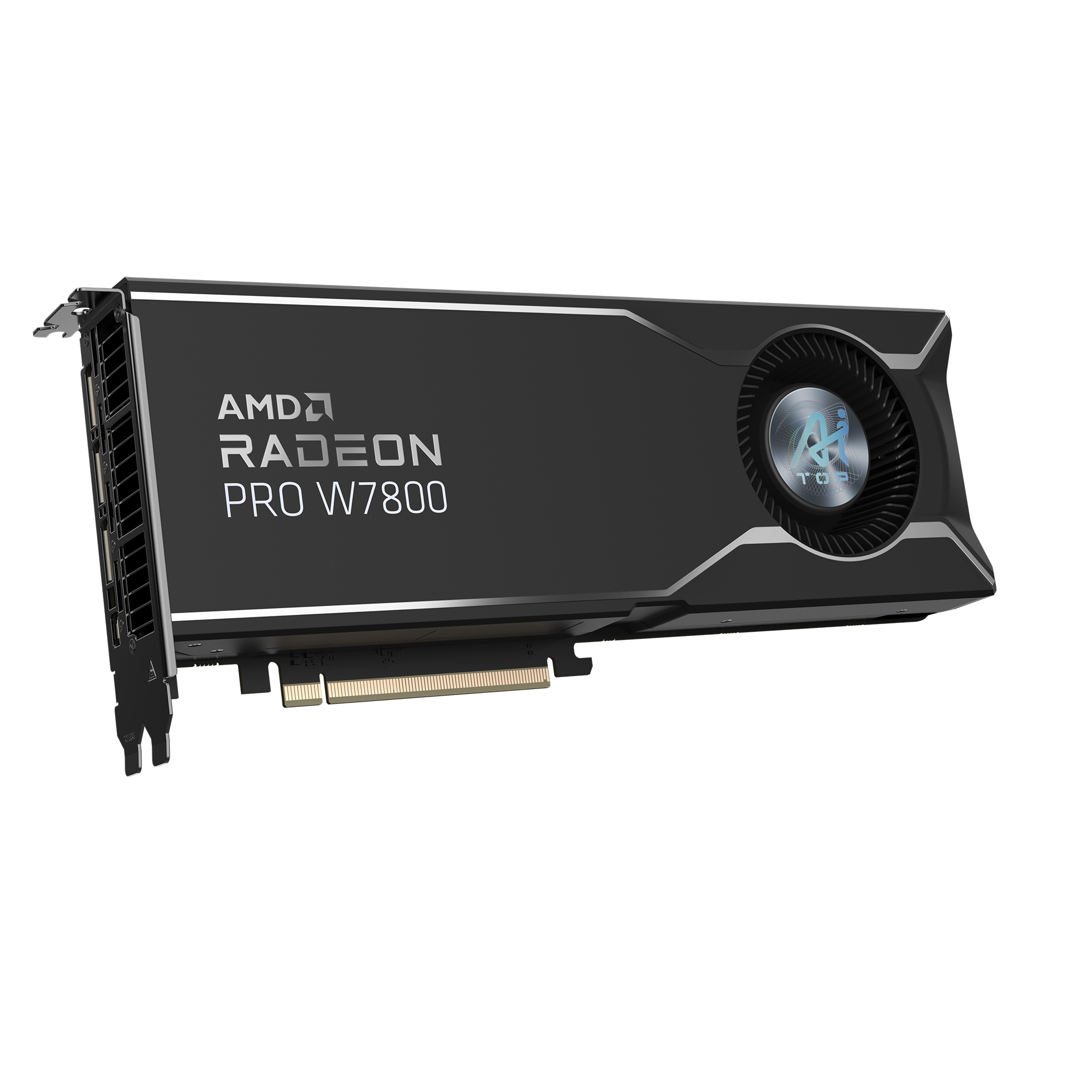

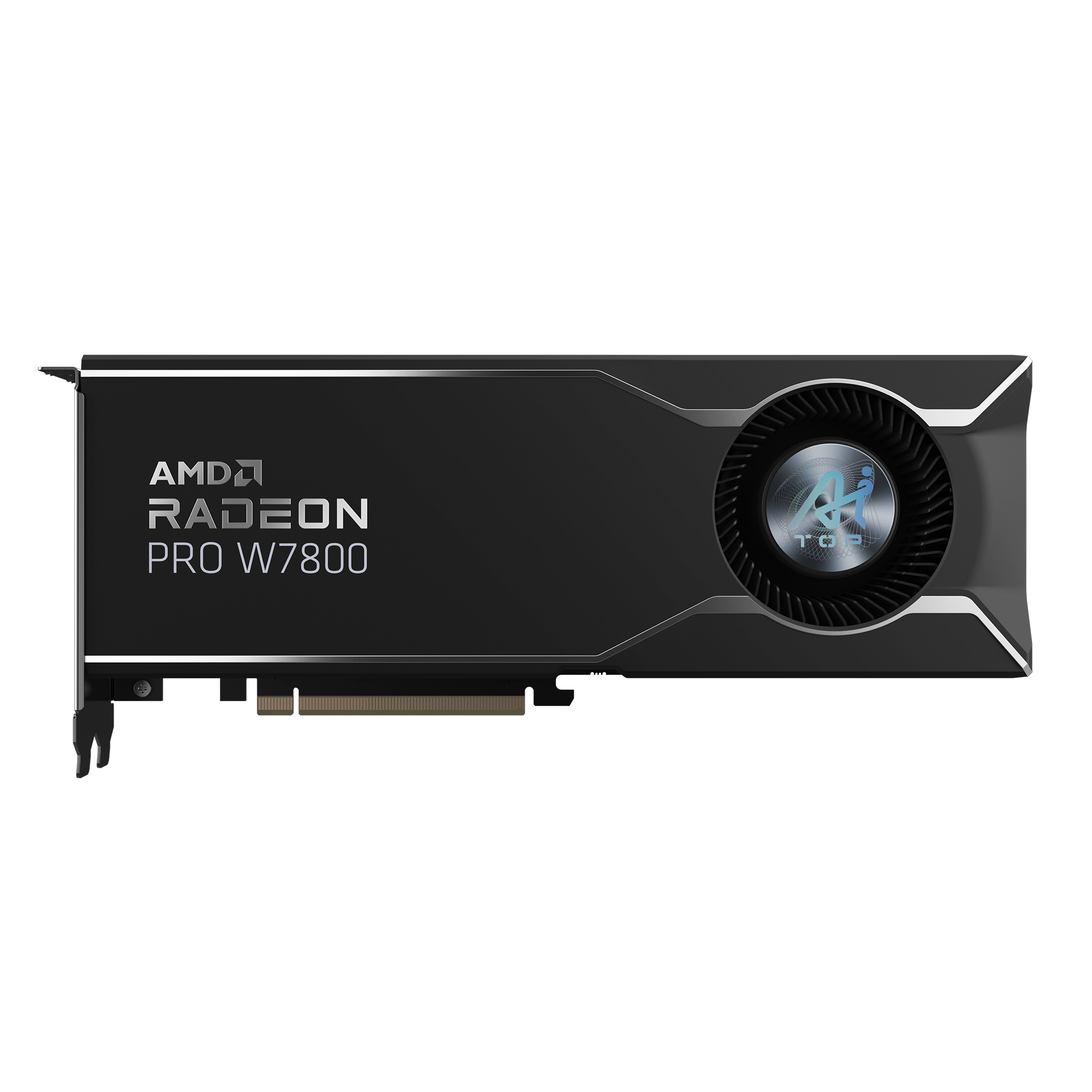

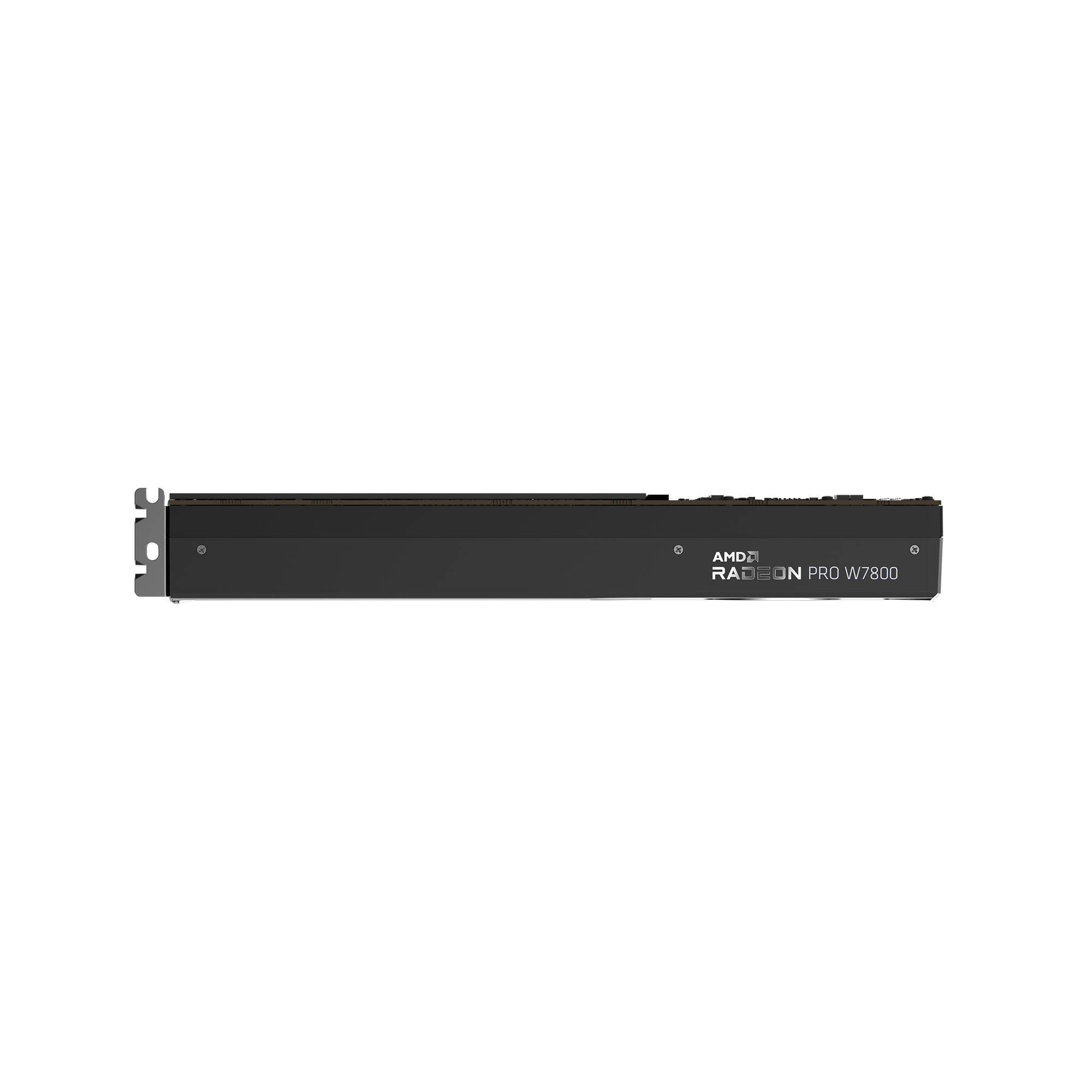

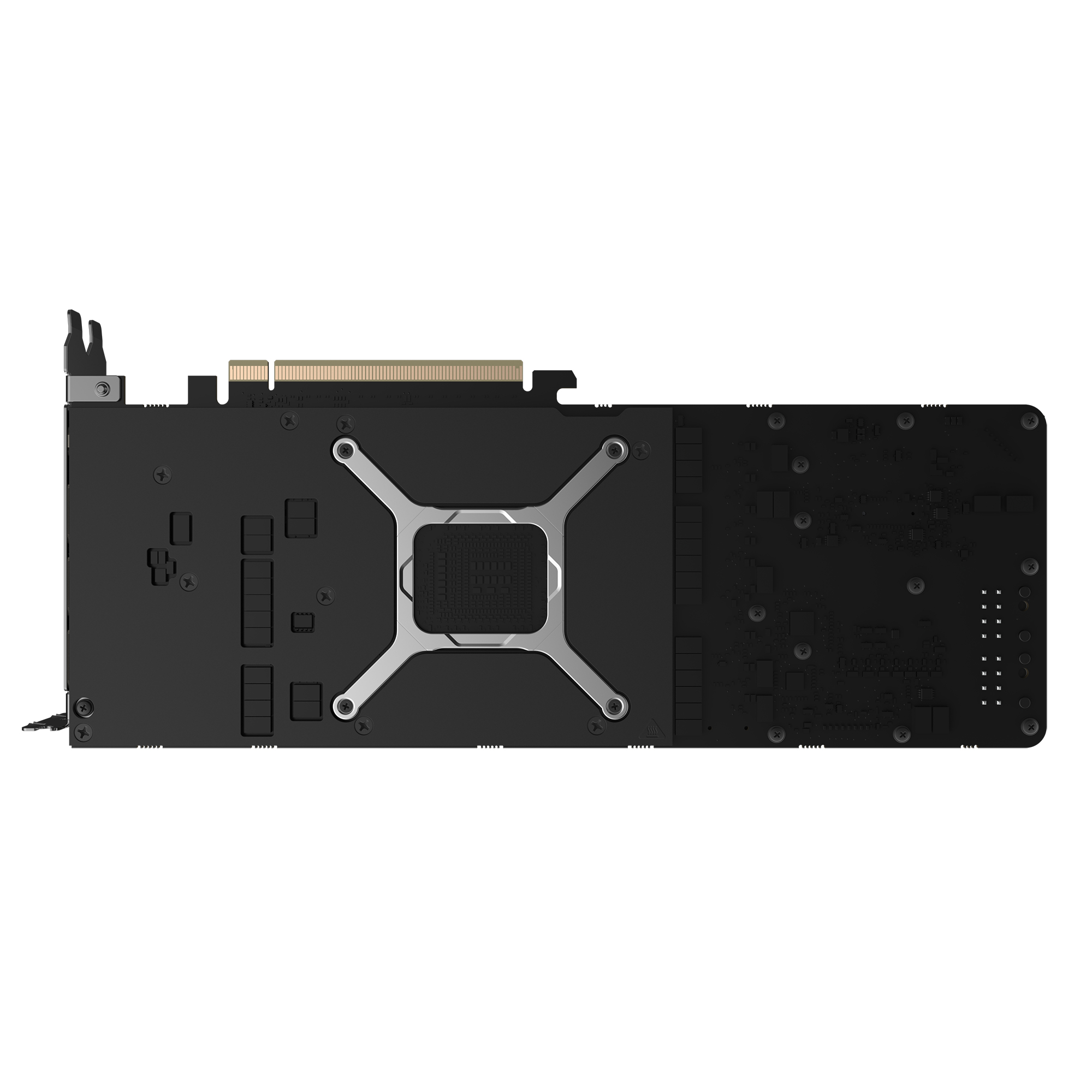

Radeon PRO W7800 AI TOP 32G
Model Radeon PRO W7800 AI TOP 32GPart no. W7800 AI TOP 32GEAN 889523044698
45 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.25 kg
- ColourGrey
- Graphics processor familyAMD
- Discrete graphics card memory32 GB
- Interface typePCI Express x16 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.25 kg
- Colour
- Grey
- Graphics processor family
- AMD
- Discrete graphics card memory
- 32 GB
- Interface type
- PCI Express x16 4.0
- Brand
- GIGABYTE
- Category
- GPU
- Model
- Radeon PRO W7800 AI TOP 32G
- Part number
- W7800 AI TOP 32G
- EAN / UPC
- 889523044698, 4719331354800
- Also known as
- GIGABYTE Radeon PRO W7800 AI TOP 32G Graphics Card - 32GB GDDR6, 256bit, PCI-E 4.0, 3 x DisplayPort 2.1, W7800 AI TOP 32G
Specifications
45 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon PRO W7800 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
| Stream processors | 4480 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 32 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Memory clock speed | 18000 MHz |
| Memory bandwidth (max) | 576 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Mini DisplayPorts quantity | 1 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| Warranty period | 4 year(s) |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | Gigabyte Turbo Fan |
| Number of fans | 1 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 700 W |
| Power consumption (max) | 260 W |
| Supplementary power connectors | 2x 8-pin |
| Thermal Design Power (TDP) | 211 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.25 kg |
| Length | 293 mm |
| Depth | 42 mm |
| Height | 126 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 182.5 mm |
| Package depth | 354 mm |
| Package height | 75 mm |
| Package weight | 1.67 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
