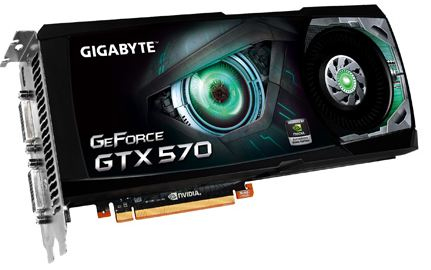

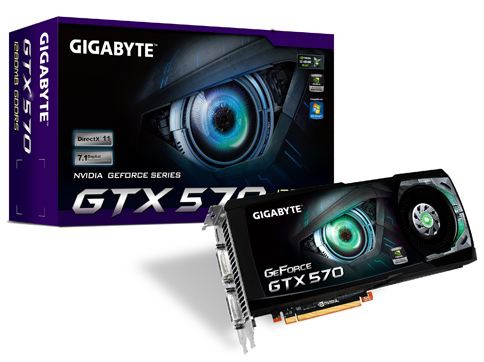

GIGABYTE N570D513IB graphics card NVIDIA GeForce GTX 570
1.25 GB GDDR5
Model N570D513IB
38 specifications Checked 4 days ago
- TypeFull-Height/Full-Length (FH/FL)
- Graphics processor familyNVIDIA
- Discrete graphics card memory1.25 GB
- Interface typePCI Express 2.0
- PhysXYes
- Cooling typeActive
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 1.25 GB
- Interface type
- PCI Express 2.0
- PhysX
- Yes
- Cooling type
- Active
- Brand
- GIGABYTE
- Category
- GPU
- Model
- N570D513IB
- Part number
- N570D513IB
- Also known as
- GIGABYTE N570D513IB graphics card NVIDIA GeForce GTX 570 1.25 GB GDDR5
Specifications
38 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce GTX 570 |
| Maximum resolution | 2560 x 1600 pixels |
| CUDA | Yes |
| Processor frequency | 732 MHz |
| Shader clock | 1464 MHz |
| Maximum analog resolution | 2048 x 1536 pixels |
| Maximum digital resolution | 2560 x 1600 pixels |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 1.25 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 320 bit |
| Memory clock speed | 3800 MHz |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 2.0 |
| HDMI ports quantity | 1 |
| DVI-I ports quantity | 2 |
| Mini HDMI ports quantity | 1 |
| DVI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| PhysX | Yes |
| TV tuner integrated | No |
| DirectX version | 11 |
| Shader model version | 5.0 |
| OpenGL version | 4.1 |
| HDCP | Yes |
| Dual Link DVI | Yes |
| NVIDIA 3D Vision | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Certification | RoHS |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 600 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Premium |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 280 mm |
| Depth | 40 mm |
| Height | 128 mm |
Other features
| Specification | Value |
|---|---|
| Mac compatibility | No |
| HDMI | Yes |
| Dimensions (WxDxH) | 128 x 280 x 40 mm |
