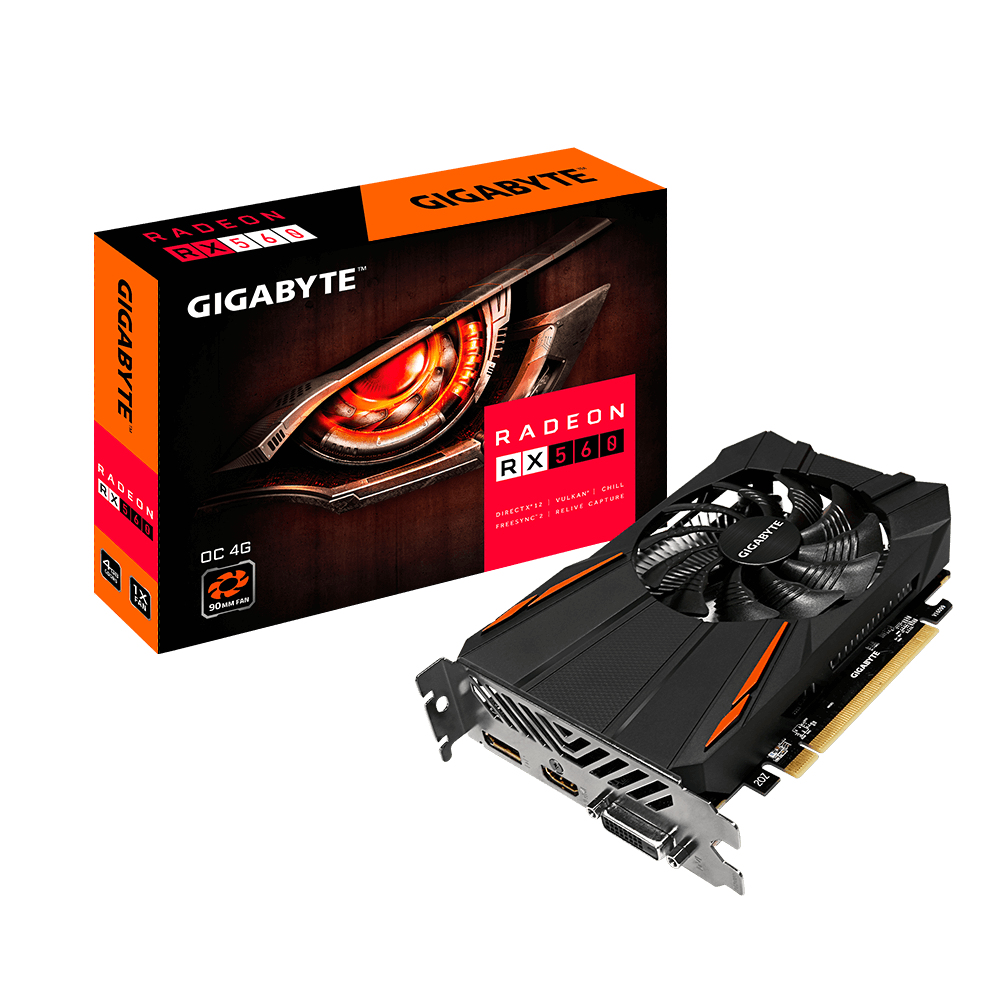

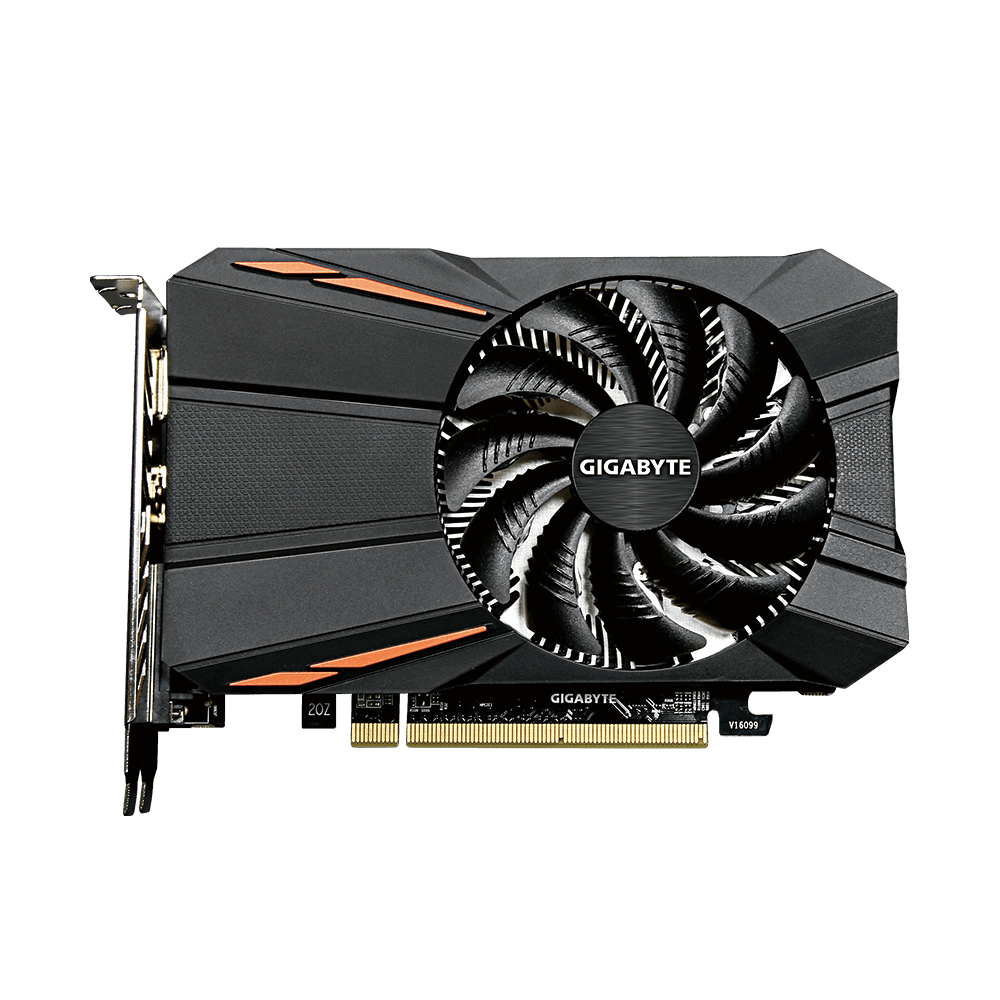

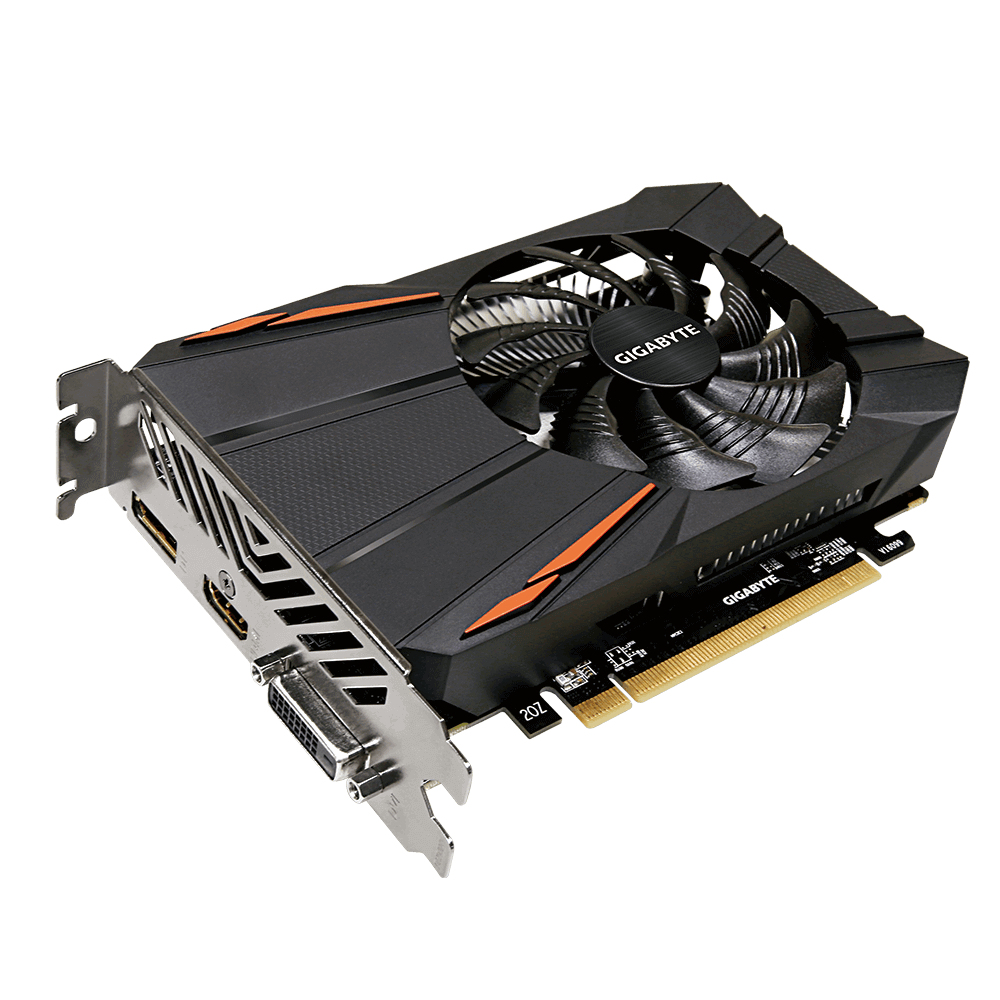

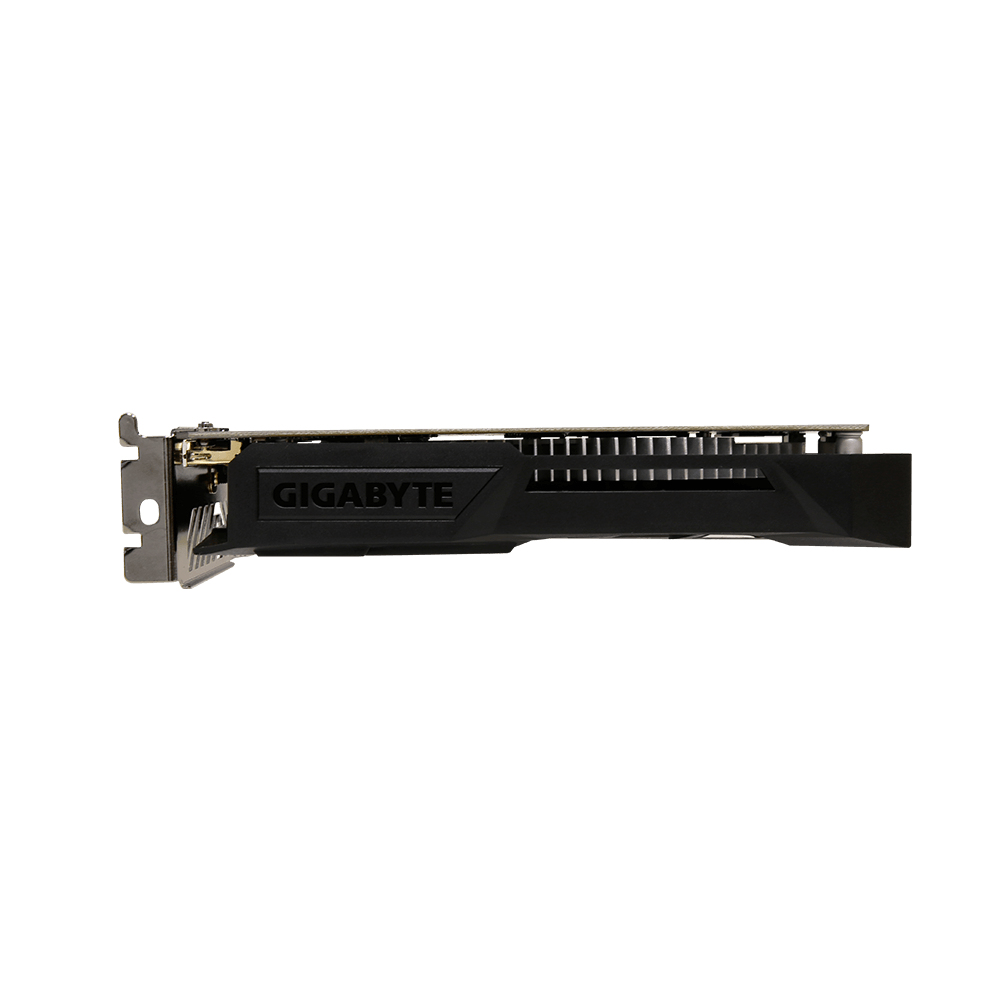

GV-RX560OC-4GD-REV3.0 graphics card AMD Radeon RX 560
4 GB GDDR5
Model GV-RX560OC-4GD-REV3.0EAN 4719331306250
37 specifications Checked today
- TypeHalf-Height/Half-Length (HH/HL)
- Graphics processor familyAMD
- Discrete graphics card memory4 GB
- Interface typePCI Express x8 3.0
- PhysXNo
- Cooling typeActive
Overview
- Type
- Half-Height/Half-Length (HH/HL)
- Graphics processor family
- AMD
- Discrete graphics card memory
- 4 GB
- Interface type
- PCI Express x8 3.0
- PhysX
- No
- Cooling type
- Active
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GV-RX560OC-4GD-REV3.0
- Part number
- GV-RX560OC-4GD-REV3.0
- EAN / UPC
- 4719331306250
- Also known as
- GIGABYTE GV-RX560OC-4GD-REV3.0 graphics card AMD Radeon RX 560 4 GB GDDR5
Specifications
37 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 560 |
| Maximum resolution | 7860 x 4320 pixels |
| CUDA | No |
| Processor frequency | 1176 MHz |
| Processor frequency (OC mode) | 1199 MHz |
| FireStream | Yes |
| Parallel processing technology support | Not supported |
| Stream processors | 1024 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 4 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 128 bit |
| Memory clock speed | 6000 MHz |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x8 3.0 |

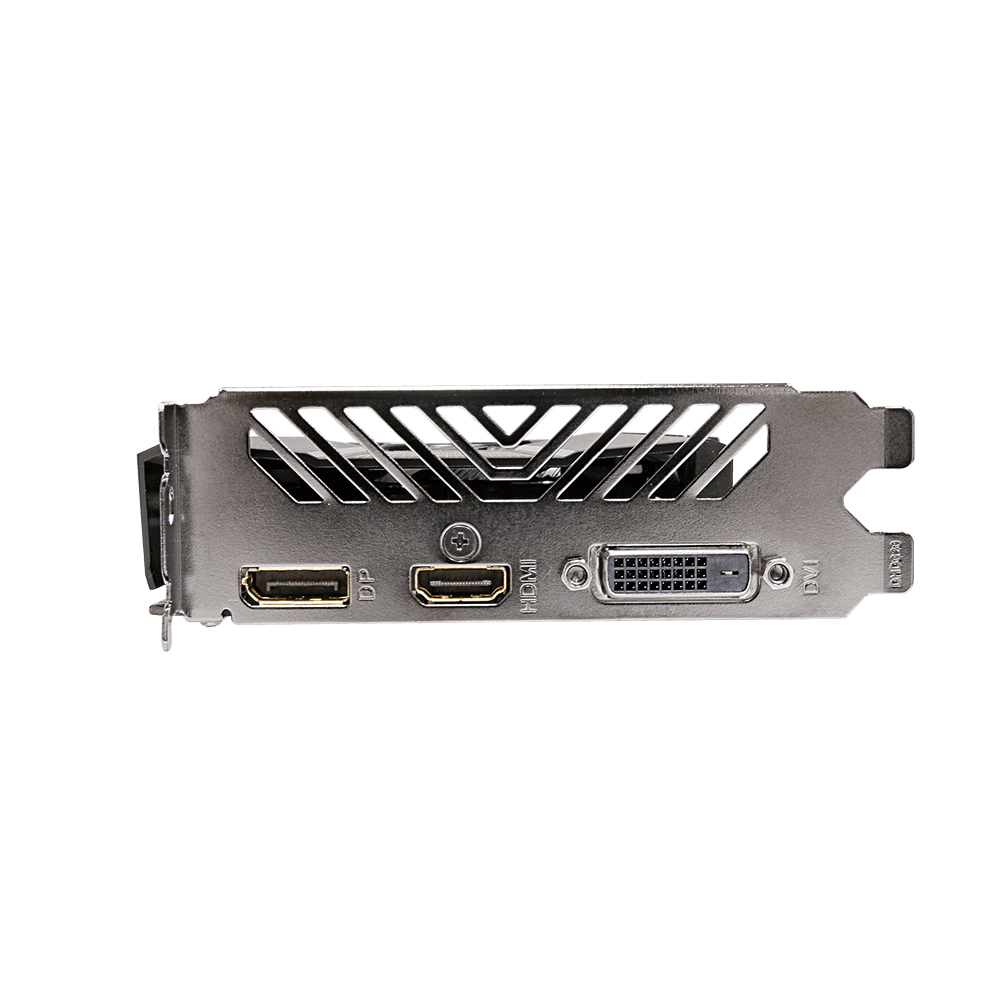

| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| Shader model version | No |
| OpenGL version | 4.5 |
| HDCP | No |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan diameter | 9 cm |
| Bracket height | Low-Profile (LP) |
| Form factor | Half-Height/Half-Length (HH/HL) |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 400 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 170 mm |
| Depth | 29.2 mm |
| Height | 114.5 mm |
