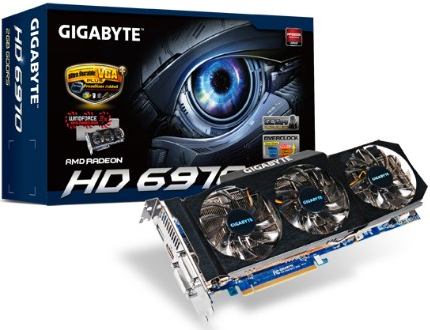

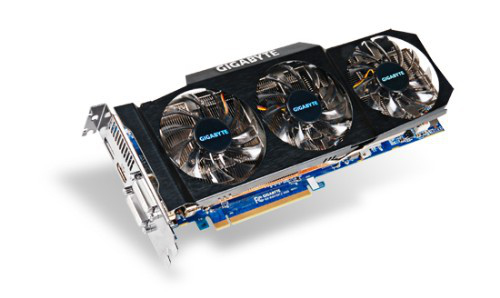

GIGABYTE GV-R697OC2-2GD graphics card AMD Radeon HD6970
2 GB GDDR5
Model GV-R697OC2-2GD
35 specifications Checked 4 days ago
- TypeFull-Height/Full-Length (FH/FL)
- Graphics processor familyAMD
- Discrete graphics card memory2 GB
- Interface typePCI Express 2.1
- PhysXNo
- Cooling typeActive
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Graphics processor family
- AMD
- Discrete graphics card memory
- 2 GB
- Interface type
- PCI Express 2.1
- PhysX
- No
- Cooling type
- Active
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GV-R697OC2-2GD
- Part number
- GV-R697OC2-2GD
- Also known as
- GIGABYTE GV-R697OC2-2GD graphics card AMD Radeon HD6970 2 GB GDDR5
Specifications
35 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon HD6970 |
| Maximum resolution | 2560 x 1600 pixels |
| CUDA | No |
| Processor frequency | 920 MHz |
| Maximum analog resolution | 2048 x 1536 pixels |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 2 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 256 bit |
| Memory clock speed | 5500 MHz |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 2.1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 1 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 11 |
| OpenGL version | 4.1 |
| HDCP | Yes |
| Dual Link DVI | Yes |
| Full HD | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Certification | RoHS |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Power consumption (typical) | 75 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 290 mm |
| Depth | 38 mm |
| Height | 126 mm |
Other features
| Specification | Value |
|---|---|
| Mac compatibility | No |
| HDMI | Yes |
| Compatible operating systems | Windows 7 |
