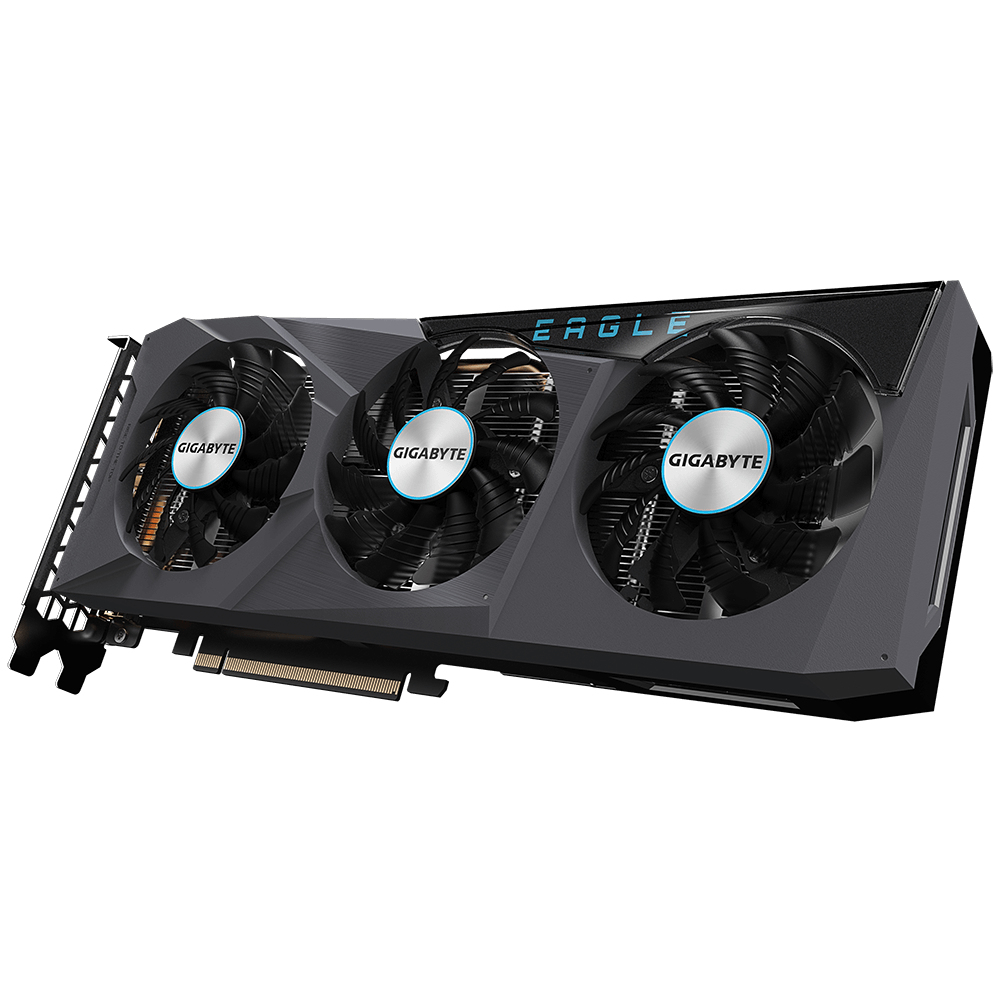

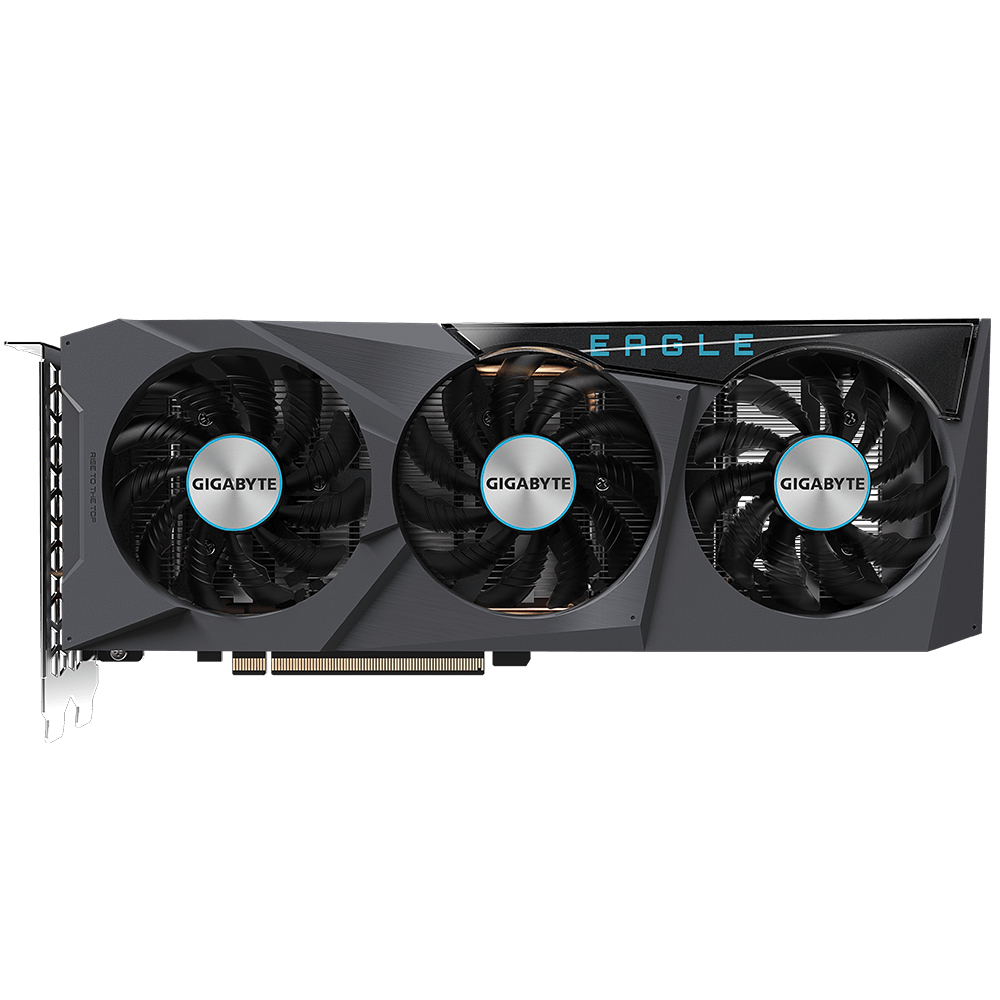

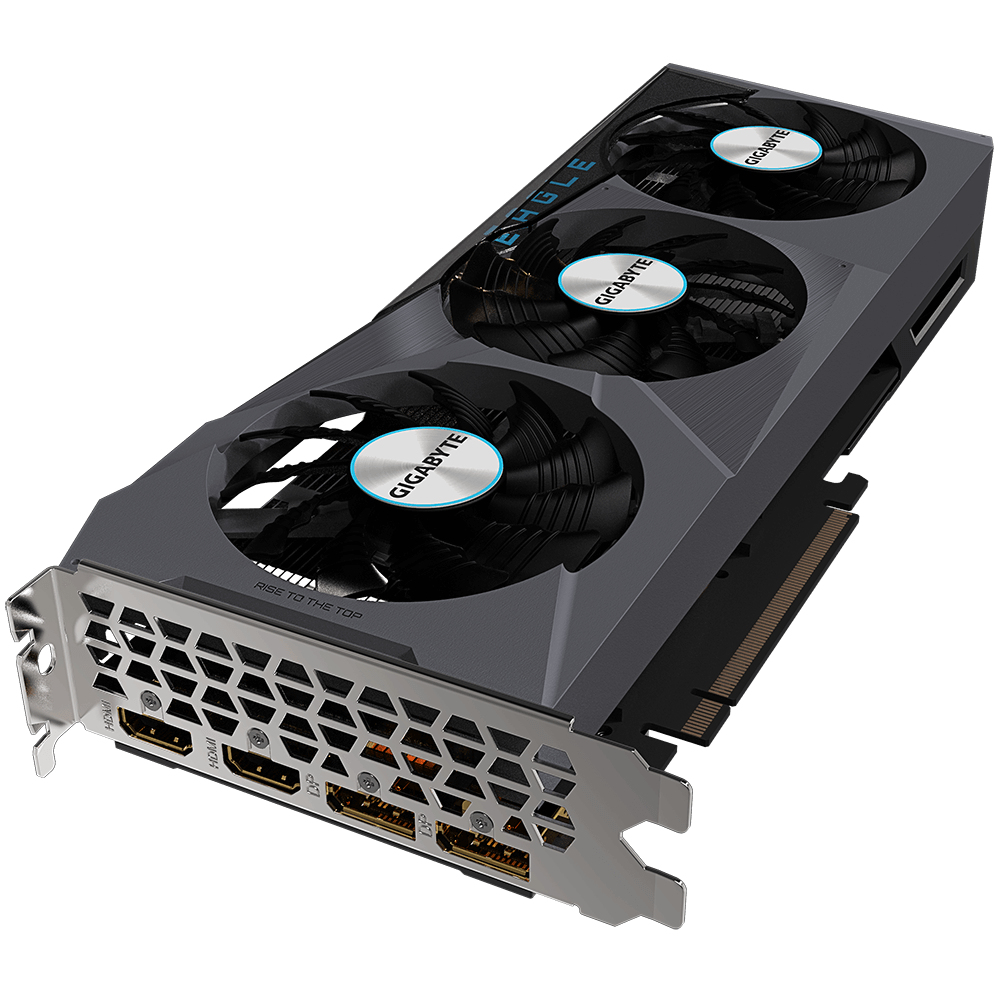

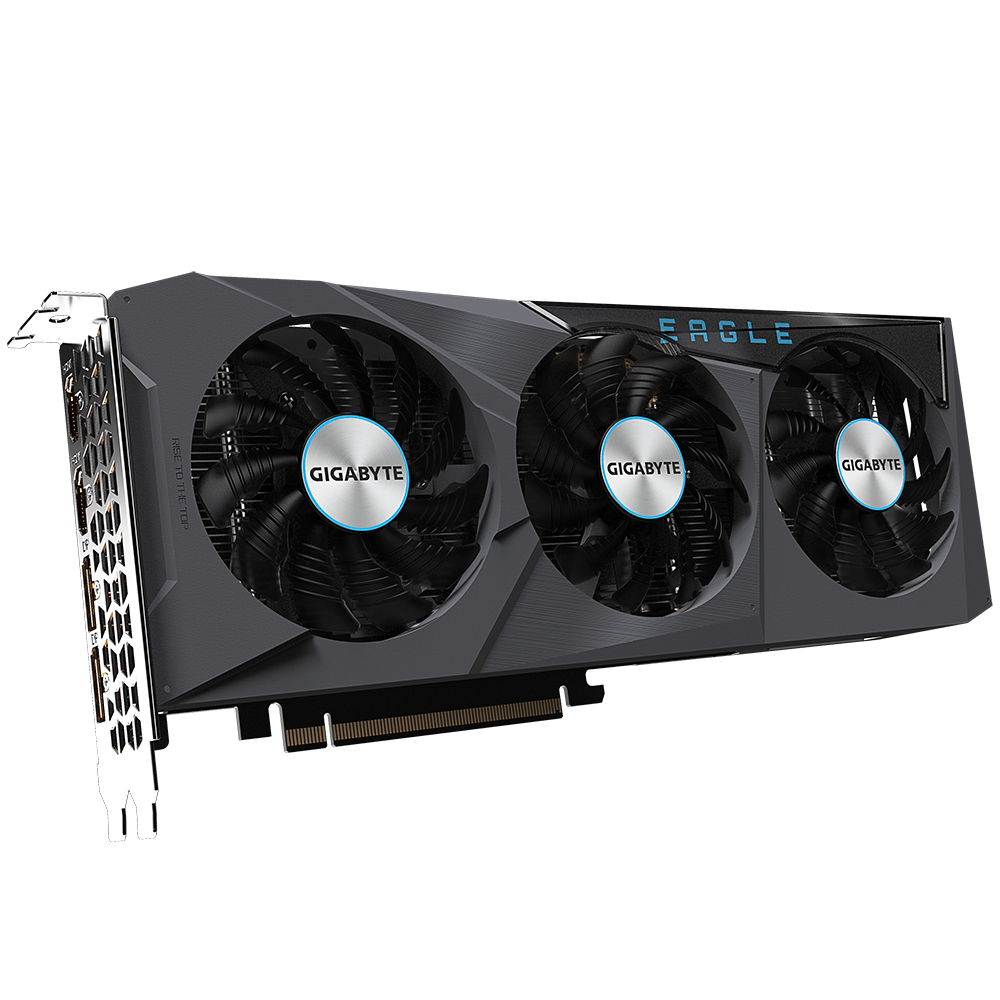

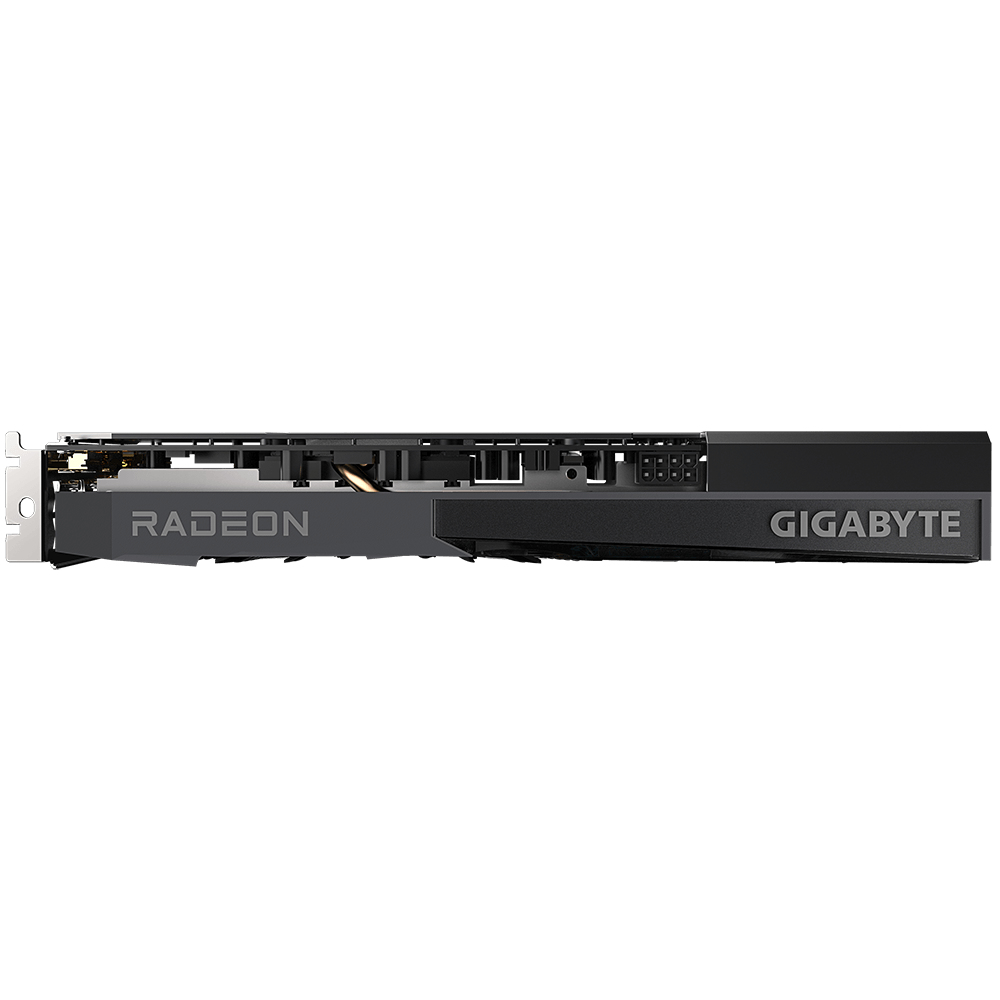

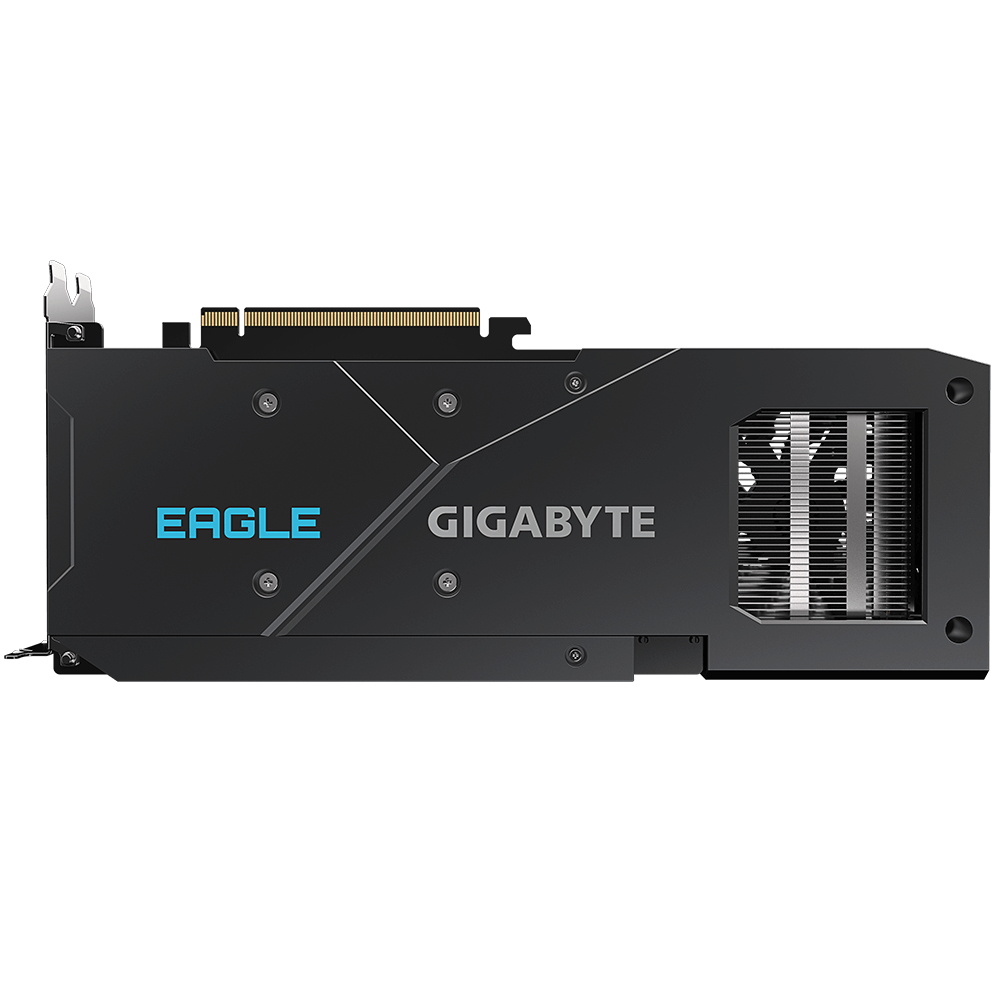

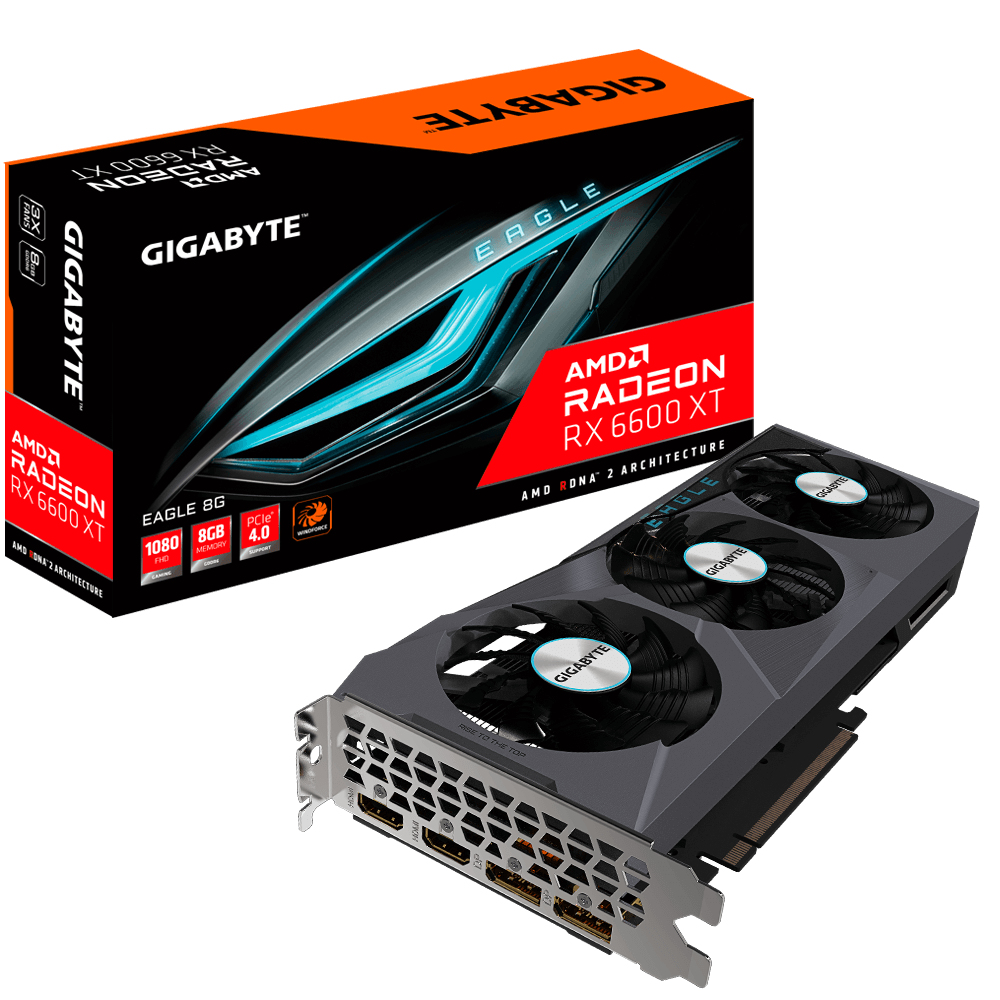

GIGABYTE EAGLE GV-R66XTEAGLE-8GD AMD Radeon RX 6600 XT

EAGLE GV-R66XTEAGLE-8GD AMD Radeon RX 6600 XT

8 GB GDDR6

Model GV-R66XTEAGLE-8GDPart no. GVR66XTE-00-10

39 specifications Checked today

ColourBlack
Graphics processor familyAMD
Discrete graphics card memory8 GB
Interface typePCI Express x16 4.0
TV tuner integratedNo
Cooling typeActive

See all specifications

Overview

Colour: Black
Graphics processor family: AMD
Discrete graphics card memory: 8 GB
Interface type: PCI Express x16 4.0
TV tuner integrated: No
Cooling type: Active

Brand: GIGABYTE
Category: GPU
Model: GV-R66XTEAGLE-8GD
Part number: GVR66XTE-00-10
Also known as: GIGABYTE EAGLE GV-R66XTEAGLE-8GD AMD Radeon RX 6600 XT 8 GB GDDR6

Specifications

39 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	AMD
Graphics processor	Radeon RX 6600 XT
Maximum resolution	7680 x 4320 pixels
CUDA	No
Maximum displays per videocard	4
Stream processors	2048

Memory

Specification	Value
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR6
Memory bus	128 bit
Memory clock speed	16000 MHz
Memory bandwidth (max)	256 GB/s

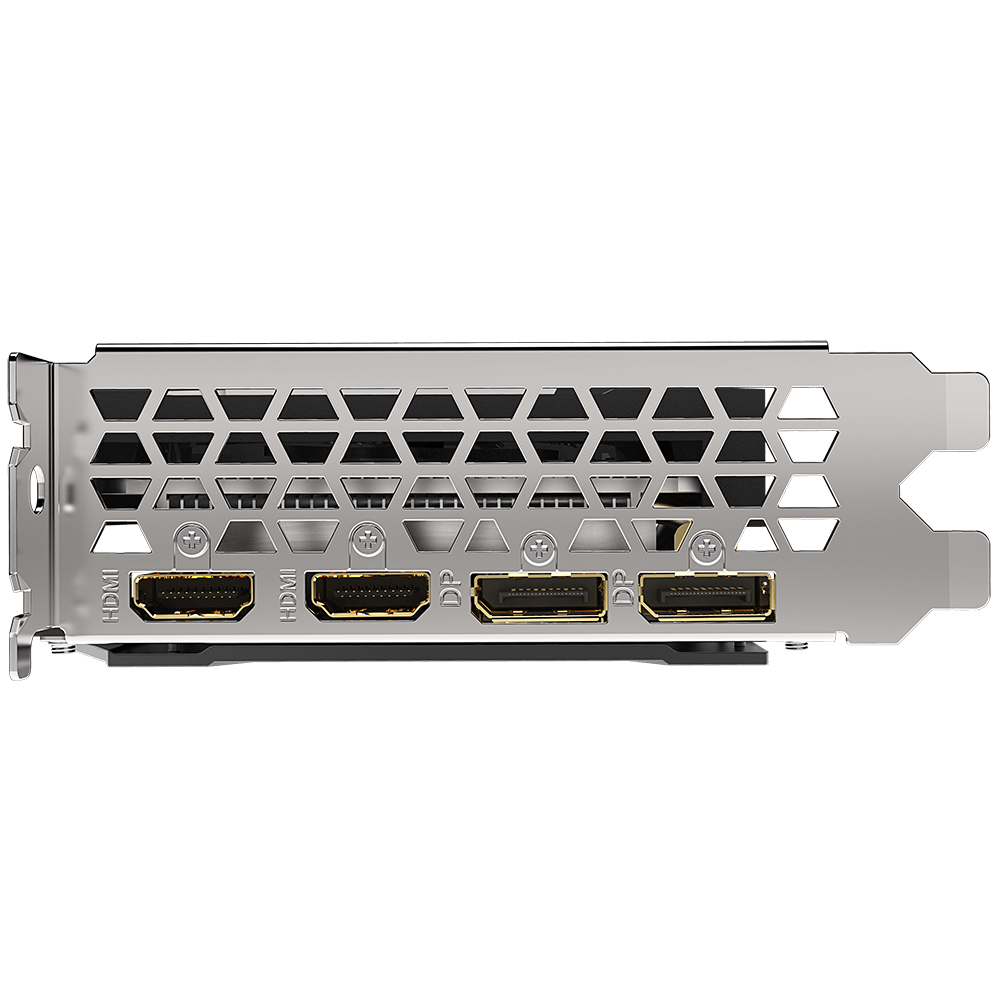

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 4.0
HDMI ports quantity	2
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	2
HDMI version	2.1
DisplayPort version	1.4a

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12 Ultimate
Shader model version	No
OpenGL version	4.6
Dual Link DVI	No
AMD FreeSync	Yes

Design

Specification	Value
Cooling type	Active
Cooling technology	GIGABYTE WINDFORCE 3X
Number of fans	3 fan(s)
Fan diameter	8 cm
Number of slots	2
Illumination	Yes
Illumination colour	Multi
Product colour	Black

Power

Specification	Value
Minimum system power supply	500 W
Supplementary power connectors	1x 8-pin

Weight & dimensions

Specification	Value
Length	282 mm
Depth	41 mm
Height	113 mm

Packaging data

Specification	Value
Package type	Box

Packaging content

Specification	Value
Quick installation guide	Yes
