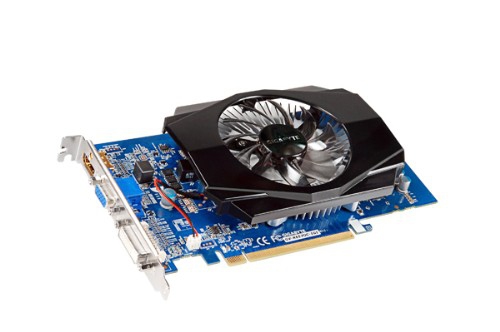

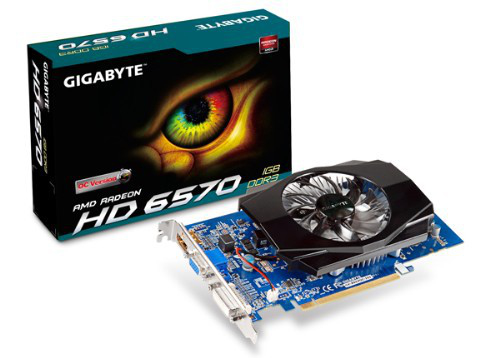

GIGABYTE GV-R657OC-1GD graphics card AMD Radeon HD6570
1 GB GDDR3
Model GV-R657OC-1GD
35 specifications Checked 4 days ago
- TypeFull-Height/Full-Length (FH/FL)
- Graphics processor familyAMD
- Discrete graphics card memory1 GB
- Interface typePCI Express 2.1
- PhysXNo
- Cooling typeActive
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Graphics processor family
- AMD
- Discrete graphics card memory
- 1 GB
- Interface type
- PCI Express 2.1
- PhysX
- No
- Cooling type
- Active
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GV-R657OC-1GD
- Part number
- GV-R657OC-1GD
- Also known as
- GIGABYTE GV-R657OC-1GD graphics card AMD Radeon HD6570 1 GB GDDR3
Specifications
35 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon HD6570 |
| Maximum resolution | 2560 x 1600 pixels |
| CUDA | No |
| Processor frequency | 670 MHz |
| Maximum analog resolution | 2048 x 1536 pixels |
| Maximum digital resolution | 2560 x 1600 pixels |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 1 GB |
| Graphics card memory type | GDDR3 |
| Memory bus | 128 bit |
| Memory clock speed | 1600 MHz |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 2.1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 11 |
| Shader model version | 5.0 |
| OpenGL version | 4.1 |
| HDCP | No |
| Dual Link DVI | Yes |
| Full HD | Yes |
| Video formats supported | H.264, WMV |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Certification | RoHS |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 400 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 211.8 mm |
| Depth | 32.5 mm |
| Height | 129.9 mm |
Other features
| Specification | Value |
|---|---|
| Mac compatibility | No |
| HDMI | Yes |
What people say
Reviews & ratings
GIGABYTE GV-R657OC-1GD graphics card AMD Radeon HD6570
No reviews yet
Be the first to tell others how GIGABYTE GV-R657OC-1GD graphics card AMD Radeon HD6570 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GV-R657OC-1GD graphics card AMD Radeon HD6570
All gpu comparisons- GIGABYTE GV-R657OC-1GD graphics card AMD Radeon HD6570 vsGIGABYTE GV-N56GOC-1GI graphics card NVIDIA GeForce GTX 560Compare specs
- GIGABYTE GV-R657OC-1GD graphics card AMD Radeon HD6570 vsGIGABYTE N480S15I graphics card NVIDIA GeForce GTX 480Compare specs
- GIGABYTE GV-R657OC-1GD graphics card AMD Radeon HD6570 vsGIGABYTE GV-R675OC-1GD graphics card AMD Radeon HD6750Compare specs

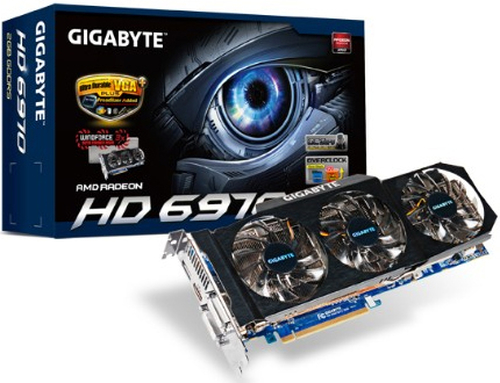

- GIGABYTE GV-R657OC-1GD graphics card AMD Radeon HD6570 vsGIGABYTE GV-R697OC2-2GD graphics card AMD Radeon HD6970Compare specs
