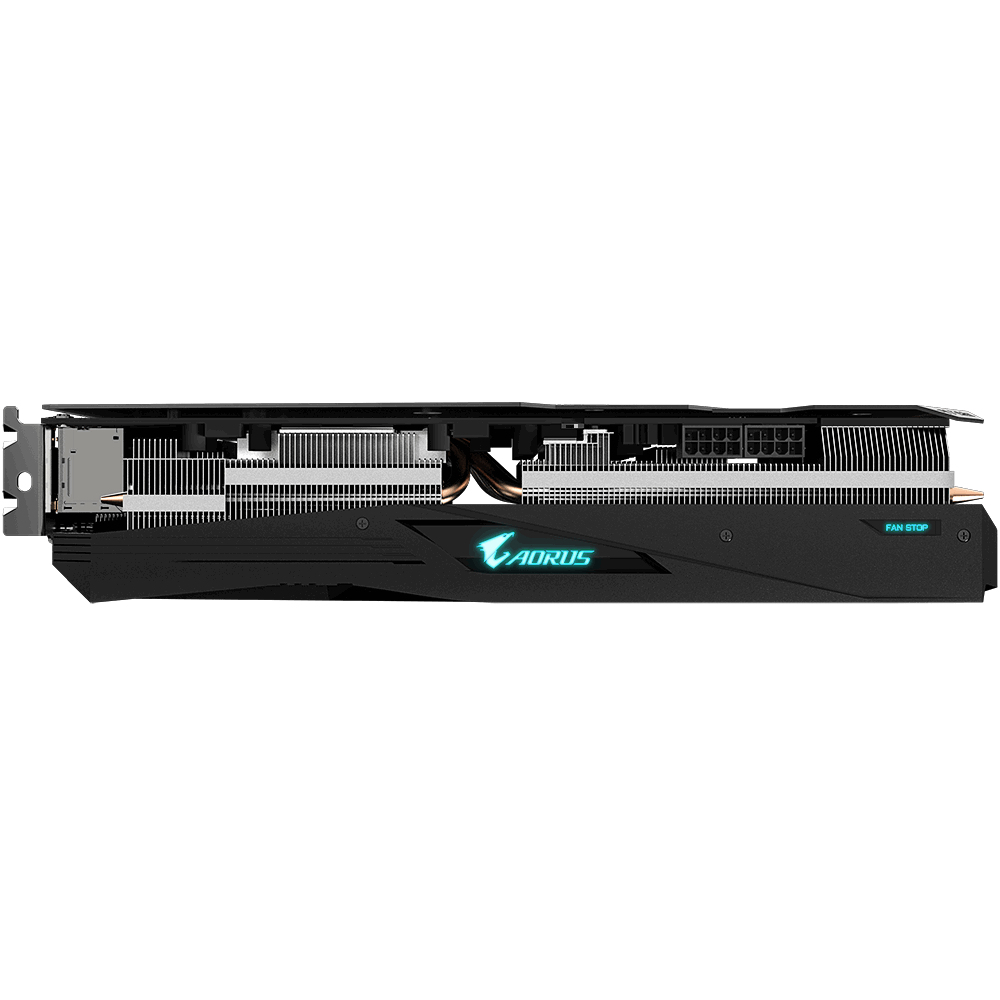

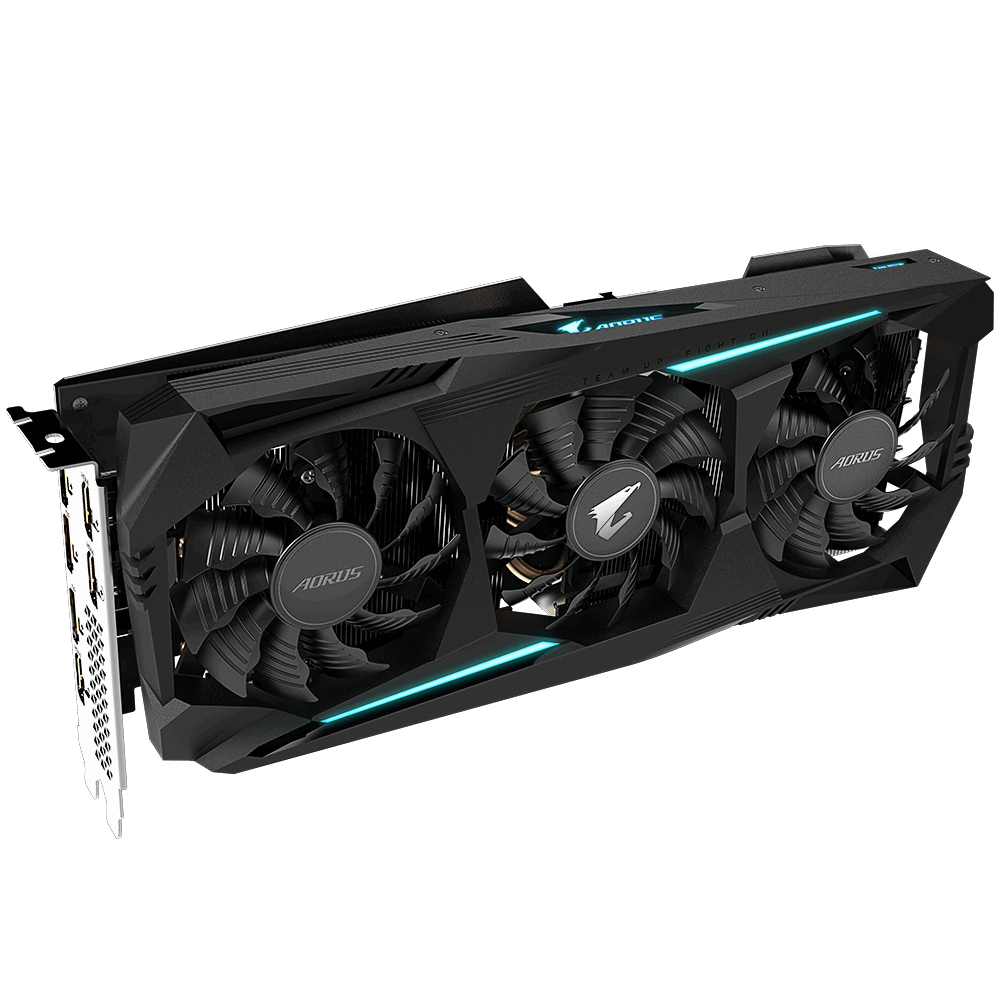

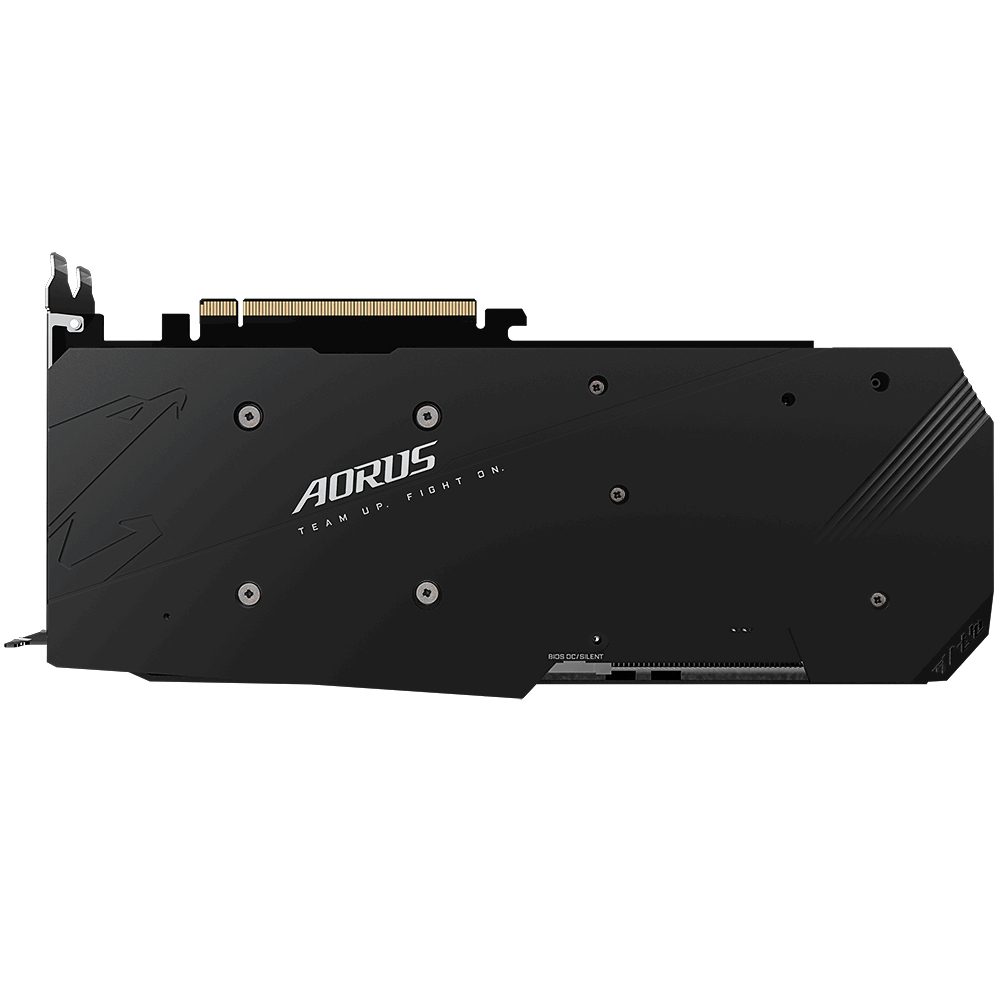

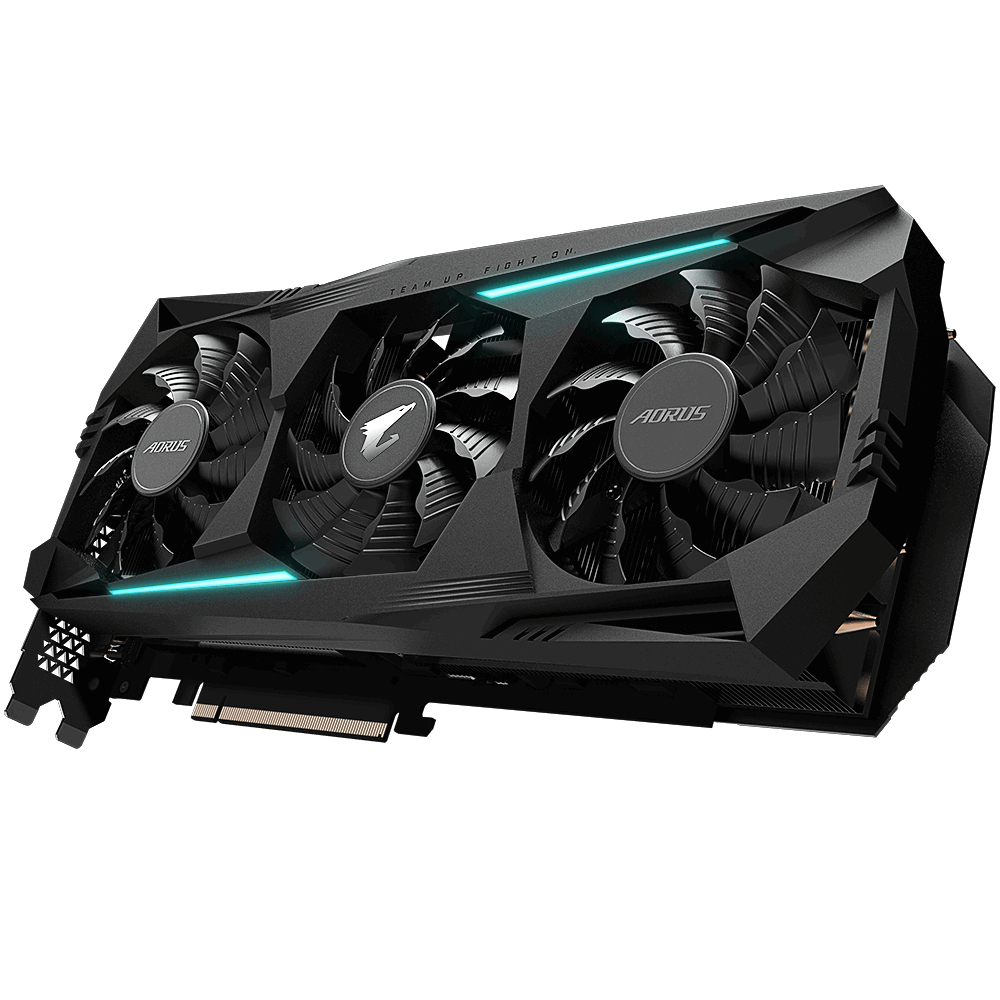

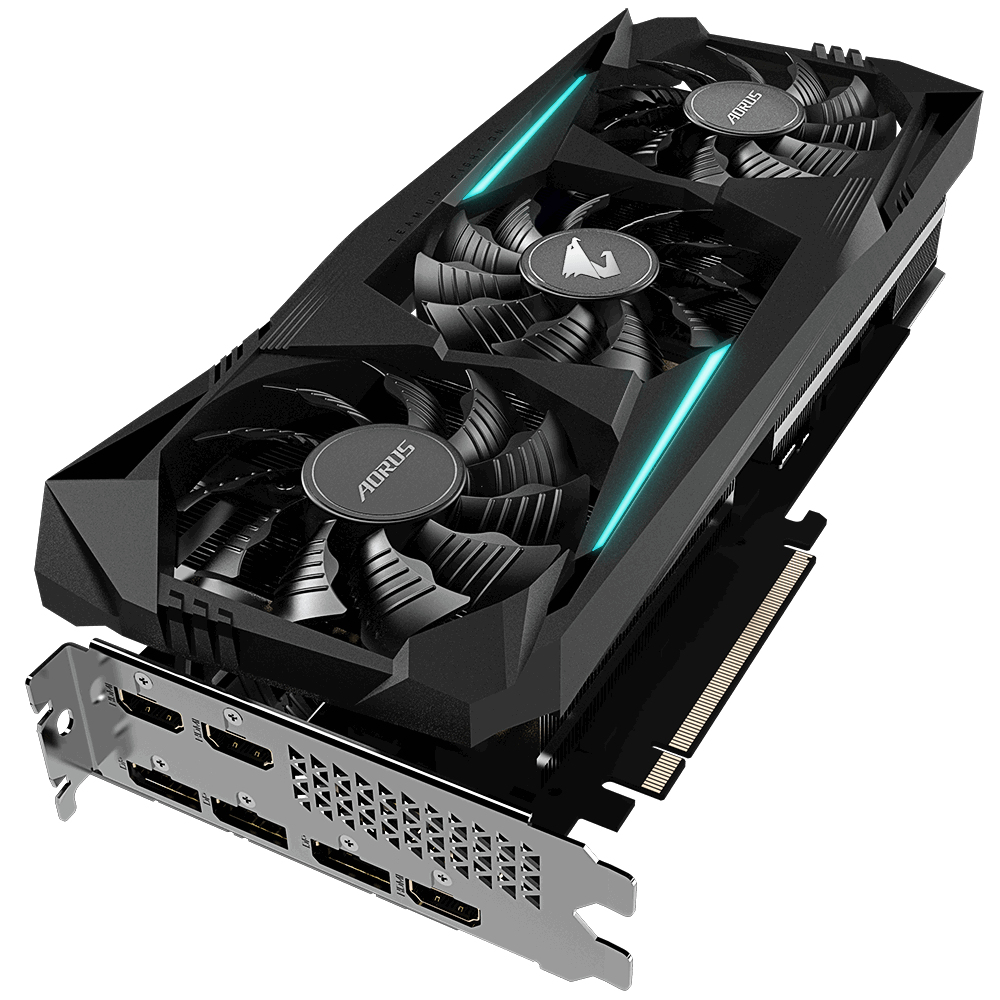

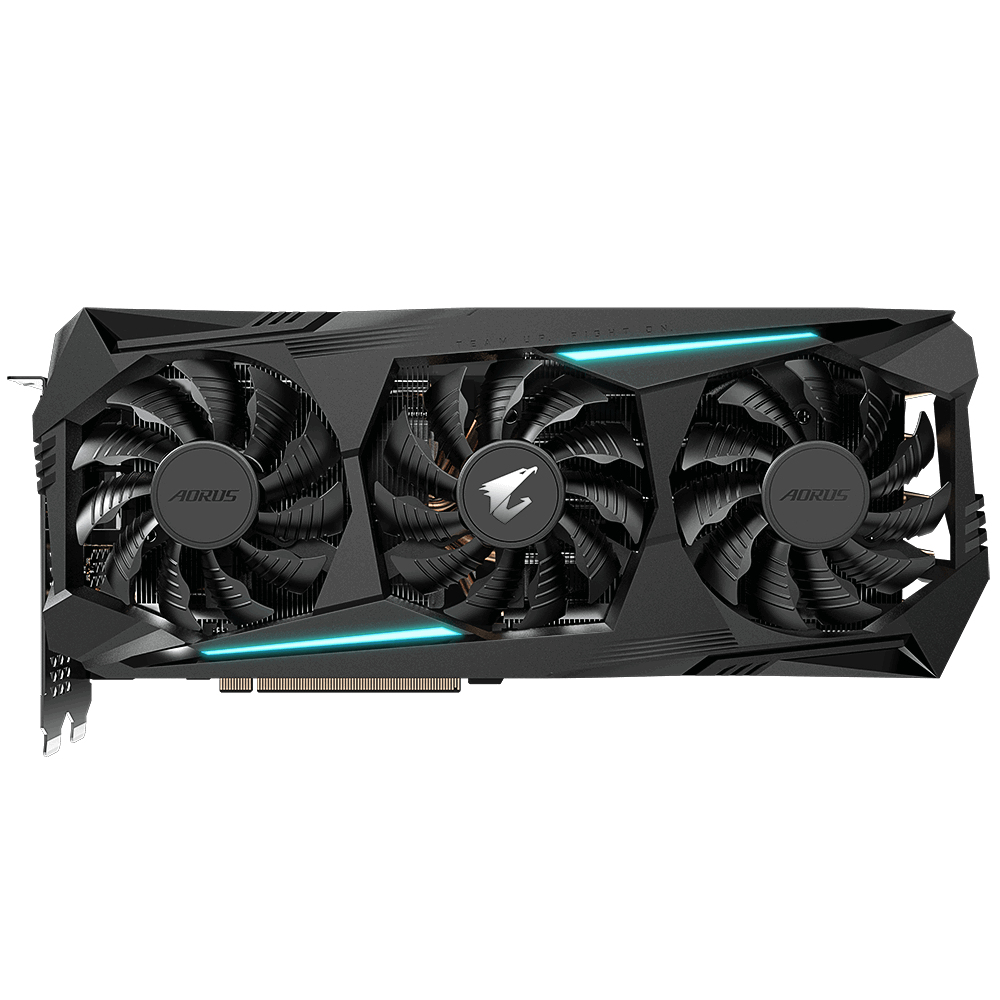

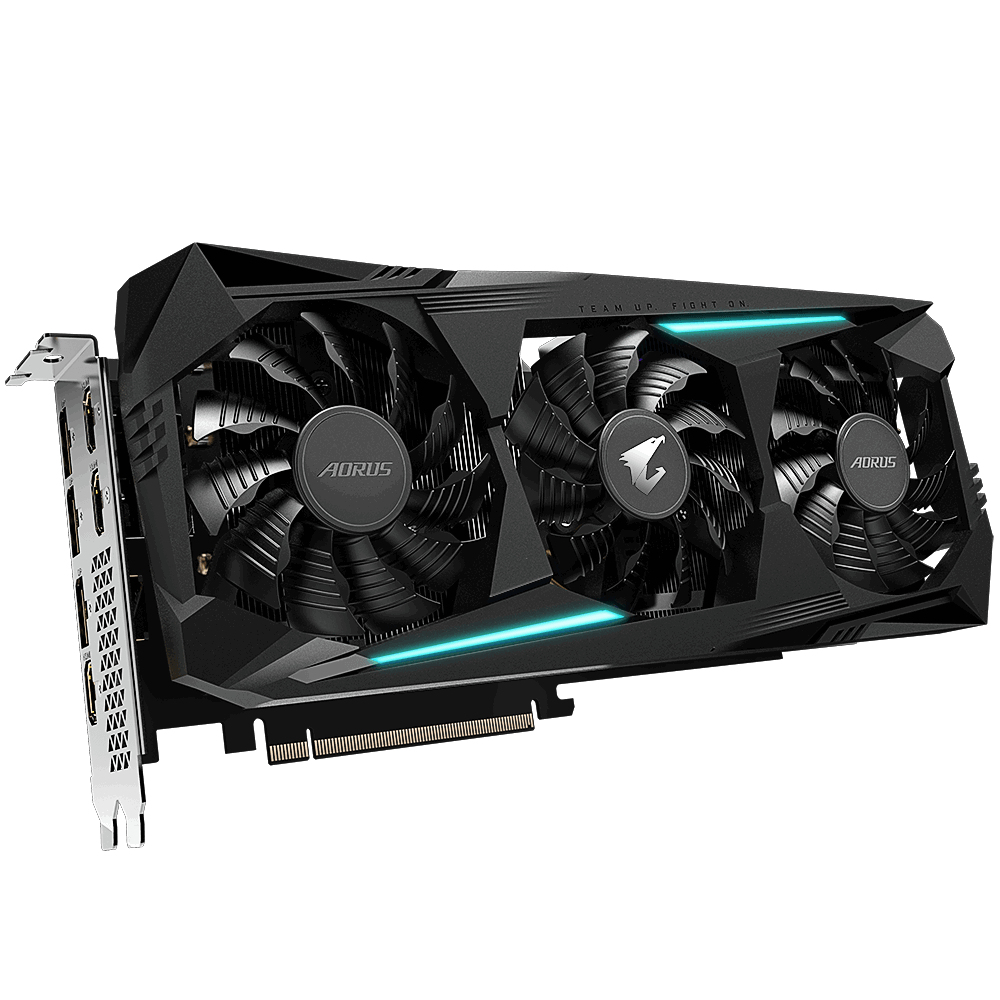

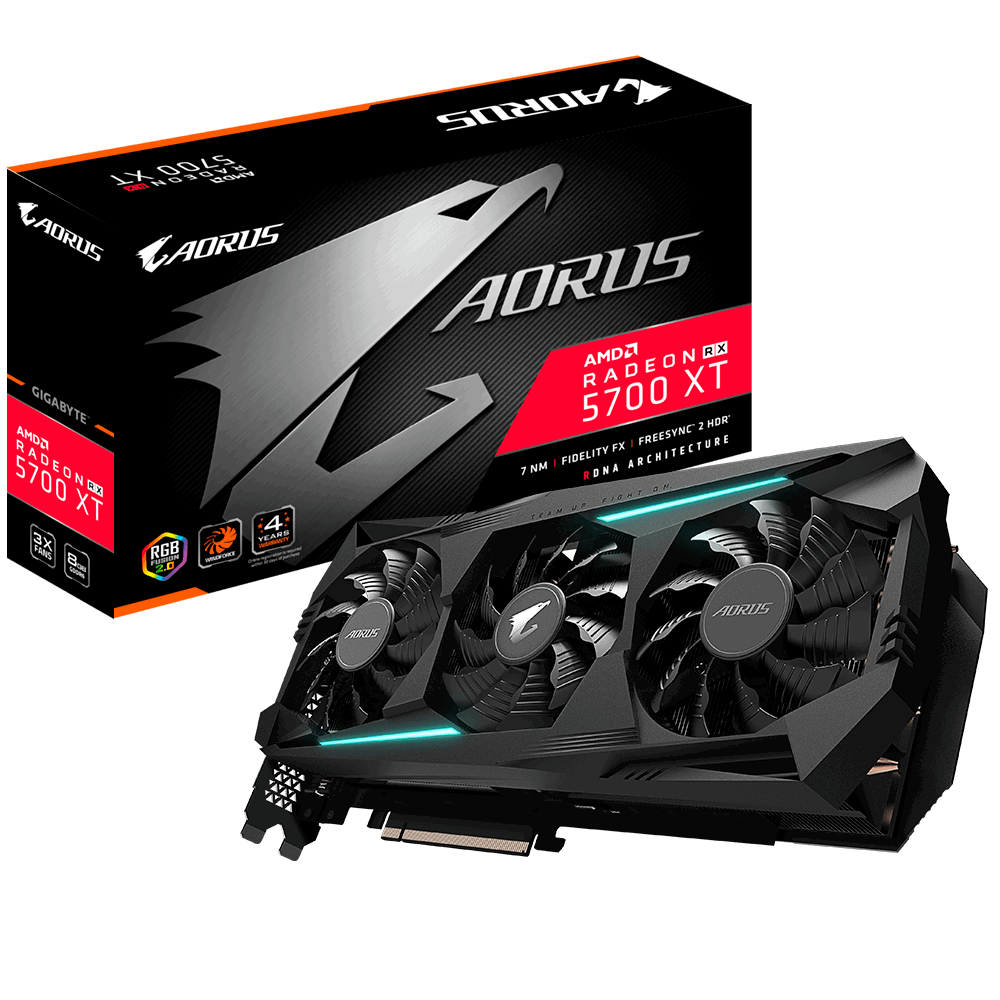

GIGABYTE AORUS Radeon RX 5700 XT

AORUS Radeon RX 5700 XT

8G

Model GV-R57XTAORUS-8GDEAN 889523020449

43 specifications Checked today

TypeFull-Height/Full-Length (FH/FL)
ColourBlack
Graphics processor familyAMD
Discrete graphics card memory8 GB
Interface typePCI Express x16 4.0
PhysXNo

See all specifications

Overview

Type: Full-Height/Full-Length (FH/FL)
Colour: Black
Graphics processor family: AMD
Discrete graphics card memory: 8 GB
Interface type: PCI Express x16 4.0
PhysX: No

Brand: GIGABYTE
Category: GPU
Model: GV-R57XTAORUS-8GD
Part number: GV-R57XTAORUS-8GD
EAN / UPC: 889523020449, 4719331306335, 4719331307424, 5706998995988
Also known as: GIGABYTE AORUS Radeon RX 5700 XT 8G

Specifications

43 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	AMD
Graphics processor	Radeon RX 5700 XT
Maximum resolution	7680 x 4320 pixels
CUDA	No
Processor frequency	1770 MHz
Processor boost clock speed	2010 MHz
FireStream	Yes
Maximum displays per videocard	6
Parallel processing technology support	Not supported
Stream processors	2560

Memory

Specification	Value
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Memory clock speed	14000 MHz
Memory bandwidth (max)	448 GB/s

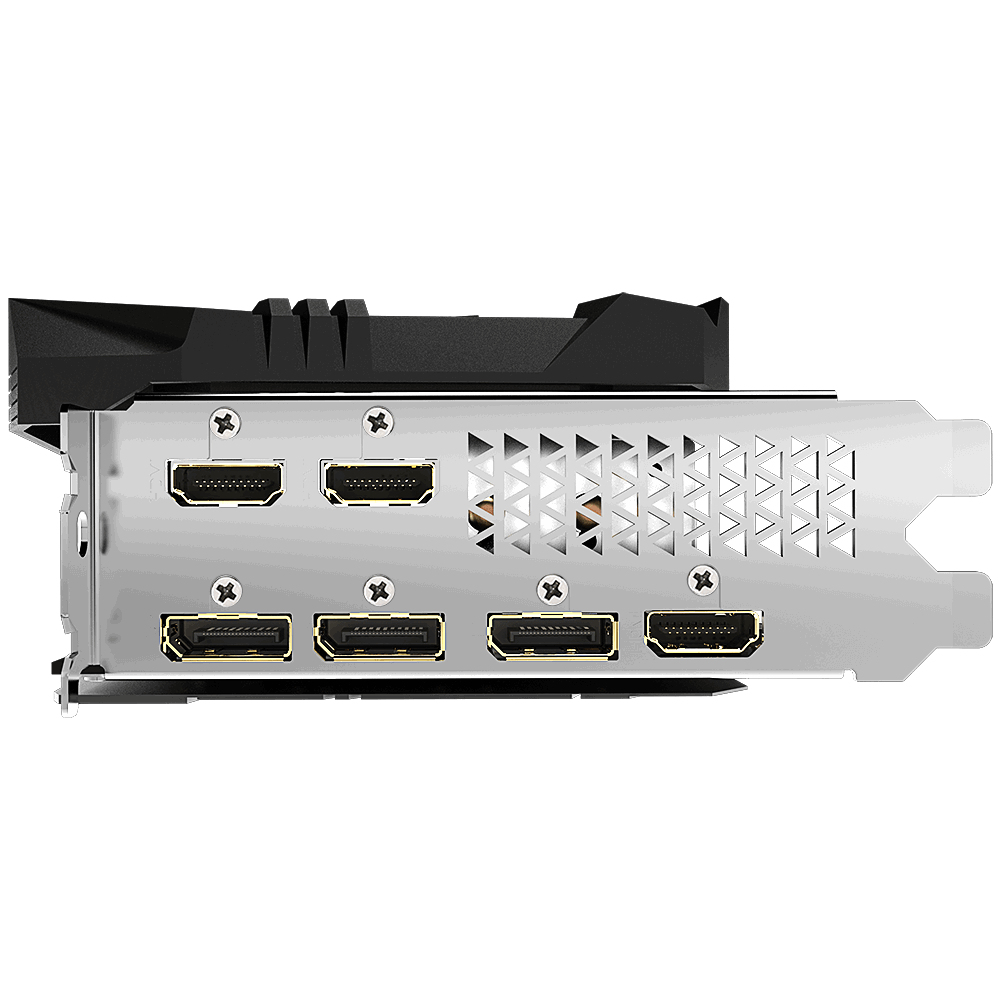

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 4.0
HDMI ports quantity	3
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	1.4b/2.0b
DisplayPort version	1.4
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
PhysX	No
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No

Design

Specification	Value
Cooling type	Active
Number of fans	3 fan(s)
Bracket height	Full-Height (FH)
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	2
Illumination	Yes
Product colour	Black

Power

Specification	Value
Minimum system power supply	600 W
Supplementary power connectors	2x 8-pin

System requirements

Specification	Value
Windows operating systems supported	Windows 10

Weight & dimensions

Specification	Value
Length	290 mm
Depth	58 mm
Height	123 mm

Packaging data

Specification	Value
Package type	Box
