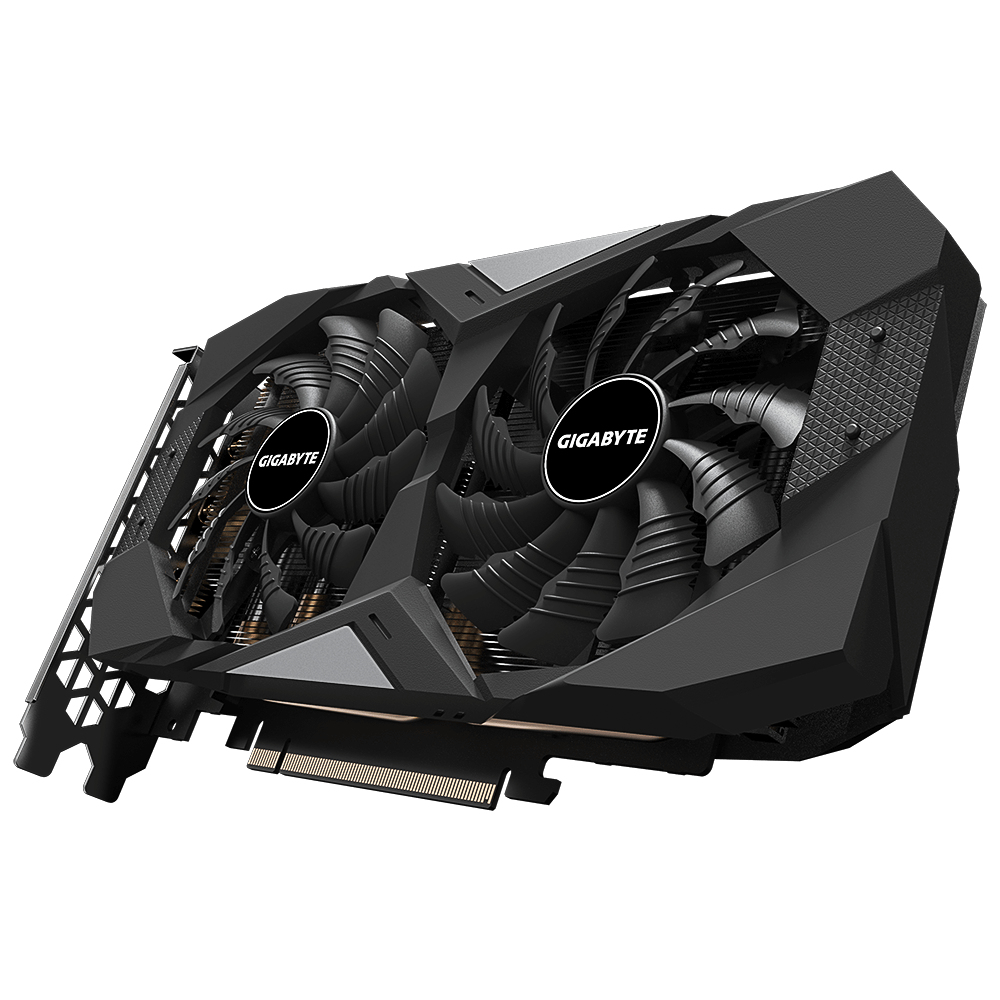

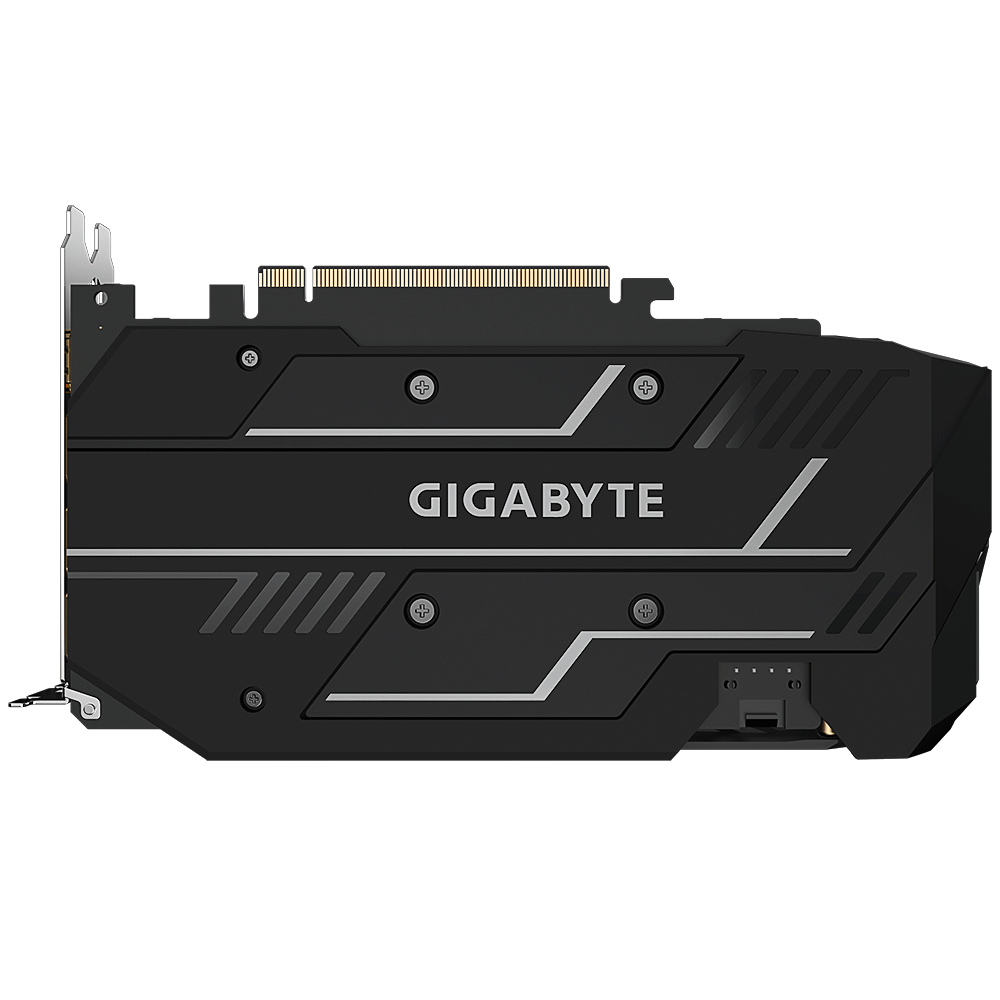

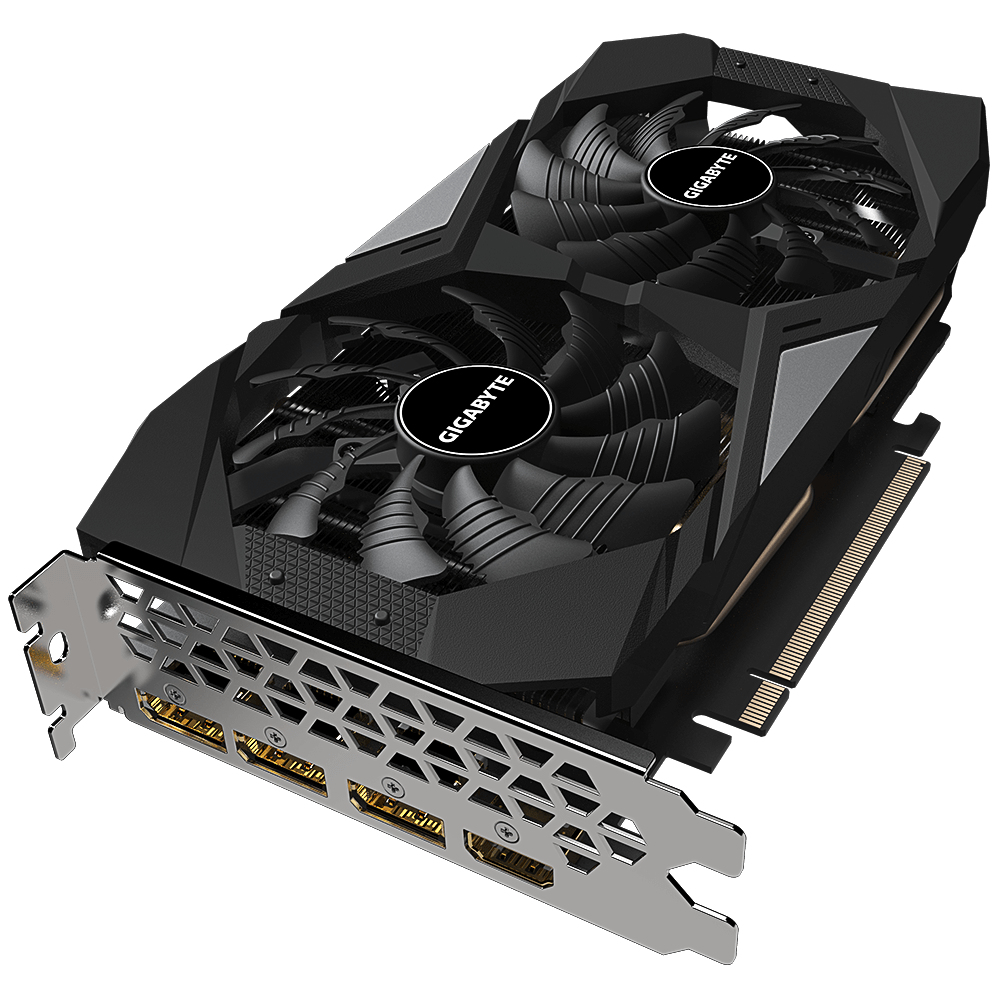

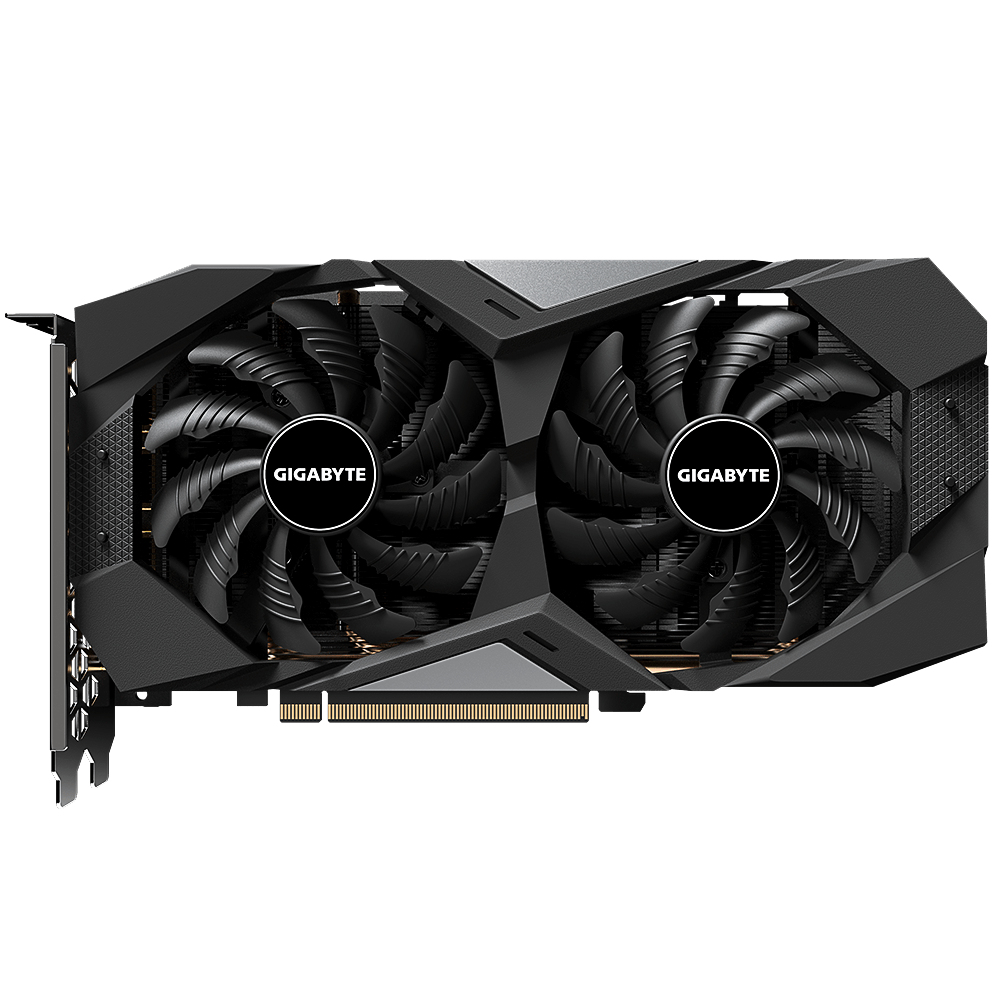

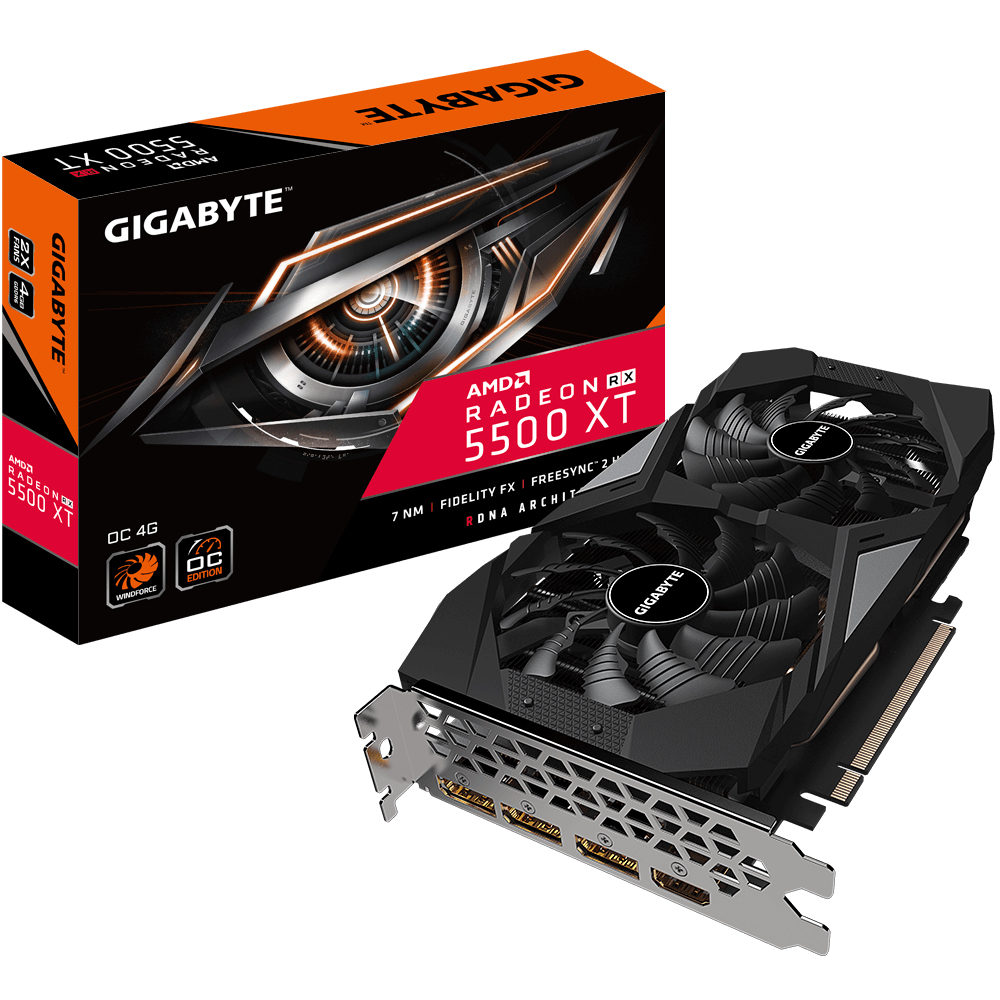

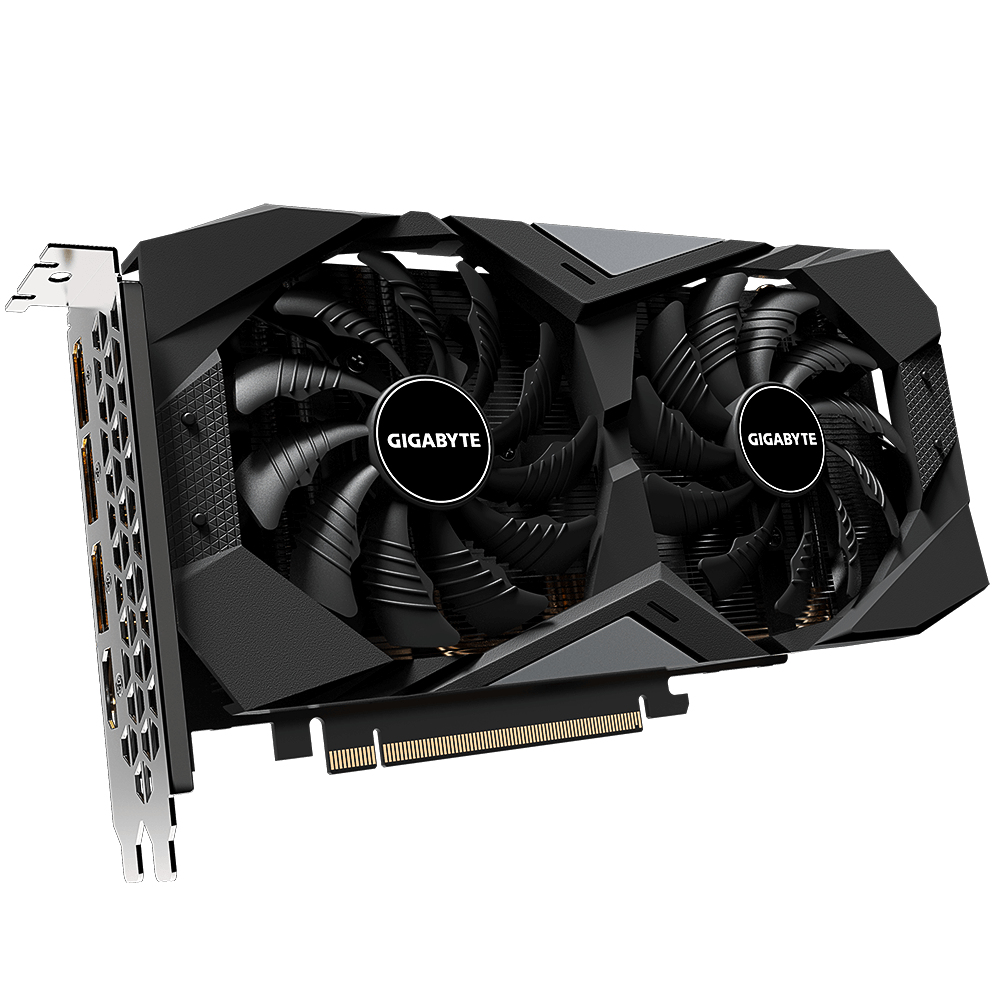

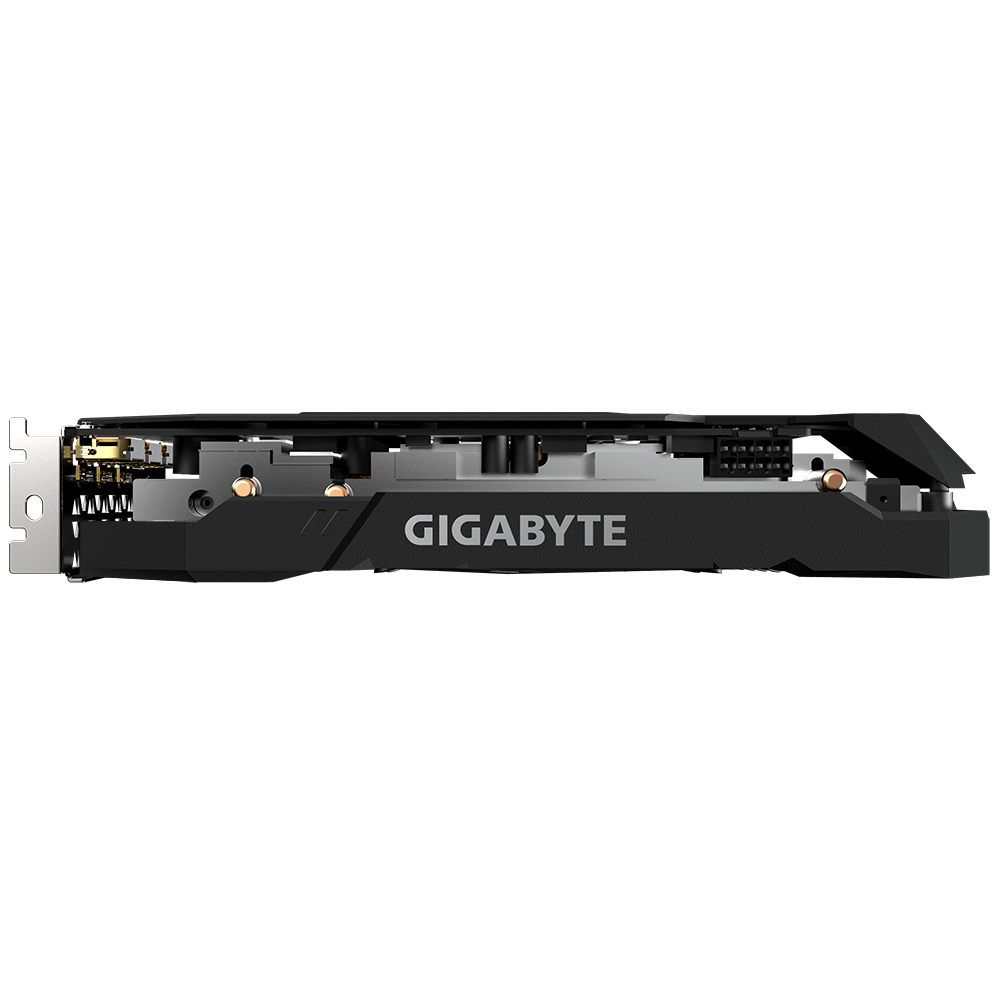

GV-R55XTOC-4GD (REV 2.0)
Model GV-R55XTOC-4GD (REV 2.0)
40 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- ColourBlack
- Graphics processor familyAMD
- Discrete graphics card memory4 GB
- Interface typePCI Express 4.0
- PhysXNo
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- Black
- Graphics processor family
- AMD
- Discrete graphics card memory
- 4 GB
- Interface type
- PCI Express 4.0
- PhysX
- No
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GV-R55XTOC-4GD (REV 2.0)
- Part number
- GV-R55XTOC-4GD (REV 2.0)
- Also known as
- GIGABYTE RX 5500 XT OC 4G (rev 2.0)
Specifications
40 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 5500 XT |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor boost clock speed | 1845 MHz |
| FireStream | Yes |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
| Stream processors | 1408 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 4 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Memory clock speed | 14000 MHz |
| Memory bandwidth (max) | 224 GB/s |

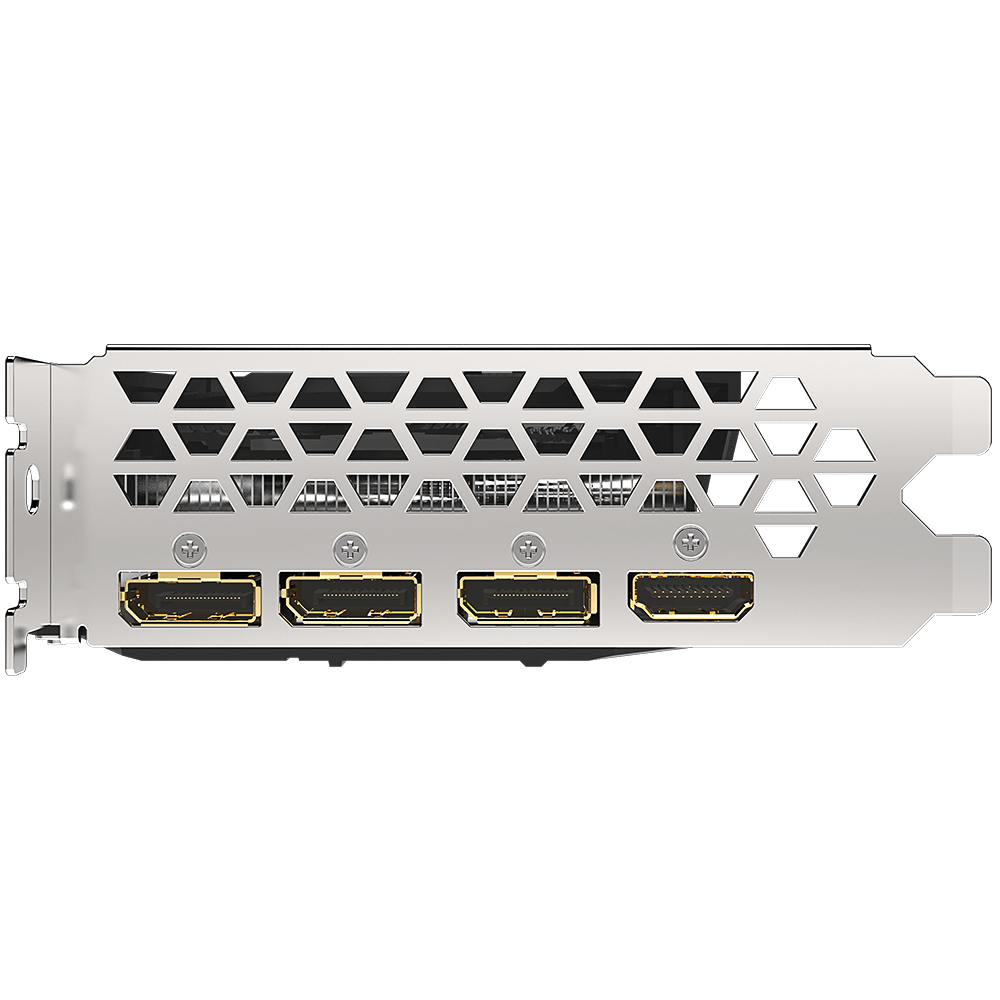

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Fan diameter | 9 cm |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 450 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 225 mm |
| Depth | 40 mm |
| Height | 119 mm |
