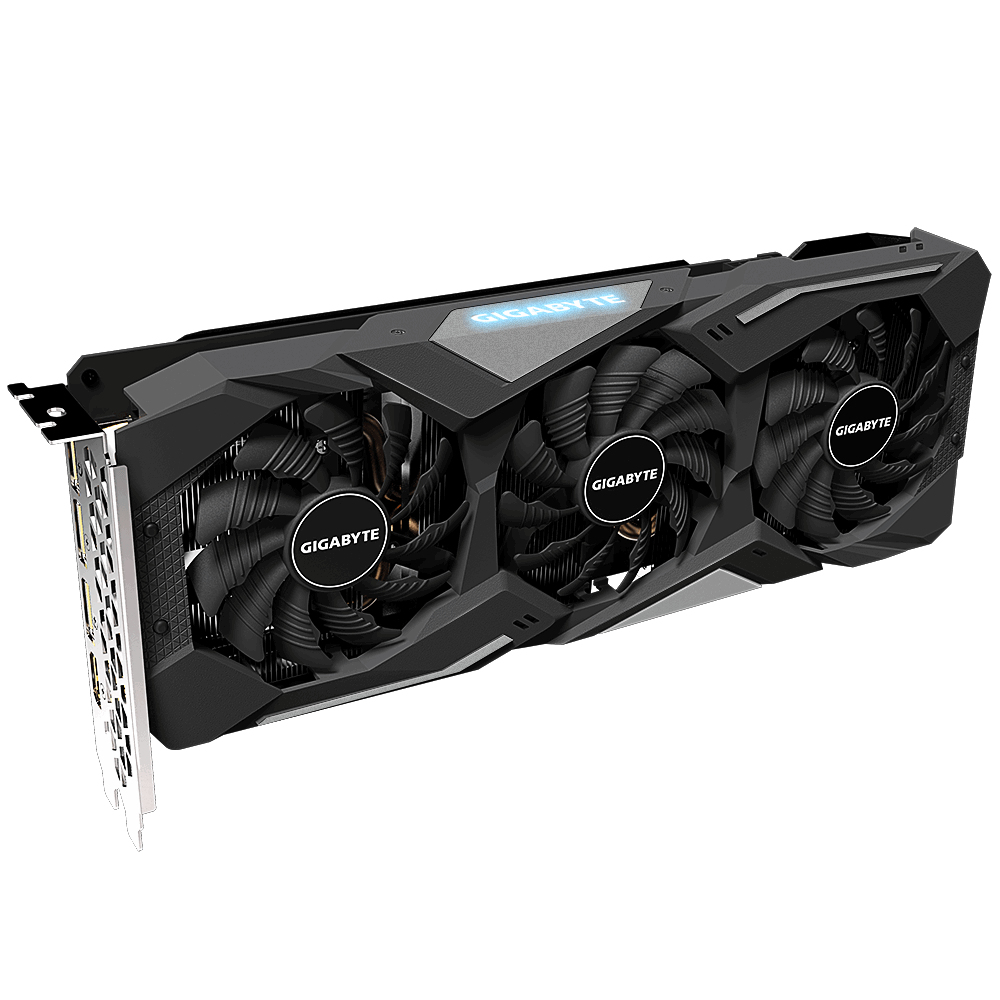

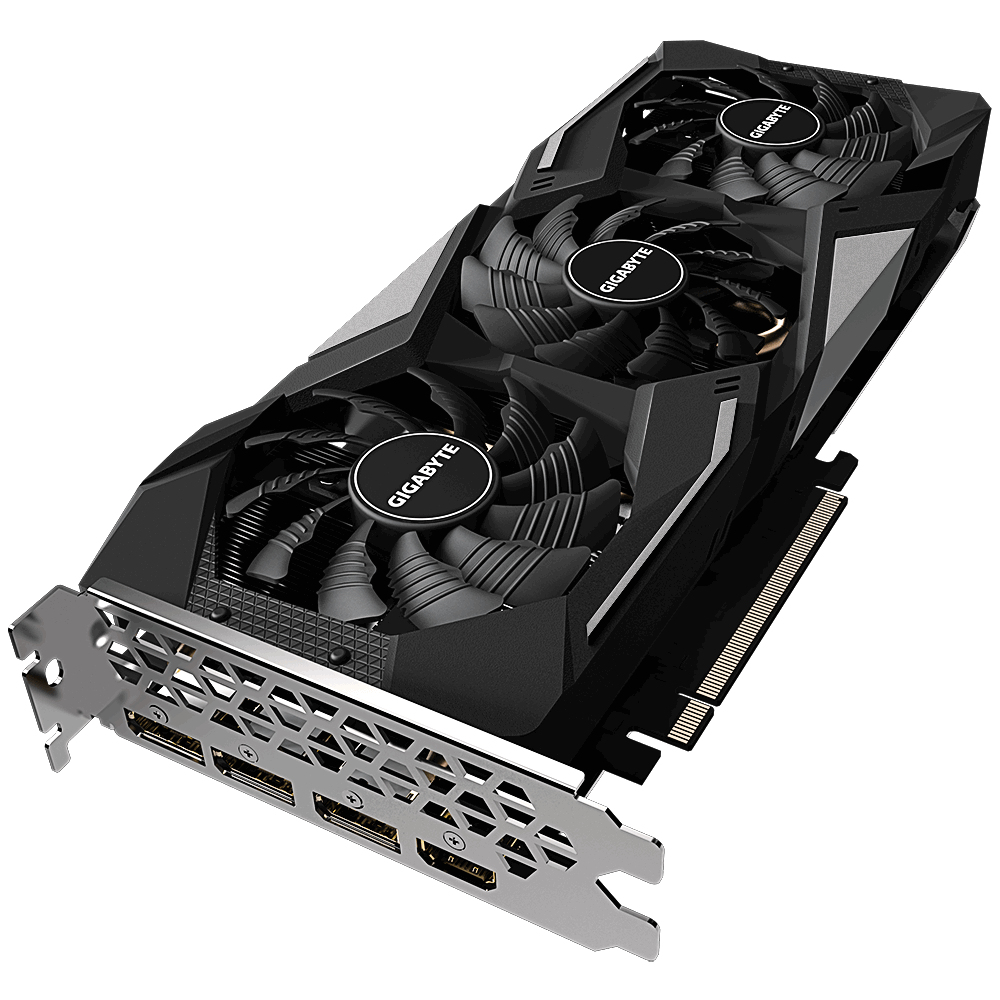

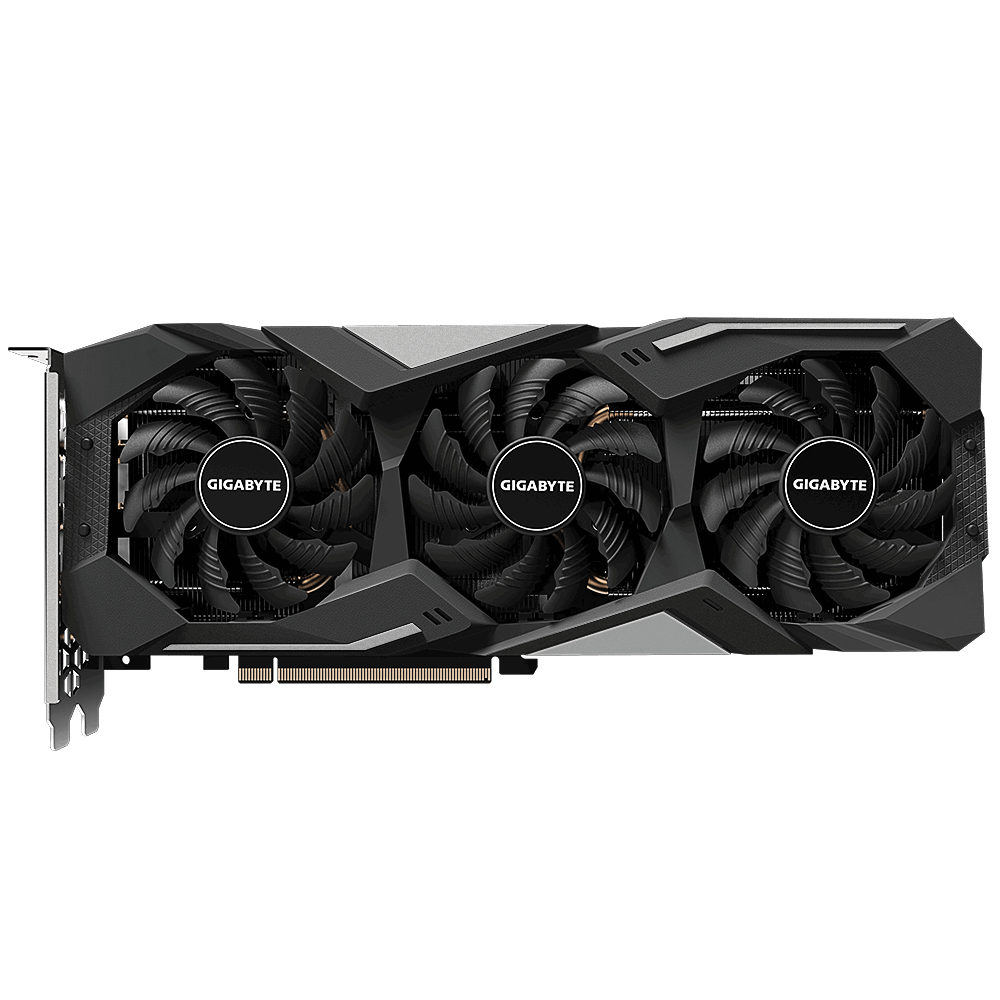

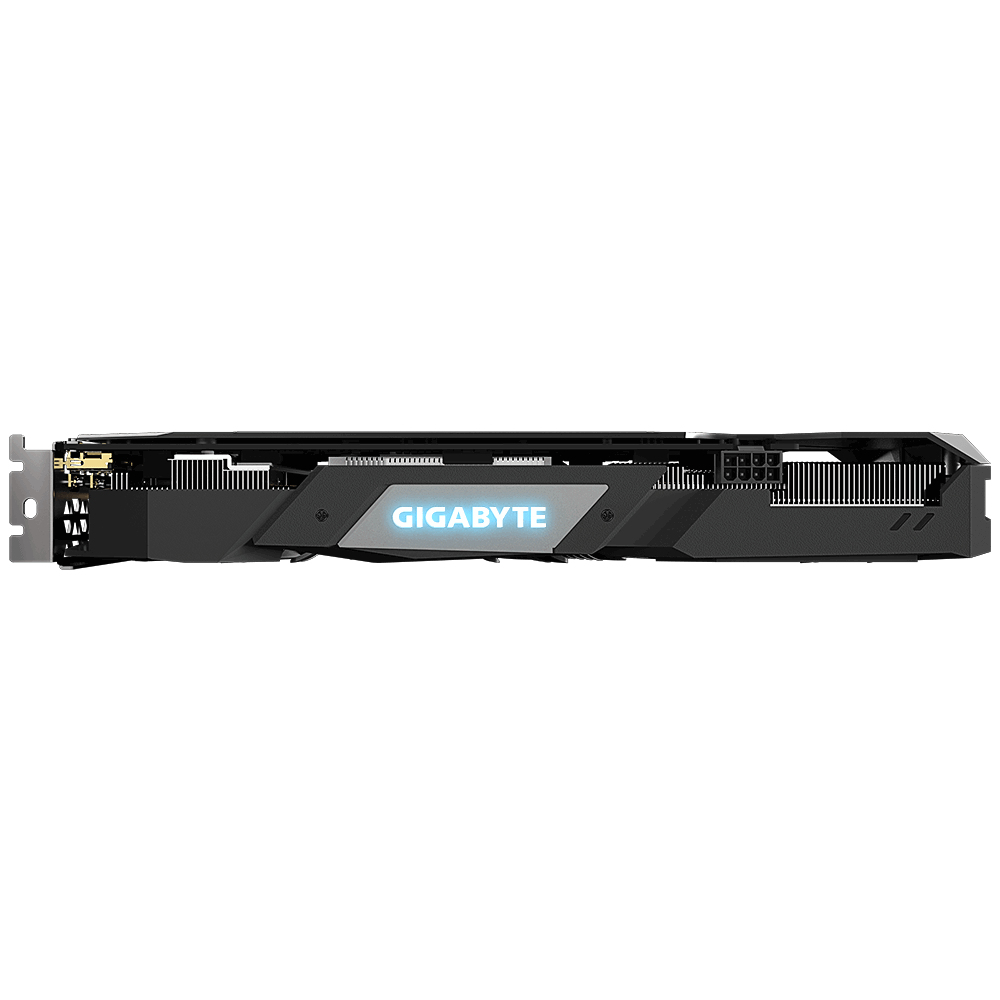

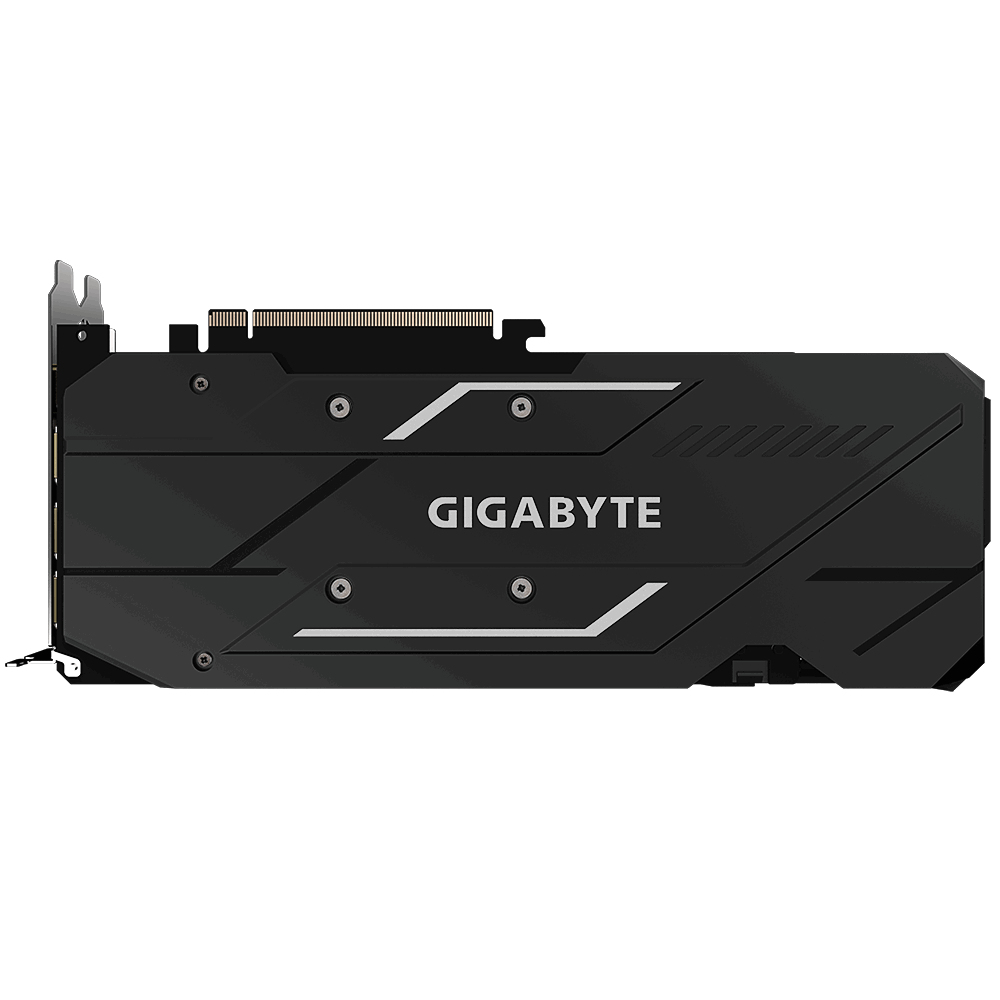

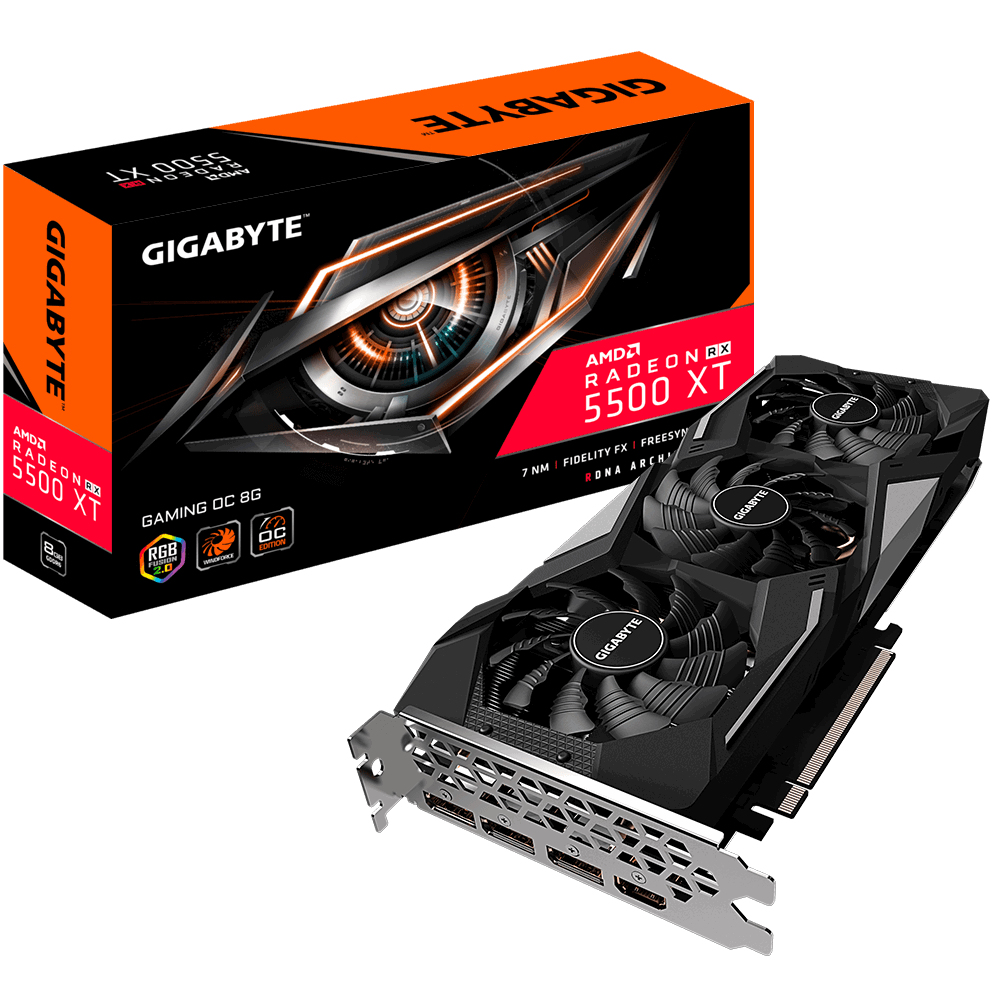

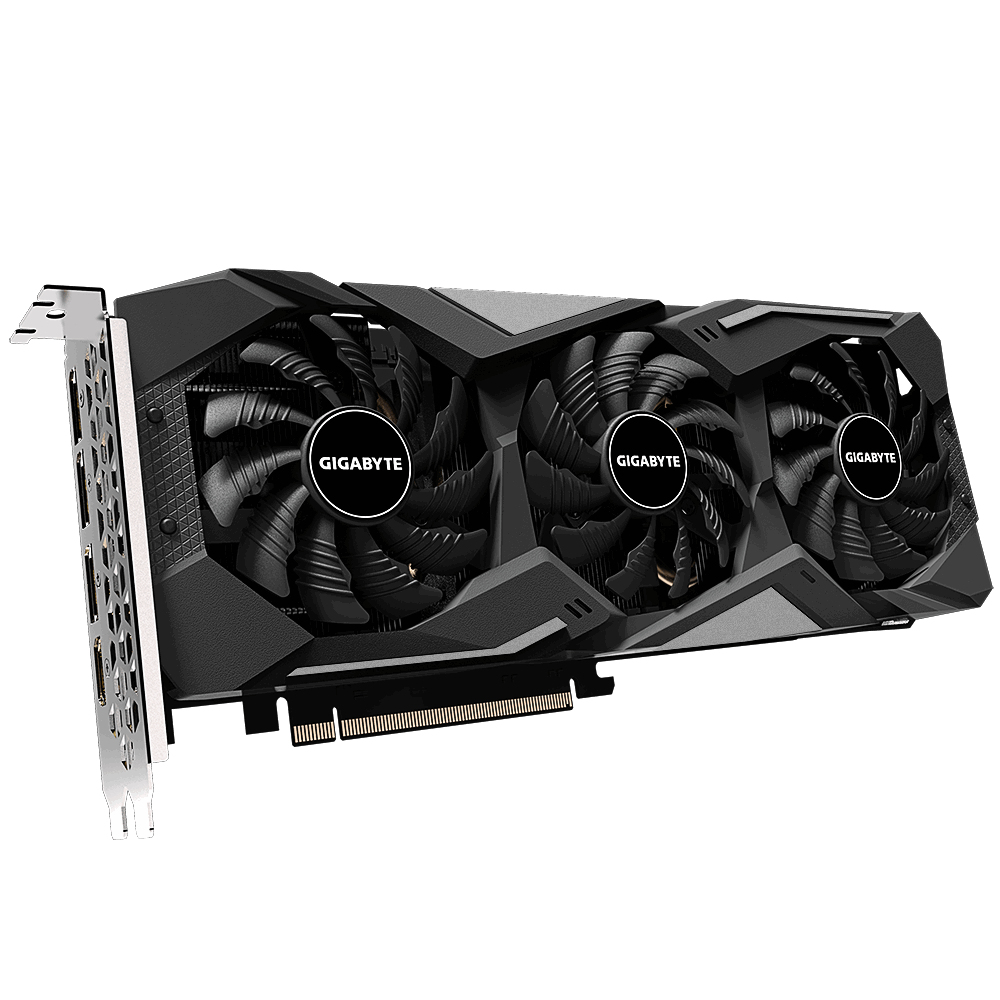

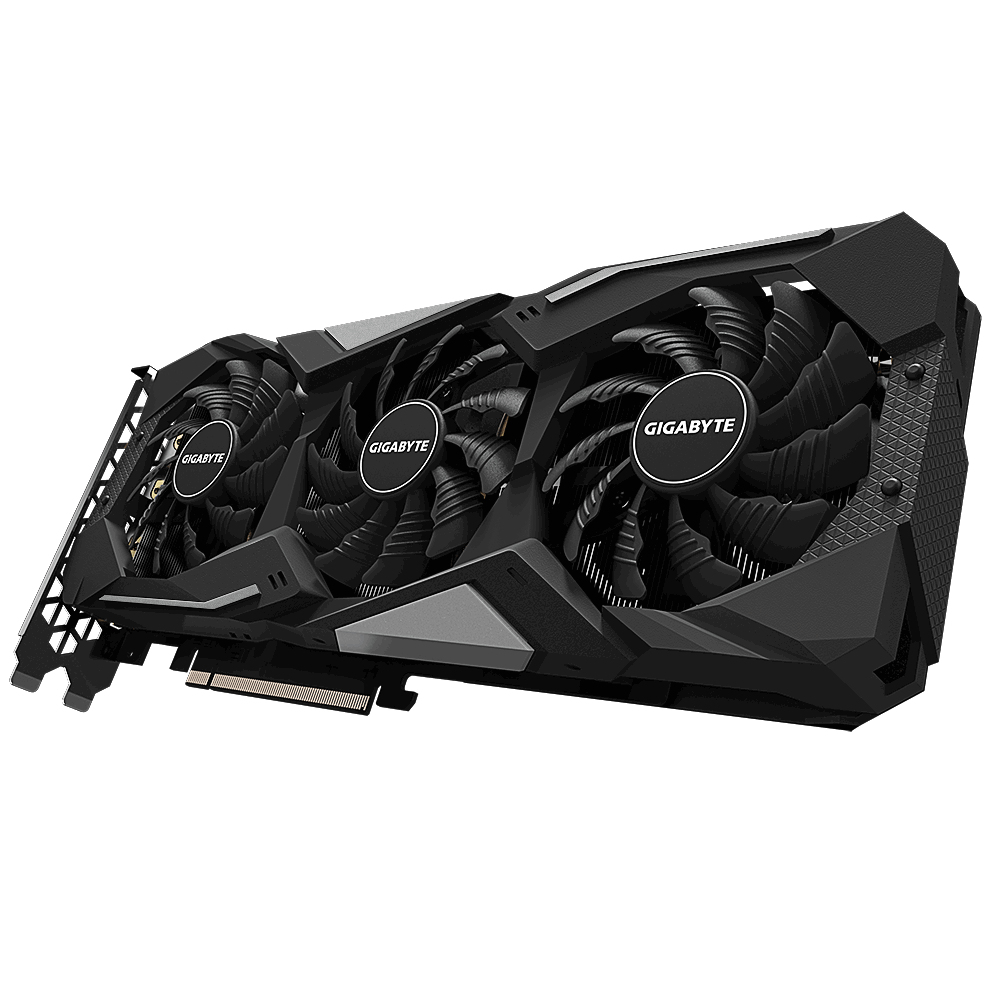

GV-R55XTGAMING OC-8GD
Model GV-R55XTGAMING OC-8GDEAN 889523020524
38 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- ColourBlack
- Graphics processor familyAMD
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 4.0
- DirectX version12.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- Black
- Graphics processor family
- AMD
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 4.0
- DirectX version
- 12.0
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GV-R55XTGAMING OC-8GD
- Part numbers
- GV-R55XTGAMING OC-8GD, GVR55XTGO-00-G
- EAN / UPC
- 889523020524
- Also known as
- GIGABYTE GAMING GV-R55XTGAMING OC-8GD graphics card AMD Radeon RX 5500 XT 8 GB GDDR6
Specifications
38 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 5500 XT |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor frequency | 1685 MHz |
| Processor boost clock speed | 1845 MHz |
| Maximum displays per videocard | 4 |
| Stream processors | 1408 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Memory clock speed | 14000 MHz |
| Memory bandwidth (max) | 224 GB/s |

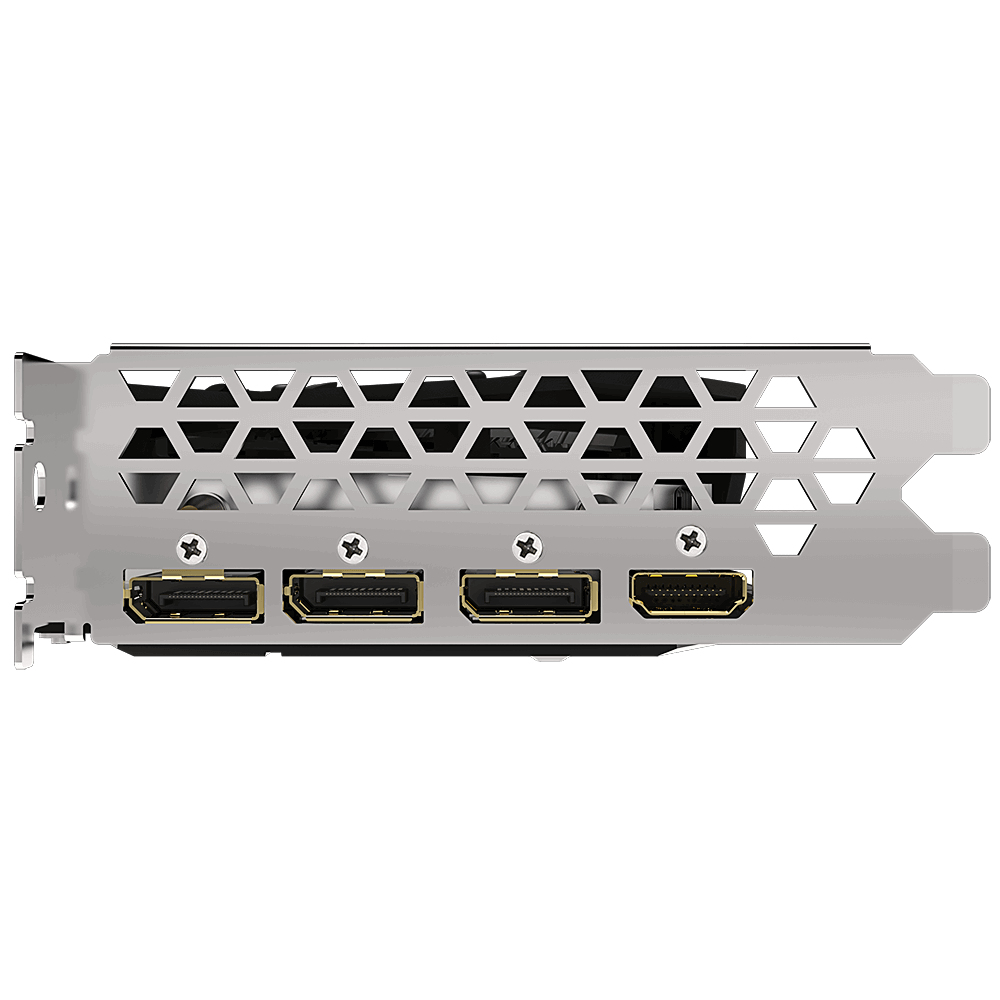

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| AMD FreeSync | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Fan diameter | 8 cm |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 281 mm |
| Depth | 40 mm |
| Height | 115 mm |
