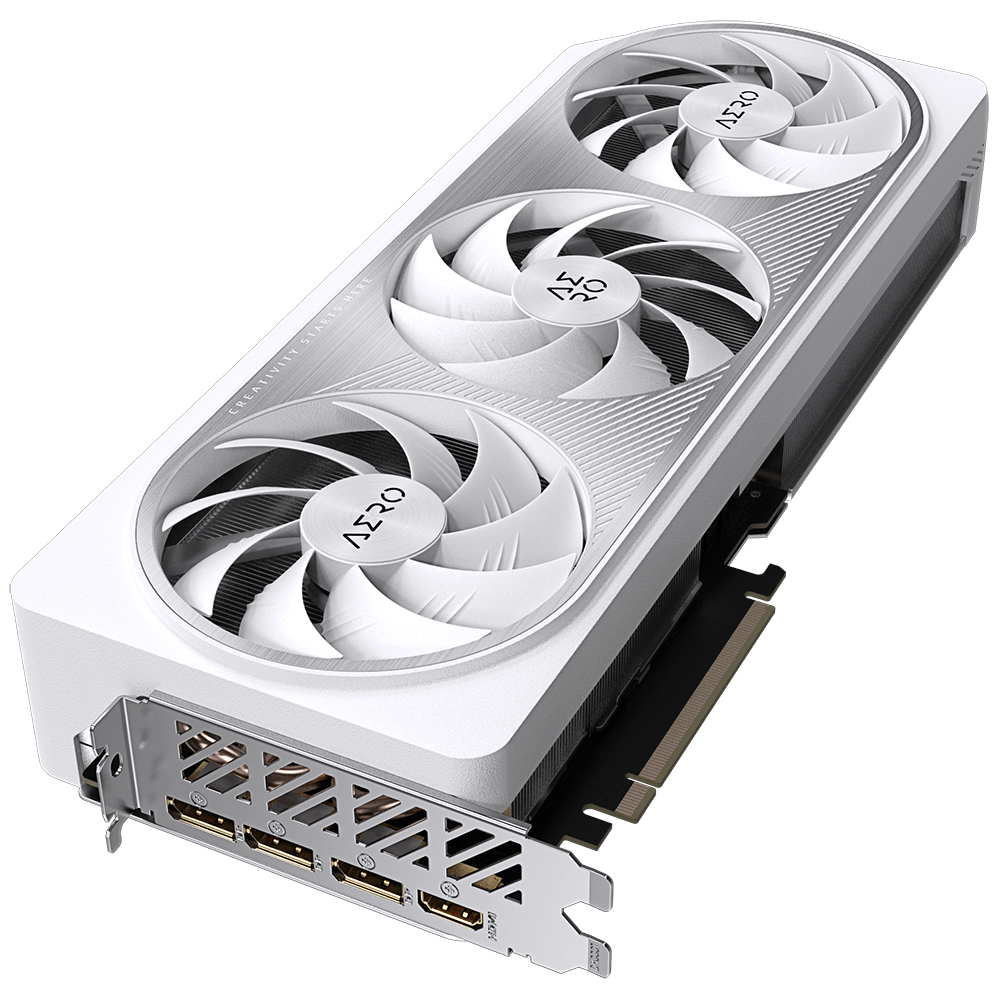

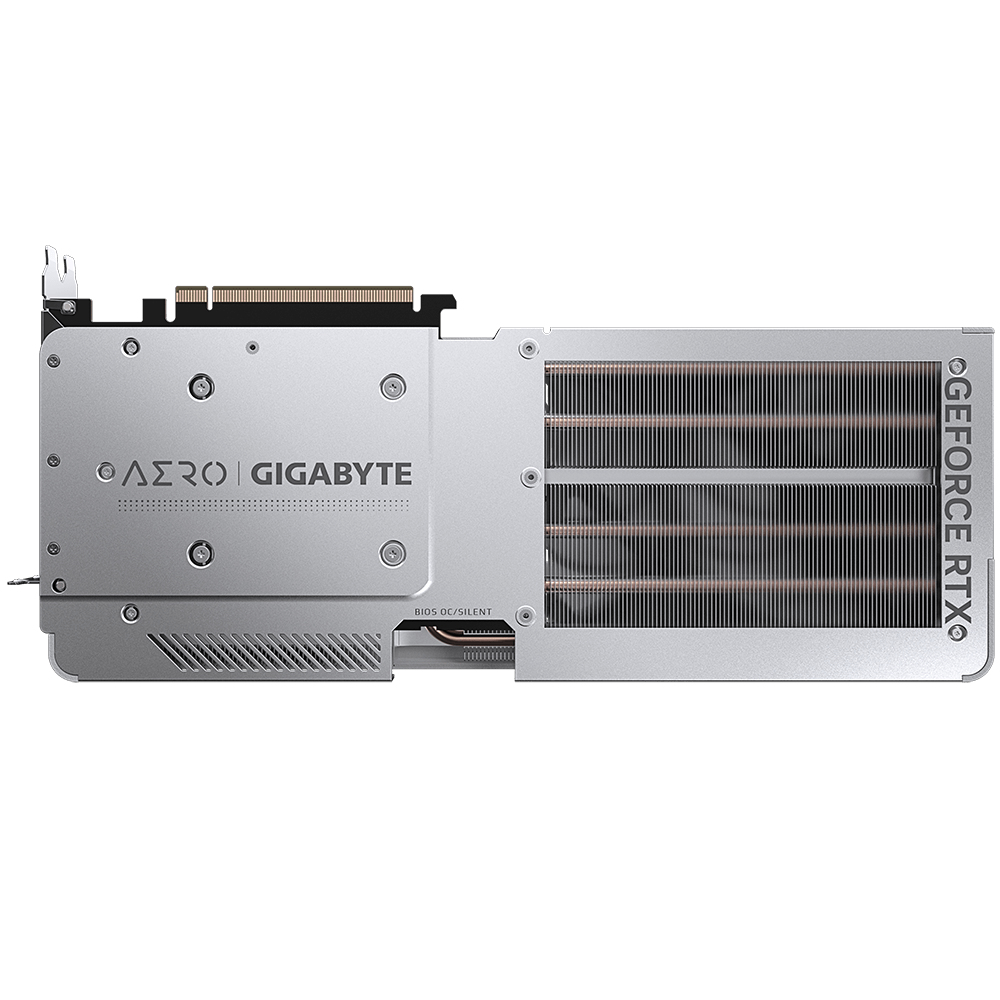

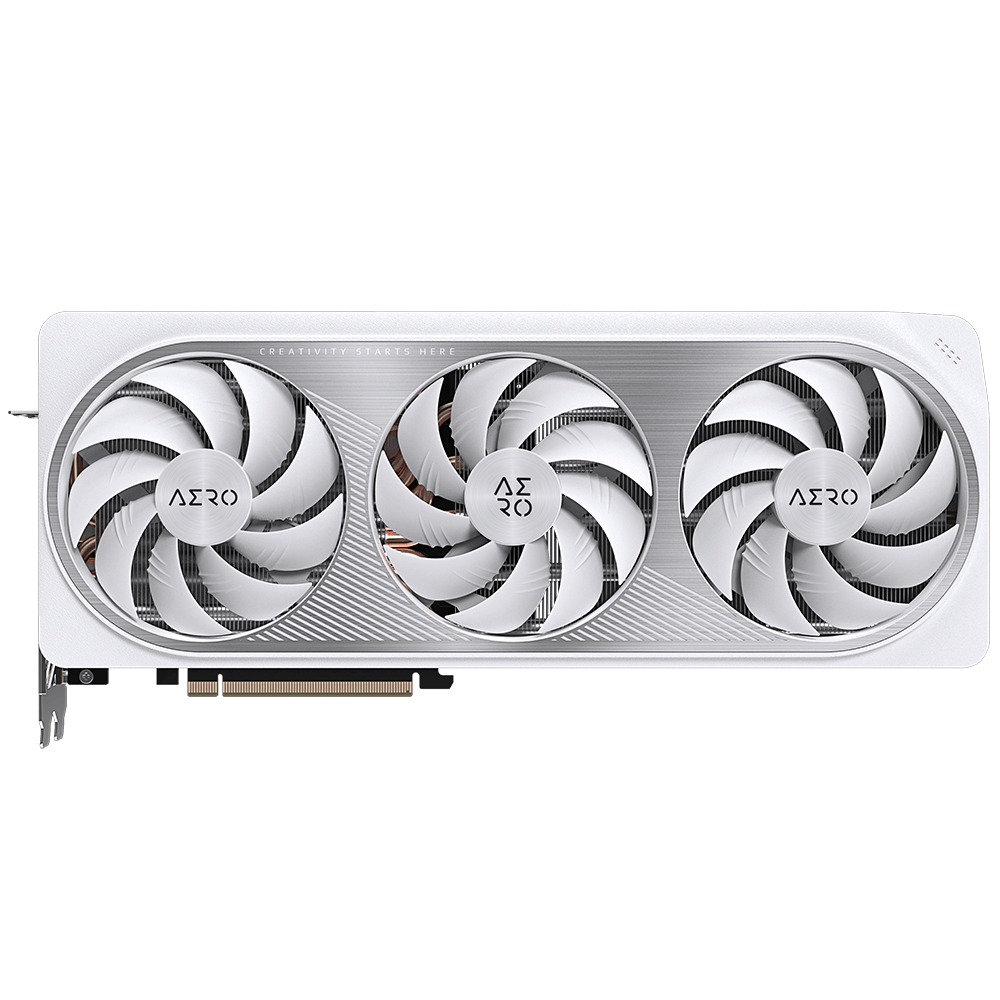

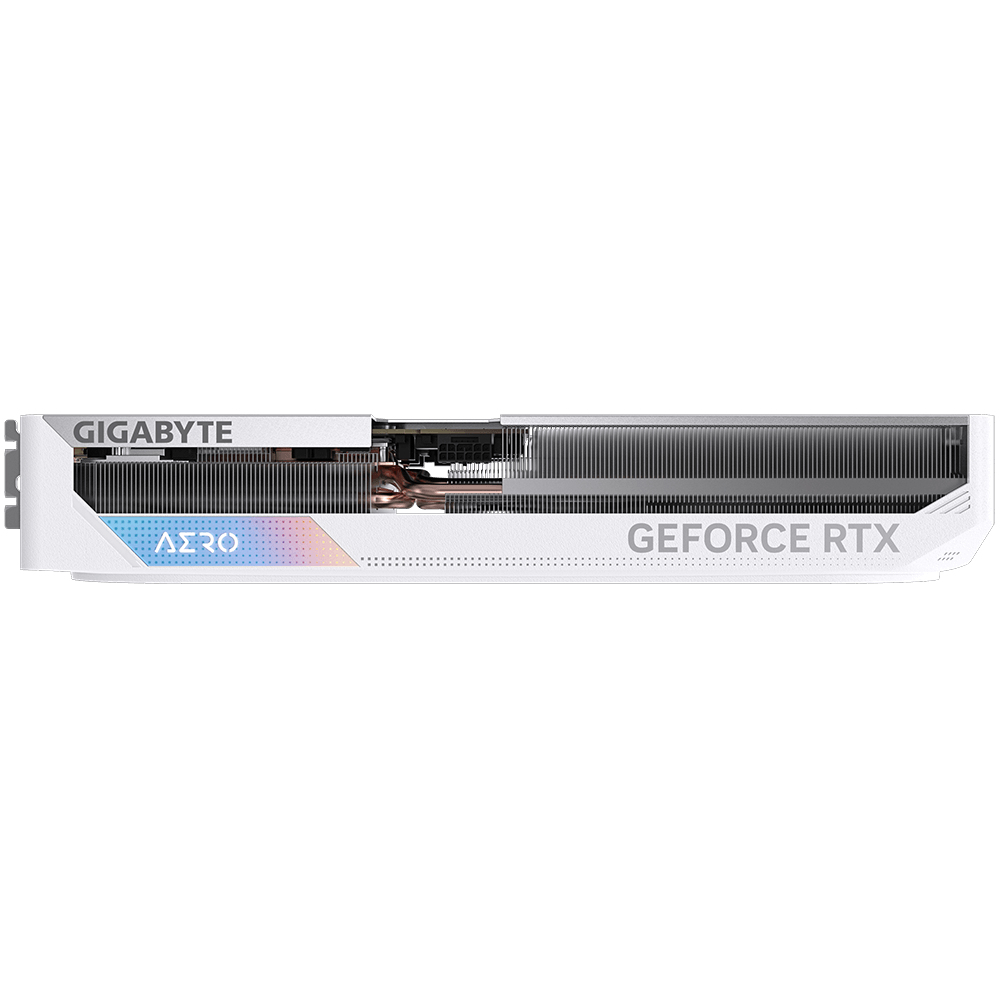

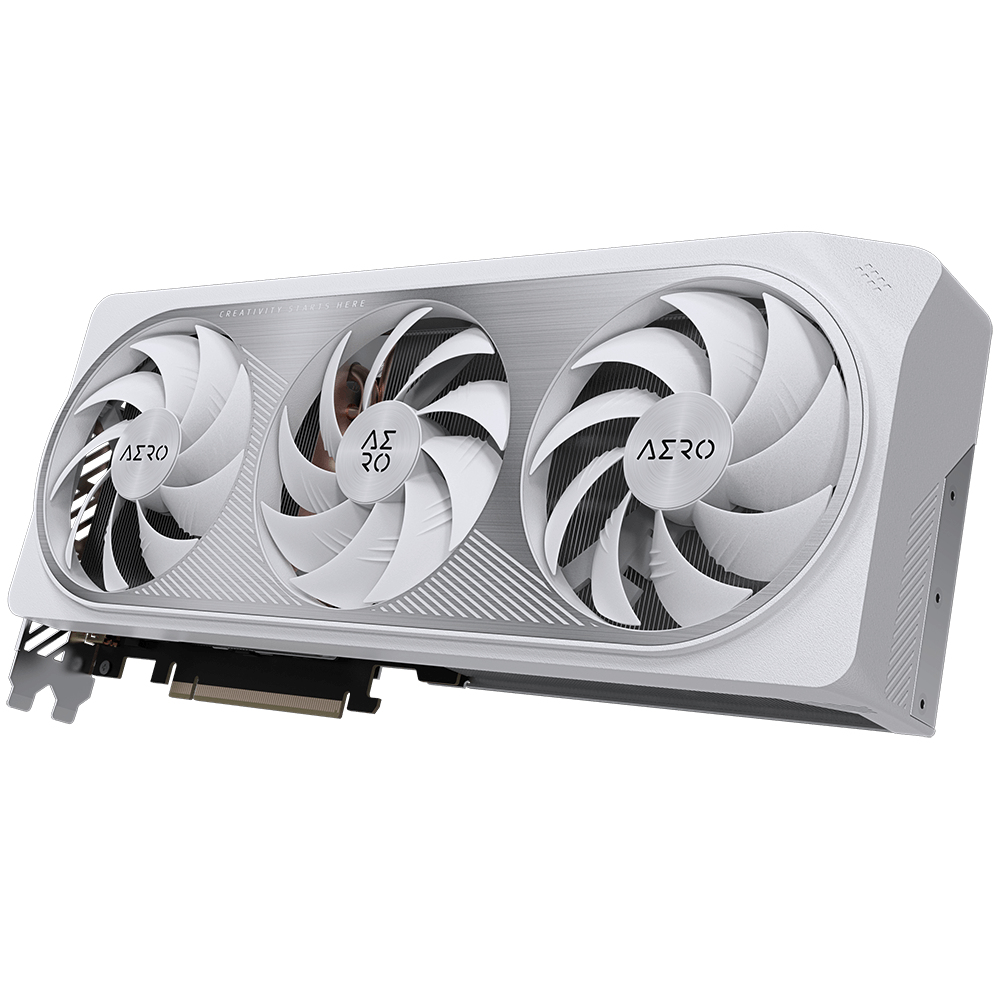

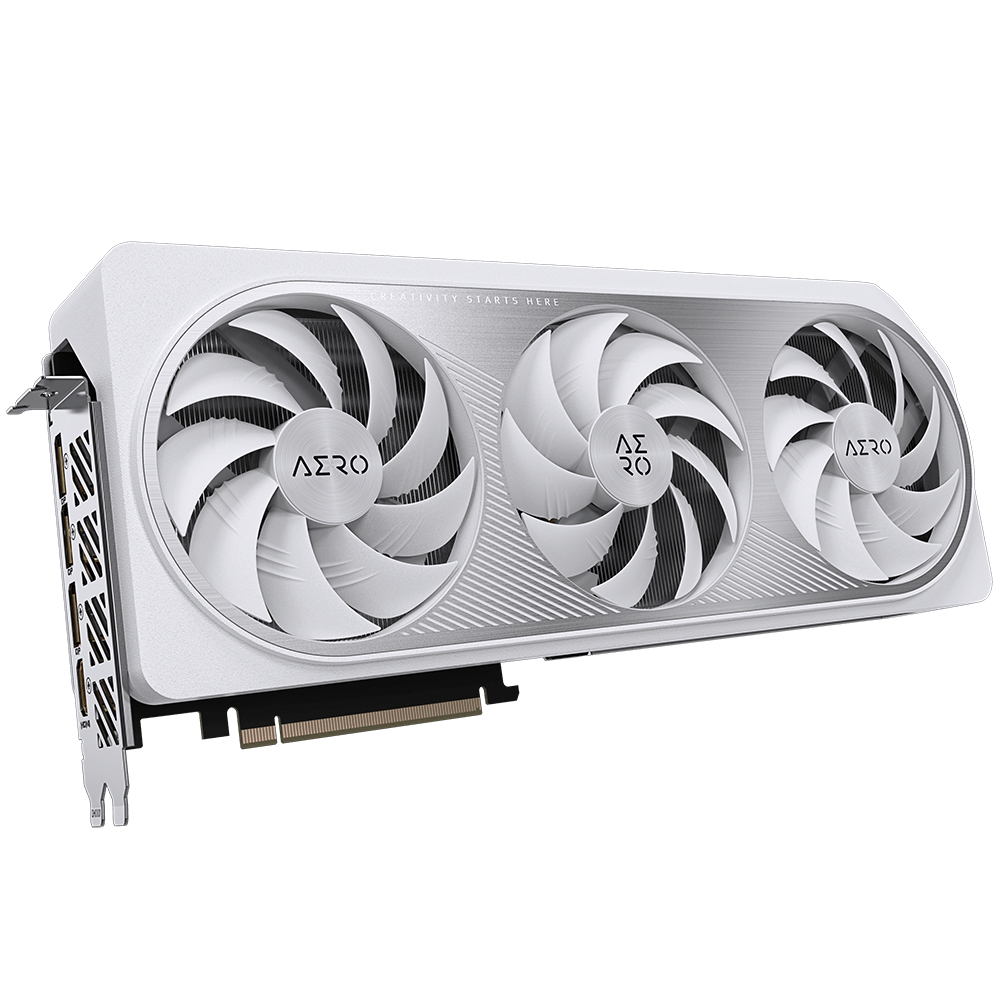

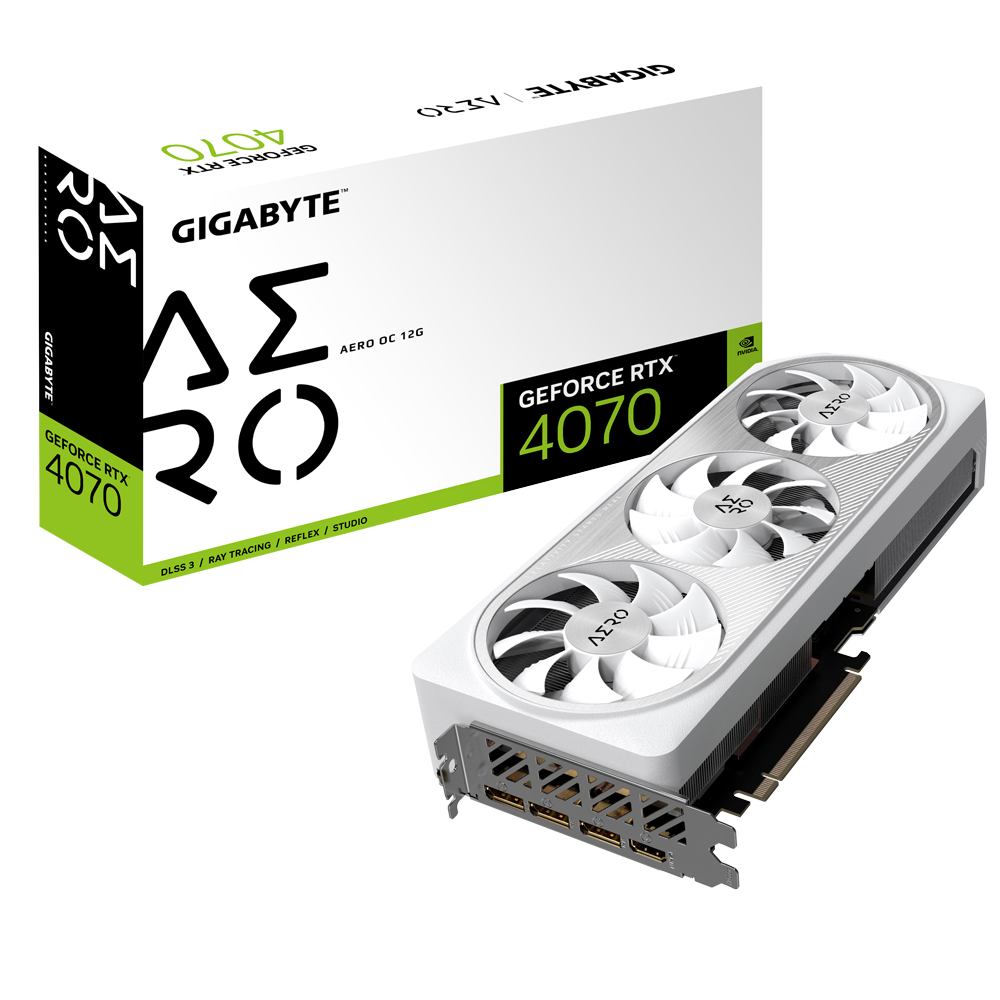

GIGABYTE GV-N4070AERO OC-12GD

GV-N4070AERO OC-12GD

Model GV-N4070AERO OC-12GDEAN 889523037164

39 specifications Checked today

TypeFull-Height/Full-Length (FH/FL)
ColourWhite
Graphics processor familyNVIDIA
Discrete graphics card memory12 GB
Interface typePCI Express 4.0
TV tuner integratedNo

See all specifications

Overview

Type: Full-Height/Full-Length (FH/FL)
Colour: White
Graphics processor family: NVIDIA
Discrete graphics card memory: 12 GB
Interface type: PCI Express 4.0
TV tuner integrated: No

Brand: GIGABYTE
Category: GPU
Model: GV-N4070AERO OC-12GD
Part number: GV-N4070AERO OC-12GD
EAN / UPC: 889523037164, 4719331312992
Also known as: GIGABYTE AERO GV-N4070AERO OC-12GD graphics card NVIDIA GeForce RTX 4070 12 GB GDDR6X

Specifications

39 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 4070
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	5888
Processor frequency	2475 MHz
Processor boost clock speed	2565 MHz
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	12 GB
Graphics card memory type	GDDR6X
Memory bus	192 bit
Data transfer rate	21 Gbit/s

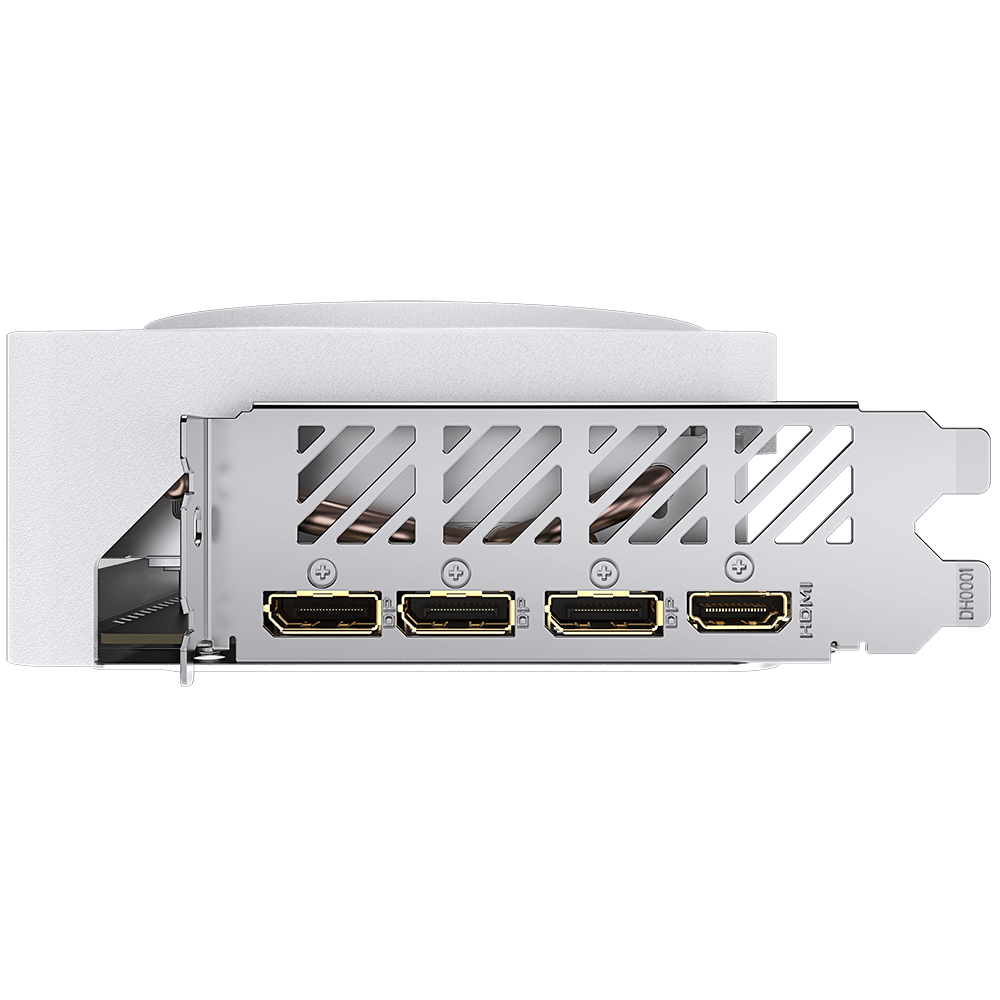

Ports & interfaces

Specification	Value
Interface type	PCI Express 4.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.1a
DisplayPort version	1.4a

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12 Ultimate
Shader model version	No
OpenGL version	4.6

Design

Specification	Value
Cooling type	Active
Cooling technology	GIGABYTE WINDFORCE 3X
Number of fans	3 fan(s)
Bracket height	Full-Height (FH)
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	1
Product colour	White

Power

Specification	Value
Minimum system power supply	700 W
Supplementary power connectors	1x 16-pin

Weight & dimensions

Specification	Value
Length	300 mm
Depth	57.6 mm
Height	130 mm

Packaging data

Specification	Value
Package type	Box

Packaging content

Specification	Value
Power cord included	Yes
Quick installation guide	Yes
User guide	Yes
